Heating & Air Conditioning - Cooler Piping

44 part groups · 6 illustrations

Illustrations

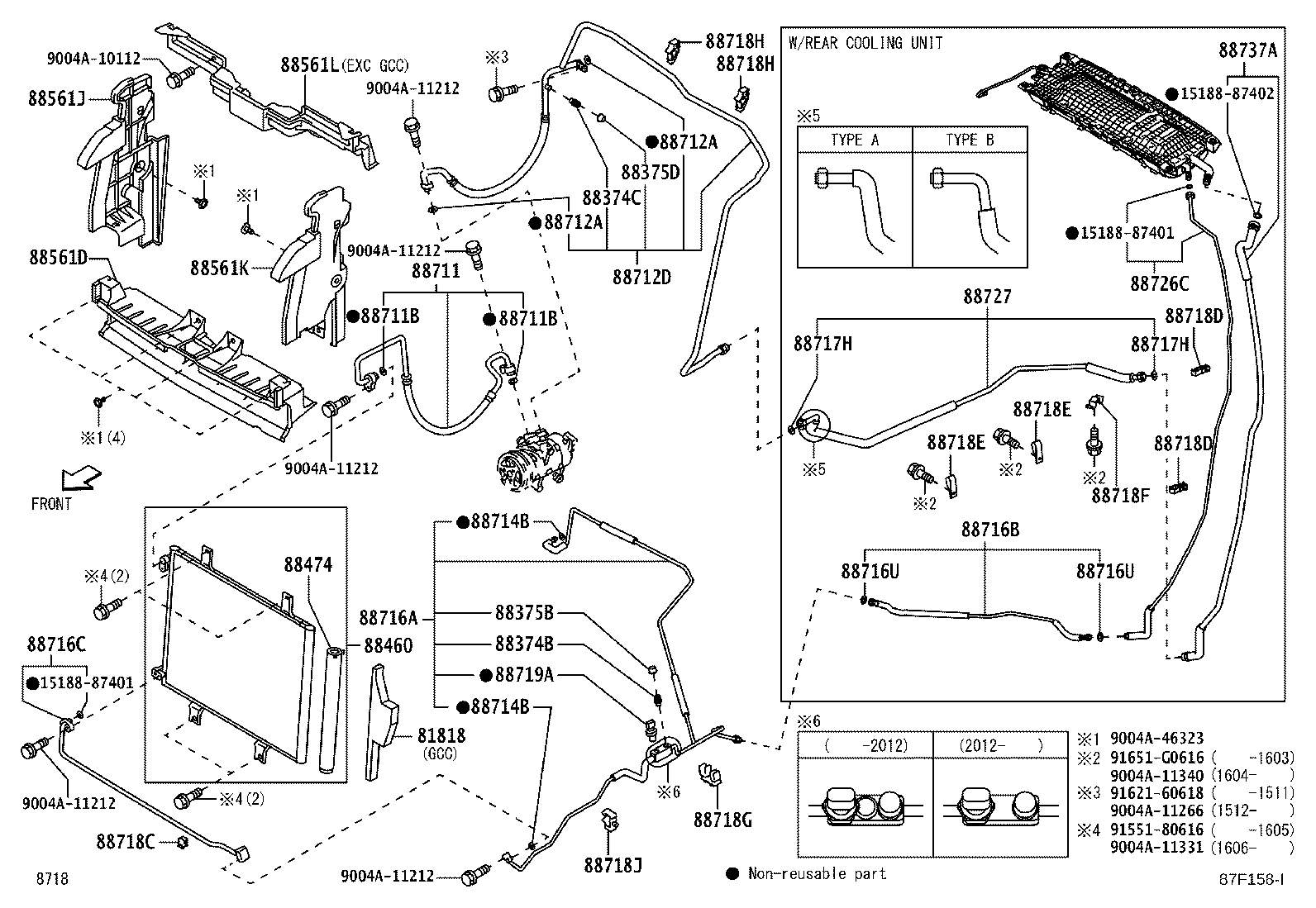

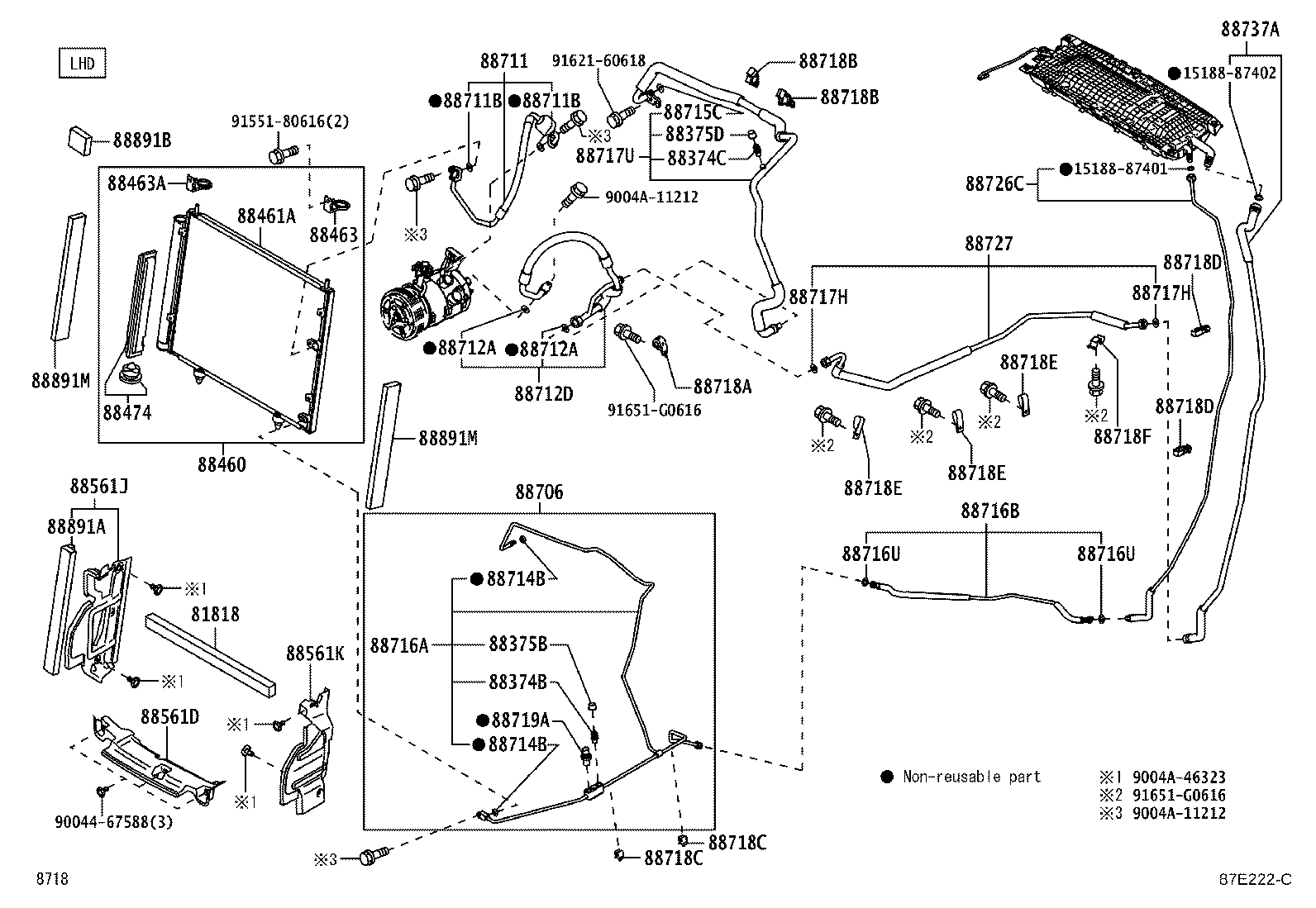

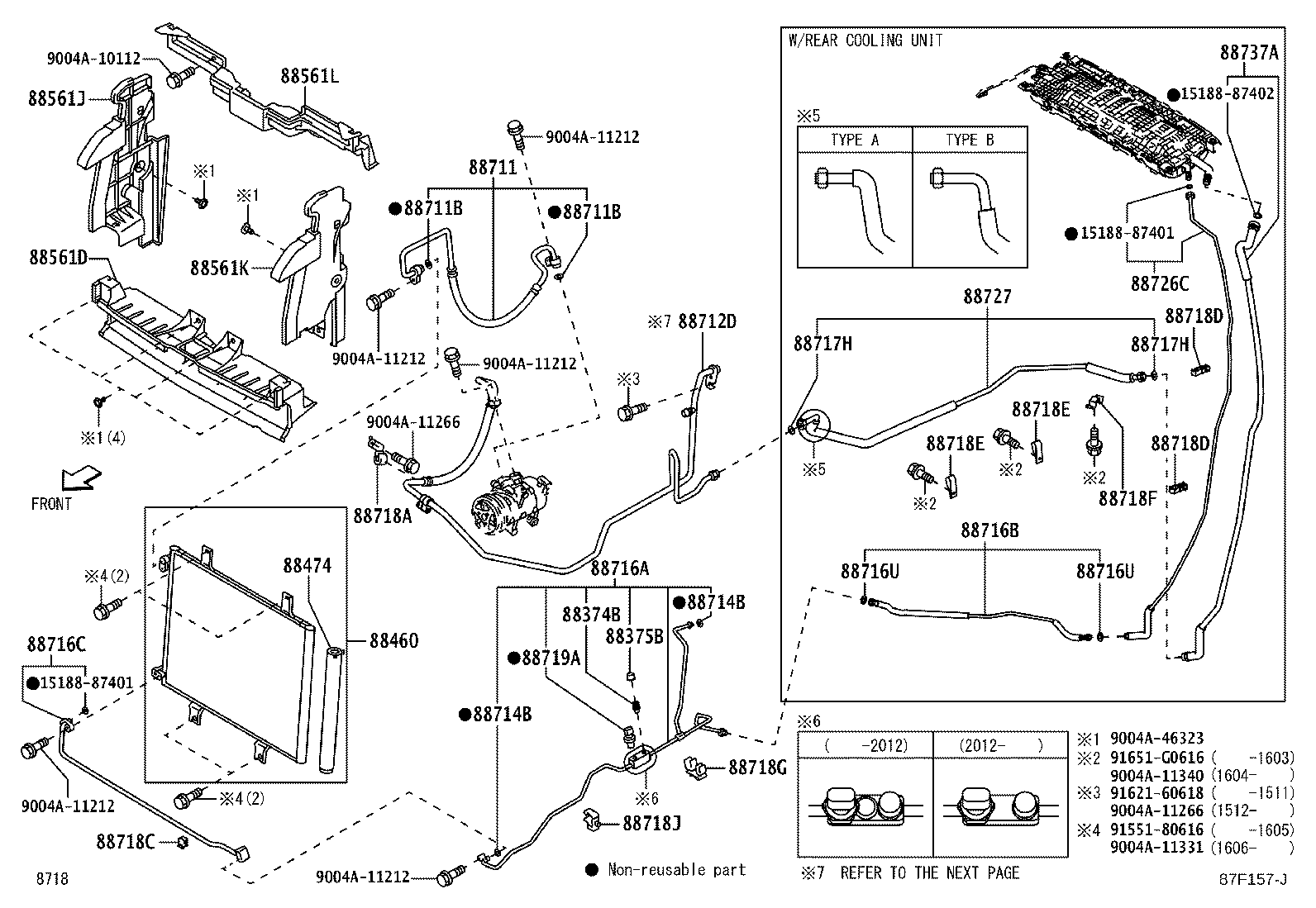

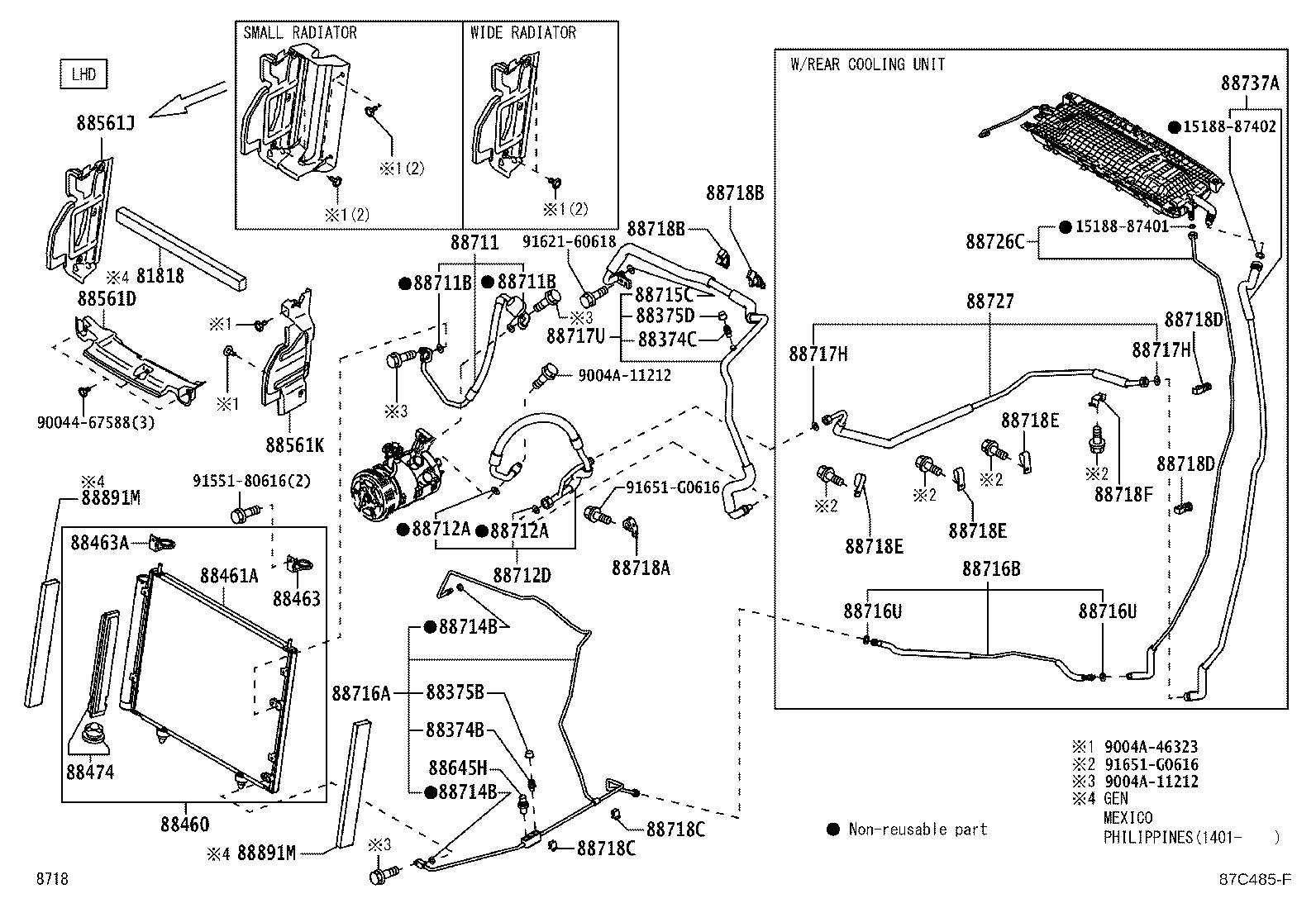

Figure 87C484G 87C484G 2011-11 → 2015-08 Figure 87C485F 87C485F 2011-11 → 2015-08 Figure 87E222C 87E222C 2014-04 → 2015-08 Figure 87F157J 87F157J 2015-07 → — Figure 87M4EK 87M4EK 2015-07 → — Figure 87F158I 87F158I 2015-08 → —

Part groups

PNCDescription
81818 Packing
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88474 Dryer, Cooler
88561D Grille, Air Inlet NO.3
88561J Grille, Air Inlet NO.1
88561K Grille, Air Inlet NO.2
88561L Grille, Air Inlet NO.4
88645H Switch, Pressure NO.1
88706 Pipe Sub-assy, Liquid
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88712D Hose, Suction
88714B Ring, O(FOR COOLER REFRIGERANT LIQUID HOSE)
88715C Ring, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88717U Tube, Suction, NO.1
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88718E Clamp, NO.5(FOR COOLER REFRIGERANT PIPE)
88718F Clamp, NO.1(FOR COOLER REFRIGERANT HOSE)
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718H Clamp, NO.3(FOR COOLER REFRIGERANT HOSE)
88718J Clamp, NO.4(FOR COOLER REFRIGERANT HOSE)
88719A Sensor, Air Conditioner Pressure
88726C Pipe, Cooler Refrigerant Liquid, C
88727 Tube, Suction, NO.2
88737A Tube, Suction, A(FOR COOL BOX)
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891M Packing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
