Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

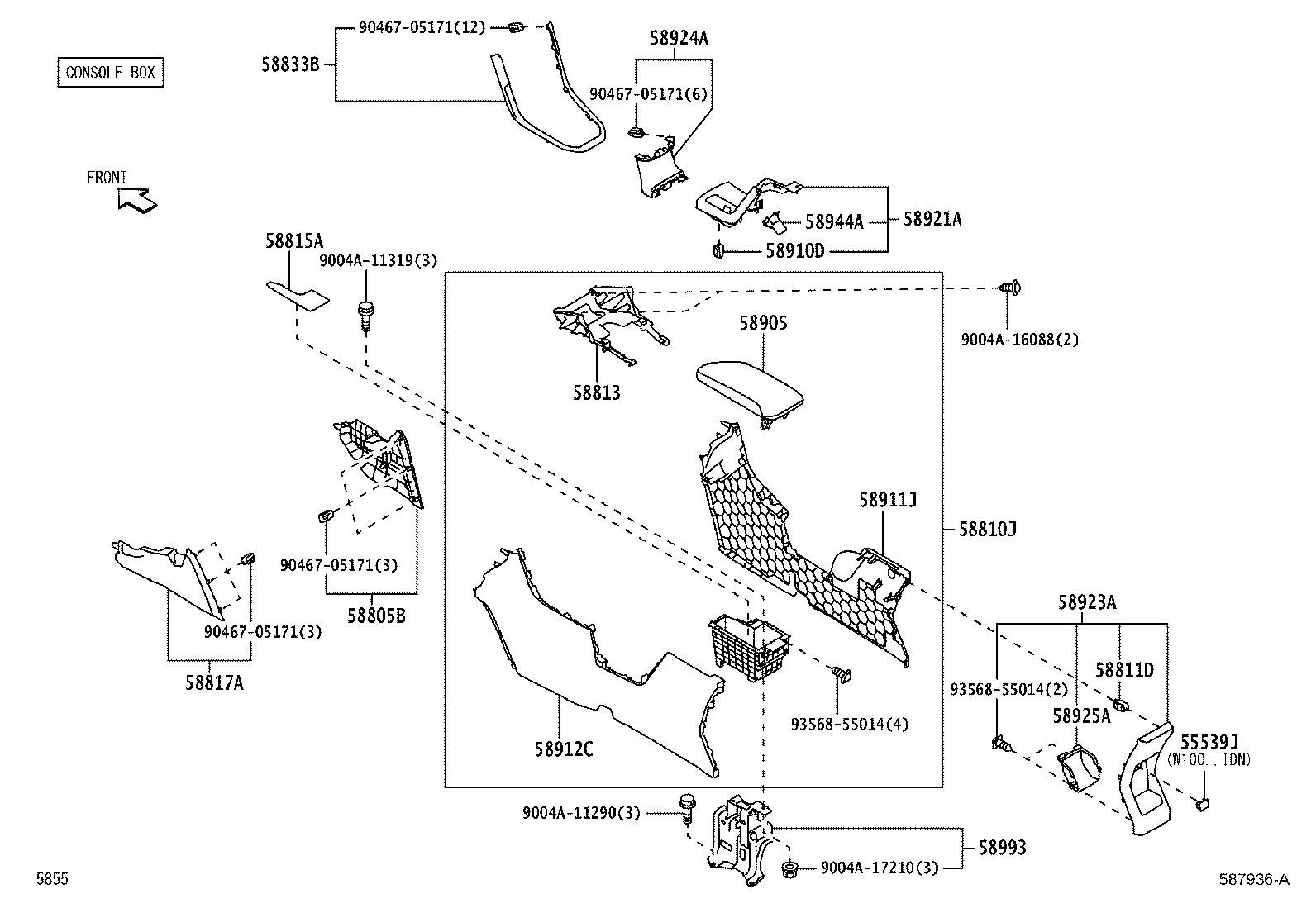

Exploded illustration 587936A 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9004A17210 — not listed in this catalogue 9356855014 — not listed in this catalogue 58805B — PANEL SUB-ASSY, CONSOLE, LOWER (2 parts) 58817A — INSERT, CONSOLE BOX, FRONT NO.2 (2 parts) 58910D — CLIP(FOR CONSOLE BOX) (1 parts) 58944A — COVER, CONSOLE, REAR (2 parts) 58813 — BOX, CONSOLE, UPPER (2 parts) 9356855014 — not listed in this catalogue 58911J — PANEL, BOX SIDE, NO.1 (2 parts) 58912C — PANEL, BOX SIDE, NO.2 (2 parts) 58815A — CARPET, CONSOLE BOX (2 parts) 58905 — DOOR SUB-ASSY, CONSOLE COMPARTMENT (2 parts) 58810J — BOX ASSY, CONSOLE (2 parts) 58923A — PANEL, CONSOLE REAR END (2 parts) 58993 — BRACKET, CONSOLE BOX MOUNTING, REAR (2 parts) 9004A11290 — not listed in this catalogue 9004A11319 — not listed in this catalogue 9004A16088 — not listed in this catalogue 55539J — COVER, SPARE SWITCH HOLE (1 parts) 58811D — CLIP(FOR CONSOLE BOX) (2 parts) 58925A — POCKET, CONSOLE BOX, REAR (2 parts) 58833B — GARNISH, CONSOLE UPPER PANEL, NO.1 (3 parts) 58924A — PANEL, CONSOLE REAR END, NO.2 (2 parts) 58921A — PANEL, REAR CONSOLE, UPPER (2 parts) 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue
587936A · 18 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
55539J — Cover, Spare Switch Hole
55539-BZ160-C0 note Cover, Spare Switch Hole
2021-11 → —
W100 IDN —
58805B — Panel Sub-assy, Console, Lower
58805-BZ020-C0 note Panel Sub-assy, Console, Lower
2021-11 → —
W100,101 RHD —
58817-BZ030-C0 note Panel Sub-assy, Console, Lower
2022-01 → —
W100,101 LHD —
58810J — Box Assy, Console
58810-BZ100-C3 note Box Assy, Console
2021-11 → —
W101 S,V —
58810-BZ110-C1 note Box Assy, Console
2021-11 → —
W100,101 D,G,M —
58811D — Clip(FOR CONSOLE BOX)
90467-05171 Clip(FOR CONSOLE BOX)
2021-11 → —
W101 S,V —
90467-05171 Clip(FOR CONSOLE BOX)
2021-11 → —
W100,101 D,G,M —
58813 — Box, Console, Upper
58813-BZ030-C0 note Box, Console, Upper
2021-11 → 2023-09 ended
W101 5F PHL —
58813-BZ030-C0 note Box, Console, Upper
2021-11 → —
W100;W101 CVT M PHL;W101 +2 —
58815A — Carpet, Console Box
58815-BZ080 Carpet, Console Box
2021-11 → —
W100,101 D,G,M —
58815-BZ100 Carpet, Console Box
2021-11 → —
W101 S,V —
58817A — Insert, Console Box, Front NO.2
58805-BZ030-C0 note Insert, Console Box, Front NO.2
2022-01 → —
W100,101 LHD —
58817-BZ020-C0 note Insert, Console Box, Front NO.2
2021-11 → —
W100,101 RHD —
58833B — Garnish, Console Upper Panel, NO.1
58833-BZ100-B0 note Garnish, Console Upper Panel, NO.1
2021-11 → —
W101 S,V —
58833-BZ110-C0 note Garnish, Console Upper Panel, NO.1
2021-11 → —
W100;W101 (G,M) (GEN,MXC,PHL,VN) —
58833-BZ150-B0 note Garnish, Console Upper Panel, NO.1
2021-11 → —
W101 M IDN —
58905 — Door Sub-assy, Console Compartment
58905-BZ010-C2 note Door Sub-assy, Console Compartment
2021-11 → —
W101 S,V —
58905-BZ020-C0 note Door Sub-assy, Console Compartment
2021-11 → —
W100,101 D,G,M —
58910D — Clip(FOR CONSOLE BOX)
90467-05171 Clip(FOR CONSOLE BOX)
2021-11 → —
W100,101 D,G,M —
58911J — Panel, Box Side, NO.1
58911-BZ190-C2 note Panel, Box Side, NO.1
2021-11 → —
W101 S,V —
58911-BZ200-C0 note Panel, Box Side, NO.1
2021-11 → —
W100,101 D,G,M —
58912C — Panel, Box Side, NO.2
58912-BZ040-C2 note Panel, Box Side, NO.2
2021-11 → —
W101 S,V —
58912-BZ050-C0 note Panel, Box Side, NO.2
2021-11 → —
W100,101 D,G,M —
58921A — Panel, Rear Console, Upper
58921-BZ090-C0 note Panel, Rear Console, Upper
2021-11 → 2023-09 ended
W101 5F PHL —
58921-BZ090-C0 note Panel, Rear Console, Upper
2021-11 → —
W100;W101 CVT M PHL;W101 +2 —
58923A — Panel, Console Rear End
58923-BZ020-C0 note Panel, Console Rear End
2021-11 → —
W101 S,V —
58923-BZ030-C0 note Panel, Console Rear End
2021-11 → —
W100,101 D,G,M —
58924A — Panel, Console Rear End, NO.2
58924-BZ010-C0 note Panel, Console Rear End, NO.2
2021-11 → 2023-09 ended
W101 5F PHL —
58924-BZ010-C0 note Panel, Console Rear End, NO.2
2021-11 → —
W100;W101 CVT M PHL;W101 +2 —
58925A — Pocket, Console Box, Rear
58925-BZ010-C0 note Pocket, Console Box, Rear
2021-11 → 2023-09 ended
W101 5F PHL —
58925-BZ010-C0 note Pocket, Console Box, Rear
2021-11 → —
W100;W101 CVT M PHL;W101 +2 —
58944A — Cover, Console, Rear
58944-BZ010 Cover, Console, Rear
2021-11 → 2023-09 ended
W101 5F PHL —
58944-BZ010 Cover, Console, Rear
2021-11 → —
W100;W101 CVT M PHL;W101 +2 —
58993 — Bracket, Console Box Mounting, Rear
58993-BZ030 Bracket, Console Box Mounting, Rear
2021-11 → —
W100,101 D,G,M —
58993-BZ070 Bracket, Console Box Mounting, Rear
2021-11 → —
W101 S,V —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
