Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11
Mounting

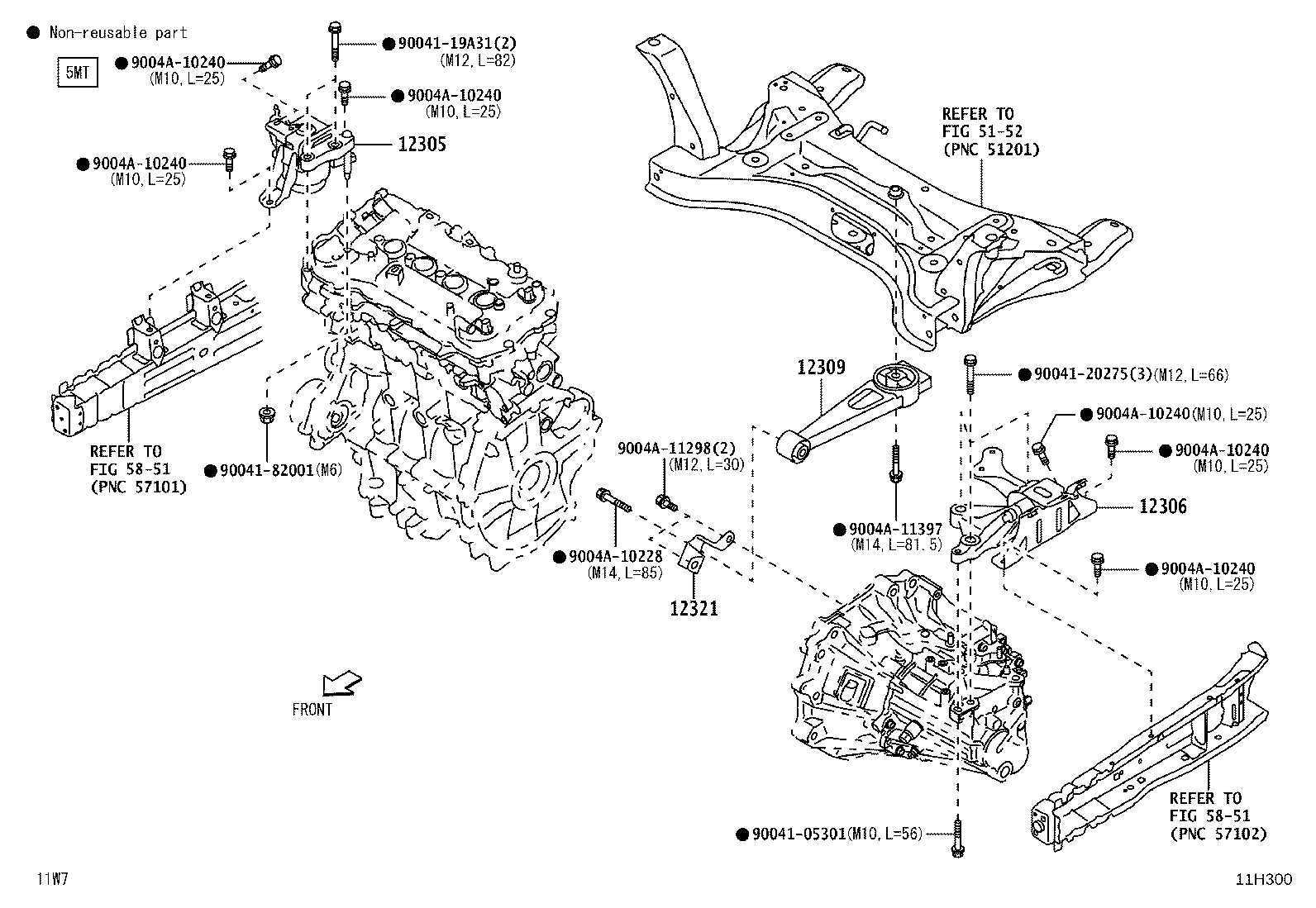

4 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12306 | Insulator Sub-assy, Engine Mounting, LH |
| 12309 | Rod Sub-assy, Engine Moving Control |
| 12321 | Bracket, Engine Mounting, Rear, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
