Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11
Radiator & Water Outlet

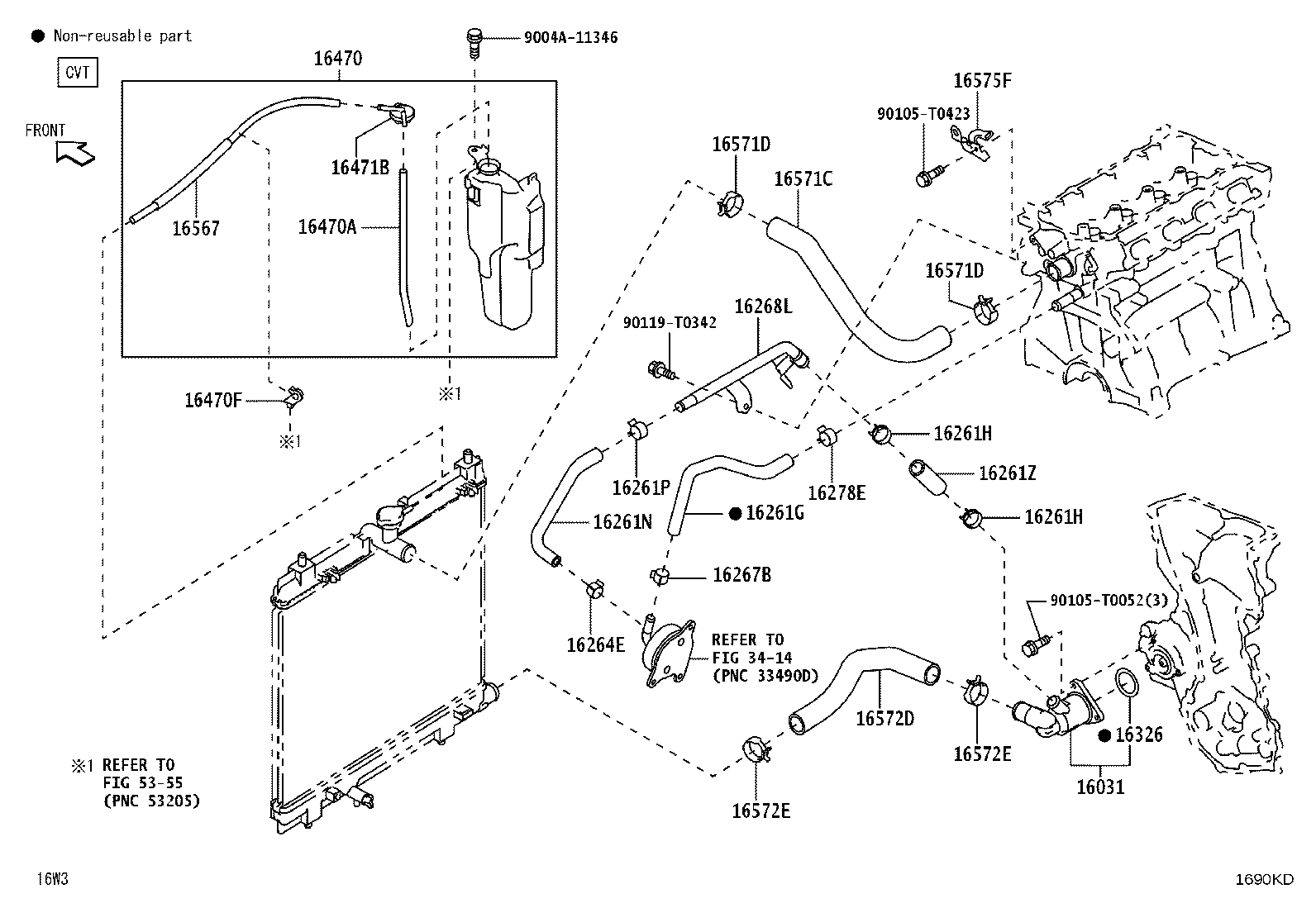

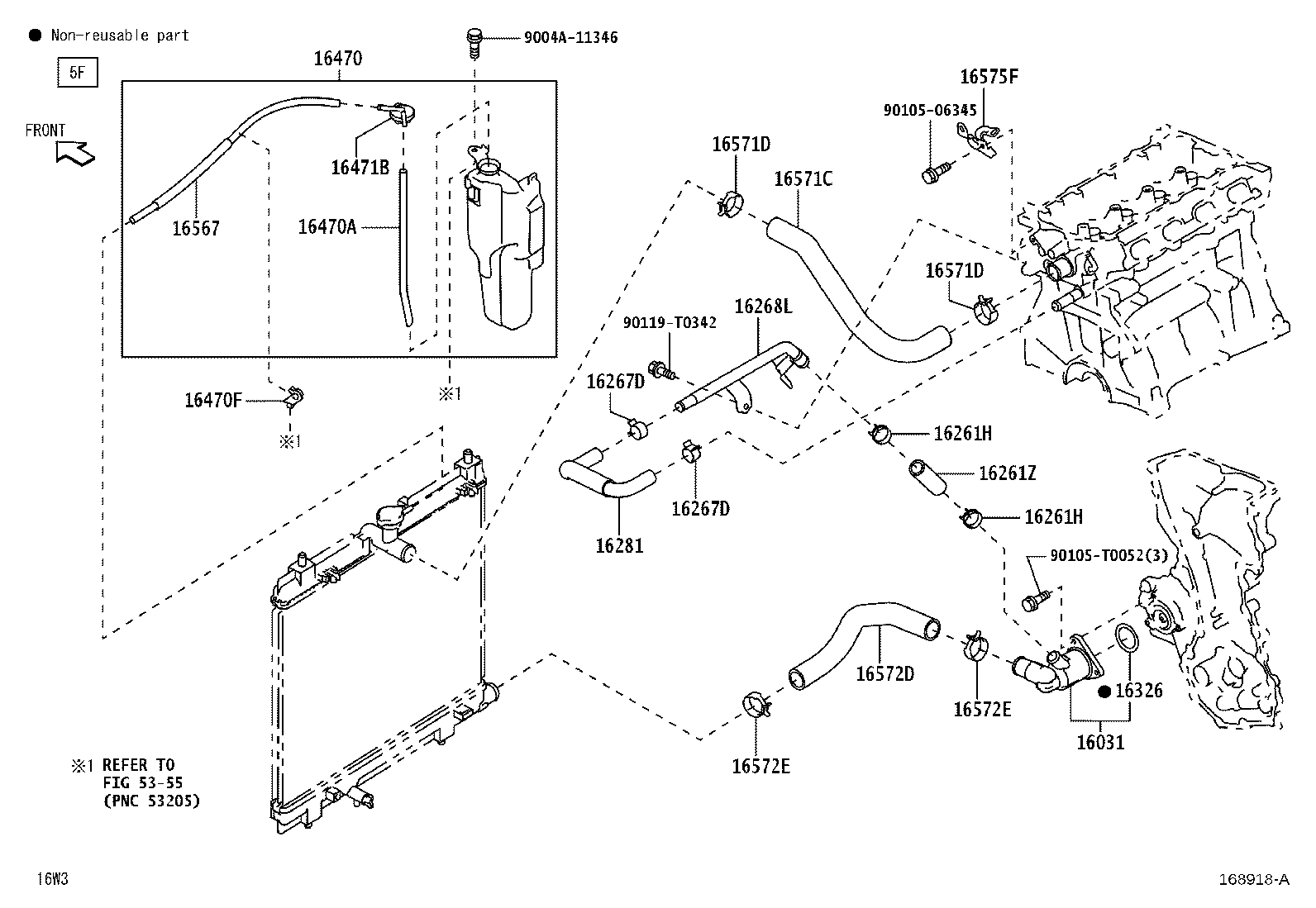

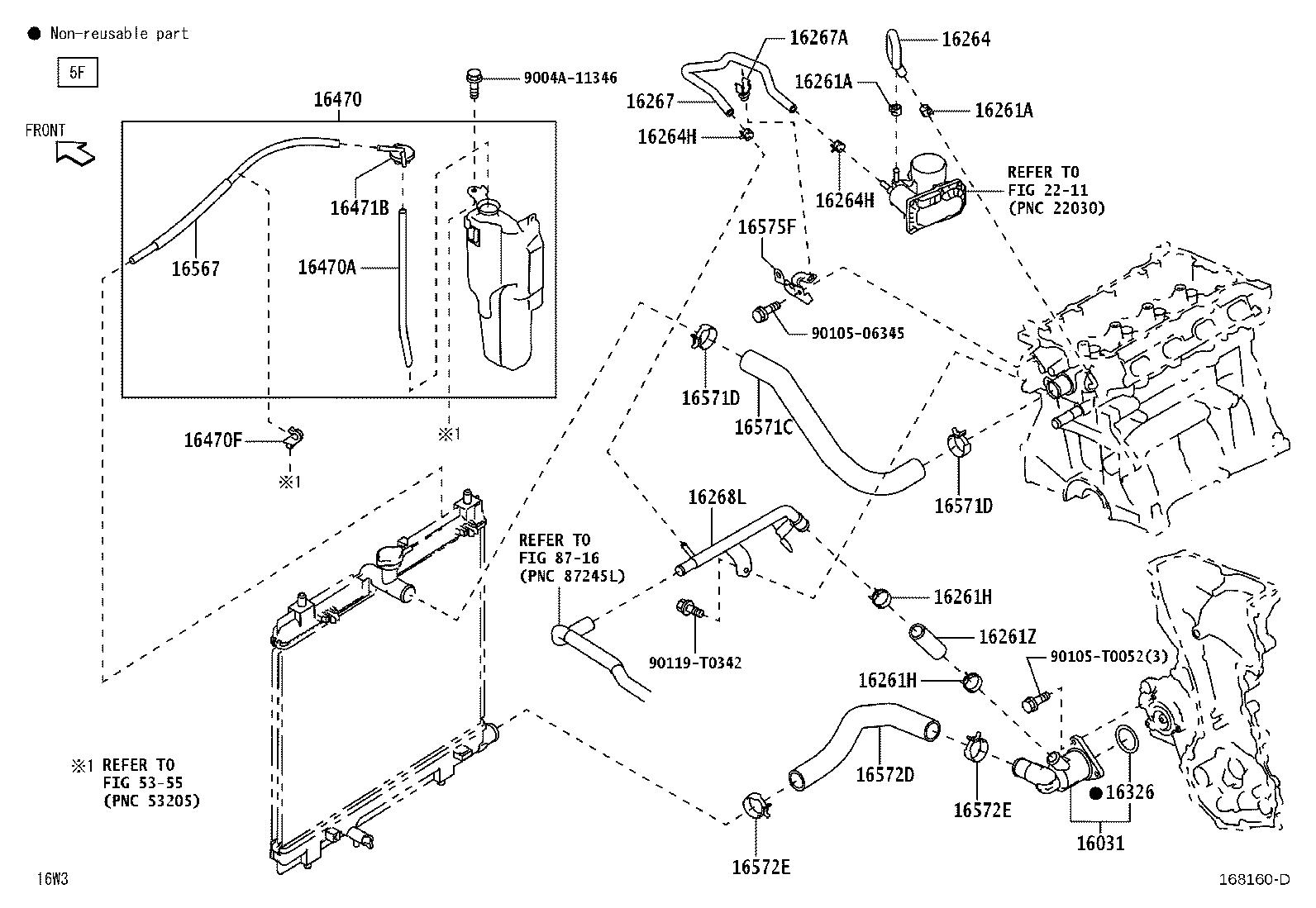

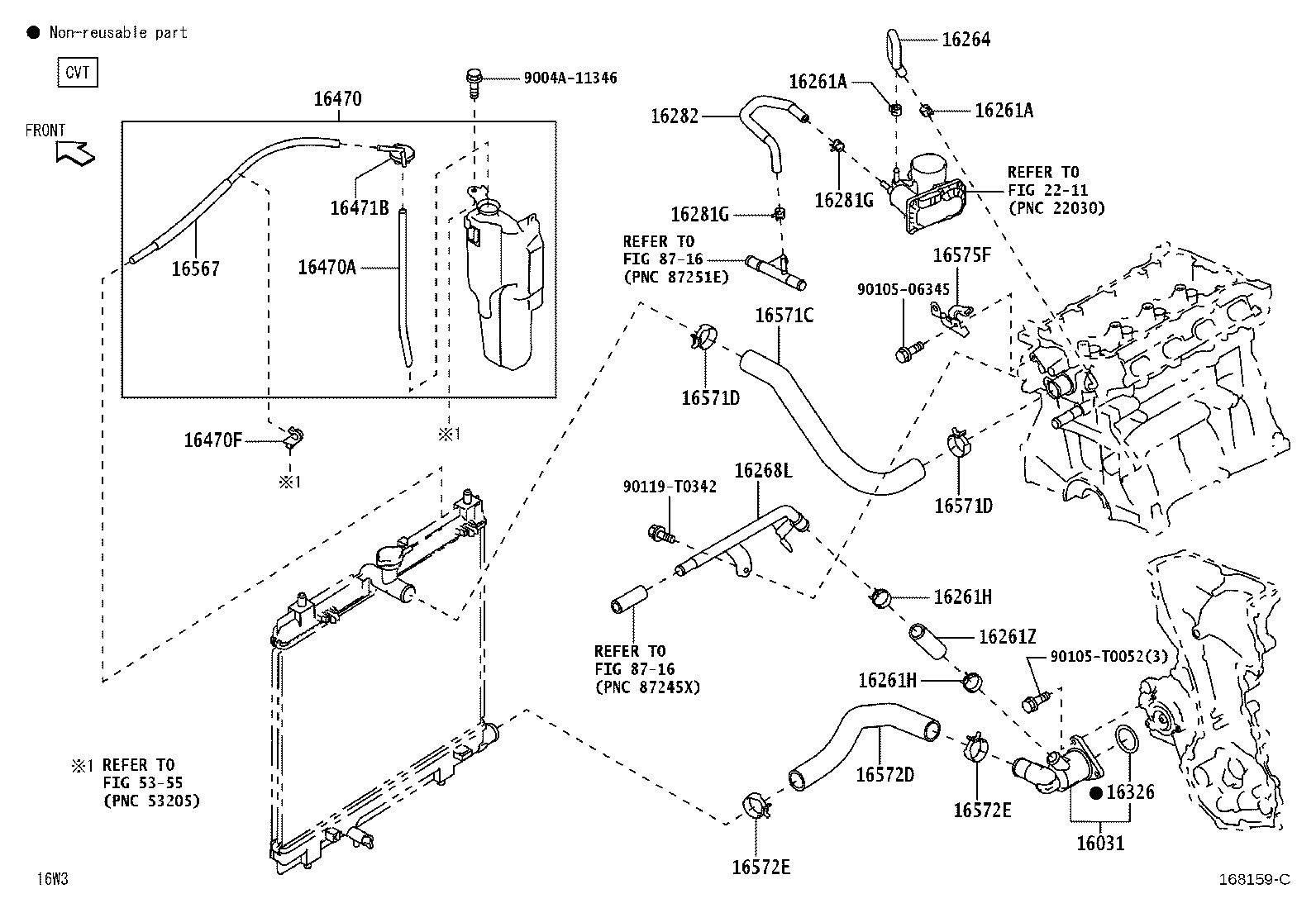

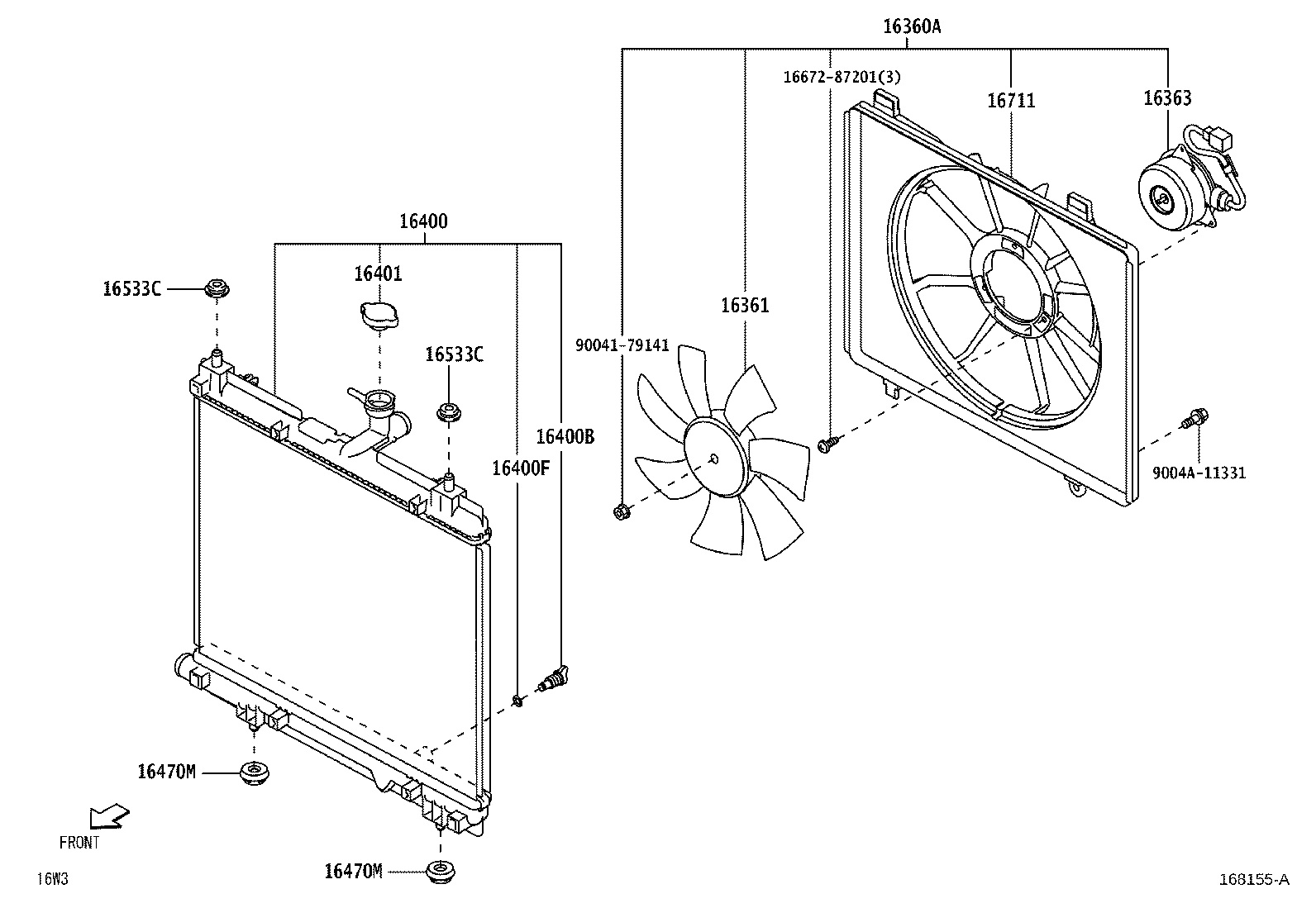

58 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16261R | Clamp OR Clip(FOR WATER BY-PASS HOSE) |
| 16261Z | Hose, Water By-pass, NO.1 |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16268L | Pipe, Water By-pass |
| 16274 | Plug, Water By-pass |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278E | Clip(FOR WATER BY-PASS HOSE) |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282F | Hose, Water By-pass, NO.5 |
| 16304C | Ring, O(FOR WATER OUTLET) |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16333 | Housing, Water Outlet |
| 16333B | Ring, O(FOR WATER OUTLET HOUSING) |
| 16333S | Housing, Water Outlet NO.1 |
| 16341B | Gasket, Water Inlet |
| 16360A | Fan Assy, W/Motor |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16363J | Bolt(FOR COOLING FAN MOTOR) |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470F | Clamp, Radiator Reserve Tank Hose |
| 16470M | Grommet |
| 16471B | Cap, Reserve Tank |
| 16533C | Grommet(FOR RADIATOR SUPPORT) |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16575F | Bracket, Water Hose Clamp, NO.3 |
| 16711 | Shroud, Fan |
| S1632 | Thermostat Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
