Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

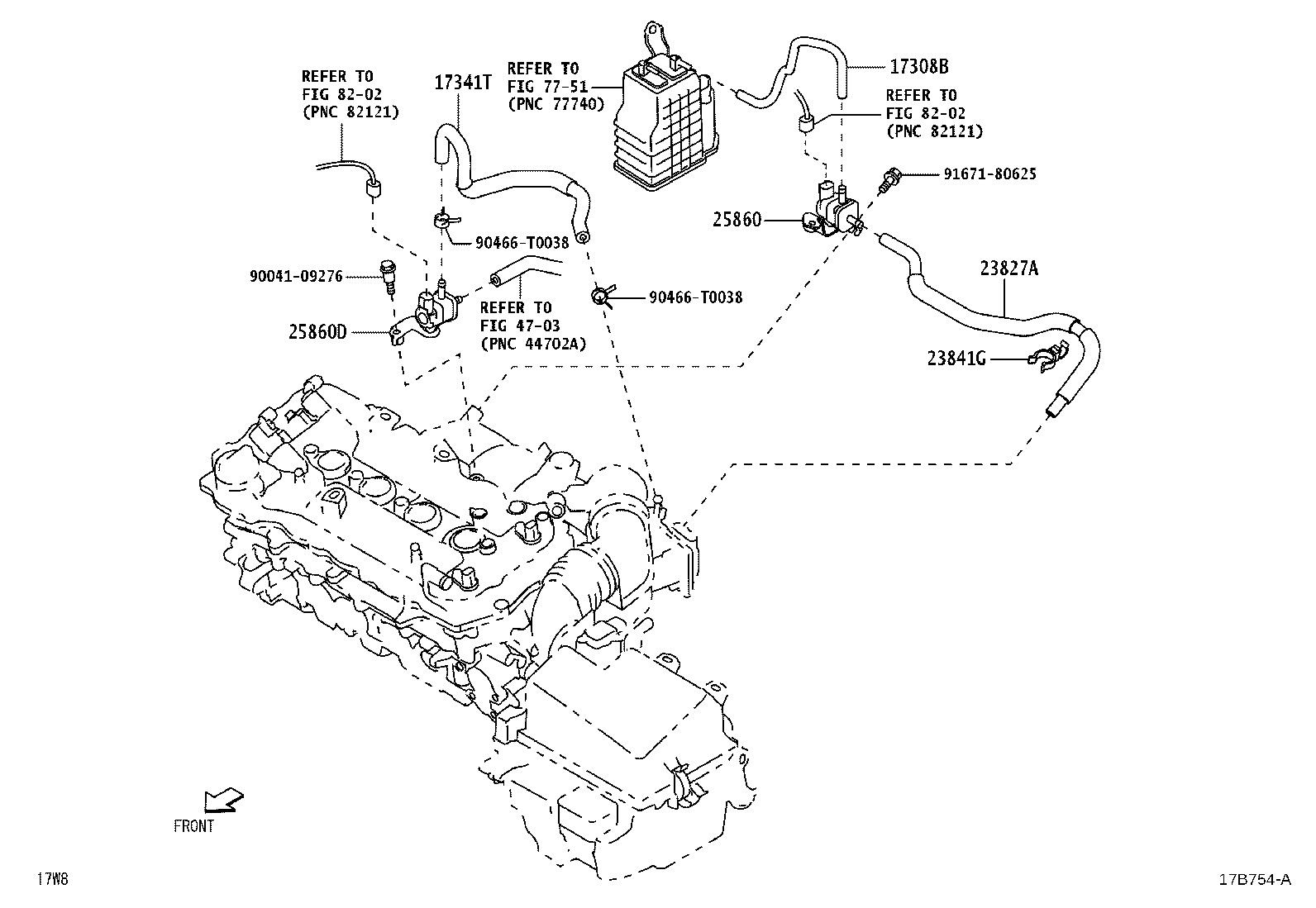

Vacuum Piping
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17308B | Hose Sub-assy, Vacuum |
| 17341T | Hose, Air, NO.1 |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23841G | Clamp, Fuel Hose |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25860D | Valve Assy, Vacuum Switching, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
