Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

3 part groups · 3 illustrations

Illustrations

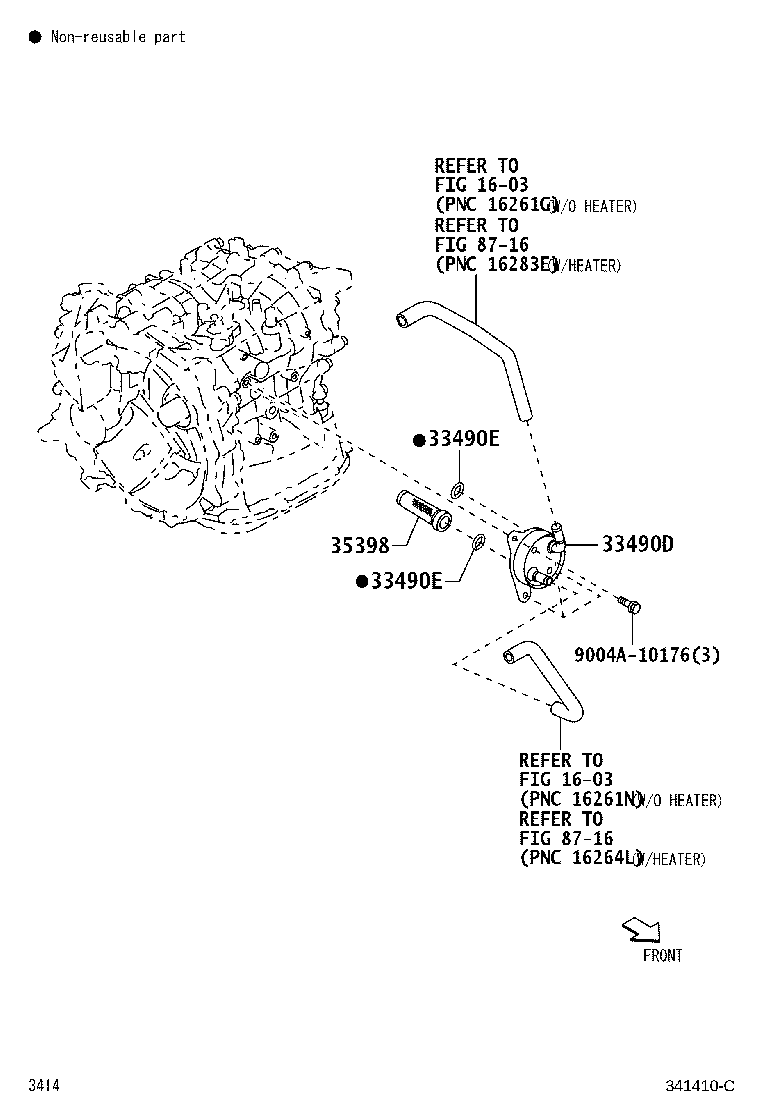

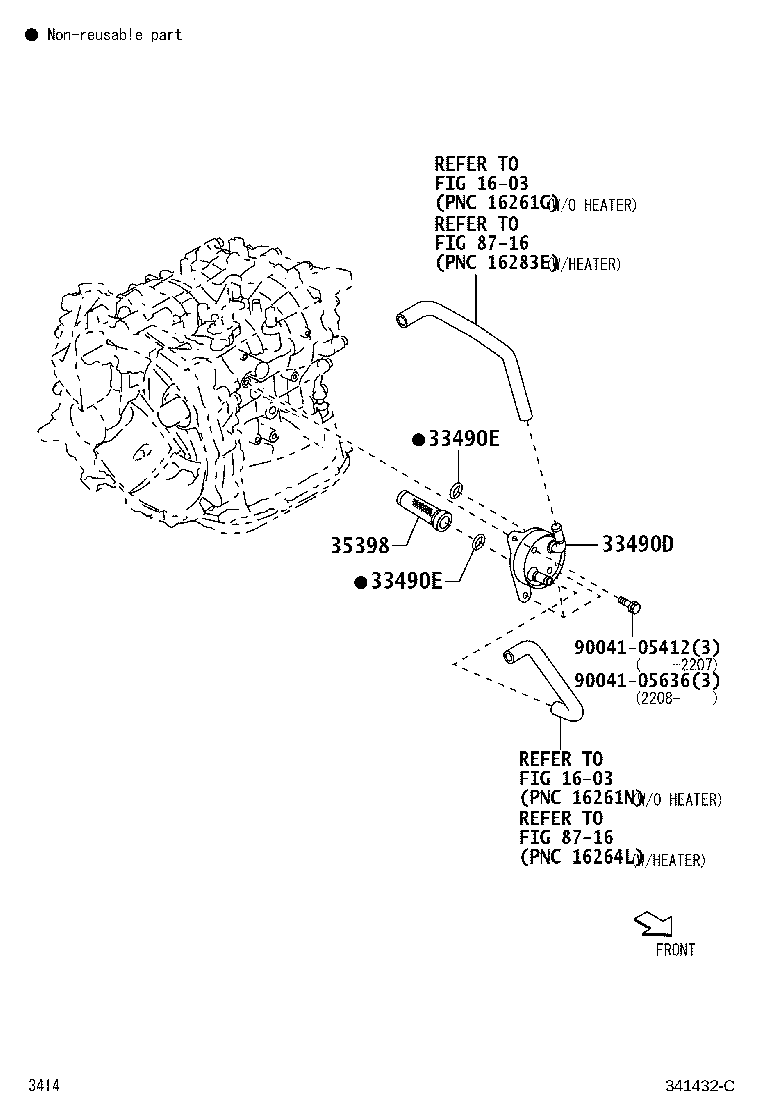

Figure 341389C 341389C 2021-11 → 2022-01 Figure 341432C 341432C 2022-01 → — Figure 341410C 341410C 2022-11 → —

Part groups

PNCDescription
33490D Cooler Assy, Transmission Oil
33490E Ring, O (FOR TRANSMISSION OIL COOLER)
35398 Strainer, Lubrication Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
