Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 6 illustrations

Illustrations

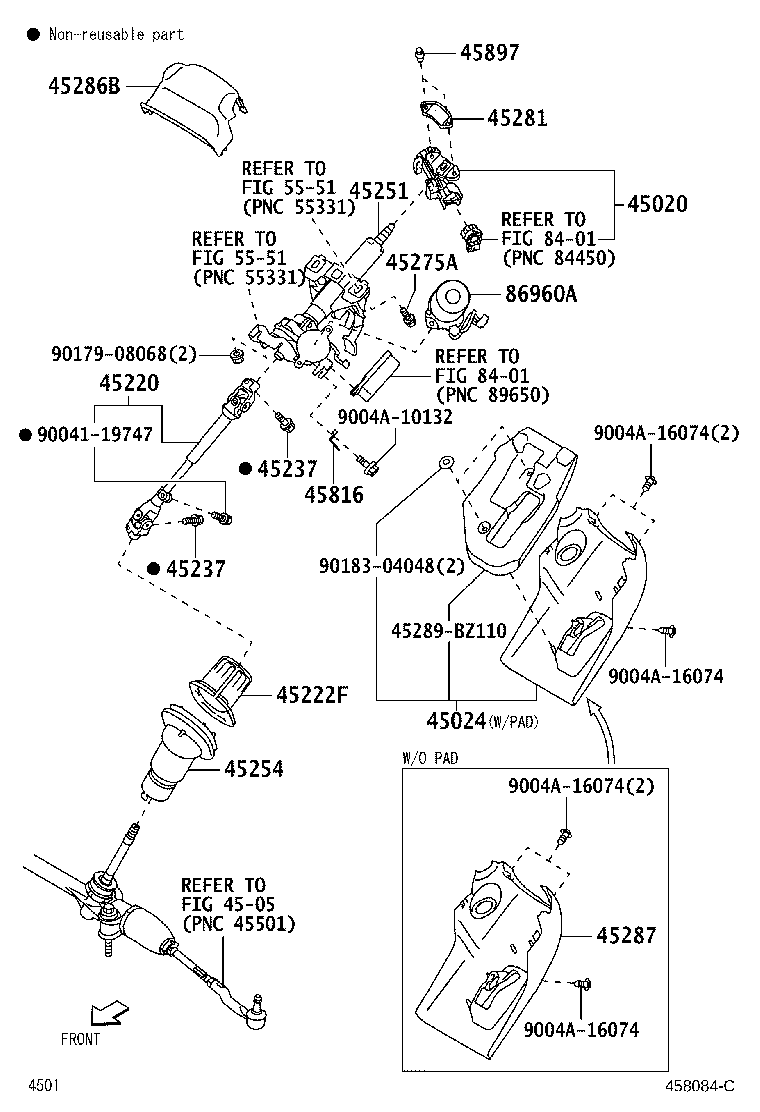

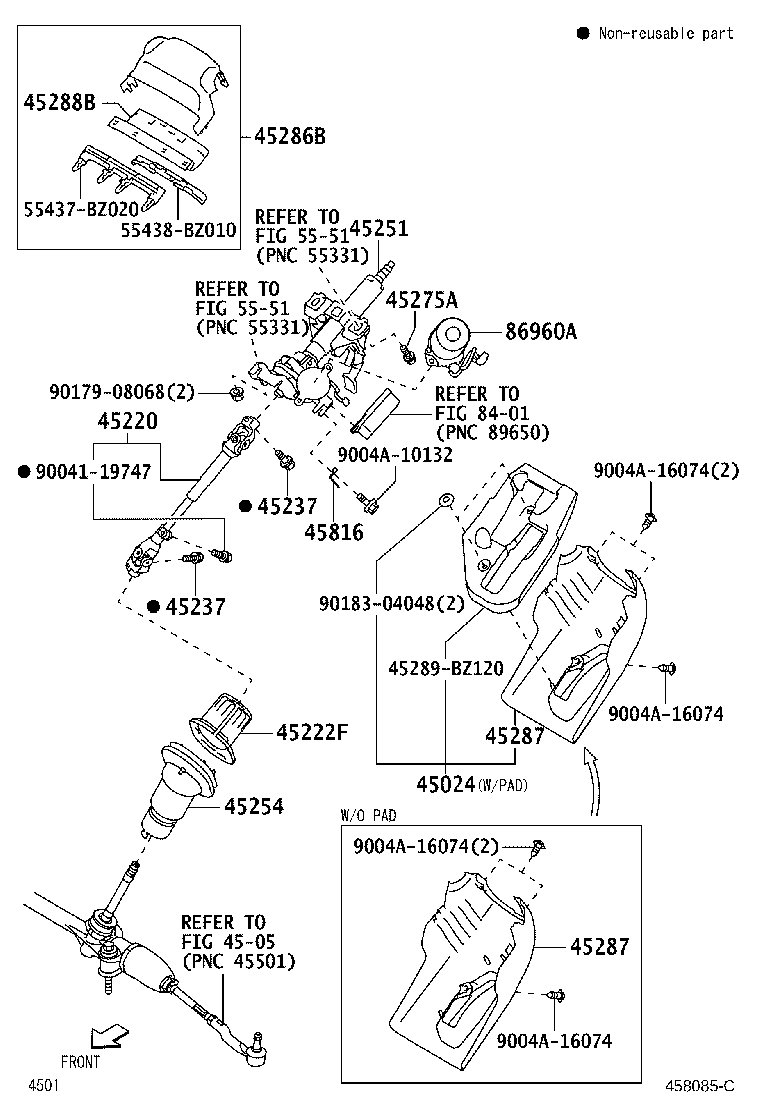

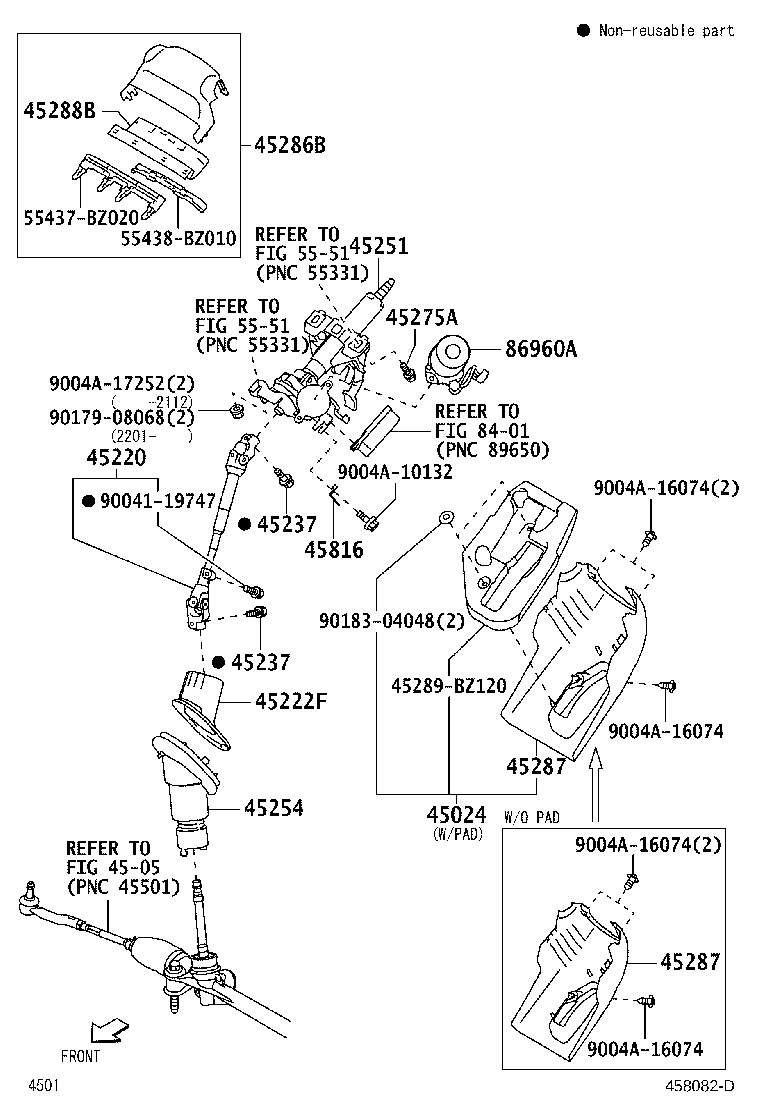

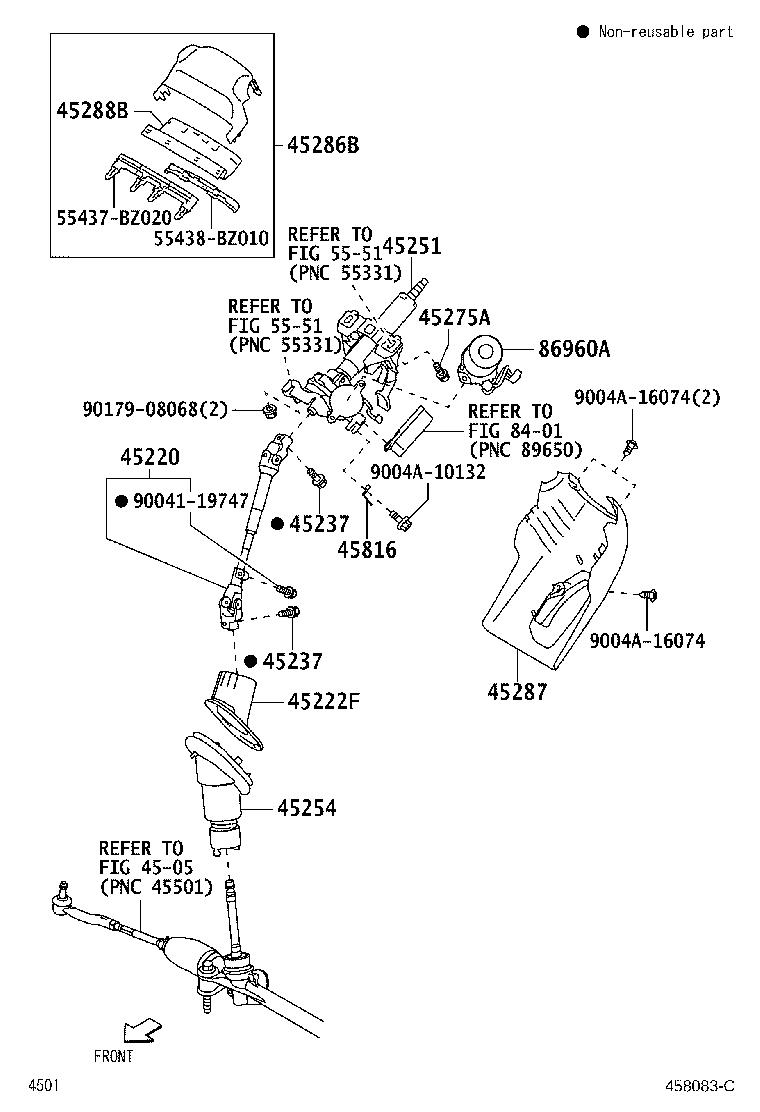

Figure 458081C 458081C 2021-11 → — Figure 458082D 458082D 2021-11 → — Figure 458083C 458083C 2022-01 → — Figure 458084C 458084C 2022-01 → — Figure 458085C 458085C 2022-01 → — Figure 458085C 458085C 2022-12 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45024 Cover Sub-assy, Steering Column, Lower
45220 Shaft Assy, Steering Intermediate
45222F Cover, Dust
45237 Bolt, Flexible Attaching(FOR STEERING MAIN SHAFT)
45251 Tube Set, Steering Column
45254 Shield, Steering Column Hole
45275A Bolt, Hexagon(FOR STEERING COLUMN BRACKET)
45281 Housing, Steering Column
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45288B Cover, Steering Column, Upper
45816 Bracket, Wire Harness
45897 Bolt, Steering Lock Set
86960A Motor Set, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
