Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

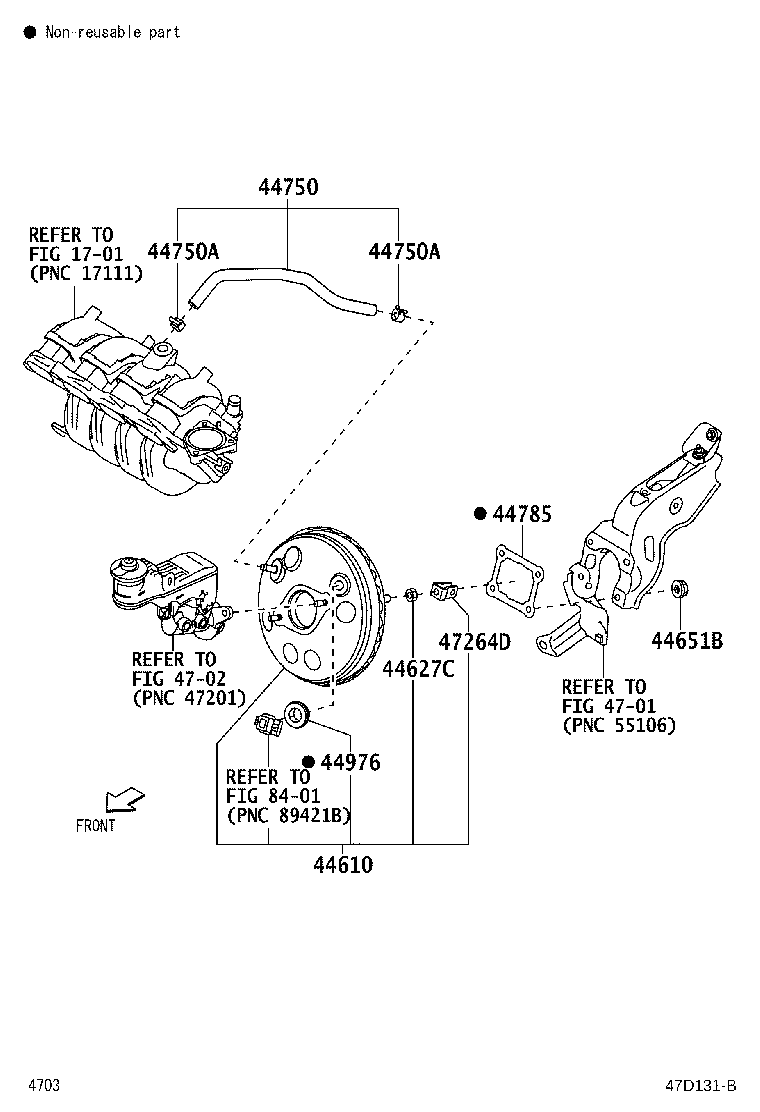

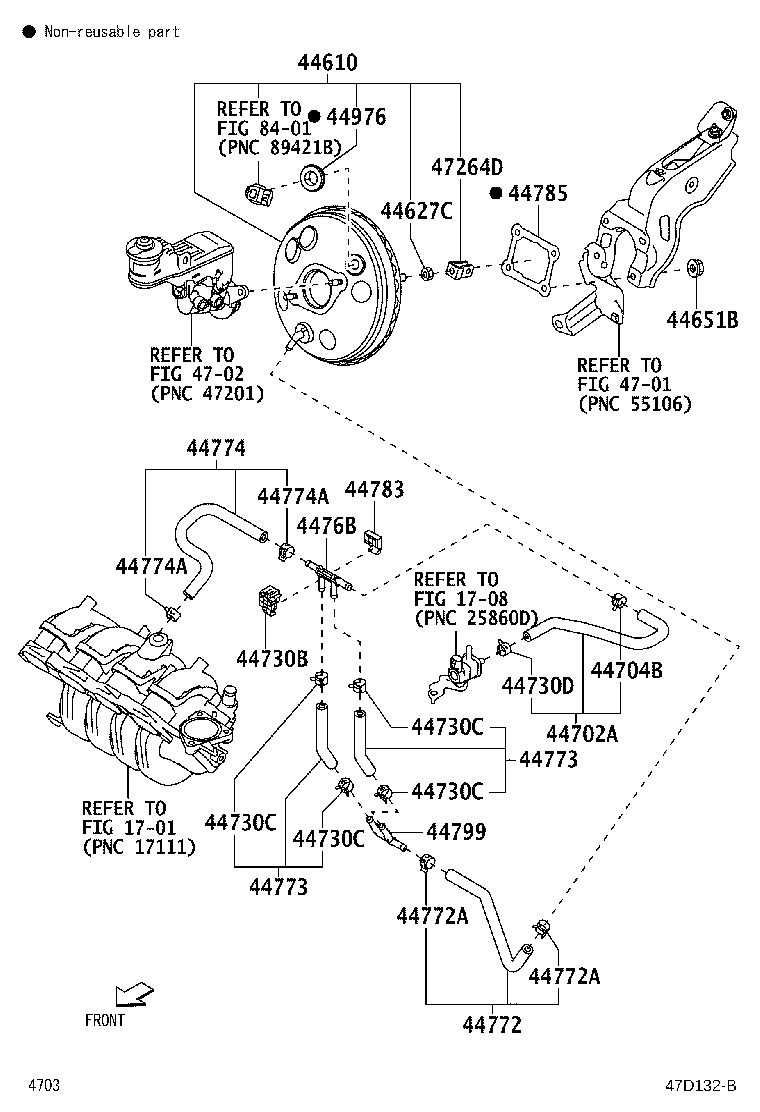

Brake Booster & Vacuum Tube
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44627C | Nut, Booster Sleeve Cylinder |
| 44651B | Nut, Booster |
| 44702A | Hose, Air, NO.1 |
| 44704B | Clip(FOR HOSE) |
| 44730B | Clamp, Vacuum Hose |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730D | Clip(FOR VACUUM HOSE, NO.1) |
| 44750 | Hose Assy, Vacuum |
| 44750A | Clip(FOR VACUUM HOSE ASSY) |
| 4476B | Ejector, Brake Booster Vacuum |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44772A | Clip(FOR CHECK VALVE TO CONNECTOR TUBE) |
| 44773 | Hose, Vacuum, NO.2 |
| 44774 | Hose, Union TO Connector Tube |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44783 | Clamp, Vacuum Hose |
| 44785 | Gasket, Brake Booster |
| 44799 | Way, Brake Vacuum Hose |
| 44976 | Seal, Booster |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
