Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

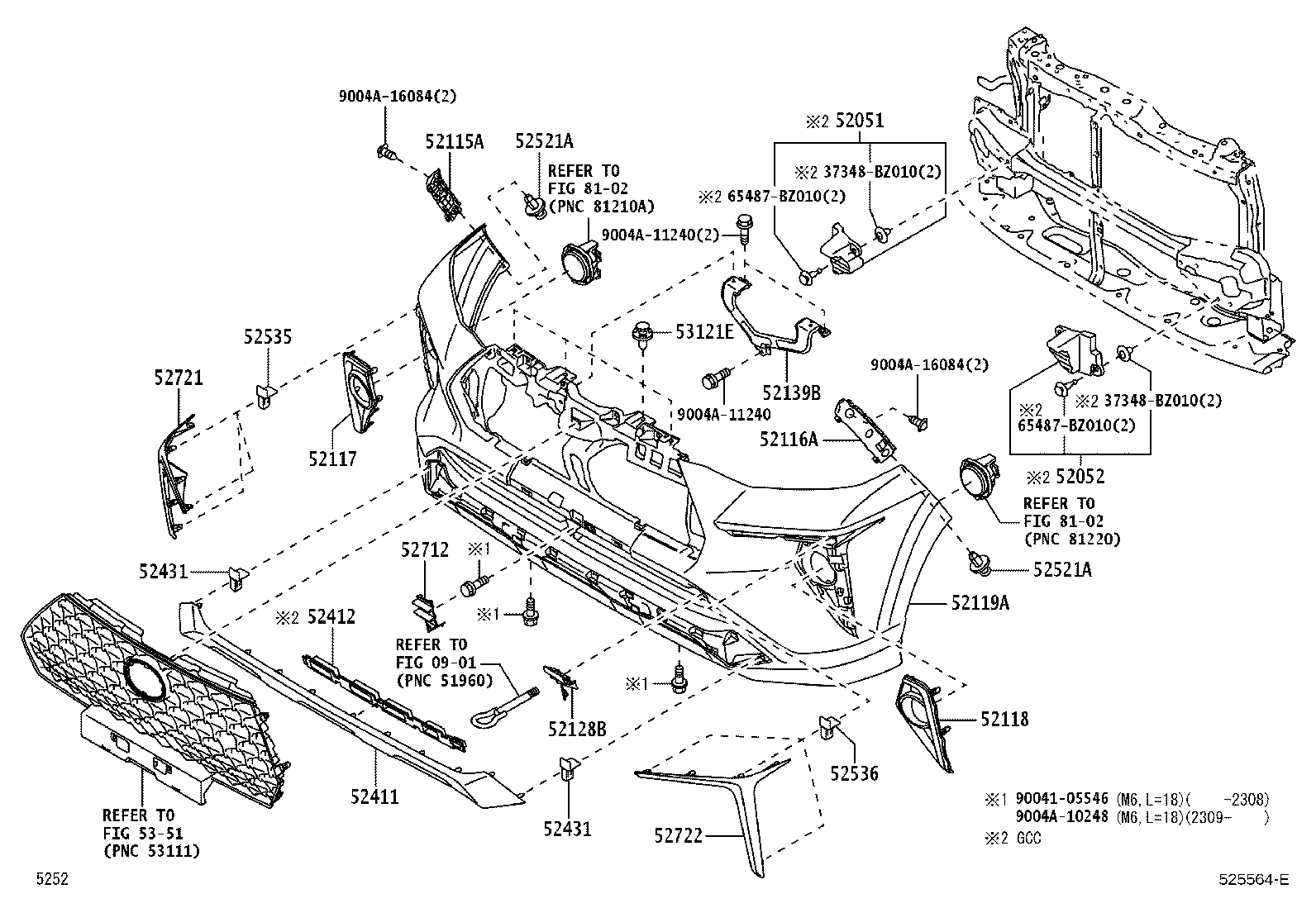

Figure 525203E 525203E 2021-11 → — Figure 525564E 525564E 2021-11 → —

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52117 Moulding, Bumper Side, RH
52118 Moulding, Bumper Side, LH
52119A Cover, Front Bumper
52128B Cover, Front Bumper Hole, LH
52139B Brace, Front Bumper, Center
52411 Guard, Front Bumper
52412 Guard, Front Bumper, NO.2
52431 Retainer, Front Bumper Guard
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52712 Moulding, Front Bumper Side, RH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53121E Clip(FOR FRONT BUMPER), NO.1
75392 Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
