Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

21 part groups · 2 illustrations

Illustrations

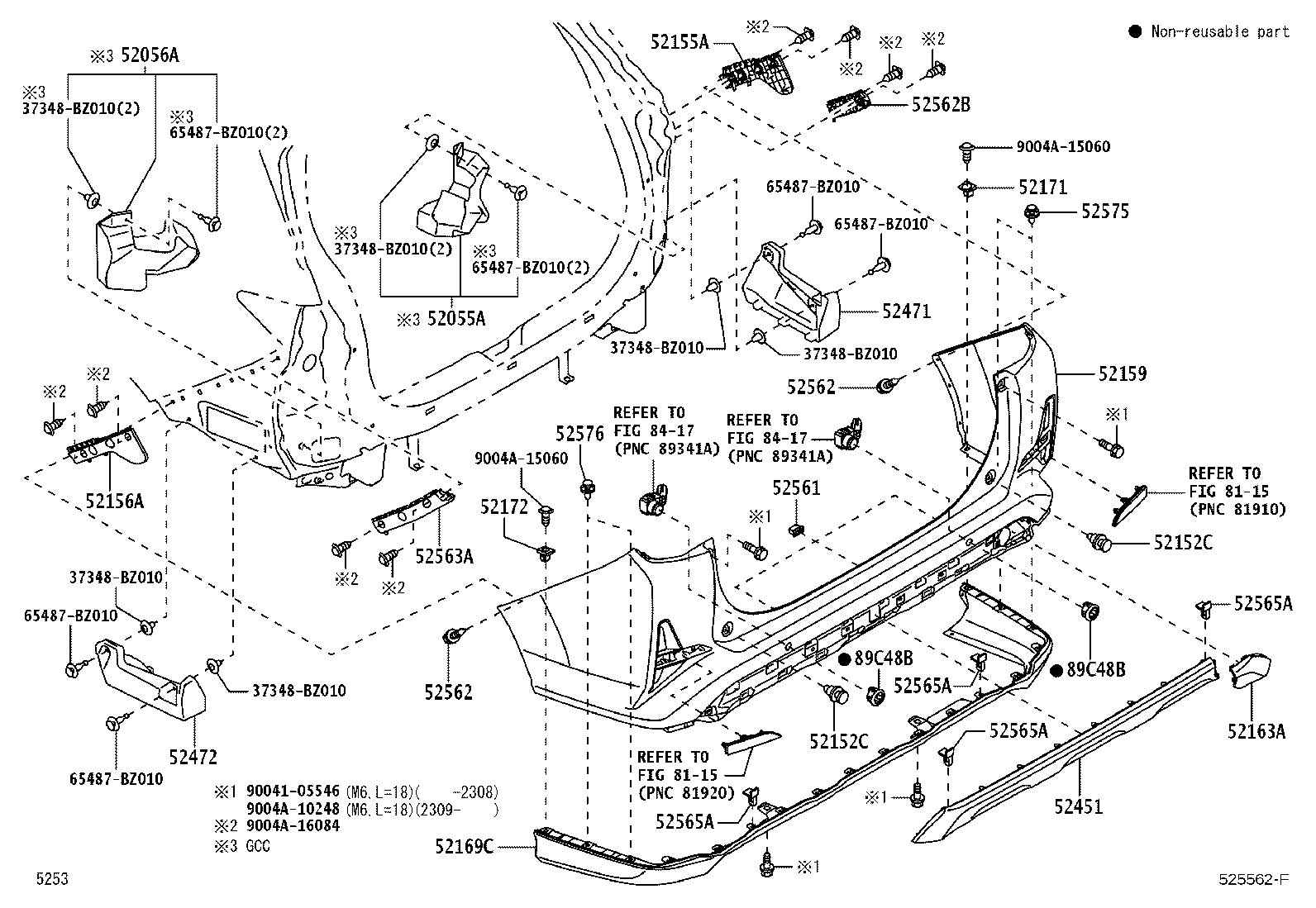

Figure 525206F 525206F 2021-11 → — Figure 525562F 525562F 2021-11 → —

Part groups

PNCDescription
52055A Pad Sub-assy, Rear Bumper, RH
52056A Pad Sub-assy, Rear Bumper, LH
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52163A Plate, Rear Bumper, RH
52169C Cover, Rear Bumper, Lower
52171 Retainer, Rear Bumper Side, RH
52172 Retainer, Rear Bumper Side, LH
52451 Guard, Rear Bumper
52471 Retainer, Rear Bumper Guard, RH
52472 Retainer, Rear Bumper Guard, LH
52561 Retainer, Rear Bumper, Upper Center
52562 Retainer, Rear Bumper, Upper Side
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52565A Retainer, Rear Bumper, Lower
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
