Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

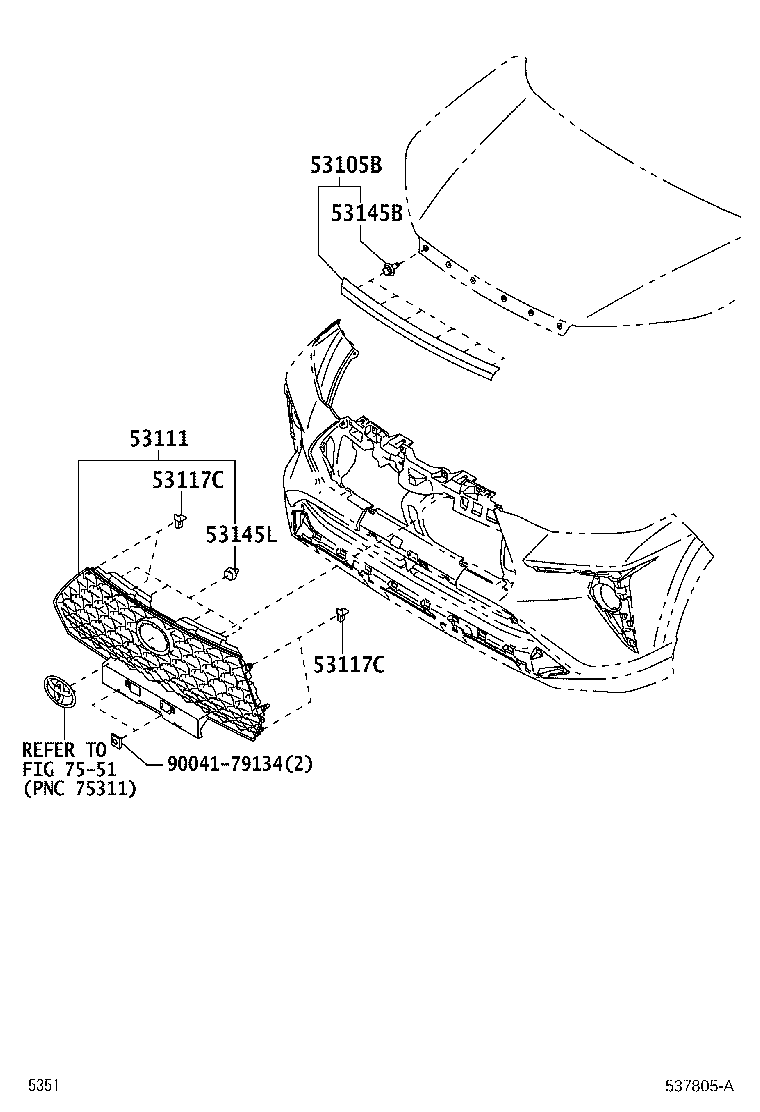

Radiator Grille
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53105B | Garnish Sub-assy, Radiator Grille |
| 53111 | Grille, Radiator |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53124B | Moulding, Radiator Grille Side, LH |
| 53145B | Clip, Radiator Grille Garnish |
| 53145E | Clip, Radiator Grille Garnish |
| 53145L | Clip, Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
