Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

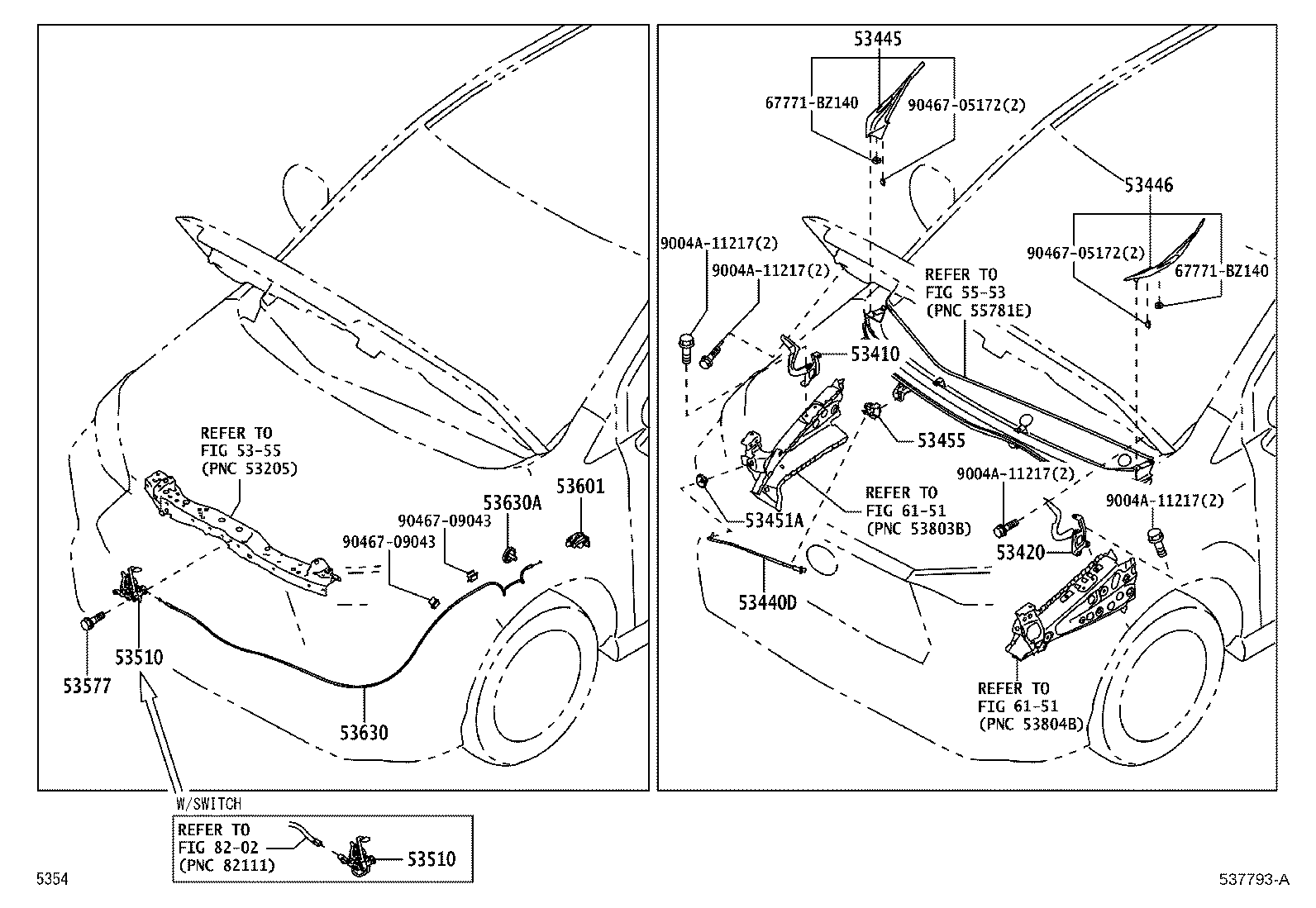

Hood Lock & Hinge
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53440D | Support Assy, Hood |
| 53445 | Cover, Hood Hinge, RH |
| 53446 | Cover, Hood Hinge, LH |
| 53451A | Grommet(FOR HOOD SUPPORT ROD) |
| 53455 | Clamp, Hood Support Rod |
| 53510 | Lock Assy, Hood |
| 53577 | Bolt, Hood Lock |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53630 | Cable Assy, Hood Lock Control |
| 53630A | Grommet(FOR HOOD LOCK CONTROL CABLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
