Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

23 part groups · 3 illustrations

Illustrations

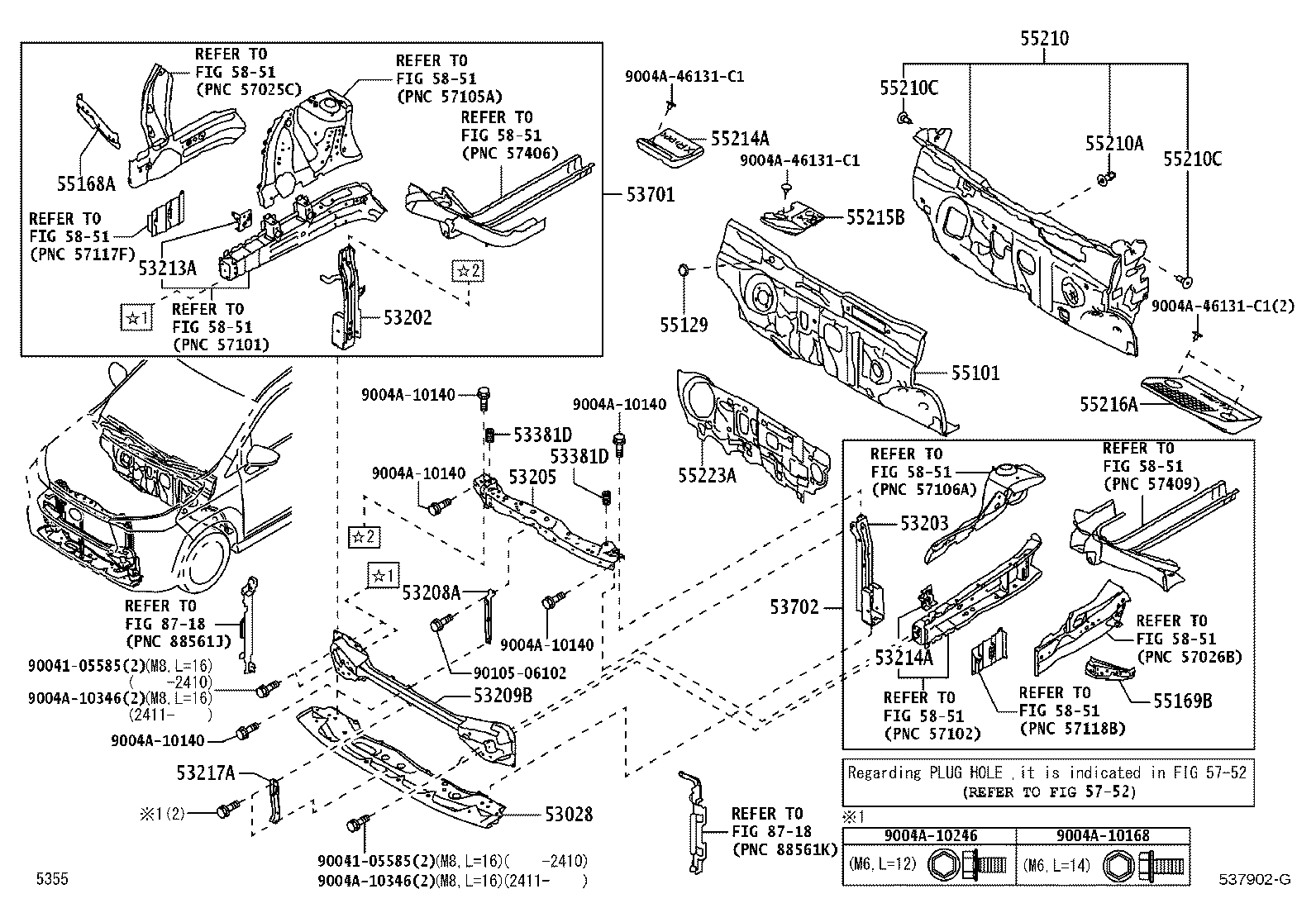

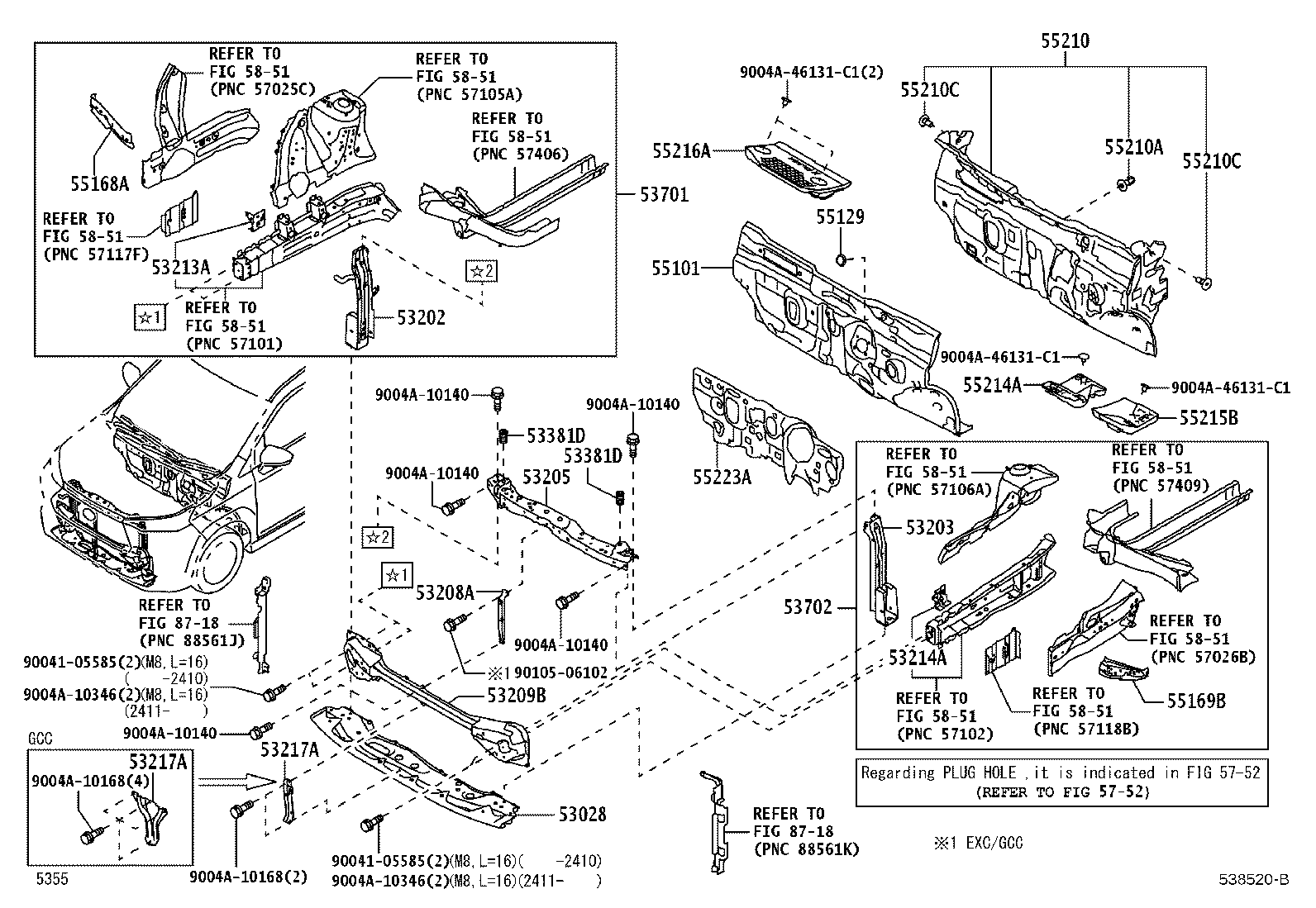

Figure 538111C 538111C 2021-11 → — Figure 537902G 537902G 2022-01 → — Figure 538520B 538520B 2022-01 → —

Part groups

PNCDescription
53028 Support Sub-assy, Radiator, Lower
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53209B Brace Sub-assy, Hood Lock Support
53213A Support, Radiator, Upper RH
53214A Support, Radiator, Upper LH
53217A Brace, Hood Lock Support
53381D Bumper, Hood TO Front Shroud
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
55101 Panel Sub-assy, Dash
55129 Cover, Dash Panel Hole
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55210A Clip
55210C Clip
55214A Pad, Dash Panel Insulator, NO.2
55215B Pad, Dash Panel Insulator, NO.3
55216A Pad, Dash Panel Insulator, NO.4
55223A Insulator, Dash Panel, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
