Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

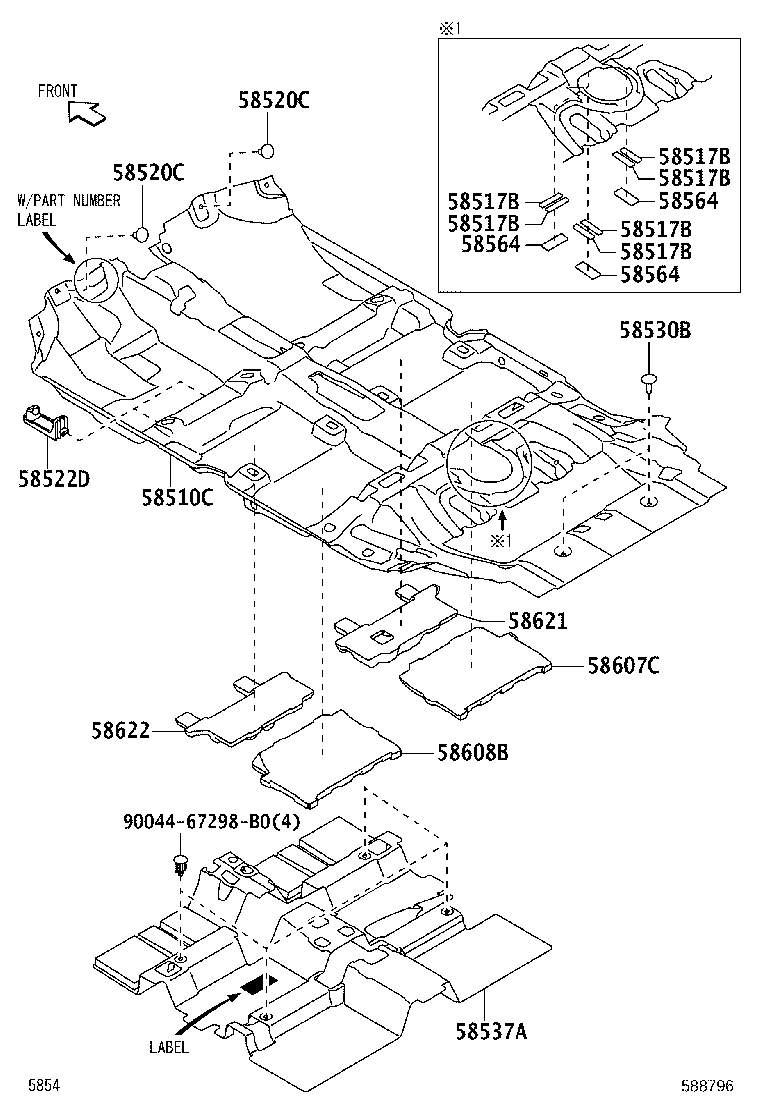

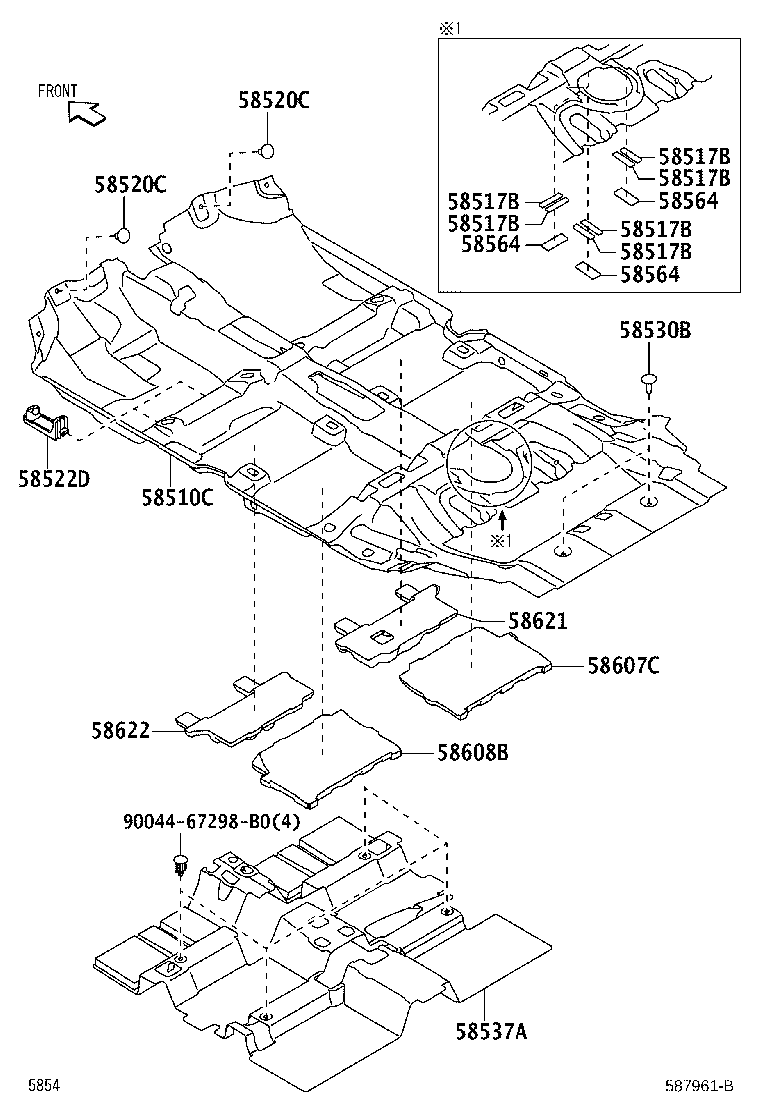

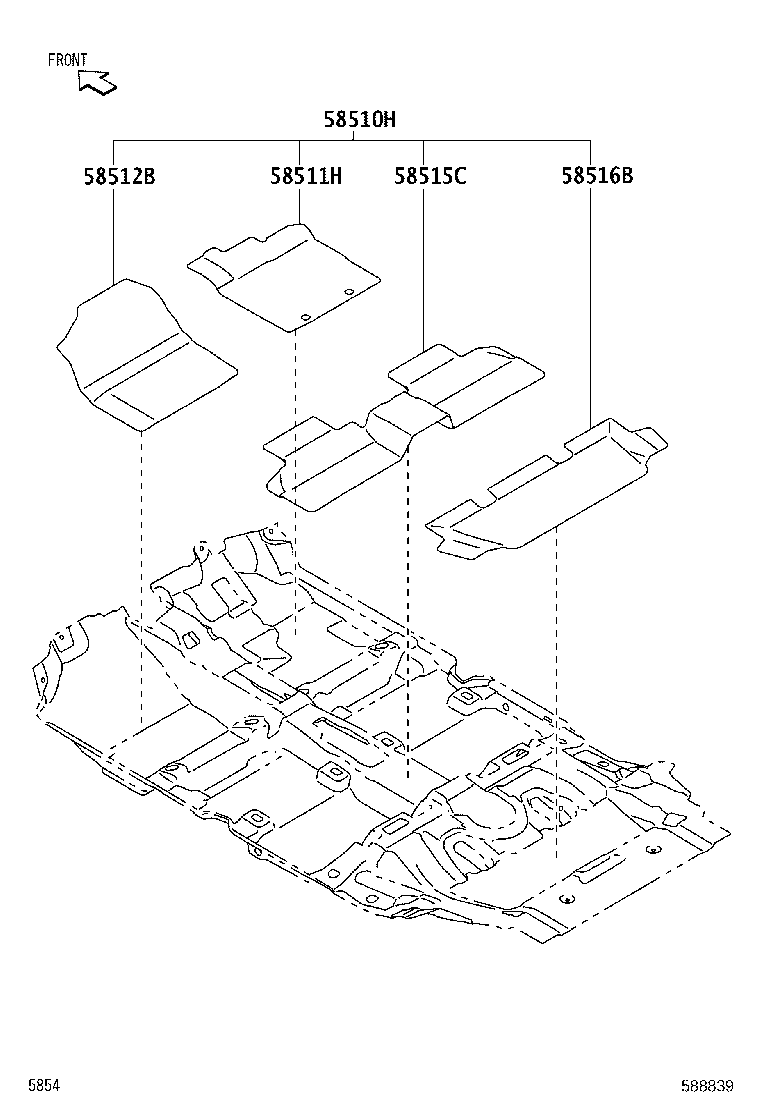

Floor Mat & Silencer Pad
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58510C | Carpet Assy, Front Floor, Front |
| 58510H | Mat Assy, Floor |
| 58511H | Mat, Floor, Front RH |
| 58512B | Mat, Floor, Front LH |
| 58515C | Mat, Front Floor, Rear NO.1 |
| 58516B | Mat, Front Floor, Rear NO.2 |
| 58517B | Carpet, Rear Floor |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58522D | Hook, Floor Carpet, NO.2 |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58537A | Silencer, Front Floor, NO.1 |
| 58564 | Carpet, Rear Floor |
| 58607C | Pad Sub-assy, Front Floor Silencer, Rear RH |
| 58608B | Pad Sub-assy, Front Floor Silencer, Rear LH |
| 58621 | Pad, Floor Silencer, Front RH |
| 58622 | Pad, Floor Silencer, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
