Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

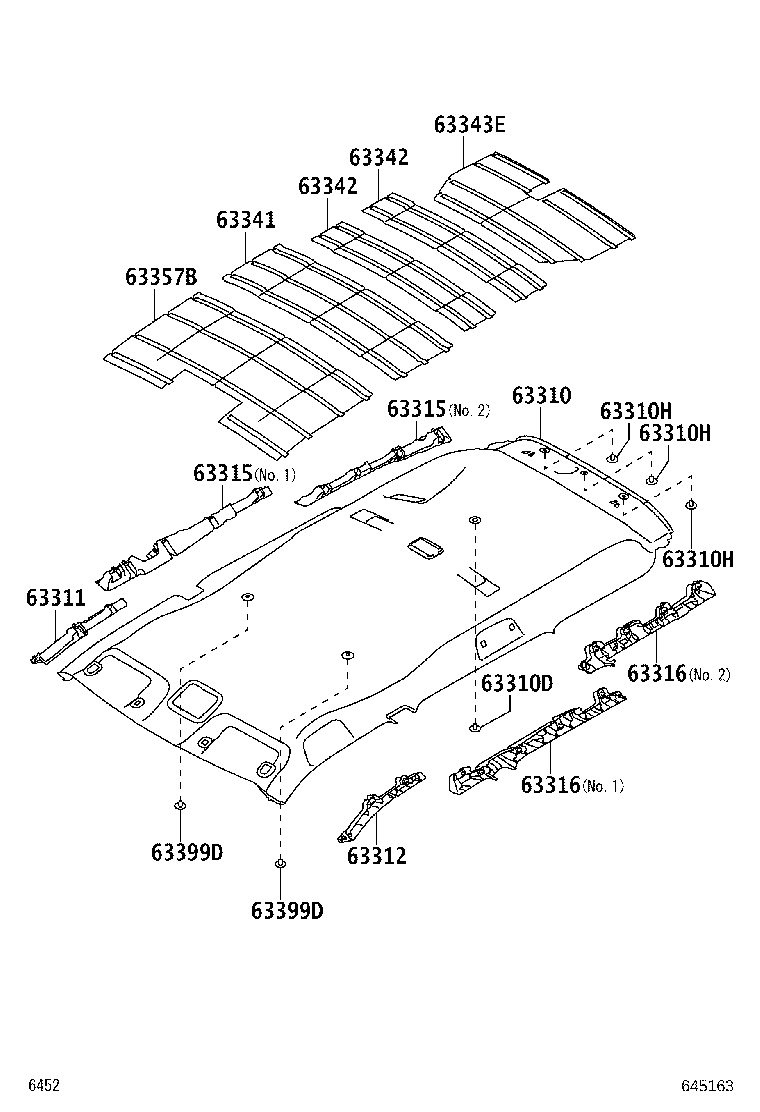

Roof Headlining & Silencer Pad
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62410B | Clip |
| 62821C | Grille, Room Ventilation, RH |
| 62822B | Grille, Room Ventilation, LH |
| 62961C | Grille, Room Vent |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63310K | Clip |
| 63311 | Garnish, Roof Headlining, Front RH |
| 63312 | Garnish, Roof Headlining, Front LH |
| 63315 | Garnish, Roof Headlining, Rear RH |
| 63316 | Garnish, Roof Headlining, Rear LH |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343E | Pad, Roof Silencer, NO.3 |
| 63357B | Silencer, Roof |
| 63383D | Retainer, Roof Headlining, Rear |
| 63399D | Clip, Roof Headlining |
| 88570F | Grille Assy, Air Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
