Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

23 part groups · 3 illustrations

Illustrations

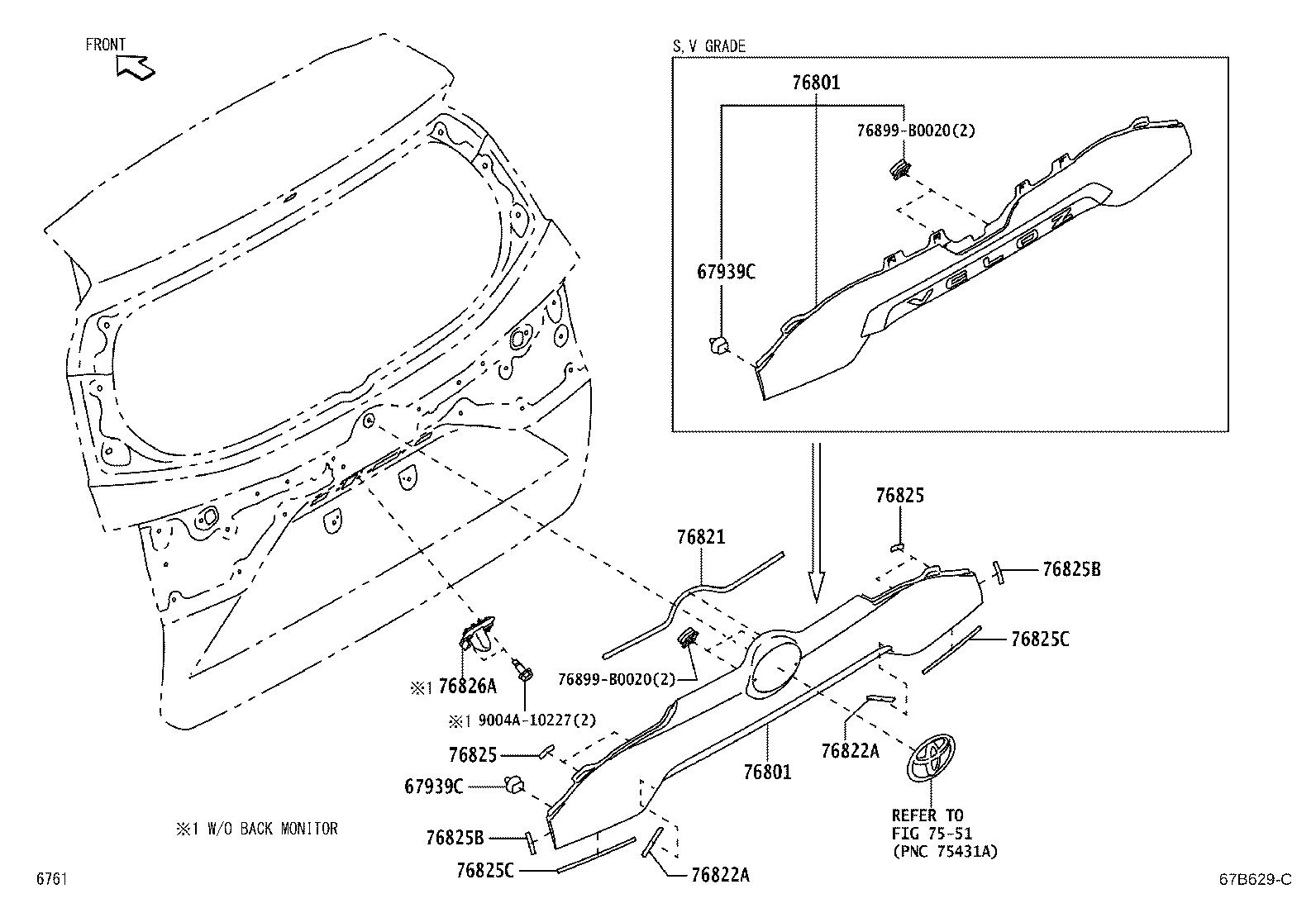

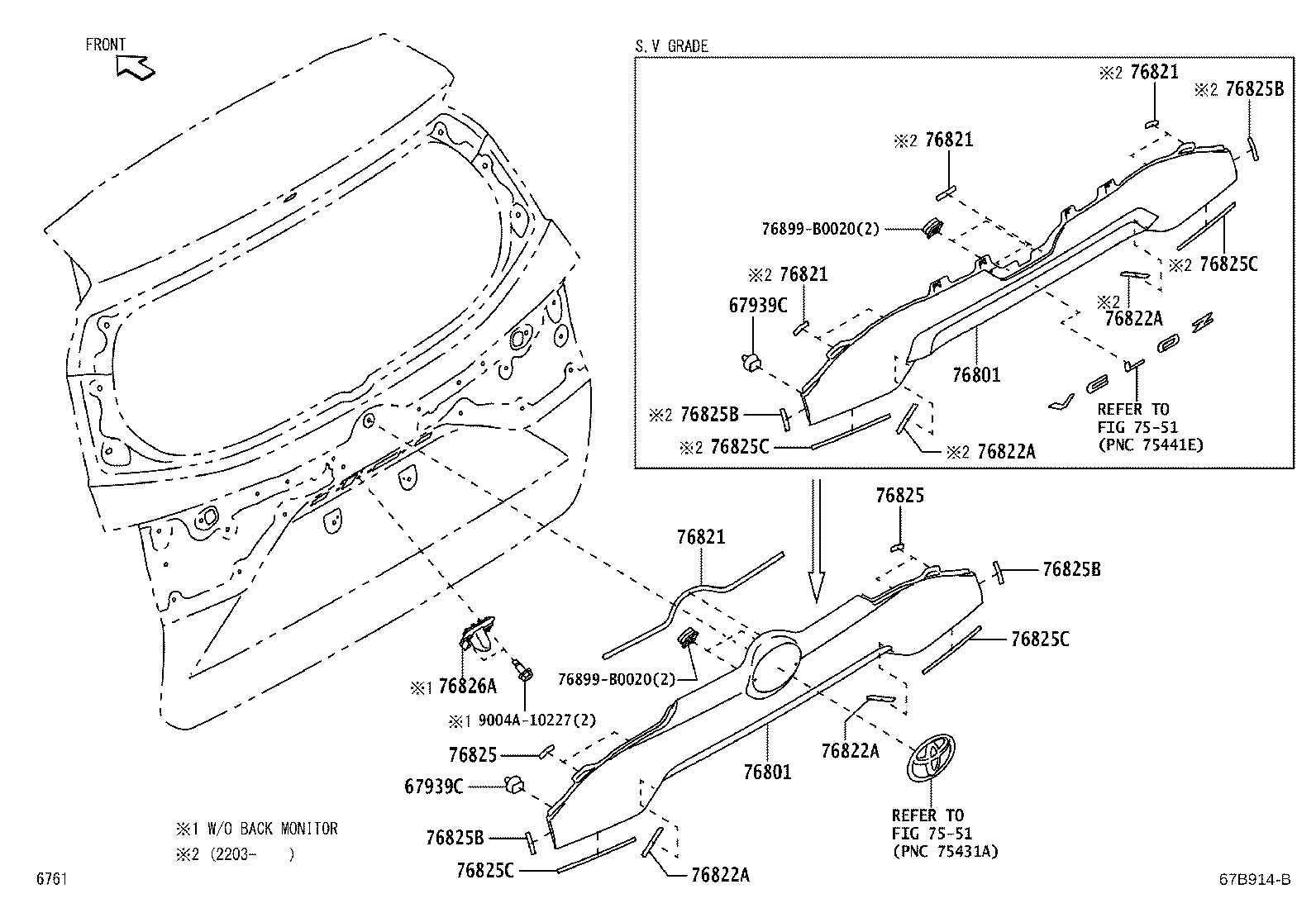

Figure 67B628B 67B628B 2021-11 → — Figure 67B629C 67B629C 2021-11 → 2022-03 Figure 67B914B 67B914B 2022-03 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64780A Panel Assy, Back Door Trim
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67293 Cushion, Back Door Lower Stopper
67750A Clip(FOR BACK DOOR TRIM)
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
74811G Handle, Door Pull
75129C Cushion, Rear Licence Plate
75573K Moulding, Back Window, Outside RH
75574B Moulding, Back Window, Outside LH
76801 Garnish Sub-assy, Back Door, Outside
76821 Protector, Back Door Garnish Moulding, Upper
76822A Protector, Back Door Garnish Moulding, Lwr
76825 Protector, Back Door Outside Garnish
76825B Protector, Back Door Outside Garnish
76825C Protector, Back Door Outside Garnish
76826A Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
