Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 4 illustrations

Illustrations

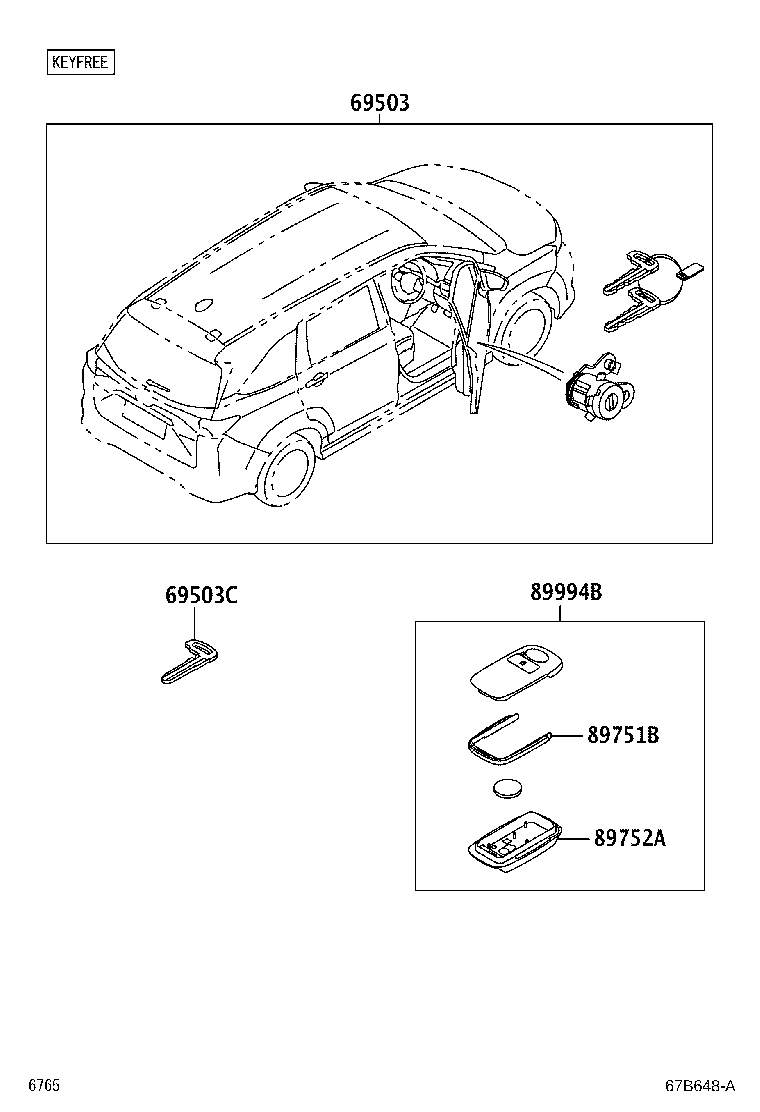

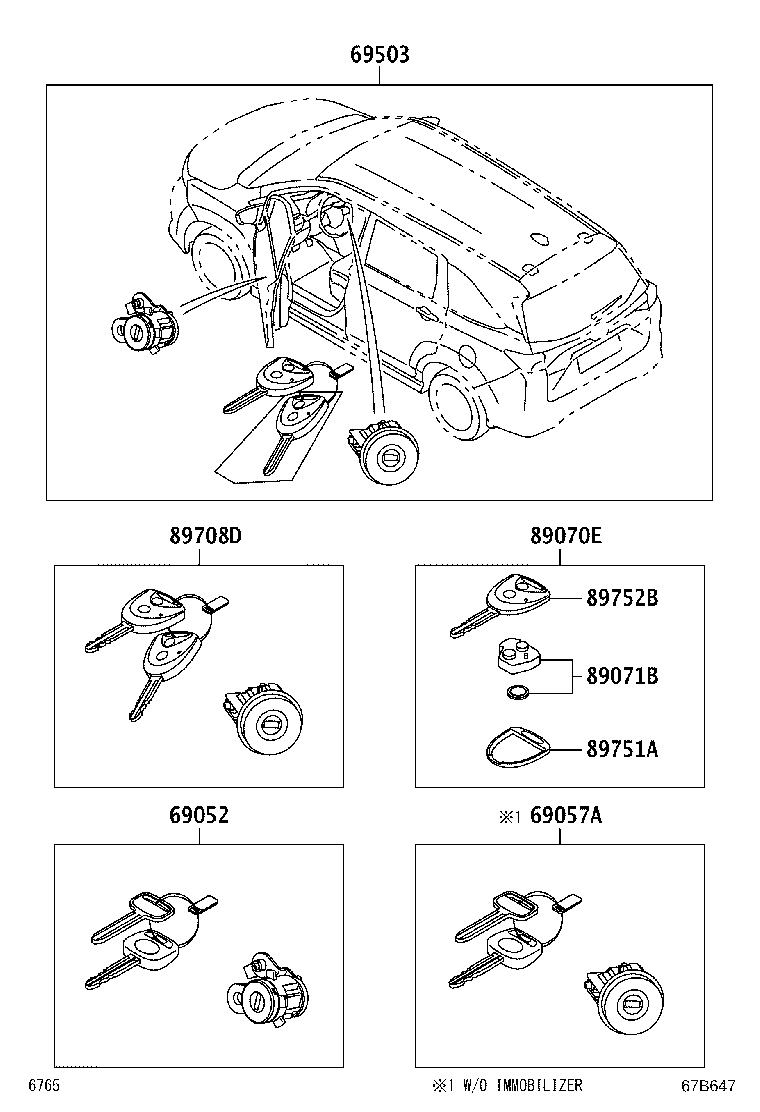

Figure 67B646 67B646 2021-11 → — Figure 67B647 67B647 2022-01 → — Figure 67B648A 67B648A 2021-11 → — Figure 67B649A 67B649A 2022-01 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503C Key, Sub
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708D Cylinder Set, Lock W/Transponder Key Transmitter
89751A Cover, Transmitter Housing
89751B Cover, Transmitter Housing
89752A Case, Transmitter Housing
89752B Case, Transmitter Housing
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
