Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

258 part groups · 37 illustrations

Illustrations

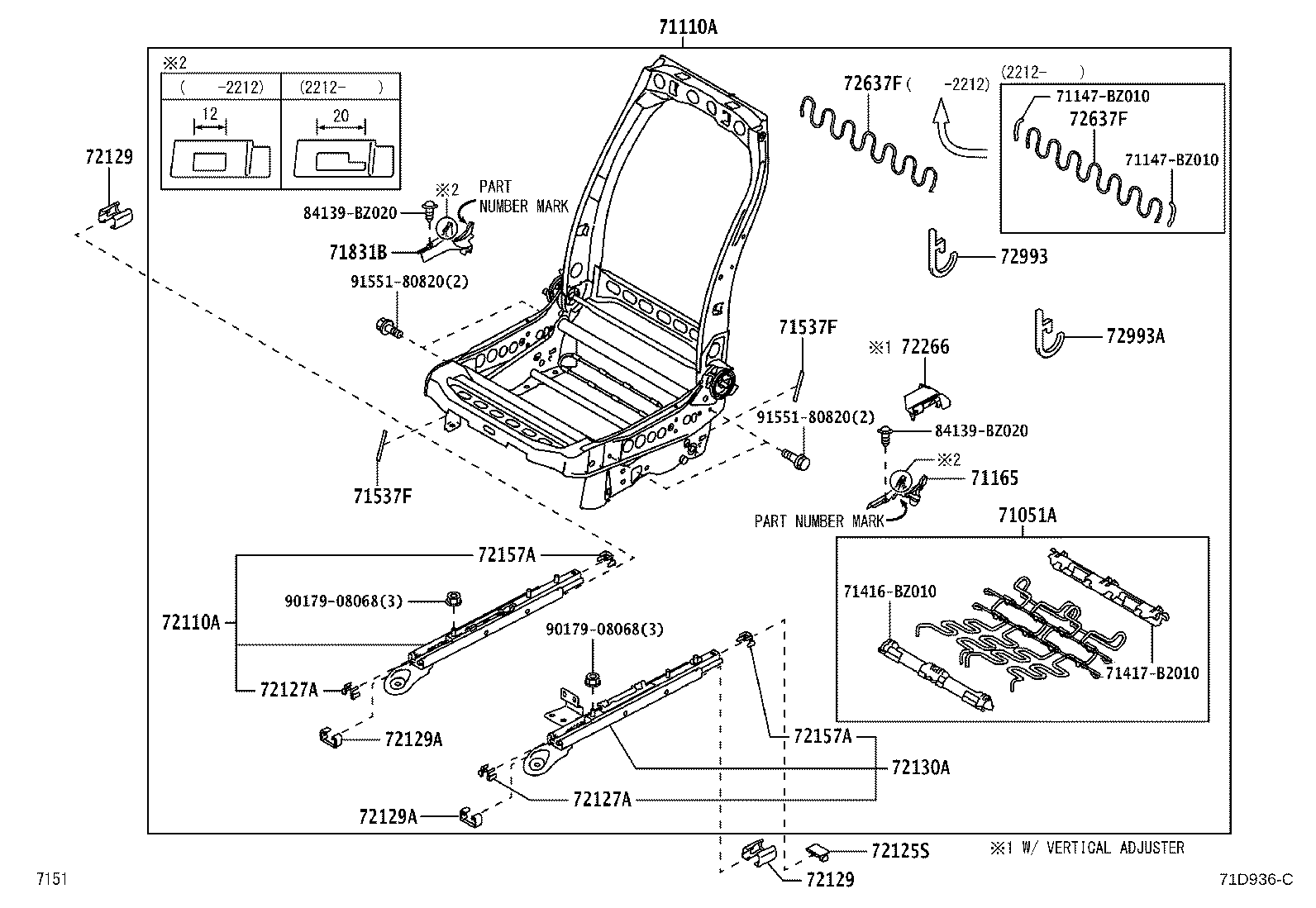

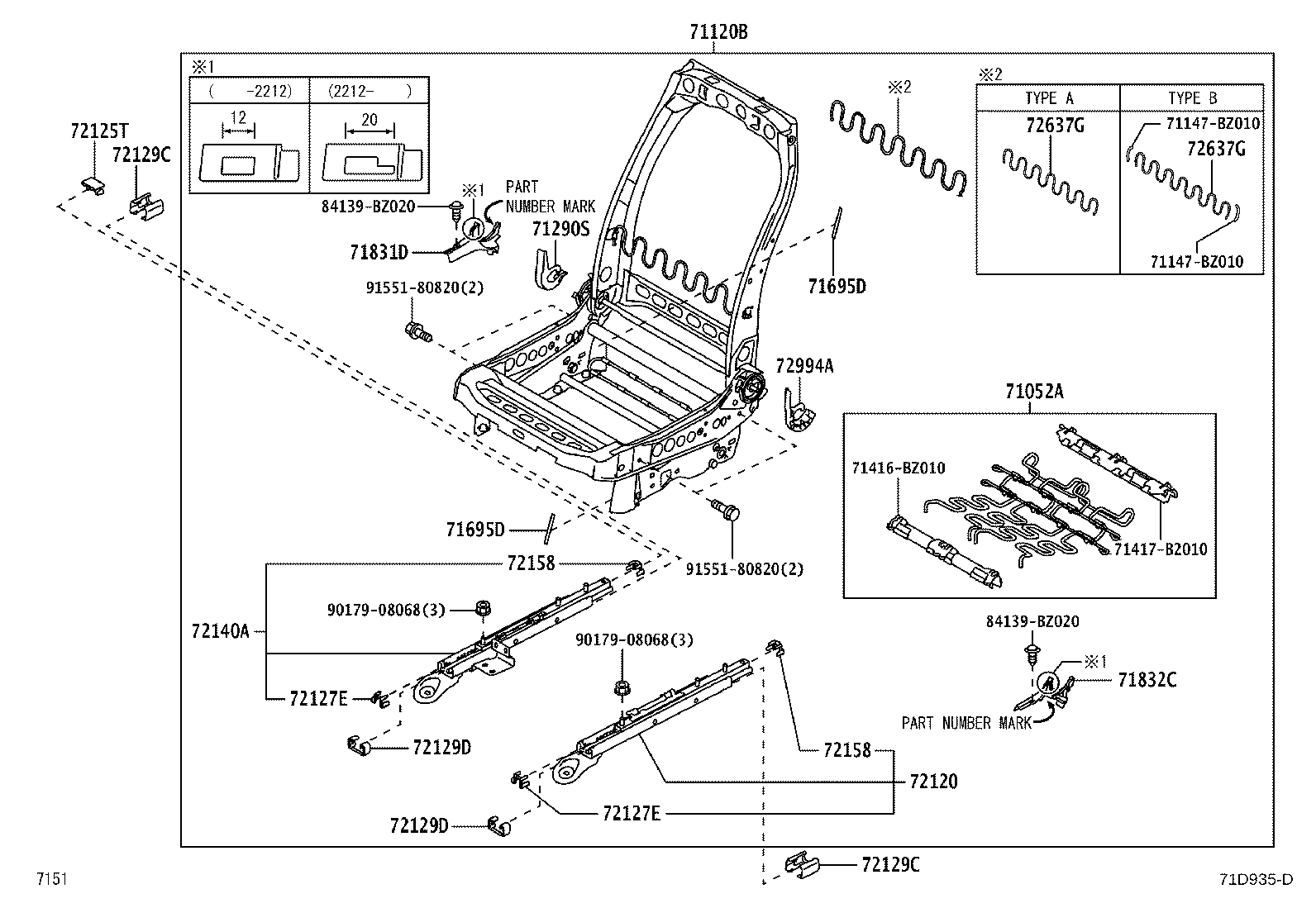

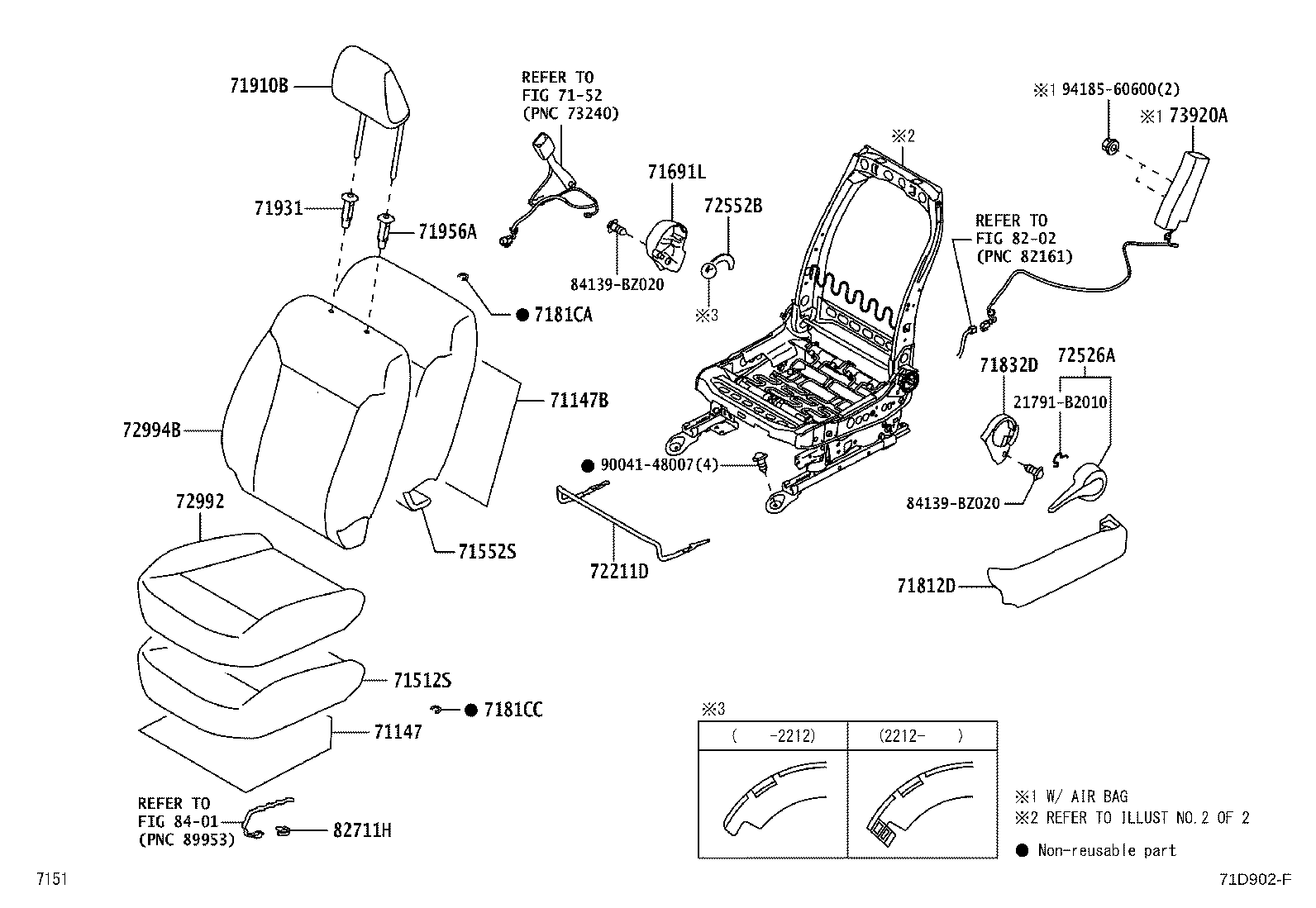

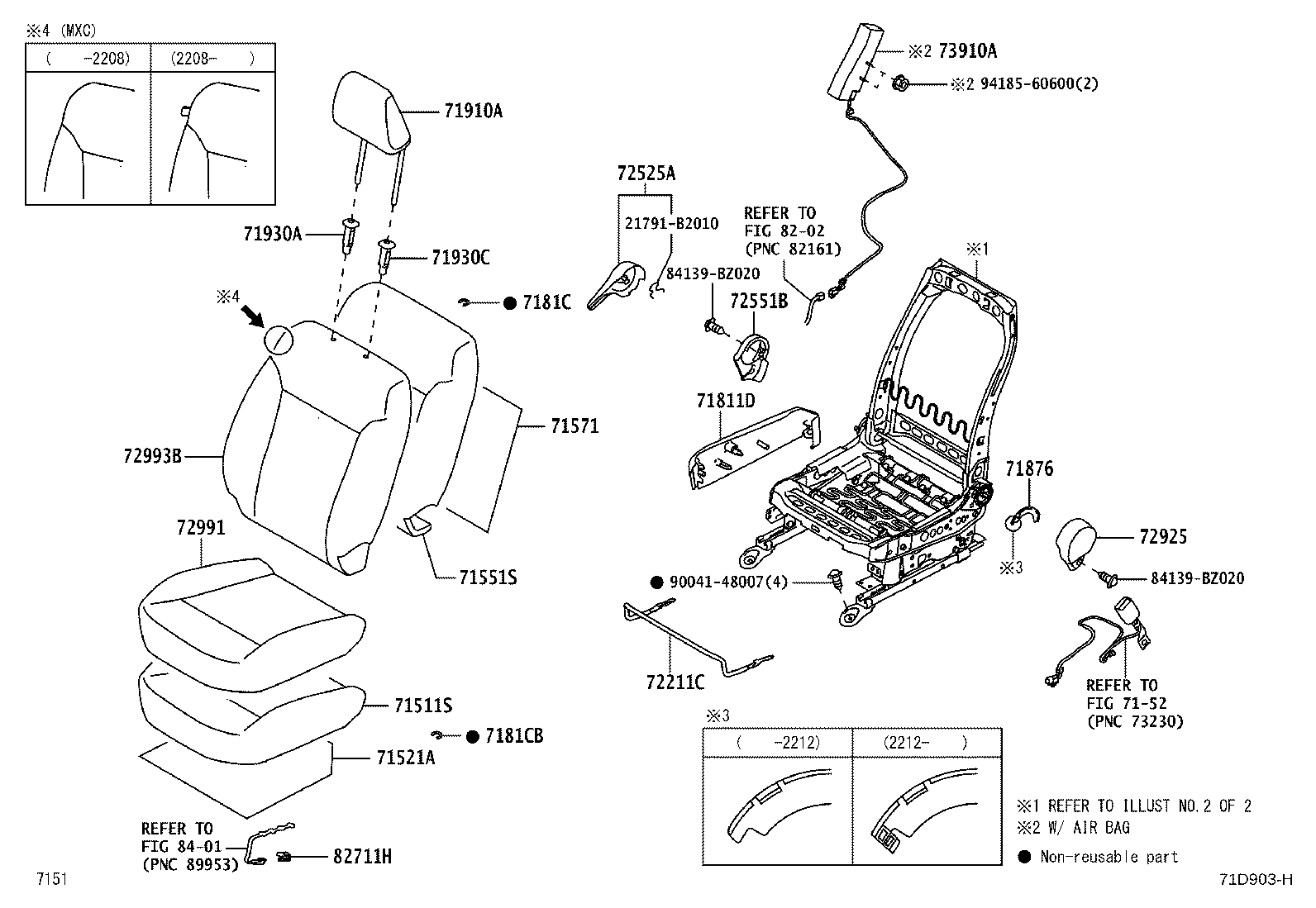

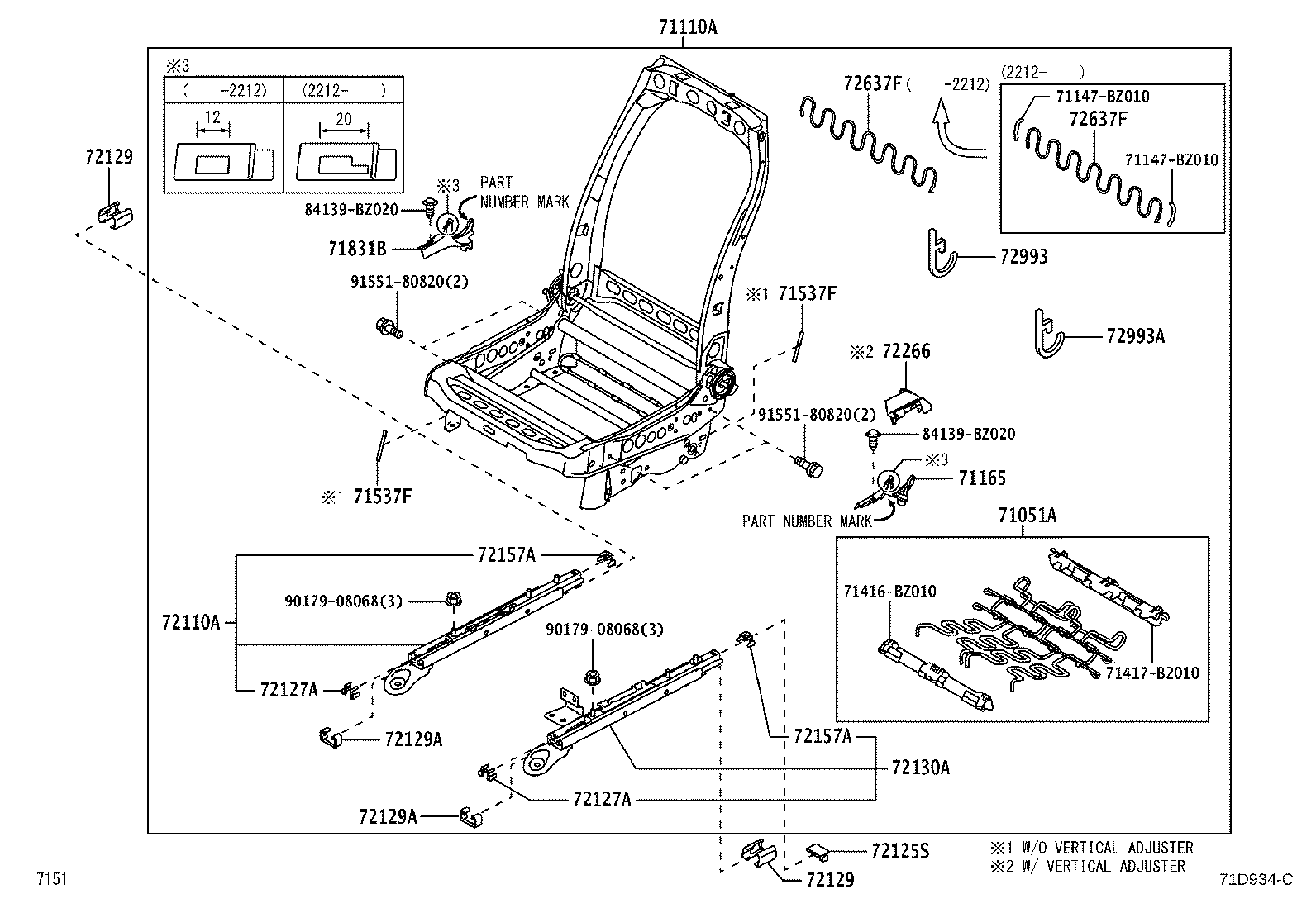

Figure 71D901G 71D901G 2021-11 → — Figure 71D934C 71D934C 2021-11 → — Figure 71D902F 71D902F 2021-11 → — Figure 71D935D 71D935D 2021-11 → — Figure 71D903H 71D903H 2022-01 → — Figure 71D903H 71D903H 2022-12 → 2023-09 Figure 71D903H 71D903H 2022-12 → — Figure 71D936C 71D936C 2022-01 → — Figure 71D936C 71D936C 2022-12 → 2023-09 Figure 71D936C 71D936C 2022-12 → — Figure 71F560A 71F560A 2022-01 → — Figure 71E774C 71E774C 2023-09 → — Figure 71E775A 71E775A 2023-09 → — Figure 71D904F 71D904F 2022-01 → — Figure 71D904F 71D904F 2022-12 → 2023-09 Figure 71D904F 71D904F 2022-12 → — Figure 71D937D 71D937D 2022-01 → — Figure 71D937D 71D937D 2022-12 → 2023-09 Figure 71D937D 71D937D 2022-12 → — Figure 71E776C 71E776C 2023-09 → — Figure 71E777A 71E777A 2023-09 → — Figure 71D905D 71D905D 2021-11 → — Figure 71D906F 71D906F 2021-11 → — Figure 71D906F 71D906F 2022-12 → — Figure 71E778D 71E778D 2022-12 → — Figure 71F450 71F450 2021-11 → — Figure 71F450 71F450 2022-12 → — Figure 71F451A 71F451A 2022-12 → — Figure 71D907C 71D907C 2021-11 → — Figure 71D907C 71D907C 2022-12 → — Figure 71E779B 71E779B 2022-12 → — Figure 71D908C 71D908C 2021-11 → — Figure 71D908C 71D908C 2022-12 → — Figure 71E780B 71E780B 2022-12 → — Figure 71D909C 71D909C 2021-11 → — Figure 71D909C 71D909C 2022-12 → — Figure 71E781B 71E781B 2022-12 → —

Part groups

PNCDescription
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71075D Cover Sub-assy, Rear Seat Cushion, RH
71101C Seat Sub-assy, Front RH
71102A Seat Sub-assy, Front LH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71121 Bracket, Front Seat Cushion, RH
71122 Bracket, Front Seat Cushion, LH
71139D Cover, Front Seat Leg NO.1
71139E Cover, Front Seat Leg NO.2
71139G Cover, Front Seat Leg
71139H Cover, Front Seat Leg
71139L Cover, Front Seat Leg, RH(FOR LH SEAT)
71140S Cover, Front Seat Cushion, RH
71147 Silencer, Seat Spring
71147B Silencer, Seat Spring
71149B Cover, Front Seat Leg, LH (FOR RH SEAT)
71149D Cover, Front Seat Leg, Inner (FOR RH SEAT)
71149E Cover, Front Seat Leg, Inner (FOR LH SEAT)
71165 Cover, Front RH Seat Hinge
71202B Panel, Rear Seatback
71240S Cover, Front Seat Cushion, LH
71290S Cover, Front Seatback, LH
71331A Pin, Rear Seat Hinge
71331C Pin, Rear Seat Hinge, LH
71353 Panel, Center Seatback
71385 Spacer, Rear Seat Hinge
71395B Cover, Center Seat Hinge, RH
71395C Cover, Center Seat Hinge, RH
71396B Cover, Center Seat Hinge, LH
71430C Clip
71439A Clip
71485 Cover, Rear Seat Hinge
71485B Cover, Rear Seat Hinge
71485C Cover, Rear Seat Hinge, RH
71485D Cover, Rear Seat Hinge, LH
71503A Pad Sub-assy, Rear Seat Cushion
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521A Pad,Front Seat Cushion Silencer
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71537F Protector, Front Seat Cushion, NO.2
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71571 Pad, Front Seatback Silencer, A
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71621A Pad, Rear Seat Cushion Silencer, A
71621B Pad, Rear Seat Cushion Silencer, NO.2
71629F Cover, Rear Seat Cushion Hinge, Outer LH
71650B Spring Assy, Rear Seat Cushion, RH
71667A Pad, Rear Seatback, Center A
71667B Pad, Rear Seatback, Center B
71671A Pad, Rear Seatback Silencer, A
71671B Pad, Rear Seat Cushion Silencer, A
71672 Pad, Rear Seatback Silencer, B
71672A Pad, Rear Seat Cushion Silencer, B
71672B Silencer, Rear Seatback, RH
71673 Pad, Rear Seatback Silencer, C
71691B Cover, Rear Seat Lock, Outer RH
71691C Cover, Rear Seat Lock, Inner RH
71691L Cover, Front Seat Cushion Hinge, RH
71692B Cover, Rear Seat Lock, Outer LH
71692C Cover, Rear Seat Lock, Inner LH
71693 Cover, Rear Seat Cushion Hinge, Lower RH
71693D Cover, Rear Seat Cushion Hinge, Inner RH
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71695A Protector, Rear Seat, NO.1 RH
71695D Protector, Seat
71696 Protector, Rear Seat, NO.2
71771B Board, Rear Seatback
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181C Ring, Hog, Small (FOR FRONT SEATBACK)
7181CA Ring, Hog, Small (FOR FRONT SEATBACK)
7181CB Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CC Ring, Hog, Small (FOR FRONT SEAT CUSHION)
7181CD Ring, Hog, Small (FOR REAR SEATBACK)
7181CE Ring, Hog, Small (FOR REAR SEATBACK)
7181CF Ring, Hog, Small (FOR REAR SEAT CUSHION)
7181CG Ring, Hog, Small (FOR REAR SEAT CUSHION)
71822 Shield, Front Seat Side, LH
71831B Cover, Front Seat Hinge, RH
71831D Cover, Front Seat Hinge, RH
71832C Cover, Front LH Seat Hinge
71832D Cover, Front Seat Hinge, LH
71833D Cover Rear Seat Reclining, RH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875C Cover, Reclining Adjuster Inside, RH
71875V Cover, Reclining Adjuster Inside, RH
71875W Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71876Y Cover, Reclining Adjuster Inside, LH
71876Z Cover, Reclining Adjuster Inside, LH
71877A Cover Sub-assy, Rear NO.1 Seat Armrest
71878A Cover, Rear Seat Reclining, Inner RH
71878B Cover, Rear Seat Reclining, Inner RH
71878E Cover, Rear Seat Reclining, Inner RH
71879A Cover, Rear Seat Reclining, Inner LH
71879E Cover, Rear Seat Reclining, Inner LH
71881A Board, Rear Seatback
71910A Headrest Assy, Front Seat
71910B Headrest Assy, Front Seat
71930A Support Assy, Front Seat Headrest
71930B Support Assy, Rear Seat Headrest
71930C Support, Front Seat Headrest, LH
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940B Headrest Assy, Rear Seat, RH
71940D Headrest Assy, Rear NO.2 Seat, RH
71950D Headrest Assy, Rear Seat, LH
71950F Headrest Assy, Rear NO.2 Seat, LH
71955A Support, Rear Seat Headrest
71955B Support, Rear Seat Headrest
71956 Support, Headrest
71956A Support, Front Seat Headrest
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71970B Support Assy, Rear Seat Headrest, RH
71990A Support Assy, Rear Seat Headrest, LH
72084 Pad Sub-assy, Rear Seat Center Armrest, NO.2
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72125A Cover, Seat Track, Upper Rear
72125F Cover, Seat Track, Upper Rear LH
72125S Cover, Front Seat Track, Upper Rear RH
72125T Cover, Front Seat Track, Upper Rear LH
72127A Cover, Seat Track Bracket, Inner Front RH
72127E Cover, Seat Track Bracket, Inner Front
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129B Protector, Seat Track Lower Rail
72129C Protector, Seat Track Lower Rail, NO.3
72129D Protector, Seat Track Lower Rail, NO.4
72130A Track Assy, Front Seat, Inner RH
72136 Spacer, Seat Track, Lower NO.1
72137 Cover, Seat Track, Outer RH
72137E Cover, Seat Track, NO.1
72138 Cover, Seat Track, Outer LH
72138B Cover, Seat Track, LH
72140A Track Assy, Front Seat,Inner LH
72157A Cover, Seat Track Bracket, Inner RH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158 Cover, Seat Track Bracket, Inner LH
72158E Cover, Seat Track Bracket, Inner Rear LH
72159B Cover, Rear Seat Track Bracket, Outer
72160C Track Assy, Rear NO.1 Seat, Outer RH
72170D Track Assy, Rear Seat, Outer LH
72211 Handle, Seat Track Adjusting
72211B Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72211D Handle, Seat Track Adjusting
72265A Cover, Seat Track Upper Rail, RH
72265D Cover, Seat Track Upper Rail
72266 Cover, Seat Track Upper Rail, LH
72413 Lever, Vertical Adjuster Lock
72462 Cover, Vertical Adjuster RH
72462A Cover, Vertical Adjuster LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72525J Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72570C Cable Assy, NO.2 Seat Reclining Adjusting, RH
72580B Cable Assy, NO.2 Seat Reclining Adjusting, LH
72620B Cable Assy, Rear NO.1 Seat Lock
72620C Cable Assy, Rear NO.1 Seat Lock
72637A Handle, Rear Seat Lock
72637F Spring, Seatback, RH
72637G Spring, Seatback, LH
72638 Handle, Rear Seat Lock, LH
72650F Lock Assy, Rear Seat, RH
72656B Button, Rear Seatback Stop Release
72656D Pin, Rear Seat Cushion Support
72656E Pin, Rear Seat Cushion Support
72660F Lock Assy, Rear Seat, LH
72661C Button, Rear Seatback Lock Release
72661H Button, Rear Seatback Lock Release, RH
72661J Button, Rear Seatback Lock Release, LH
72661K Button, Rear Seatback Lock Release, NO.2 RH
72661L Button, Rear Seatback Lock Release, NO.2 LH
72690A Strap Assy, Rear Seat Lock Release
72749 Spacer, Rear Seat Reclining
72749A Spacer, Rear Seat Reclining
72749B Spacer, Rear Seat Reclining, NO.1
72809A Lock Sub-assy, Center Armrest
72830 Armrest Assy, Rear Seat, Center
72831B Plate, Rear Seat Center Armrest, NO.1
72921A Strap, Rear NO.2 Seat, NO.1
72921B Strap, Rear NO.2 Seat, NO.2
72925 Cover, Front Seat Cushion
72991 Cover, Front Seat Cushion, RH
72992 Cover, Front Seat Cushion, LH
72993 Cover, Front Seatback
72993A Cover, Front Seatback
72993B Cover, Front Seatback, RH
72994A Cover, Front Seatback
72994B Cover, Front Seatback, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79030B Leg Assy, Rear NO.2 Seat, RH
79040B Leg Assy, Rear NO.2 Seat, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79103A Frame Sub-assy, NO.1 Seatback, RH
79104 Frame Sub-assy, NO.1 Seatback, LH
79105 Leg Sub-assy, NO.1 Seat, RH
79106 Leg Sub Assy, NO.1 Seat, LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79187 Cover, NO.1 Seat Inner Bracket
79187A Cover, NO.1 Seat Inner Bracket, LH
79188 Cover, NO.1 Seat Outer Bracket
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79235E Pad, NO.2 Seat Cushion, RH
79236A Cover, NO.2 Seat Leg
79245C Pad, NO.2 Seat Cushion, LH
79246B Cover, NO.2 Seat Leg, B
79270A Spring Assy, NO.2 Seat Cushion, LH
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79956B Cover, Rear Seat Leg Side, RH
79956C Cover, Rear Seat Leg Side, LH
79958A Cover, Rear Seat Rear Bracket, LH
79959A Cover, Rear Seat Leg, RH
79959B Cover, Rear Seat Leg, LH
79977E Felt, Seatback, RH
82711E Clamp, Wiring Harness
82711F Clamp, Wiring Harness
82711H Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
