Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11

Fuel Tank & Tube

48 part groups · 5 illustrations

PNC	Description
23217D	Filter, Fuel Pump
23220A	Pump Assy, Fuel W/Filter
23221	Pump, Fuel
23225A	Spacer, Fuel Pump
23226	Ring, O(FOR FUEL PUMP)

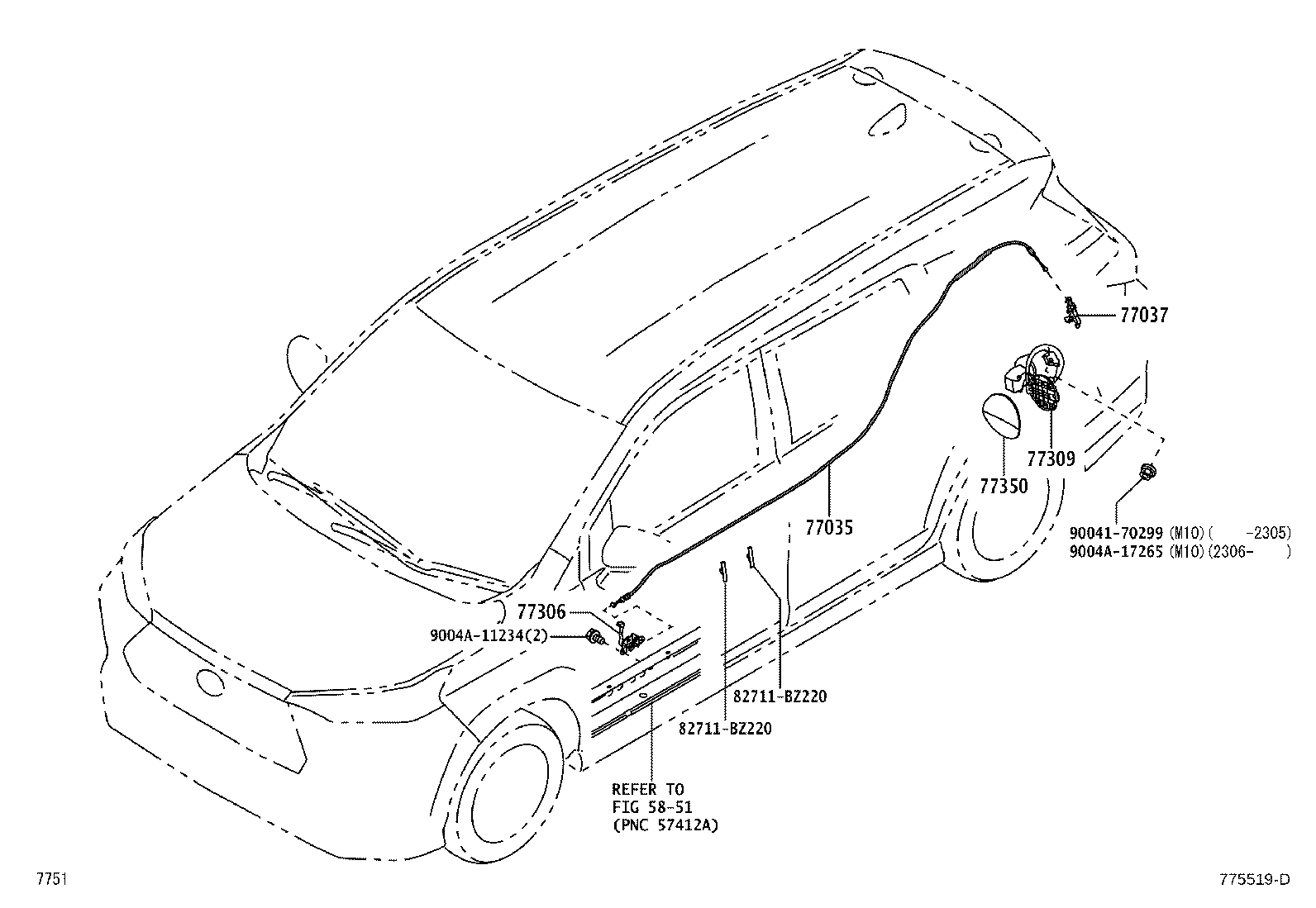

77019J	Tube Sub-assy, Fuel Tank TO Canister

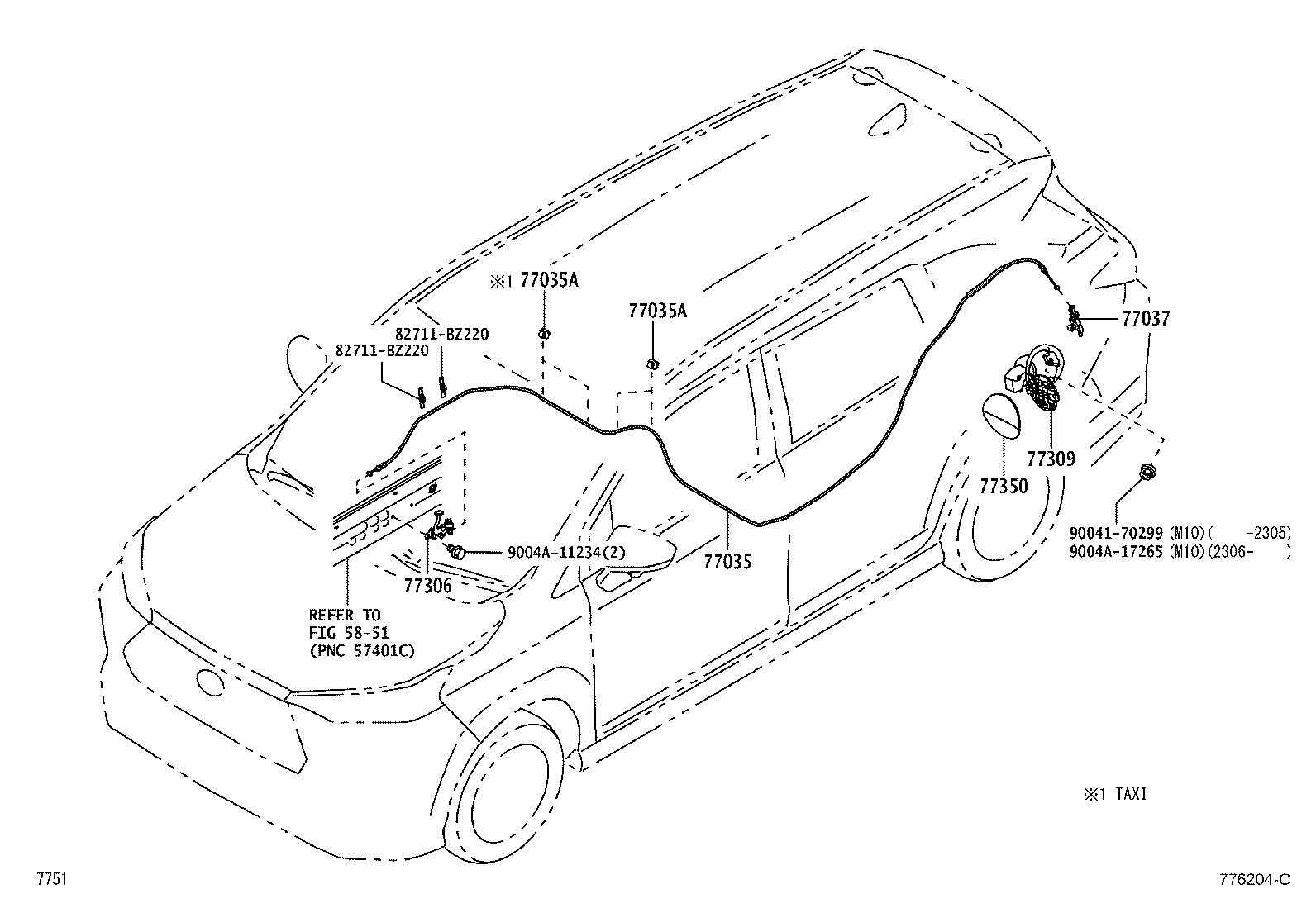

77035	Cable Sub-assy, Fuel Lid Lock Control
77035A	Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77037	Lock Sub-assy, Fuel Filler Opening Lid
77100	Tank Assy, Fuel
77100X	Valve, Check
77169A	Gasket, Fuel Suction Tube Set
77201	Pipe Sub-assy, Fuel Tank Inlet
77203A	Tube Sub-assy, Fuel Suction

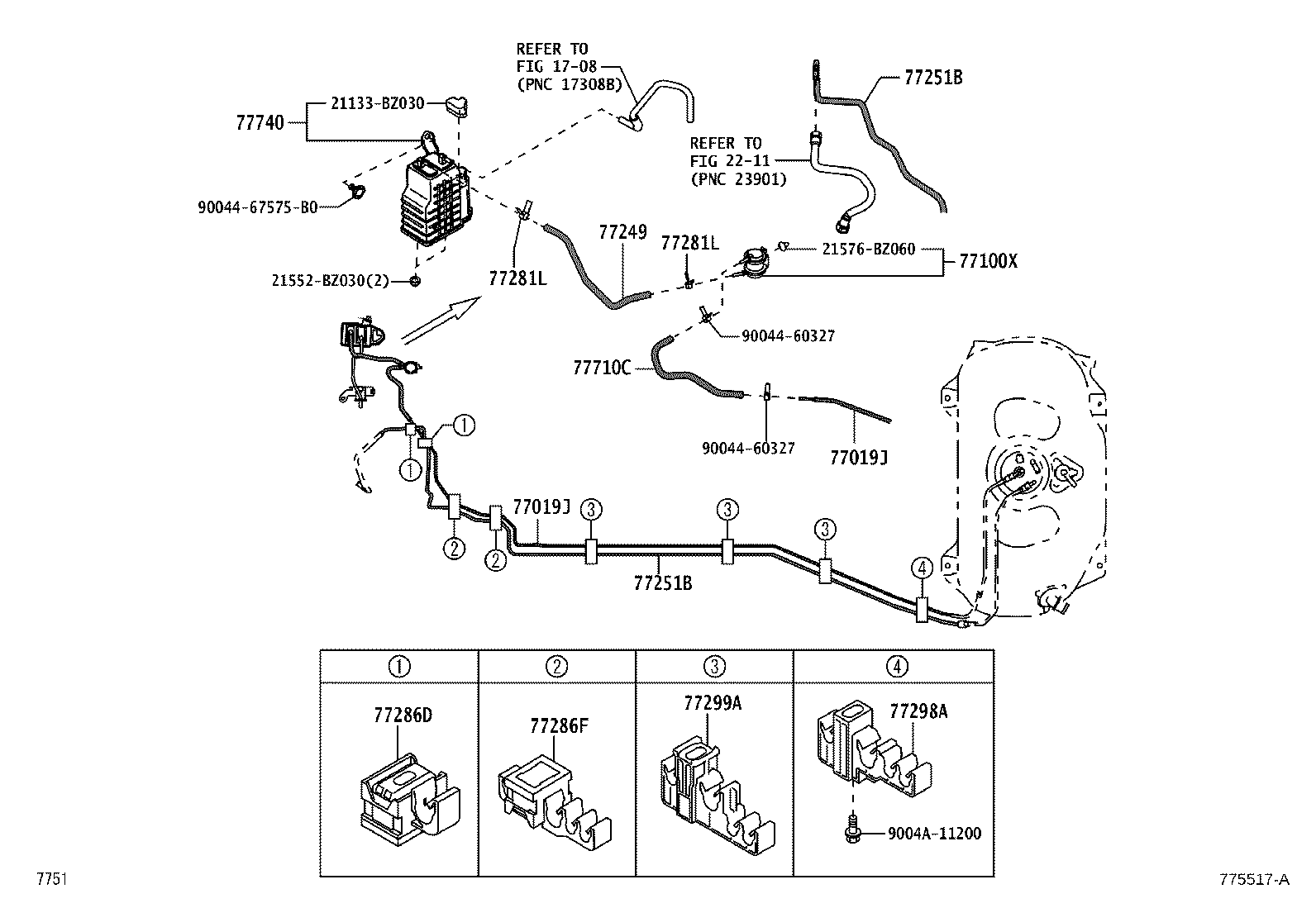

77205	Tube Sub-assy, Fuel Main
77213B	Hose, Fuel Tank TO Filler Pipe
77229C	Clamp, Breather Tube
77229E	Clamp, Breather Tube
77241V	Clip, Tube Joint
77249	Hose, Fuel Emission

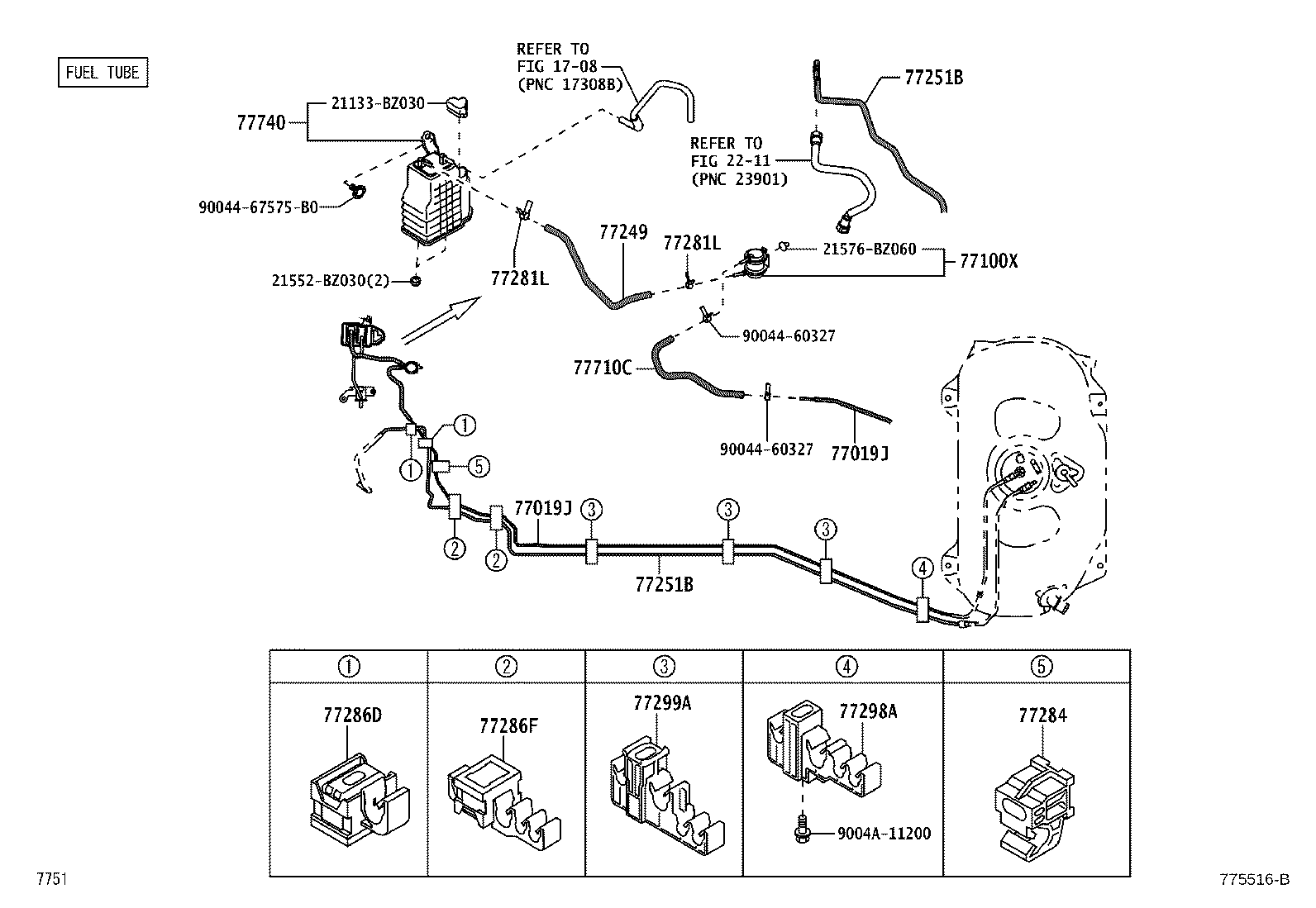

77251B	Tube, Fuel Main
77251E	Shield, Fuel Tank Inlet Pipe
77259C	Hose, Fuel
77259E	Hose, Fuel
77261	Tube Sub-assy, Fuel Emission
77261D	Tube, Fuel Tank TO Canister
77269A	Hose, Fuel Tank Breather
77281G	Clamp, Fuel Hose
77281L	Clamp, Fuel Hose
77281M	Clamp, Fuel Hose
77281N	Clamp, Fuel Hose
77284	Clamp, Fuel Tube
77285F	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77286K	Clamp, Fuel Tube, NO.2
77286L	Clamp, Fuel Tube, NO.5
77298A	Clamp, Fuel Tube, NO.4
77298B	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77306	Lever Sub-assy, Fuel Lid Lock Open
77309	Hinge Sub-assy, Fuel Inlet Box Cover
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77644	Bolt, Fuel Tank
77710C	Hose, Fuel
77740	Canister Assy, Charcoal
