Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

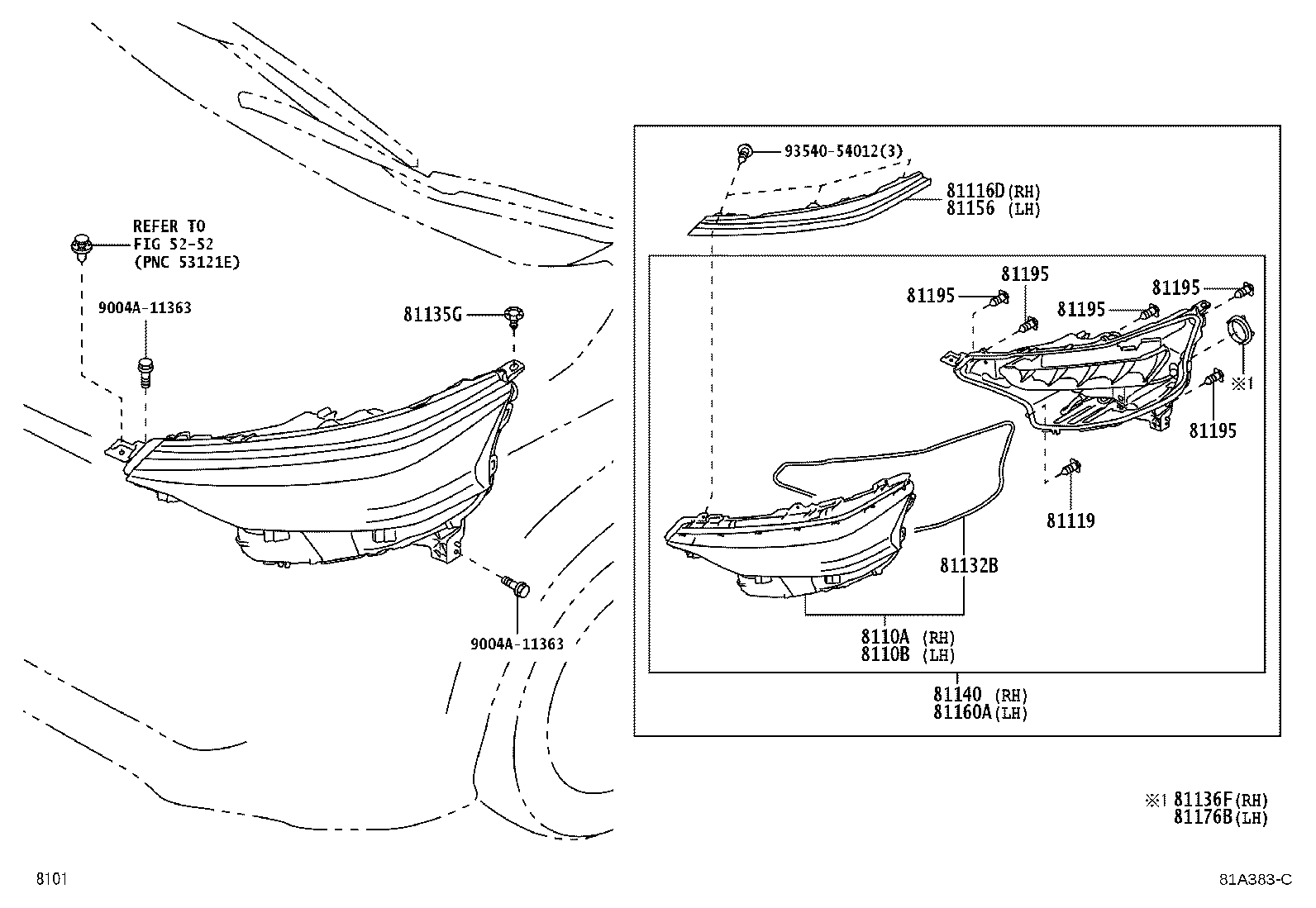

Headlamp
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81116D | Rim, Head Lamp, RH |
| 81119 | Screw, Headlamp |
| 81132B | Gasket, Headlamp Lens |
| 81135G | Clip |
| 81136F | Cover, Headlamp, NO.2 RH |
| 81140 | Unit Assy, Headlamp Led, RH |
| 81150 | Headlamp Assy, LH |
| 81156 | Rim, Headlamp, LH |
| 81160A | Unit Assy, Headlamp Led, LH |
| 81176B | Cover, Headlamp, NO.2 LH |
| 81195 | Screw, Headlamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
