Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 7 illustrations

Illustrations

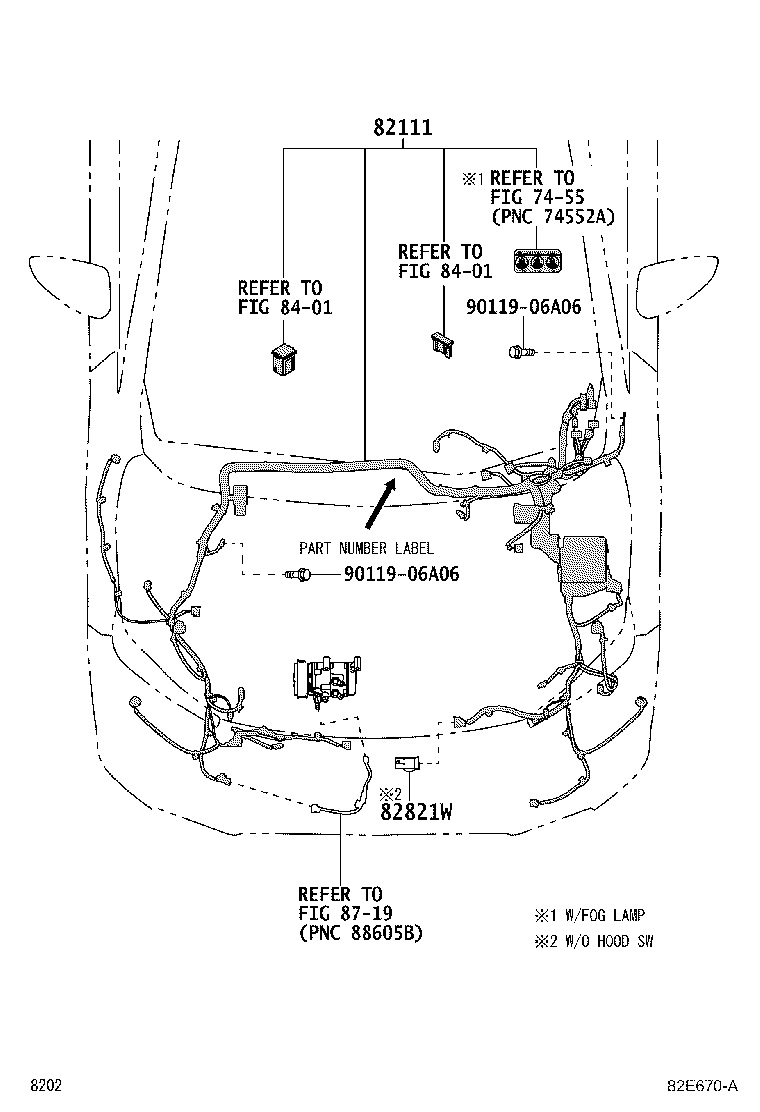

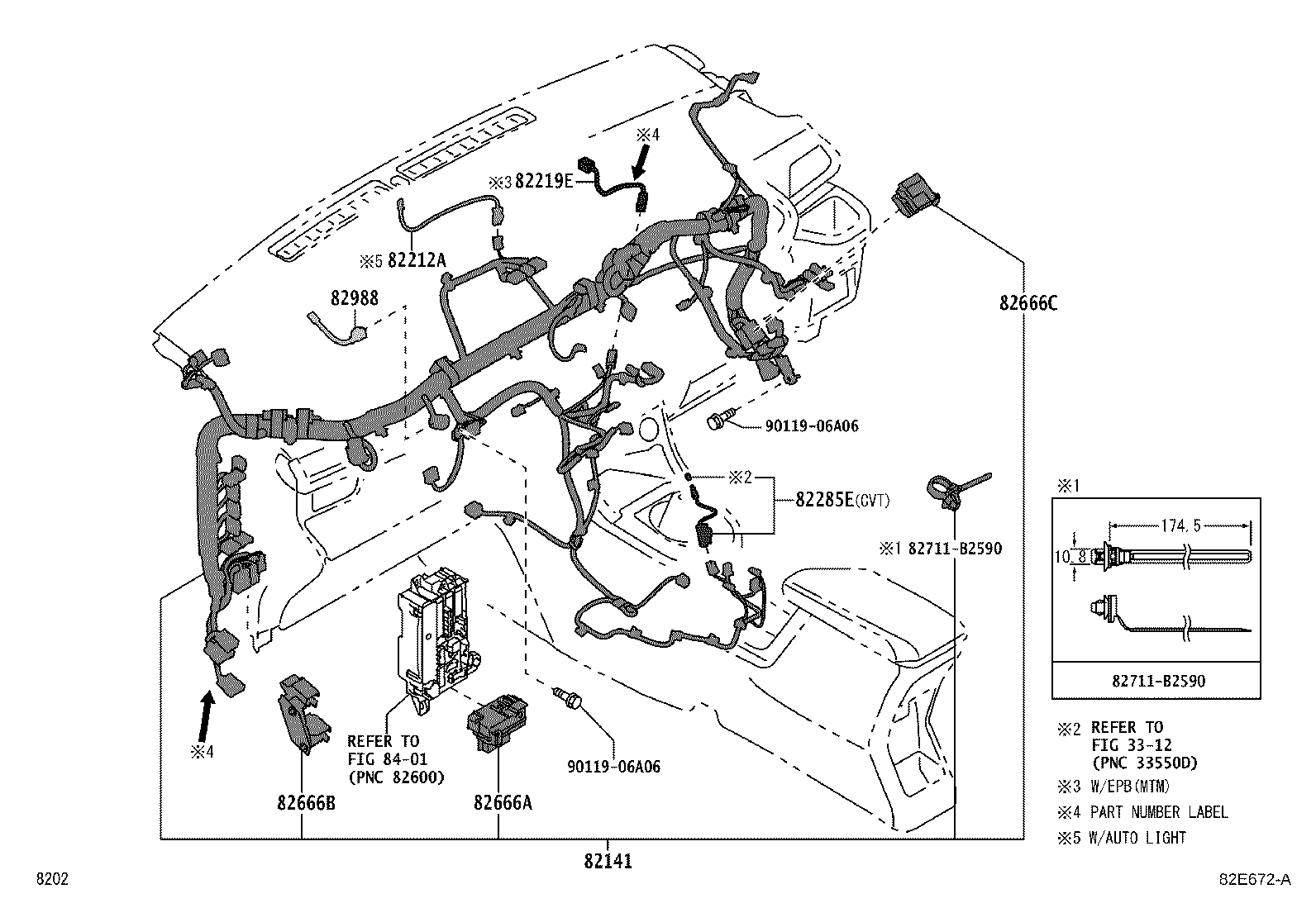

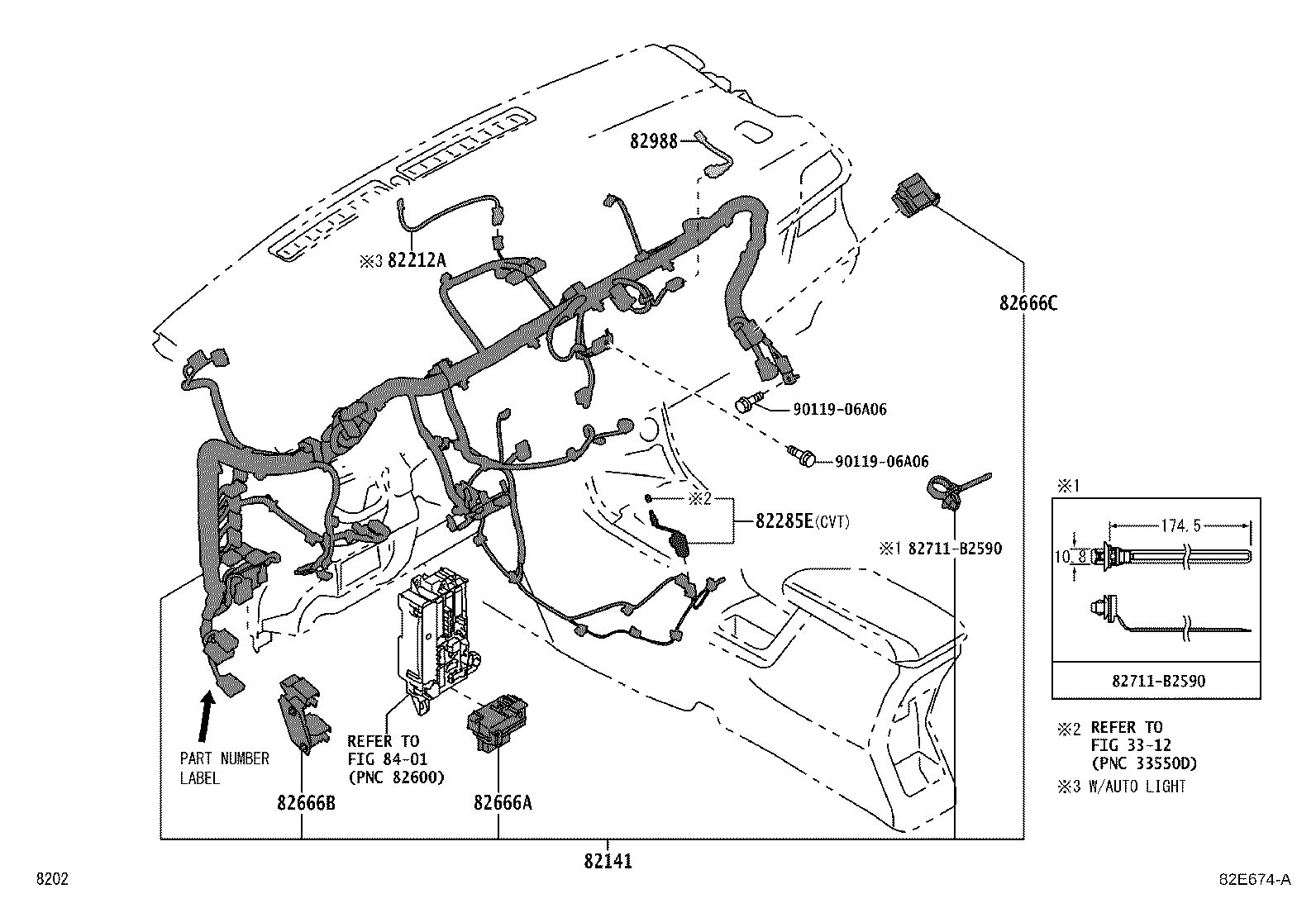

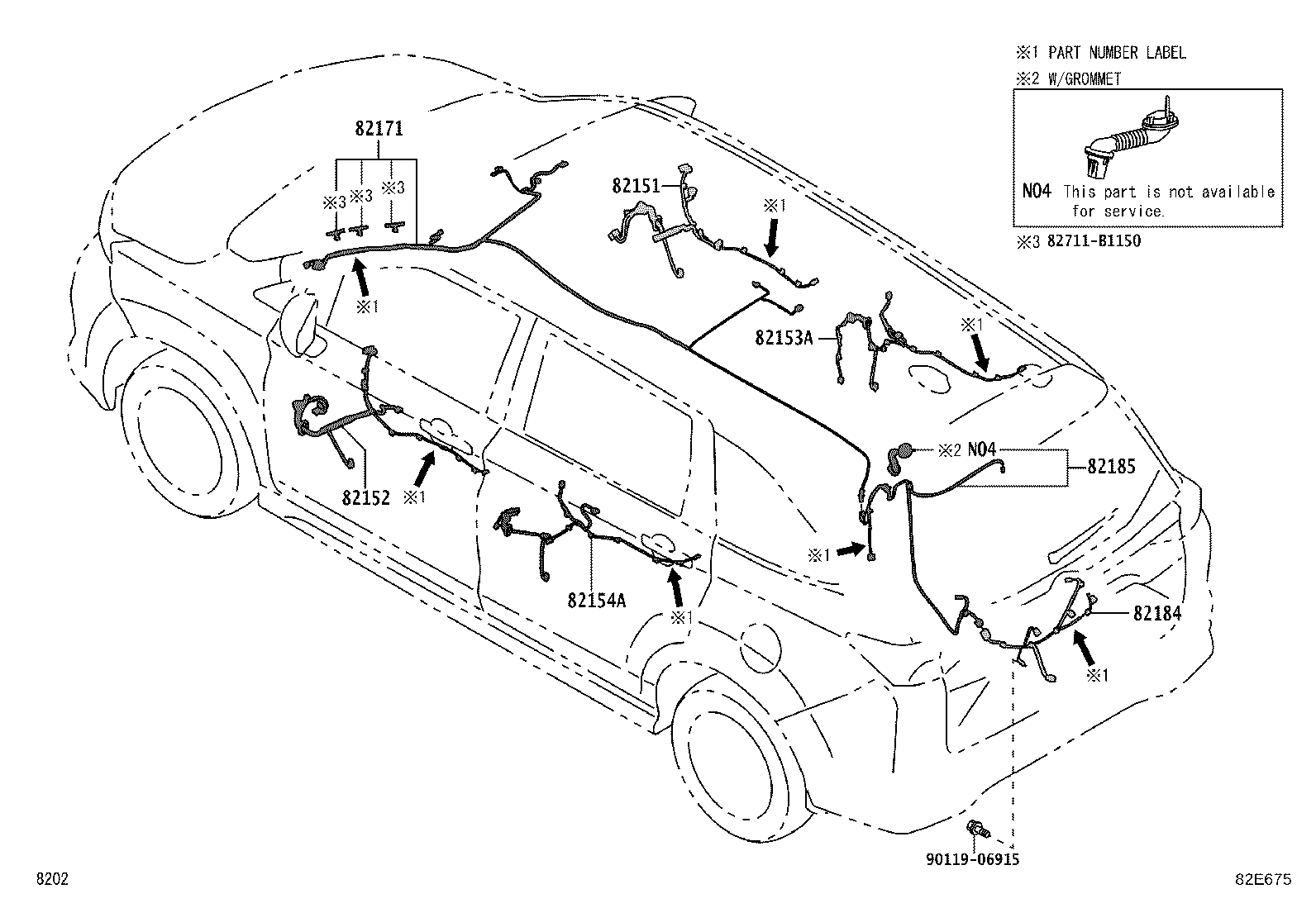

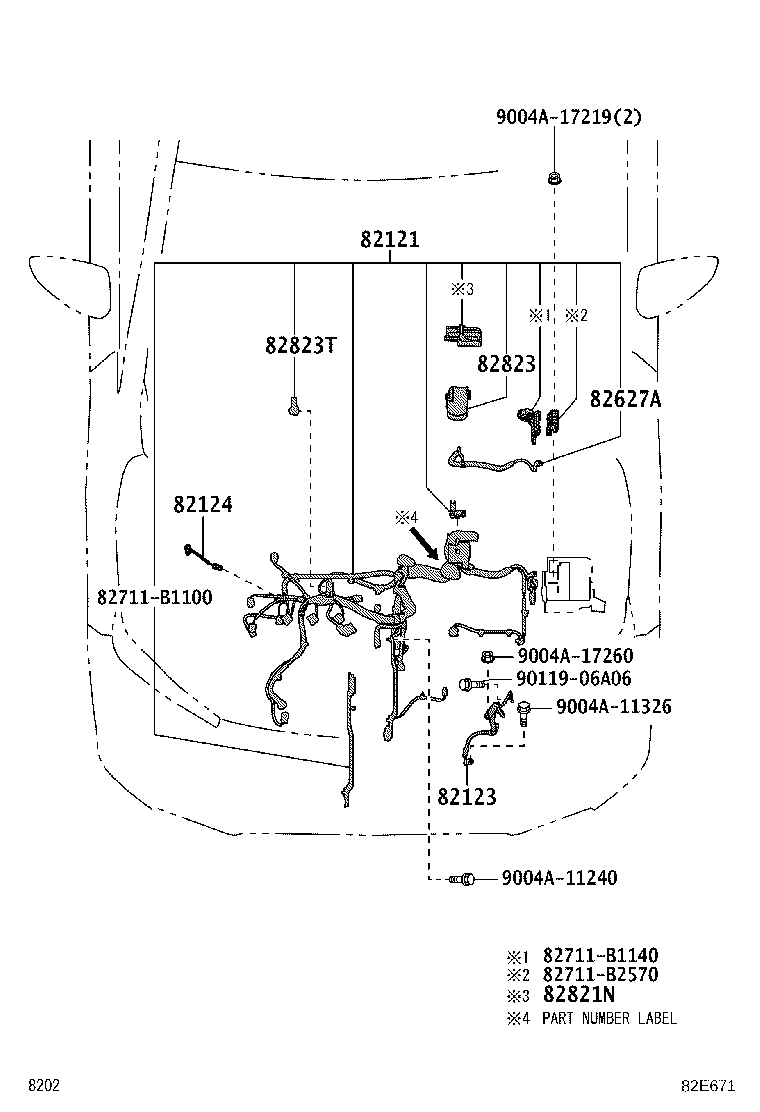

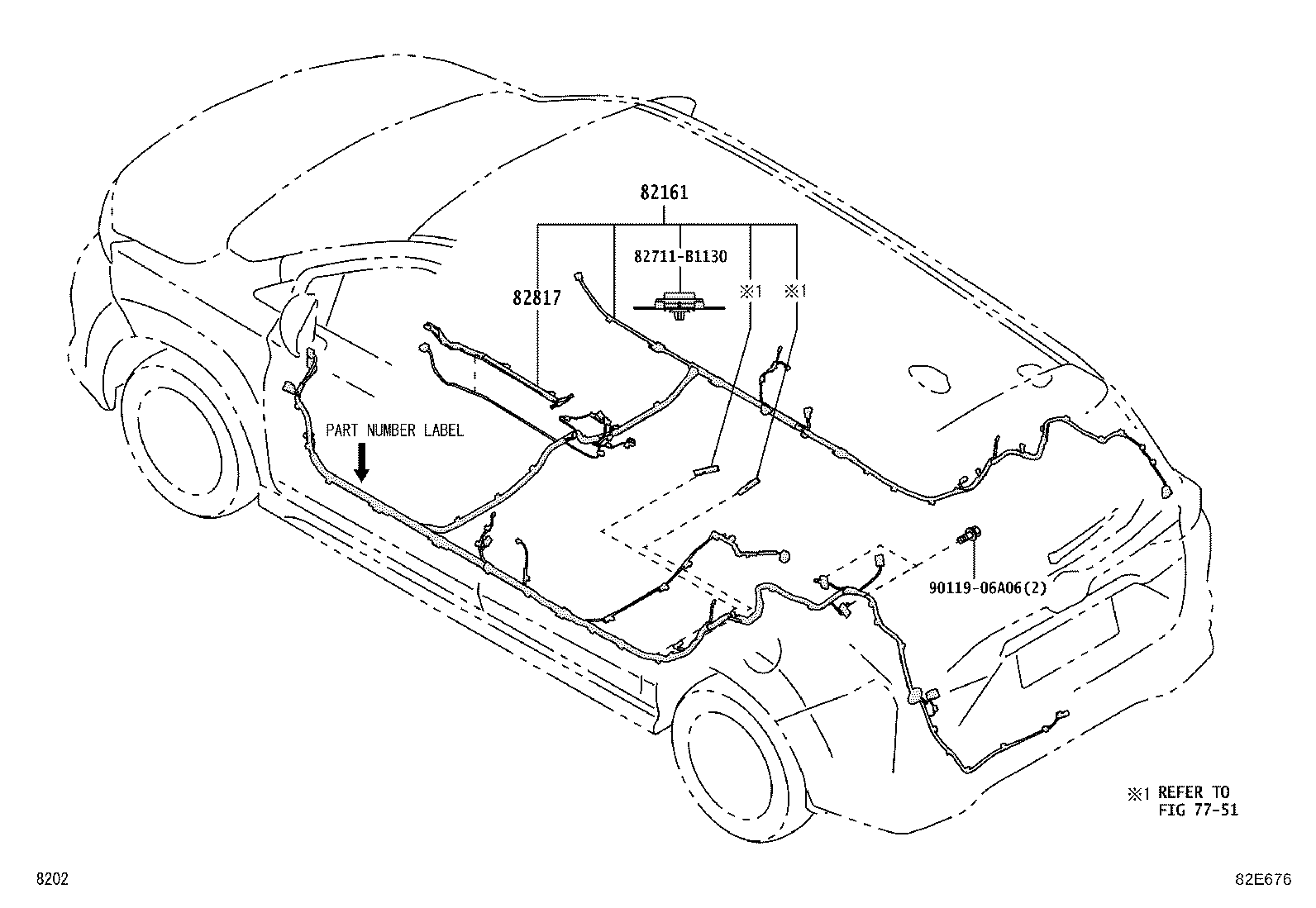

Figure 82E668A 82E668A 2021-11 → — Figure 82E670A 82E670A 2022-01 → — Figure 82E671 82E671 2021-11 → — Figure 82E672A 82E672A 2021-11 → — Figure 82E674A 82E674A 2022-01 → — Figure 82E675 82E675 2021-11 → — Figure 82E676 82E676 2021-11 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82212A Harness, Air Conditioner
82219E Wire, Sensor
82285E Wire, Illumination
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82821N Cover, Connector
82821W Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82823T Cap, Alternator Terminal
82988 Wire, Airbag Repair
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
89639H Wire, Brake Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
