Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

68 part groups · 20 illustrations

Illustrations

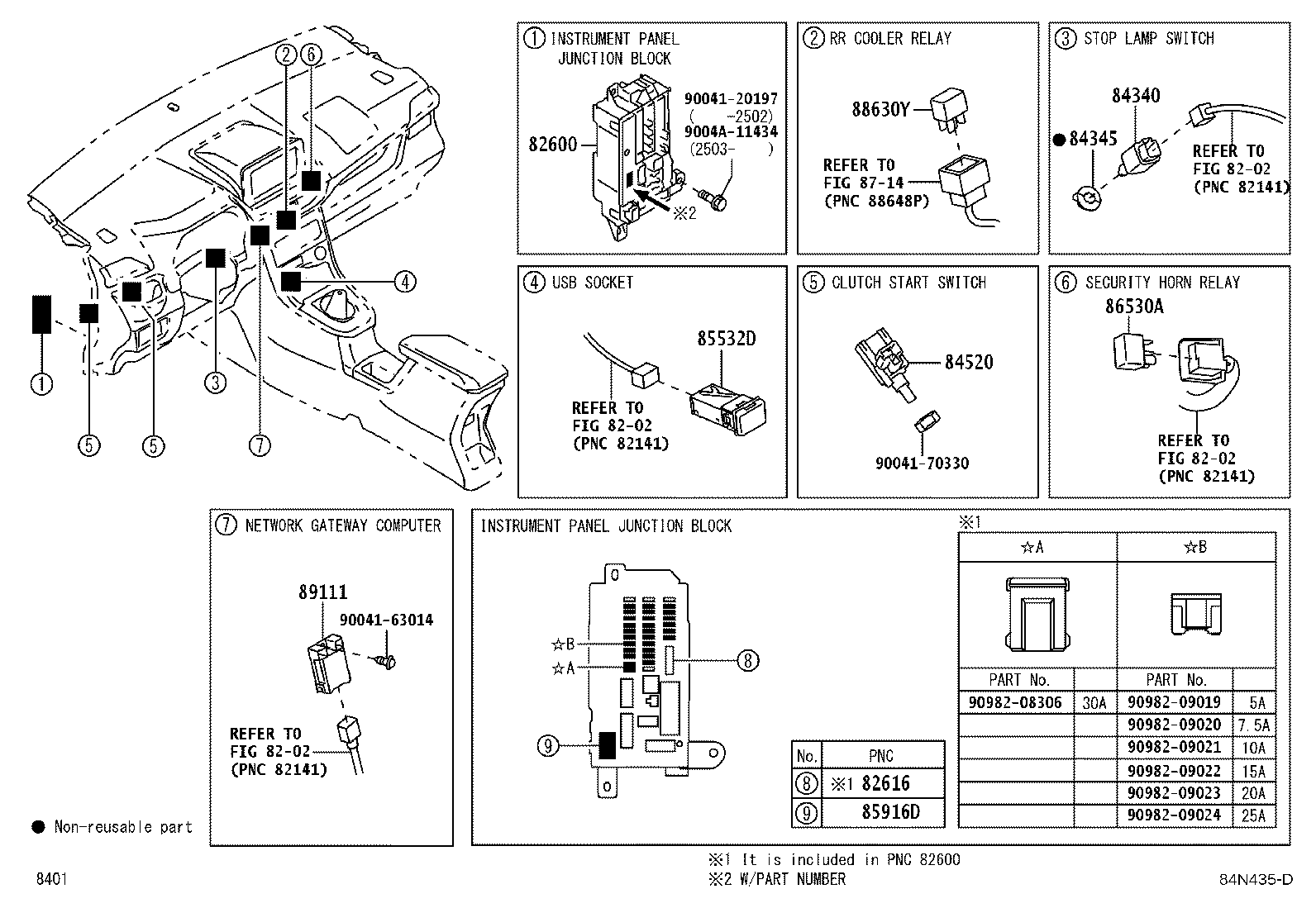

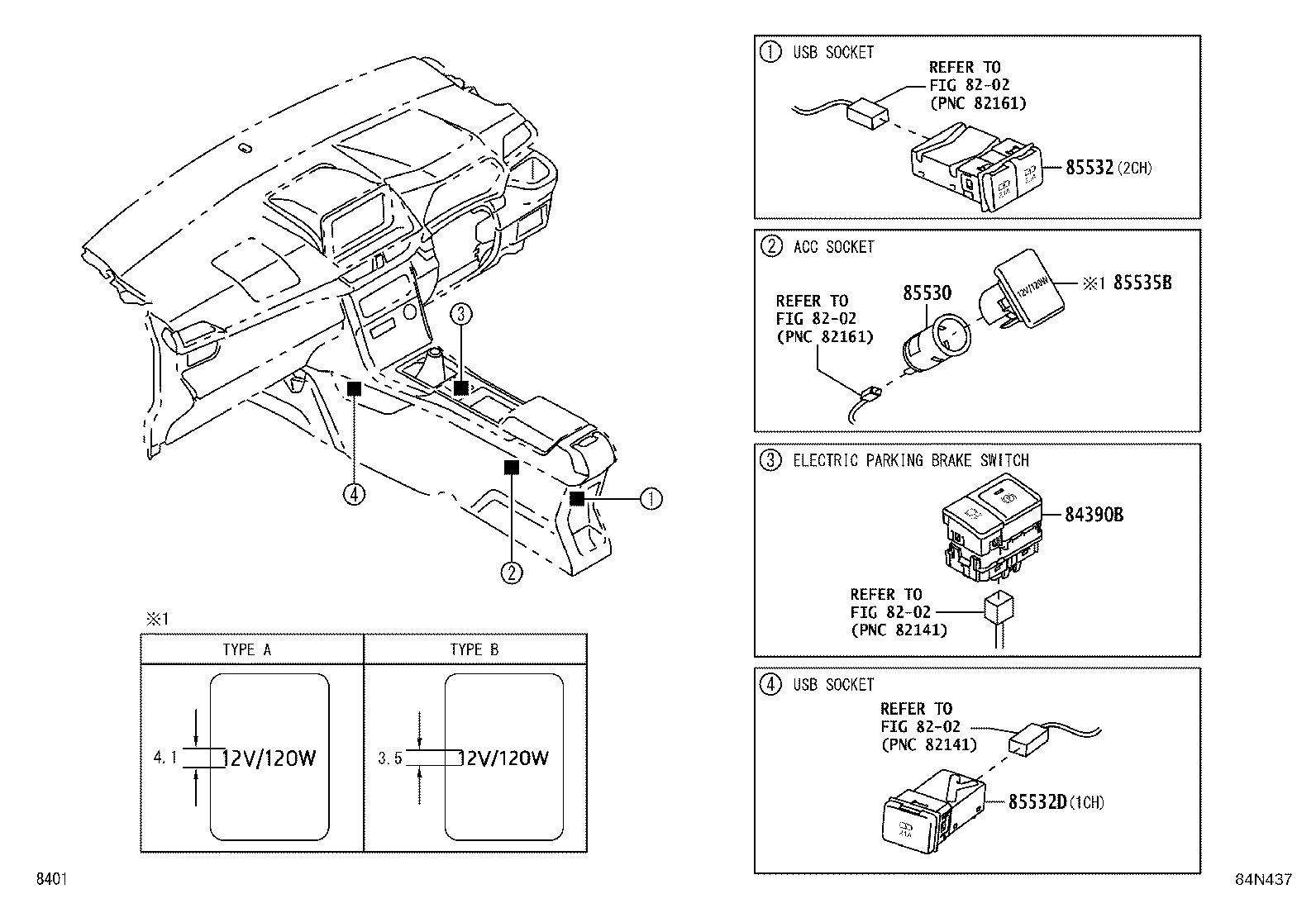

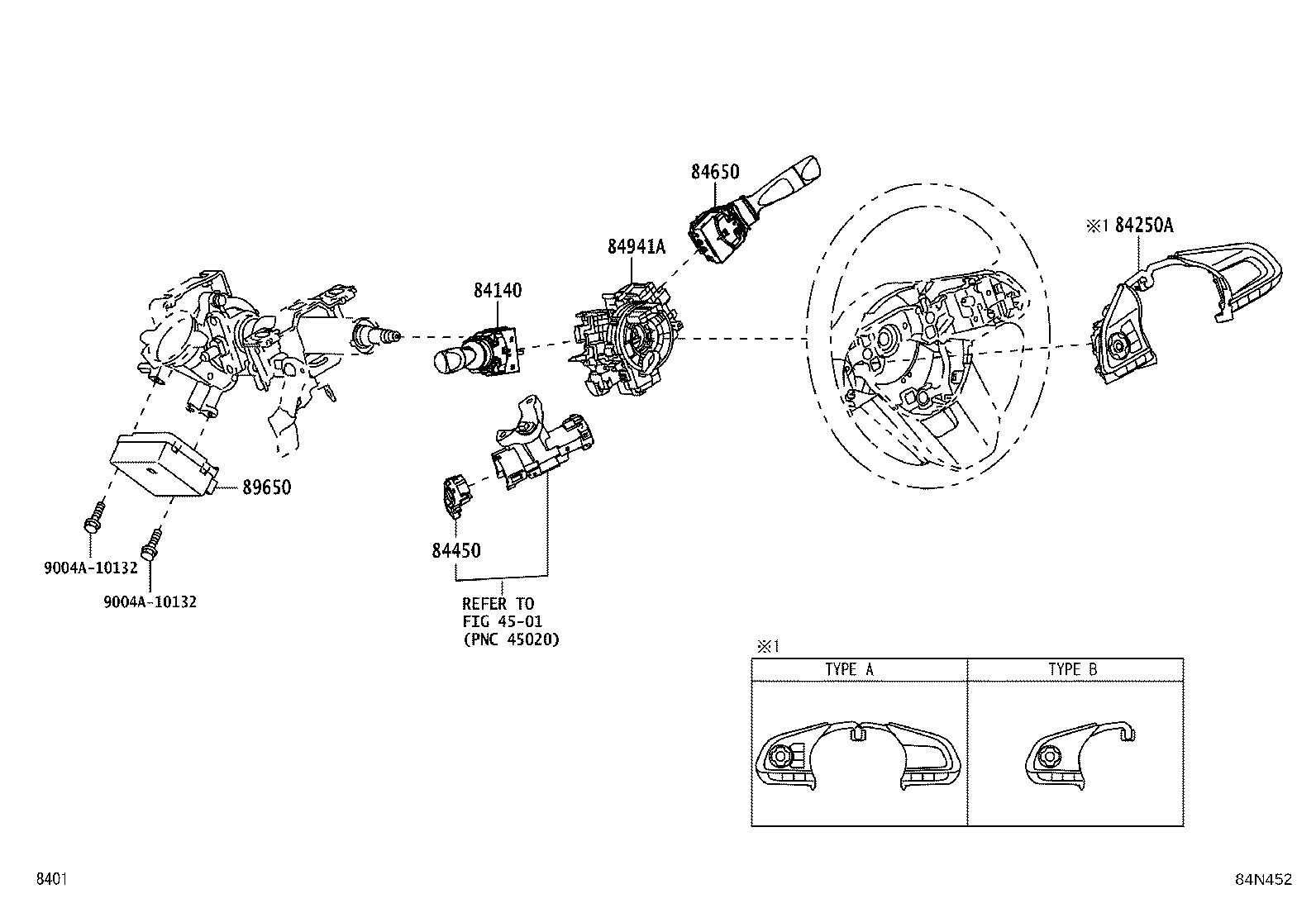

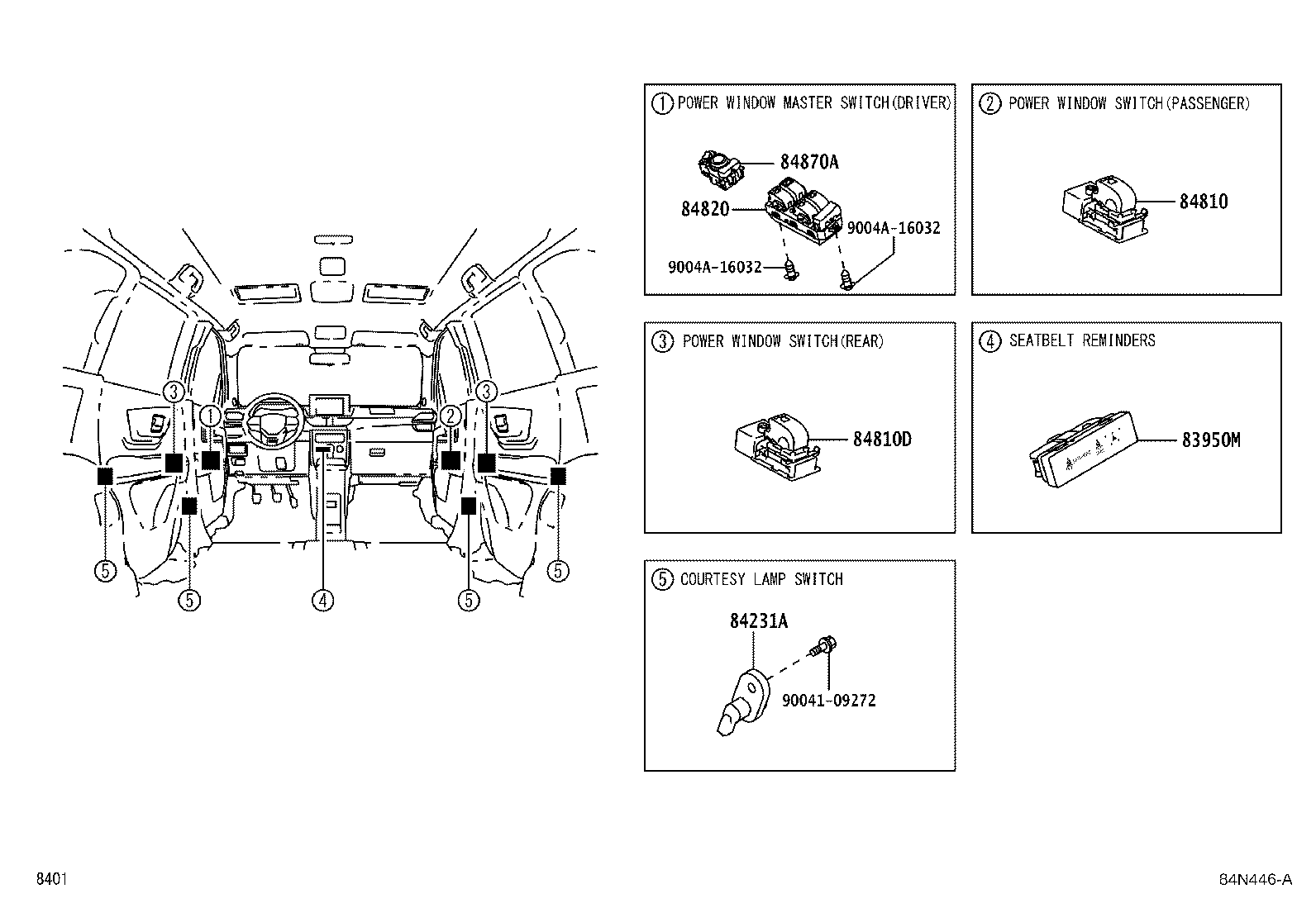

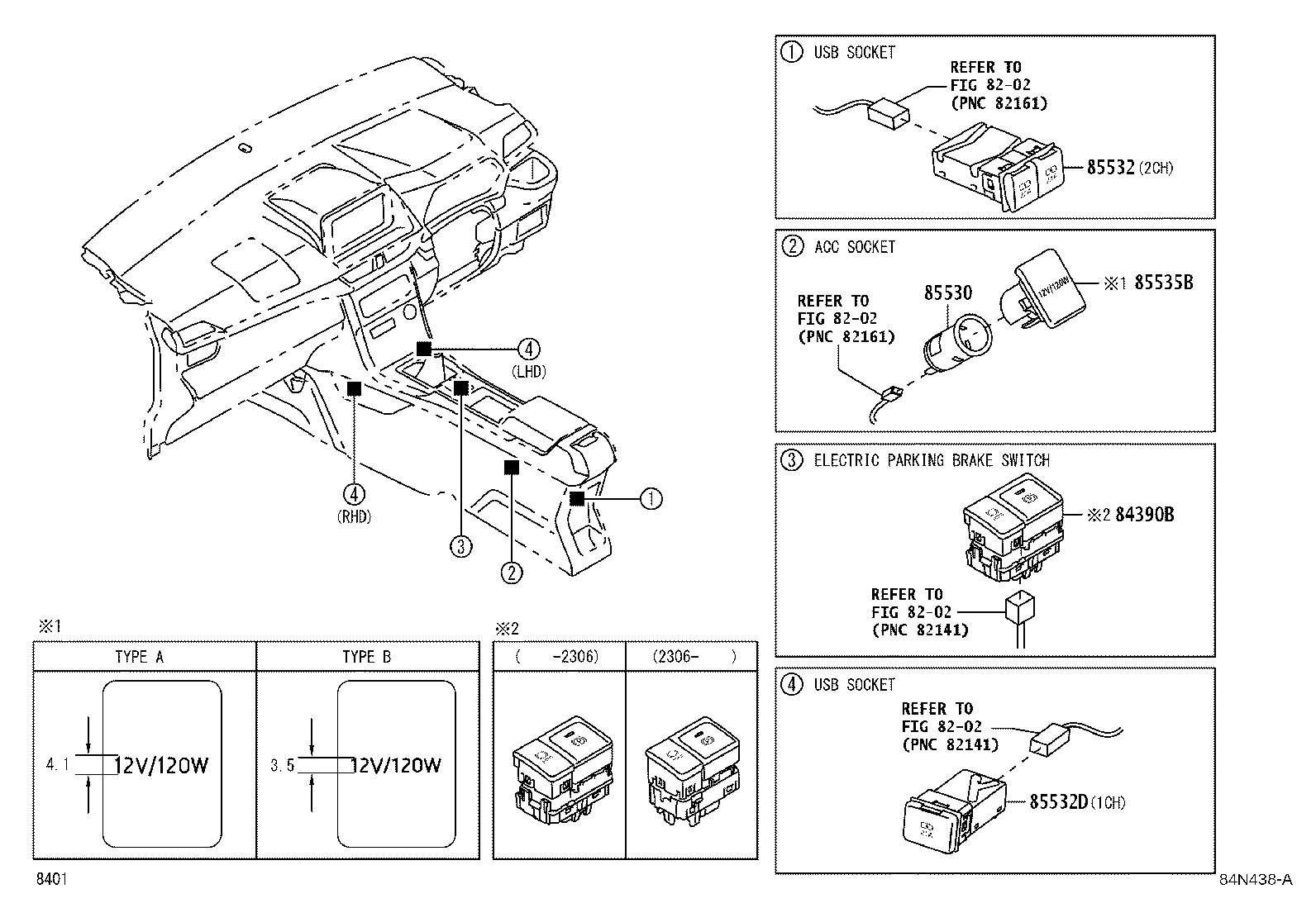

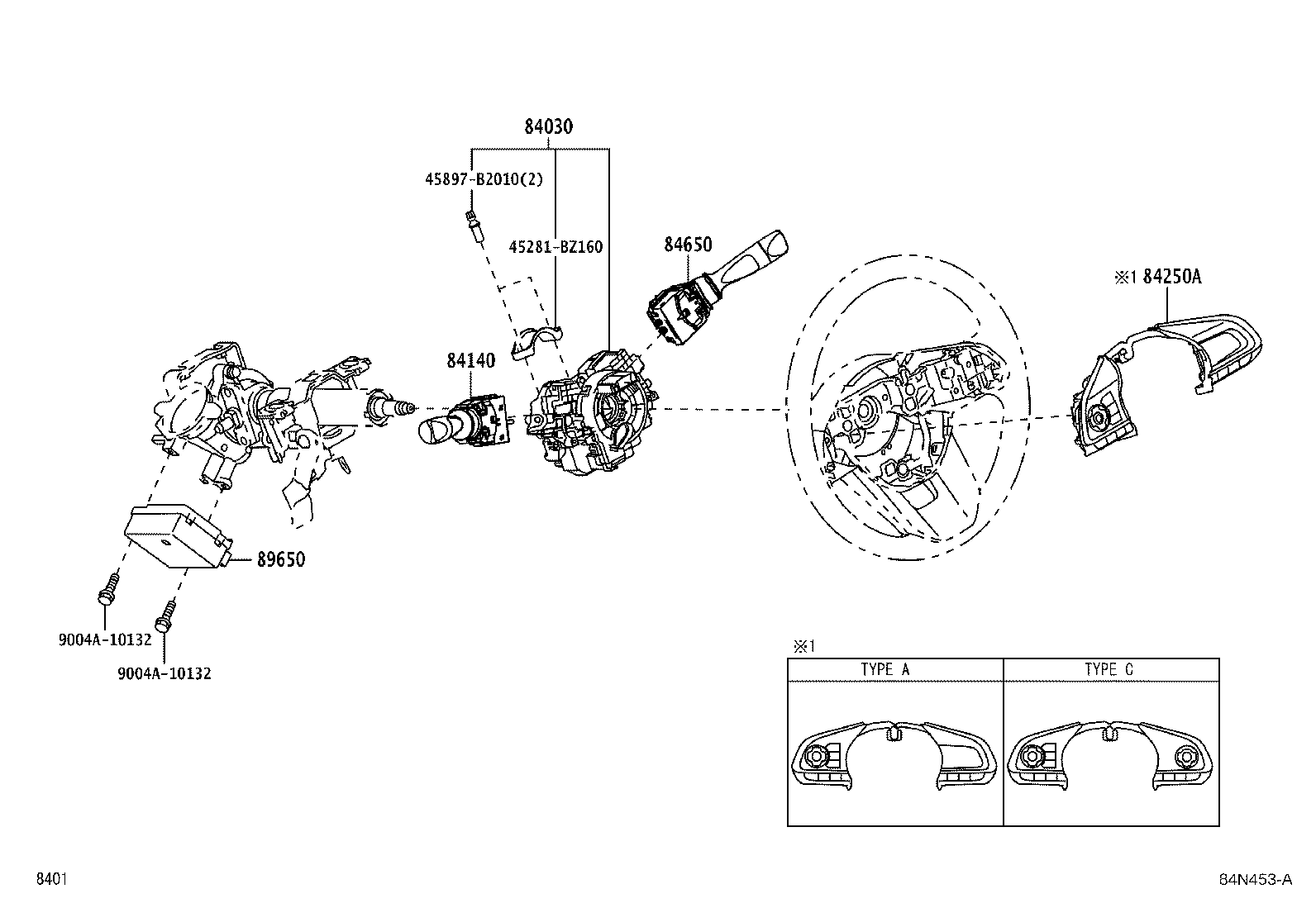

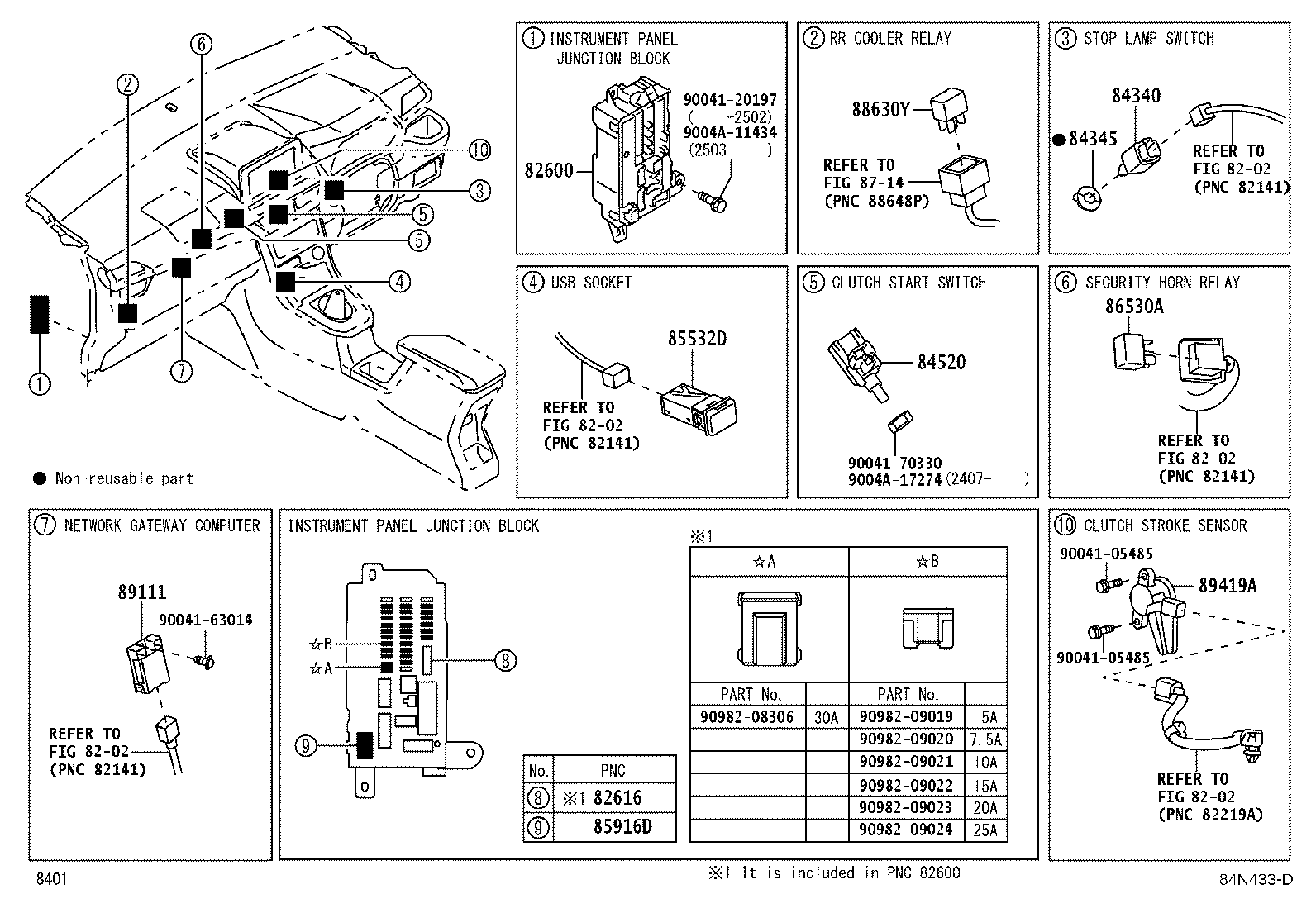

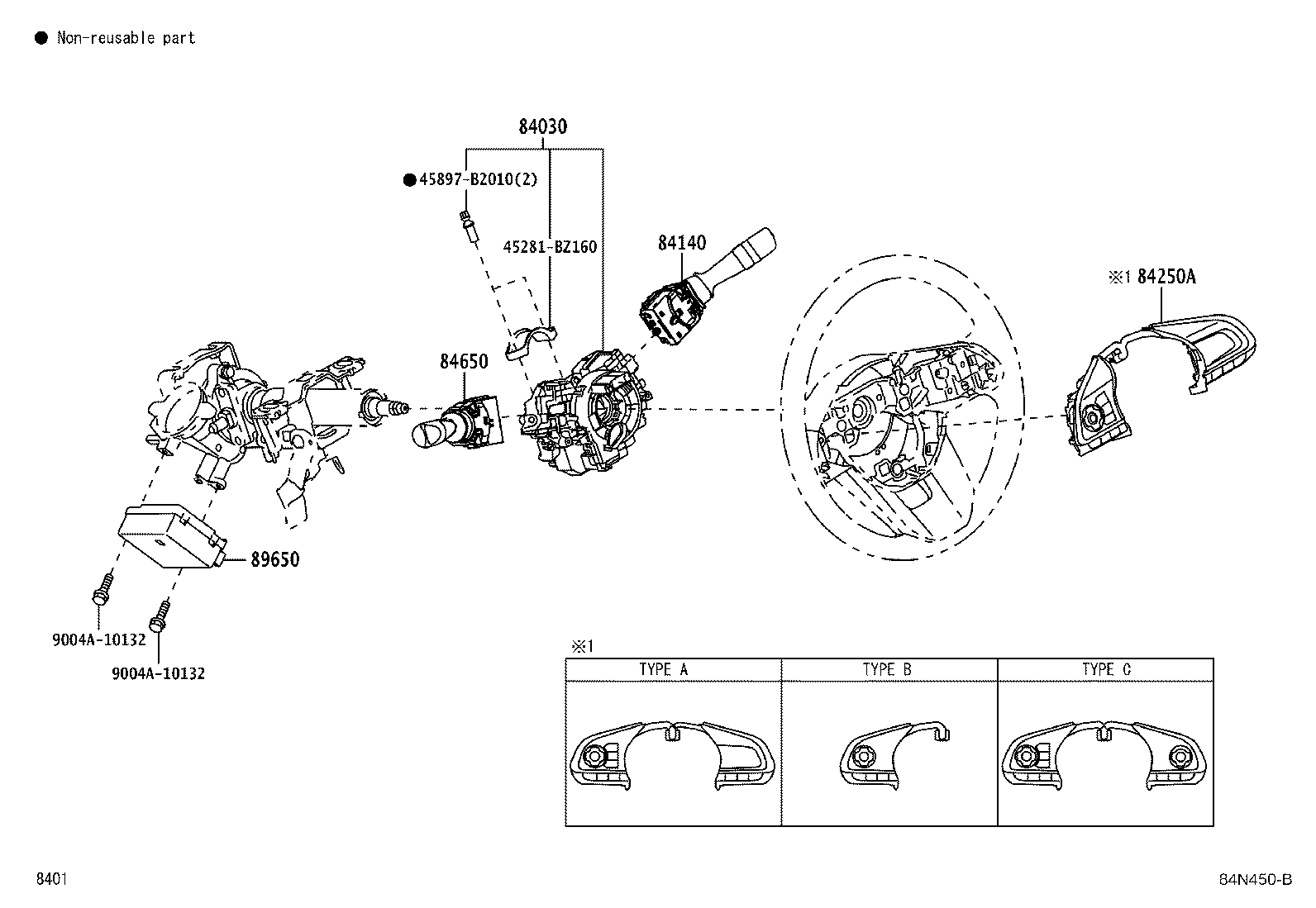

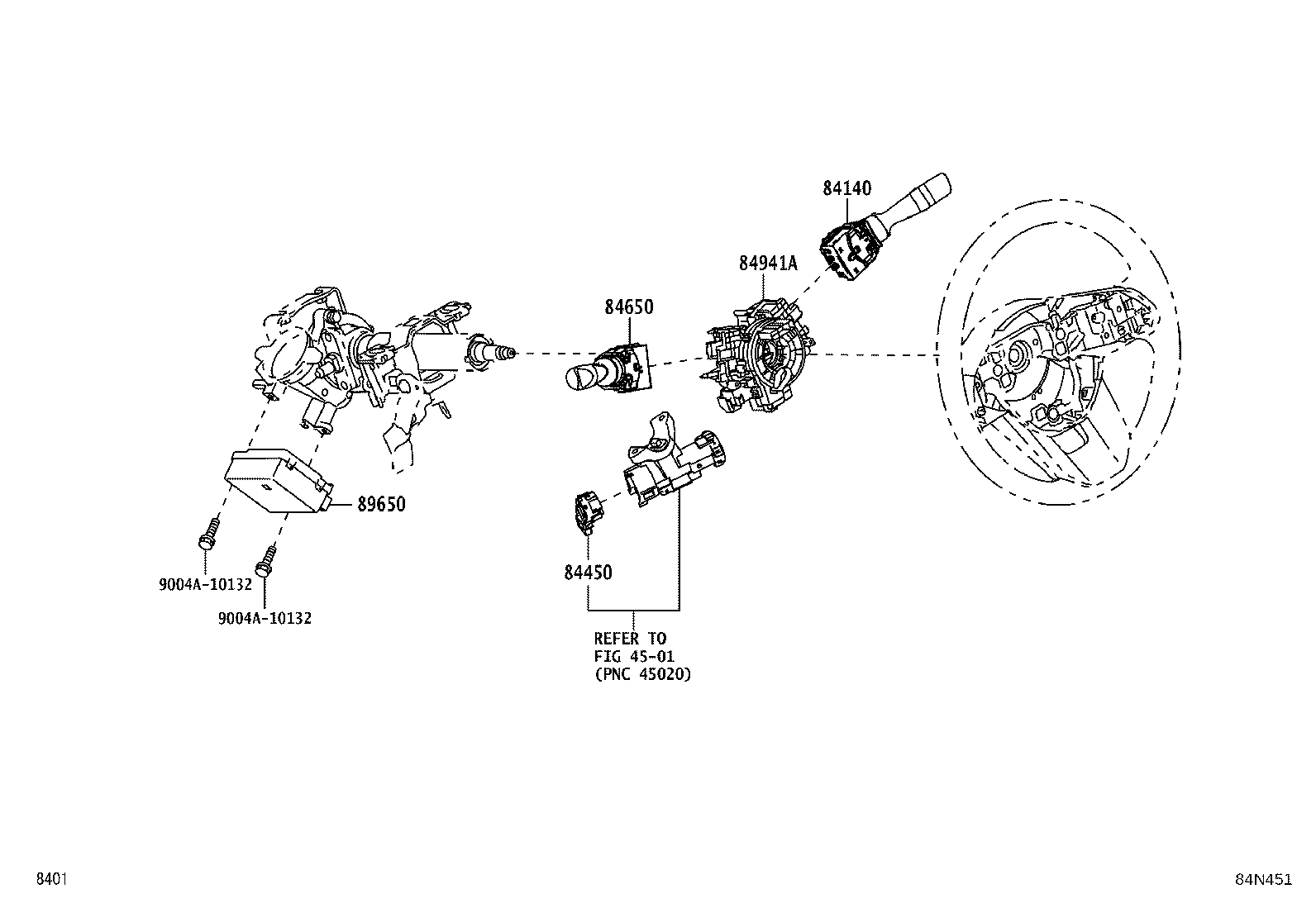

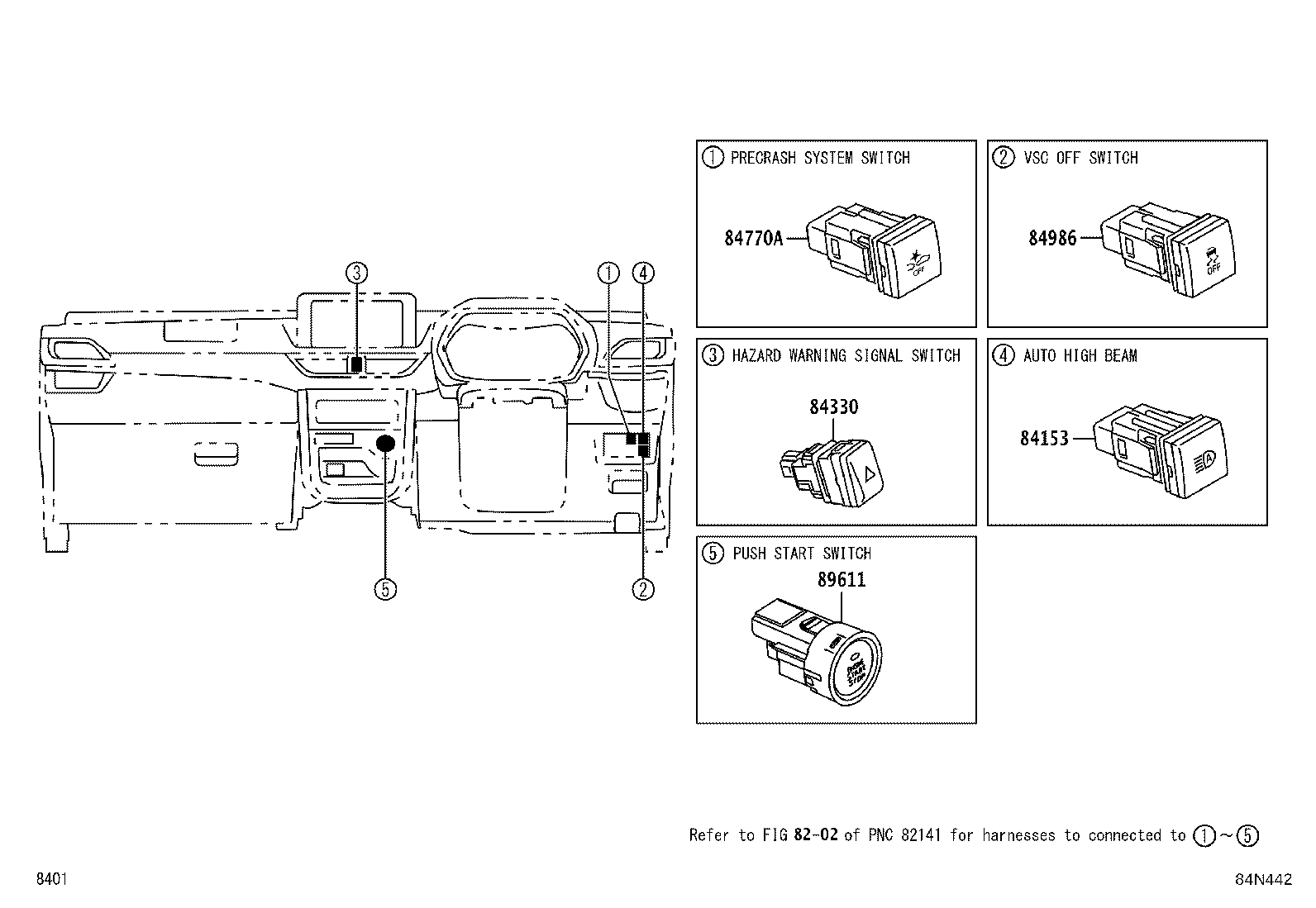

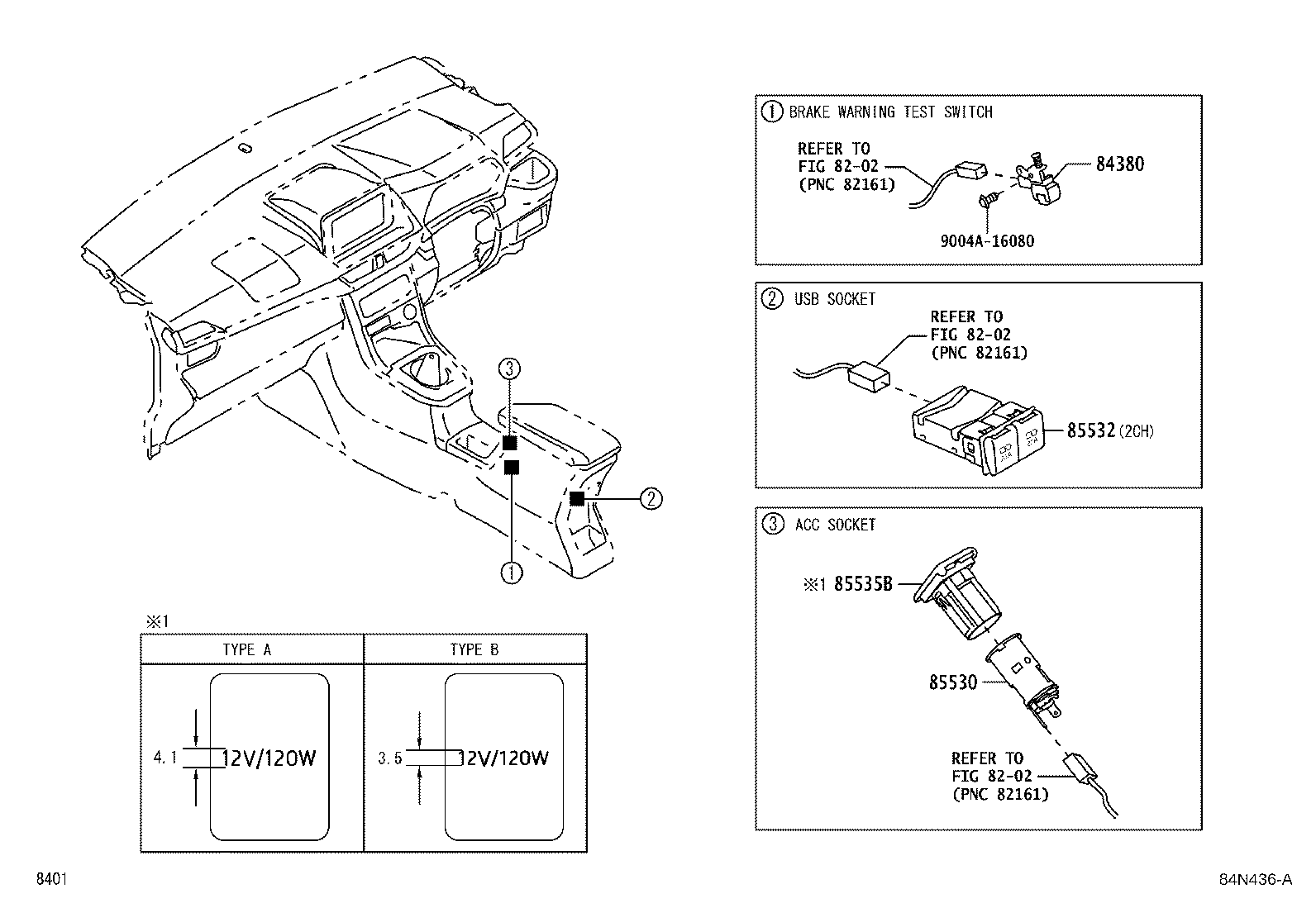

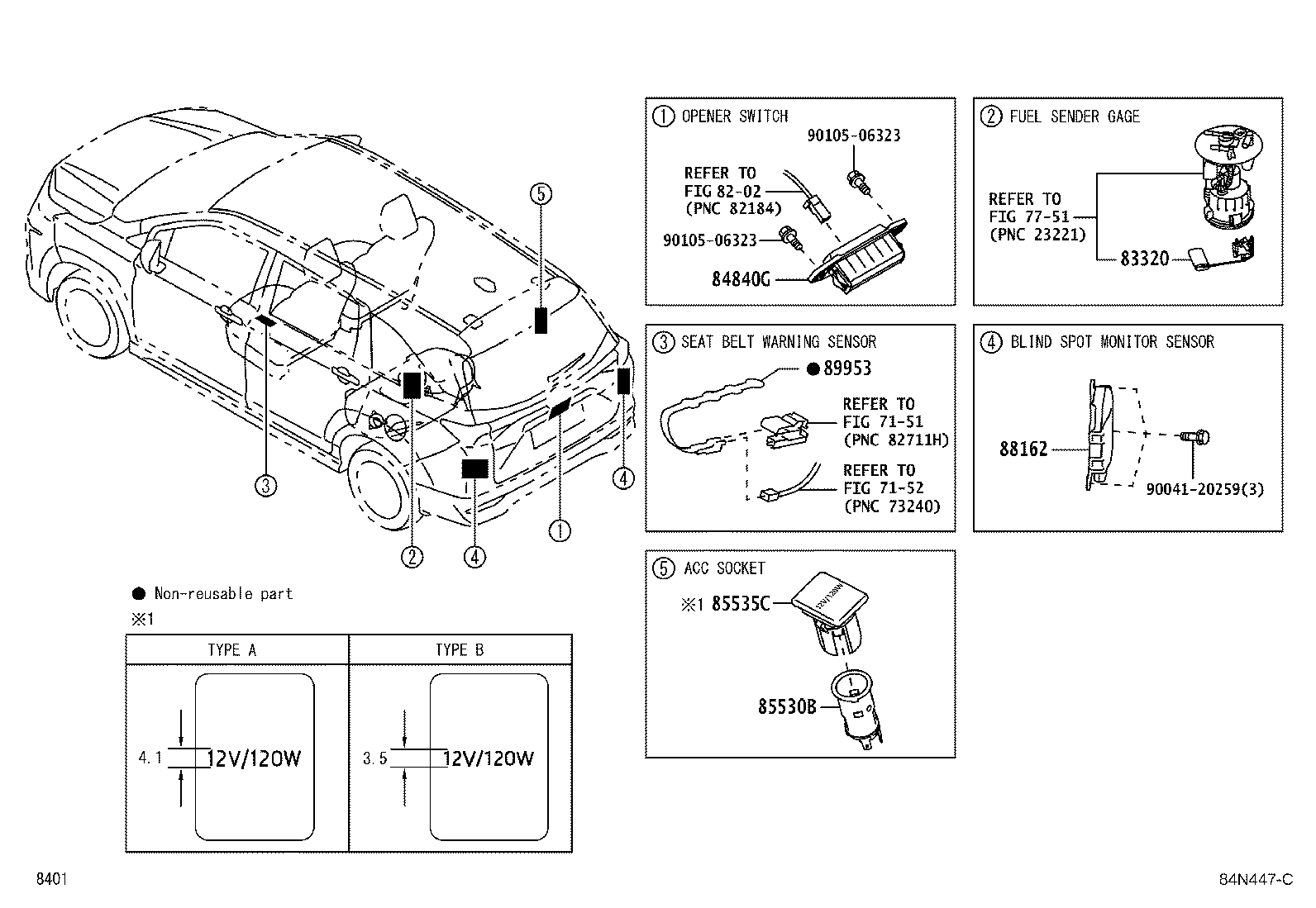

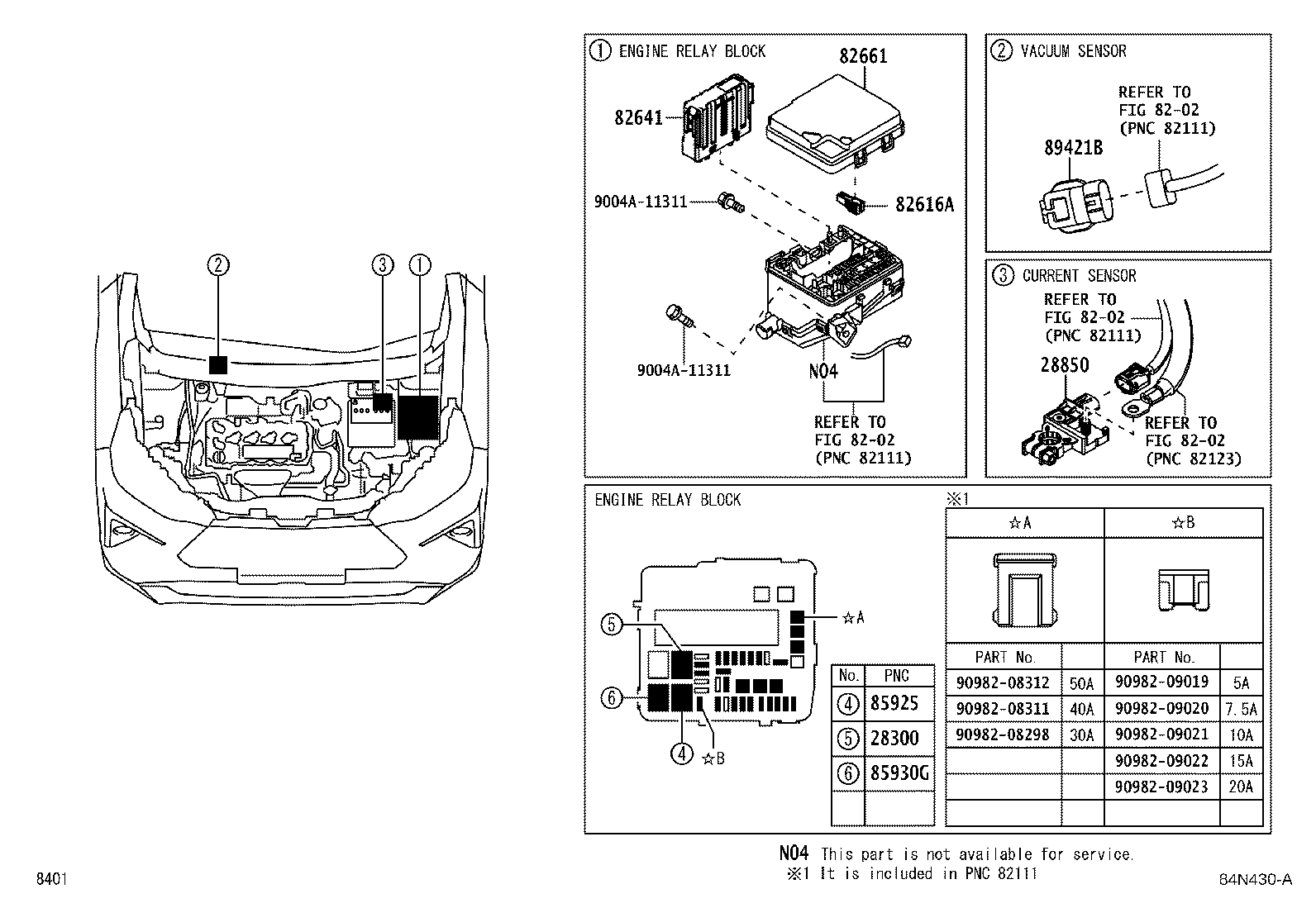

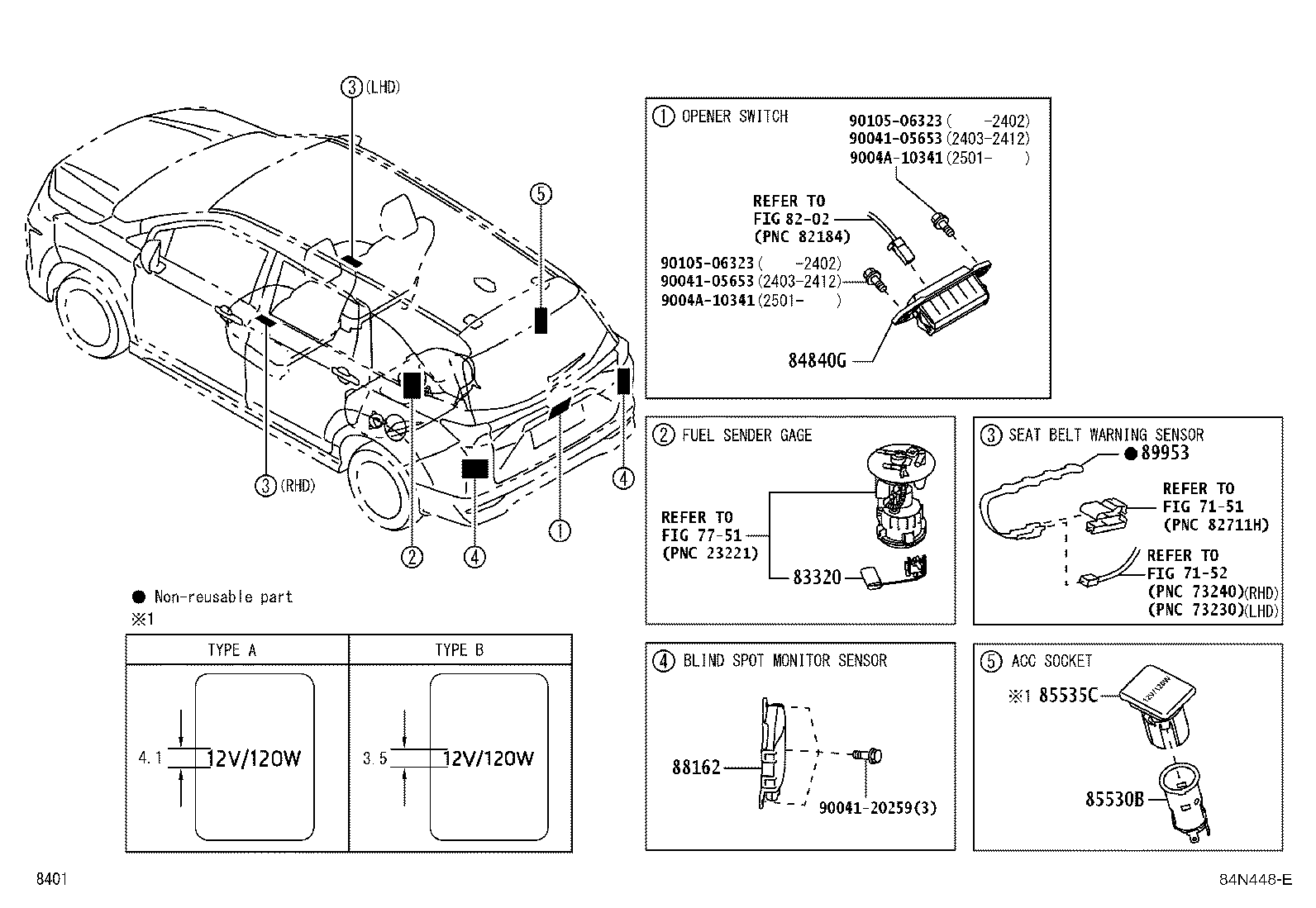

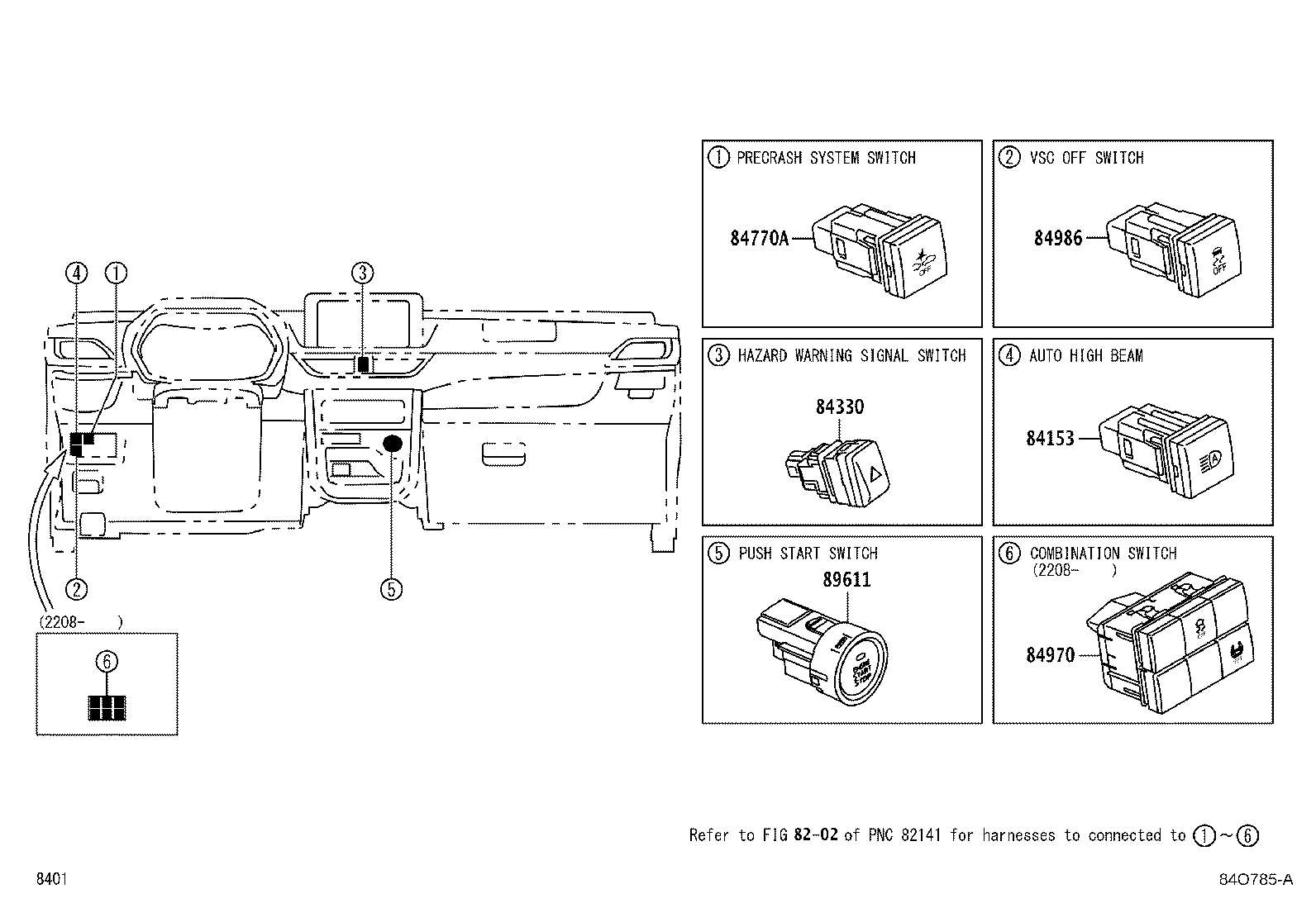

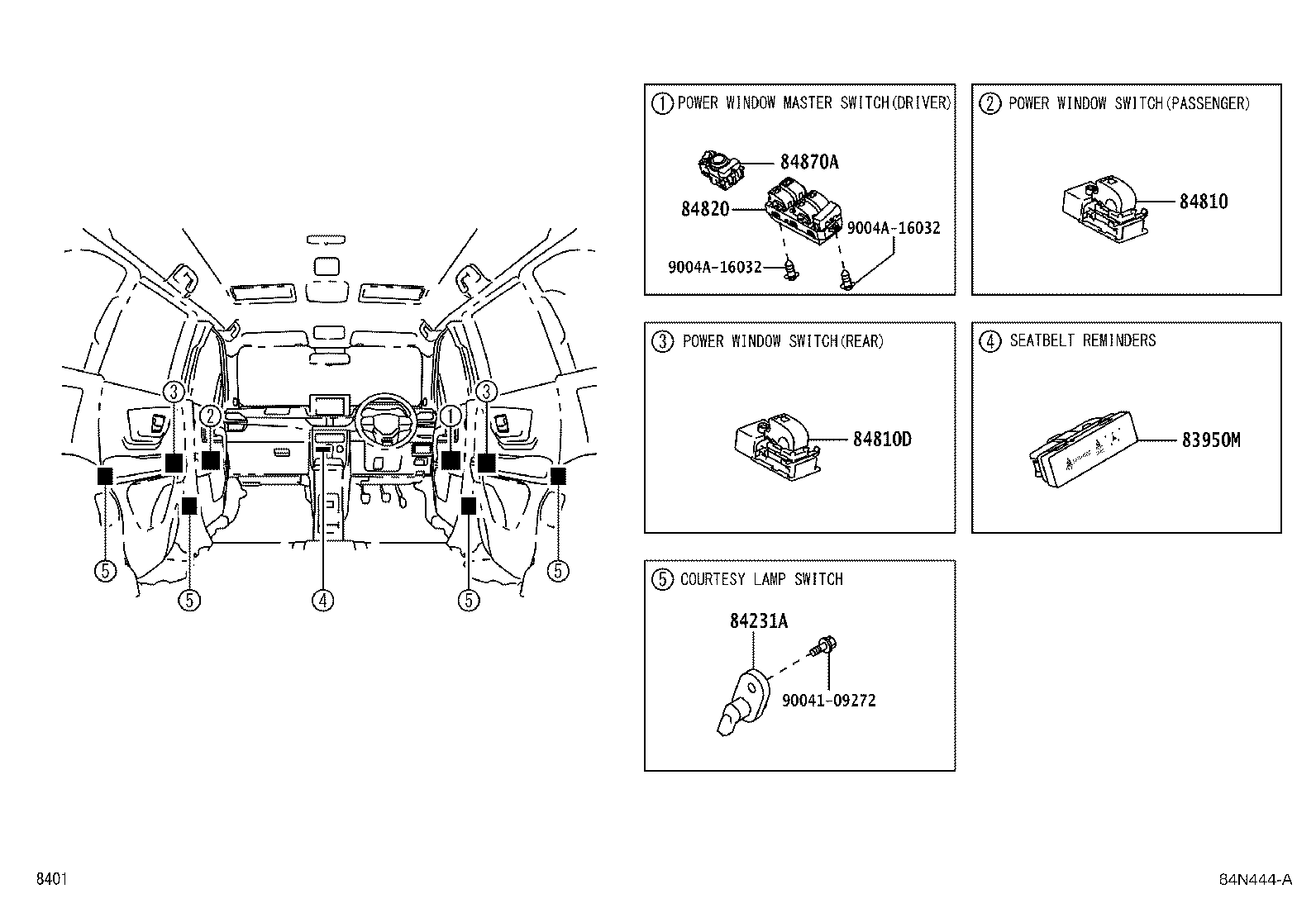

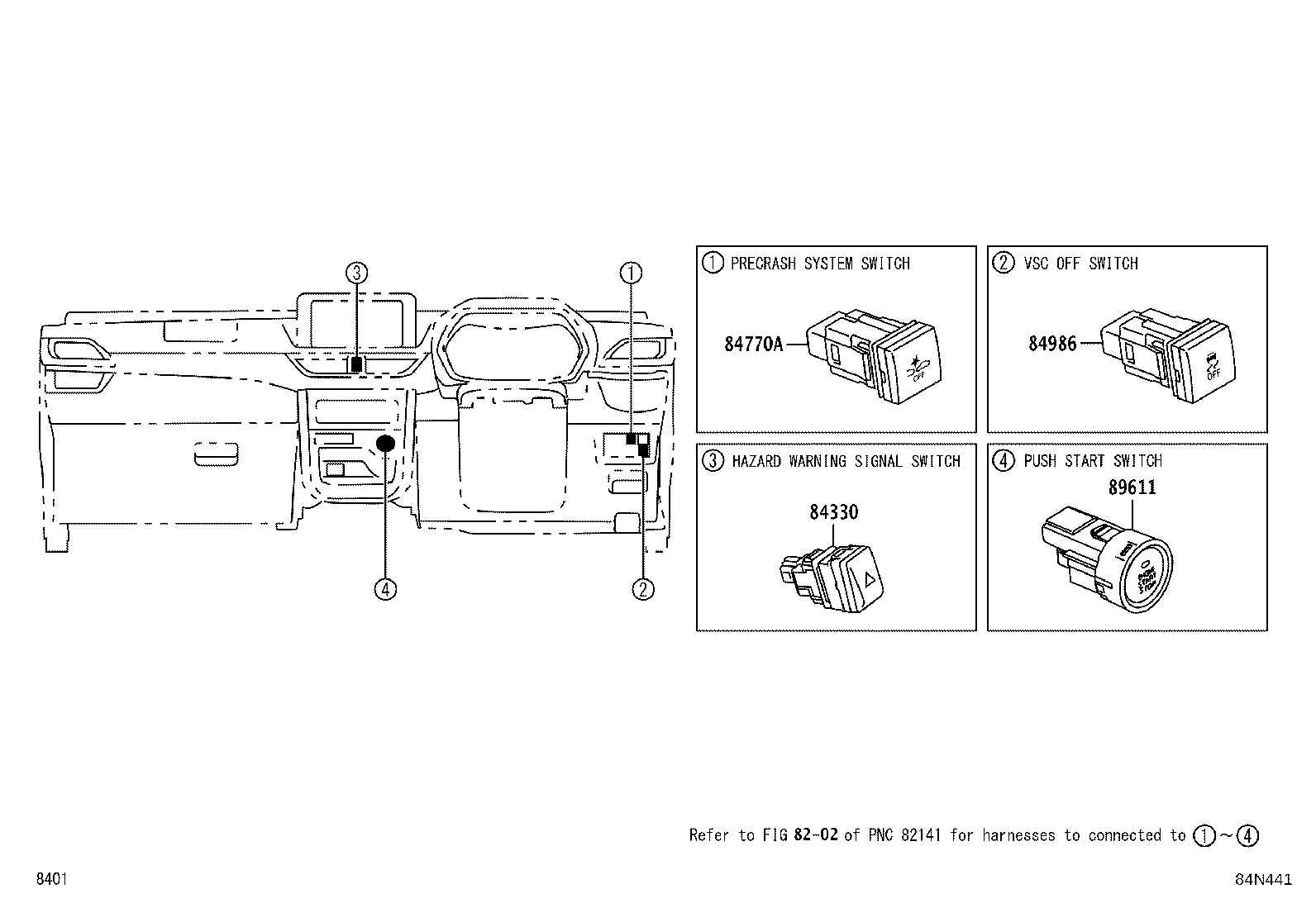

Figure 84N428D 84N428D 2021-11 → — Figure 84N430A 84N430A 2021-11 → 2022-01 Figure 84N431B 84N431B 2022-01 → — Figure 84N433D 84N433D 2021-11 → — Figure 84N435D 84N435D 2022-01 → — Figure 84N436A 84N436A 2021-11 → — Figure 84N437 84N437 2021-11 → 2022-01 Figure 84N438A 84N438A 2022-01 → — Figure 84N441 84N441 2021-11 → 2022-01 Figure 84N442 84N442 2022-01 → — Figure 84O785A 84O785A 2022-01 → — Figure 84N444A 84N444A 2021-11 → — Figure 84N446A 84N446A 2022-01 → — Figure 84N447C 84N447C 2021-11 → 2022-01 Figure 84N448E 84N448E 2022-01 → — Figure 84N450B 84N450B 2021-11 → — Figure 84N451 84N451 2021-11 → — Figure 84N452 84N452 2022-01 → — Figure 84N453A 84N453A 2022-01 → — Figure 84N453A 84N453A 2022-12 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28850 Sensor Assy, Battery Current
28859A Holder, Battery Current Sensor
82600 Block Assy, Fuse
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82641 Relay, Integration NO.1
82661 Cover, Relay Block, NO.1
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84030 Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84153 Switch, Auto High Beam
84210 Switch Assy, Back-up Lamp
84231A Switch, Courtesy Lamp
84248 Clamp, Center Cluster Module Switch Harness
84250A Switch Assy, Steering Pad
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84390B Switch Assy, Electric Parking Brake
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84650 Switch Assy, Windshield Wiper
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84970 Switch Assy, Combination
84986 Switch, Vehicle Stability Control
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85532 Socket, Usb Charger
85532D Socket, Usb Charger, NO.3
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85912D Relay
85916D Relay, Fog Lamp
85924C Relay, Igct
85925 Relay, Radiator Fan
85925C Relay, Radiator Fan, NO.2
85930G Relay, Acc
86530A Relay, Horn
88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88630Y Relay, Rear Cooler
89111 Computer, Network Gateway
89419A Sensor, Clutch Stroke
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89451A Sensor, Shift Lever Position
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
G9010C Relay, Pcu Radiator Fan
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
