Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

5 part groups · 3 illustrations

Illustrations

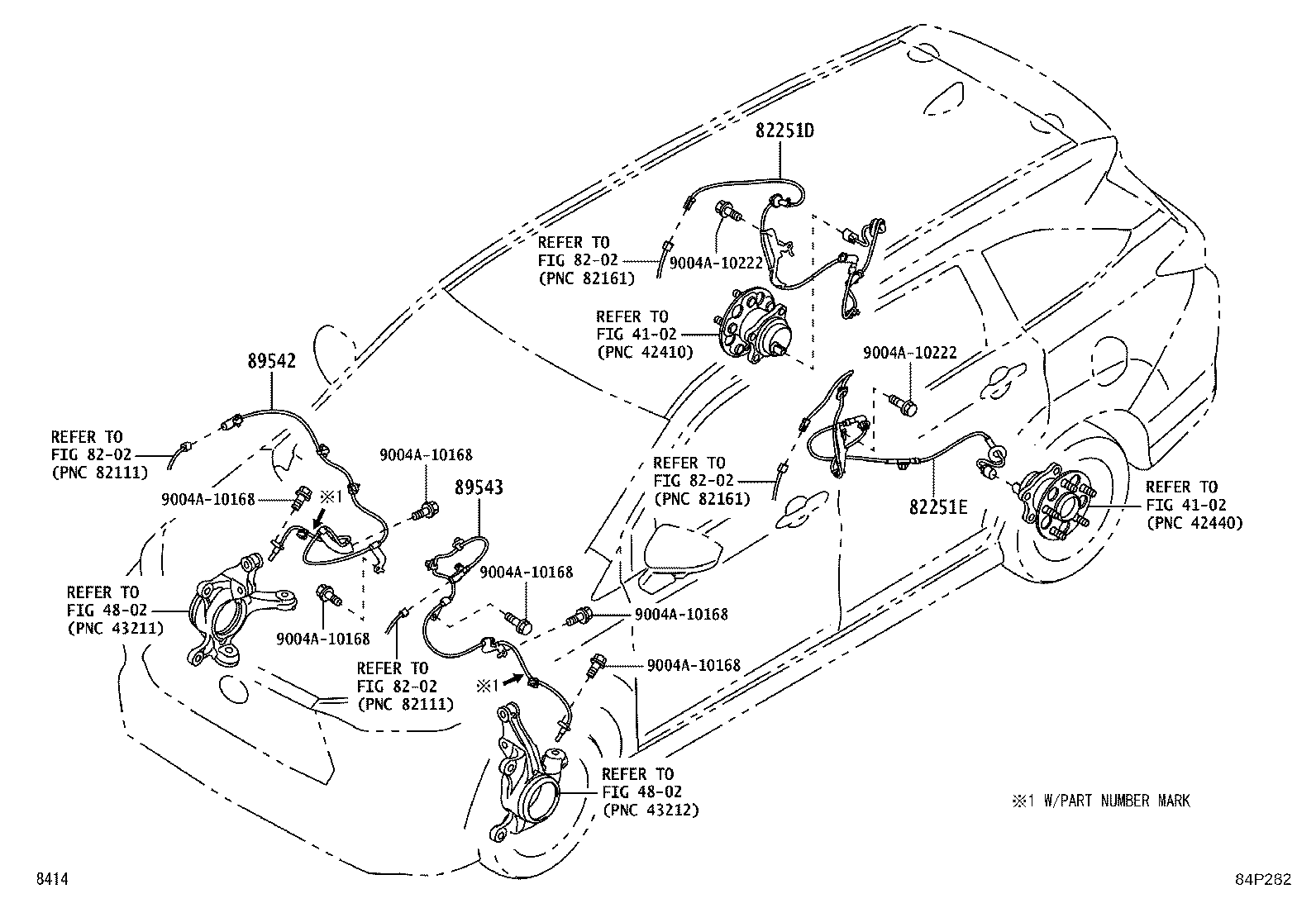

Figure 84N388B 84N388B 2021-11 → — Figure 84N388B 84N388B 2022-12 → — Figure 84P282 84P282 2022-12 → —

Part groups

PNCDescription
82251D Wire, Speed Sensor, RH
82251E Wire, Speed Sensor, LH
89510D Sensor Assy, Brake Pedal Stroke
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
