Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

5 part groups · 2 illustrations

Illustrations

Figure 84N320B

84N320B 2021-11 → 2022-01

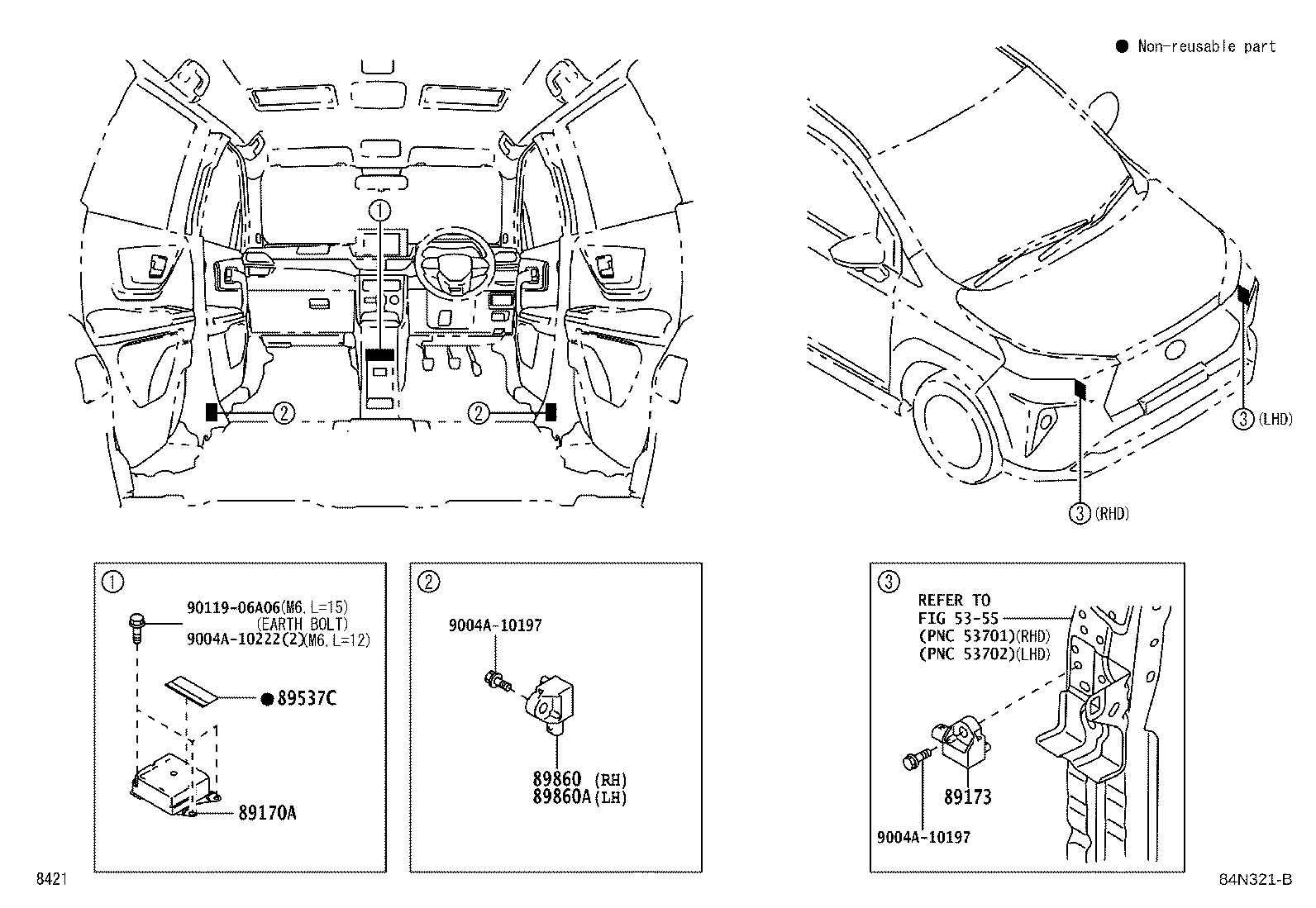

Figure 84N321B

84N321B 2022-01 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173	Sensor, Airbag, Front
89537C	Cover, Computer
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
