Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

23 part groups · 2 illustrations

Illustrations

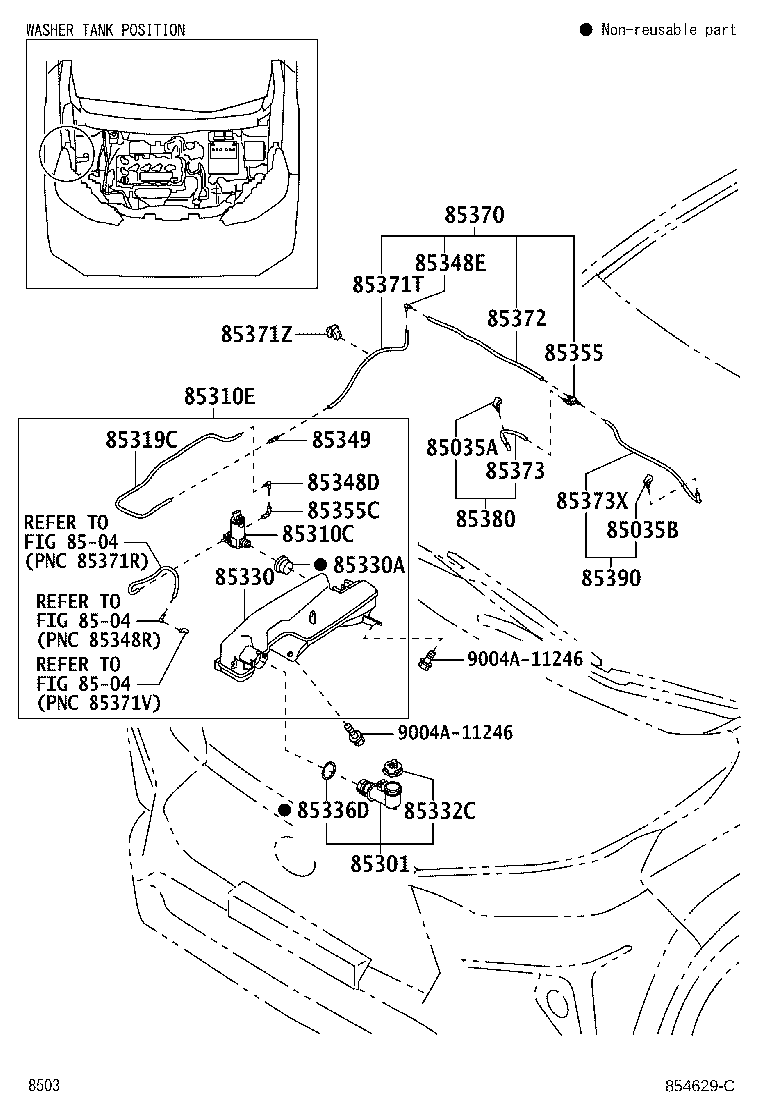

Figure 854641B 854641B 2021-11 → — Figure 854629C 854629C 2022-01 → —

Part groups

PNCDescription
85035A Nozzle, FR Washer, RH
85035B Nozzle, Front Washer, LH
85301 Inlet Sub-assy, Washer
85310C Motor & Pump Assy, Washer
85310E Jar & Pump Assy, Washer
85319C Hose, Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332C Cap, Front Washer Tank
85336D Packing, Windshield Washer Jar
85348D Joint, Windshield Washer Elbow, NO.1
85348E Joint, Windshield Washer Elbow, NO.2
85349 Joint, Windshield Washer Hose, NO.1
85355 Valve, Windshield Washer Hose
85355C Jar, Washer, C
85370 Hose Assy, Windshield Washer
85371T Hose, Windshield Washer (FROM JOINT TO JOINT)
85371Z Clamp, Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85373X Hose, Windshield Washer (FROM JOINT TO NOZZLE), NO.2
85380 Nozzle & Hose Assy, FR Washer
85390 Nozzle & Hose Assy, FR Washer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
