Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

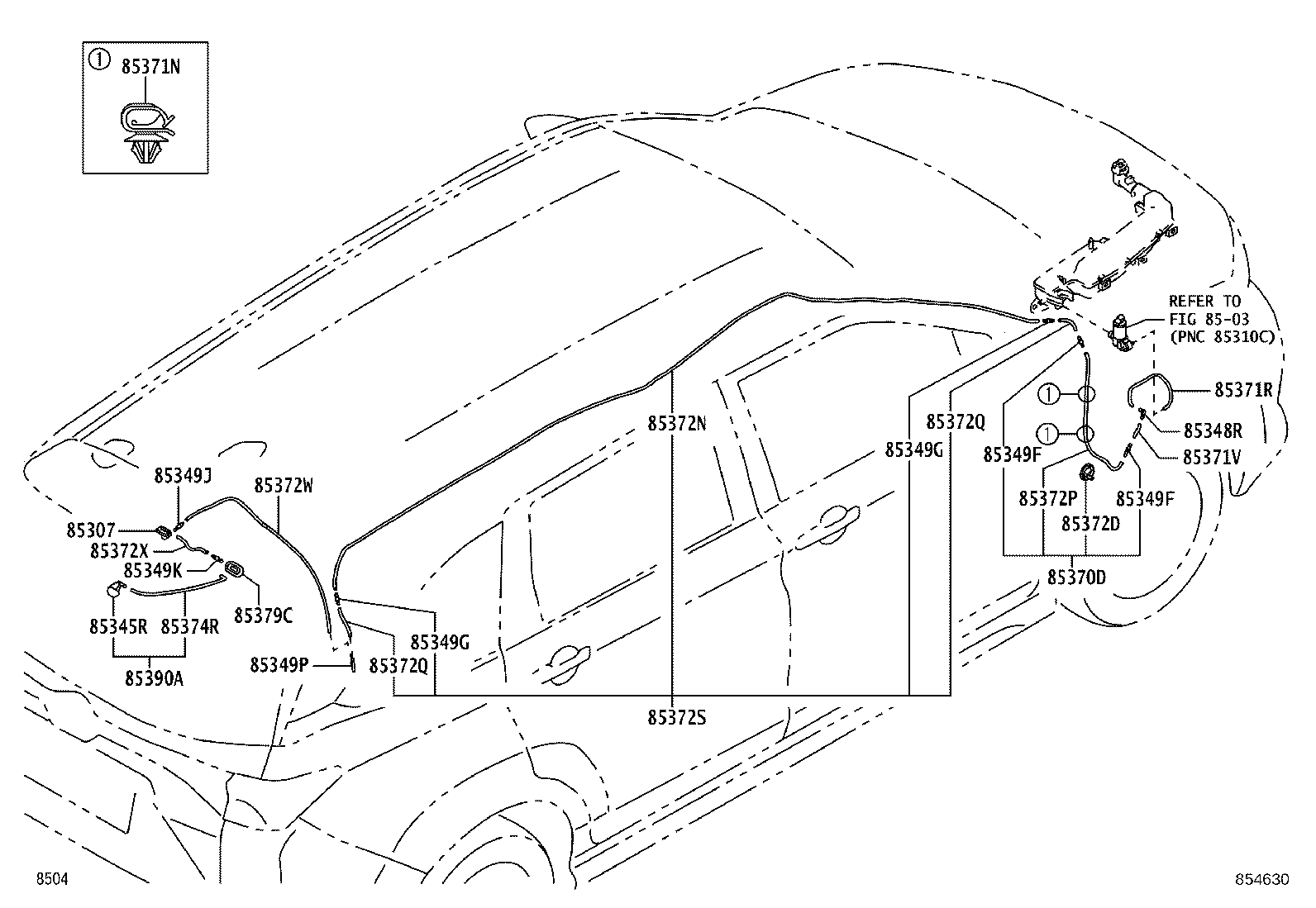

Rear Washer
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85307 | Grommet Sub-assy, Washer |
| 85345R | Nozzle, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349G | Joint, Rear Washer Hose, NO.2 |
| 85349J | Joint, Rear Washer Hose, NO.4 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85349P | Joint, Rear Washer Elbow, NO.3 |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85371N | Clamp, Rear Washer Hose |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85371V | Hose, Rear Washer (FROM JOINT TO JOINT) |
| 85372D | Grommet, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85372X | Hose, Rear Washer (FROM JOINT TO JOINT), NO.6 |
| 85374R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
| 85379C | Grommet, Rear Washer Hose NO.1 |
| 85390A | Nozzle & Hose Assy, RR Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
