Toyota Avanza/Veloz

2021-11 → present · chassis W100,W101 · catalogue 613230 · United States

Supported model Data version 2022-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

6 part groups · 3 illustrations

Illustrations

Figure 868728A

868728A 2021-11 → 2022-01

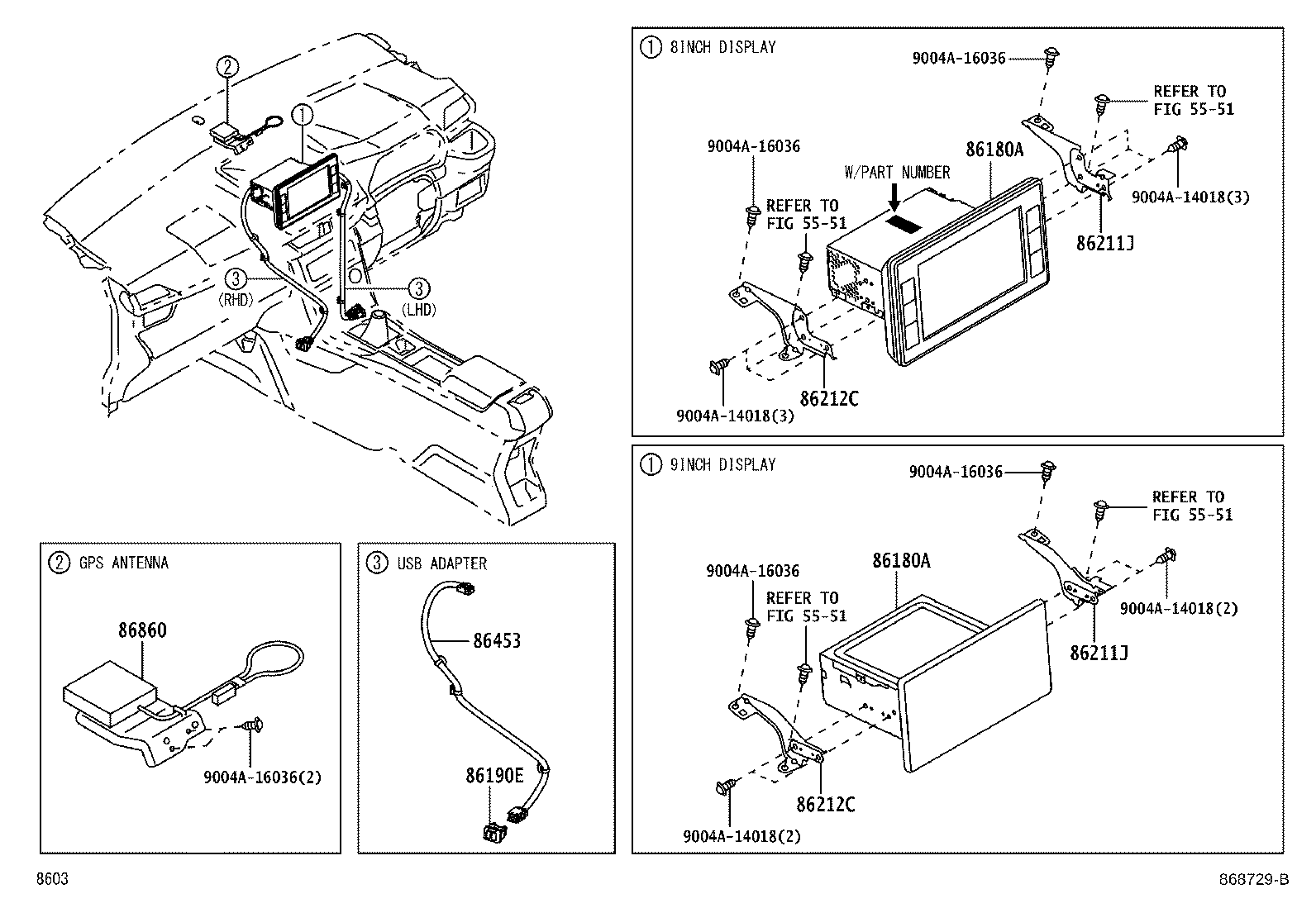

Figure 868729B

868729B 2022-01 → —

Figure 868729B

868729B 2022-12 → —

Part groups

PNC	Description
86180A	Tuner Assy, Stereo Component
86190E	Adapter Assy, Stereo Jack
86211J	Bracket, Radio Receiver, NO.1
86212C	Bracket, Radio Receiver, NO.2
86453	Wire, Multi-media Module
86860	Antenna Assy, Navigation

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
