Antenna

5 part groups · 5 illustrations

Illustrations

Figure 868744A

868744A 2021-11 → —

Figure 868744A

868744A 2022-12 → —

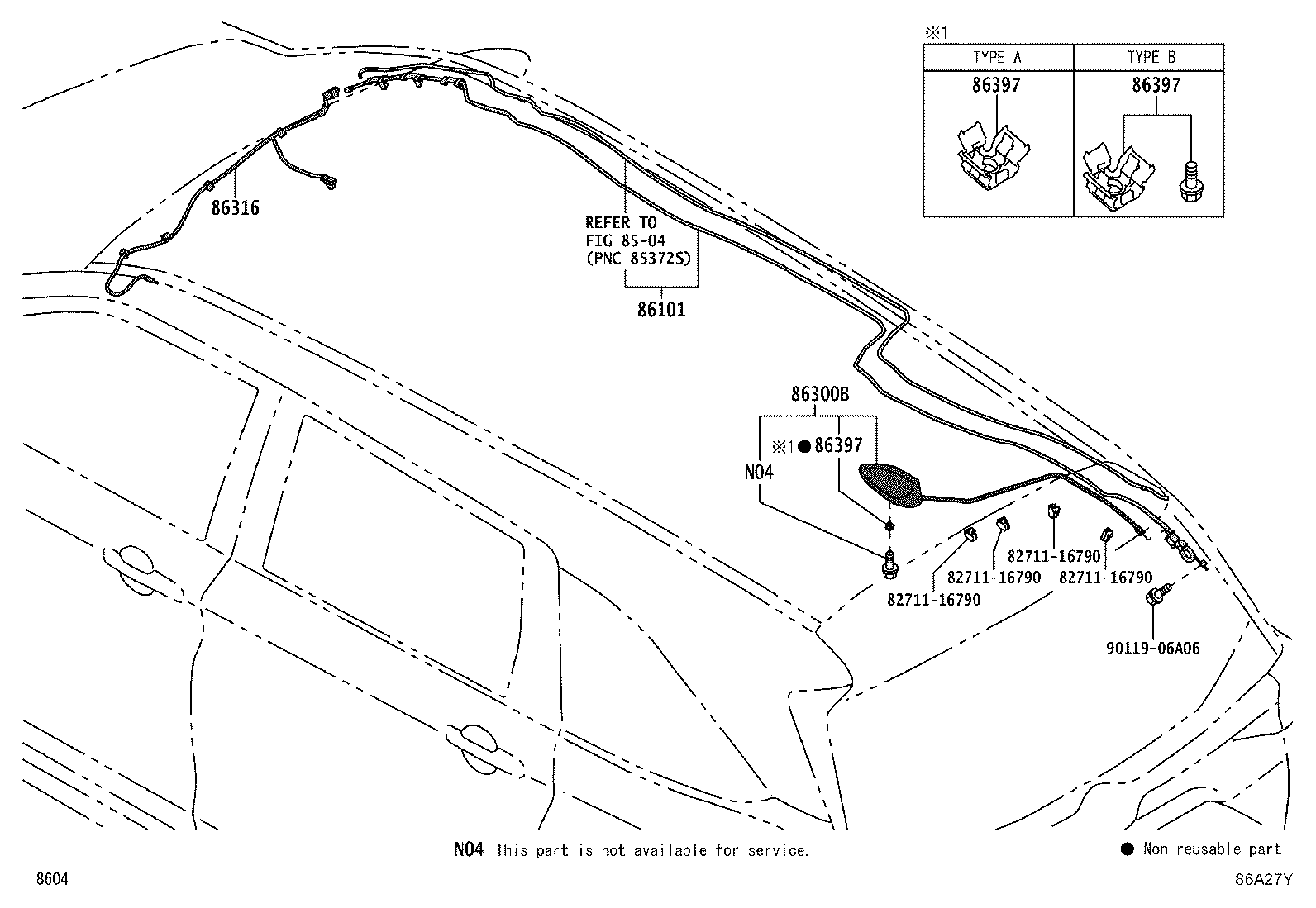

Figure 86A27Y

86A27Y 2022-12 → —

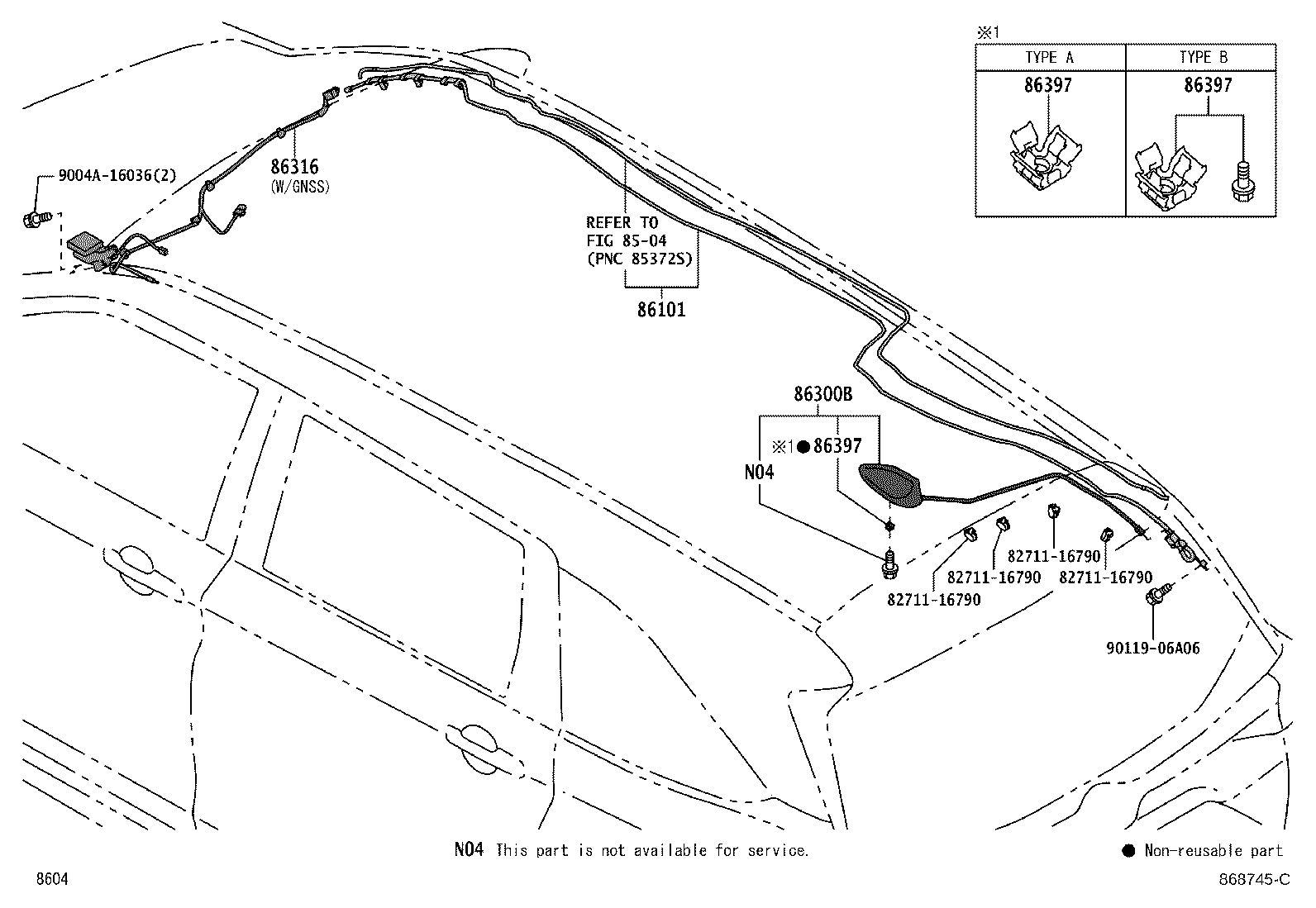

Figure 868745C

868745C 2022-01 → —

Figure 868745C

868745C 2022-12 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86300B	Antenna Assy, Amplifier, NO.1
86316	Cable, Antenna
86332	Rod, Antenna
86397	Plate, Antenna Earth

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
