Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11
Telephone & Mayday

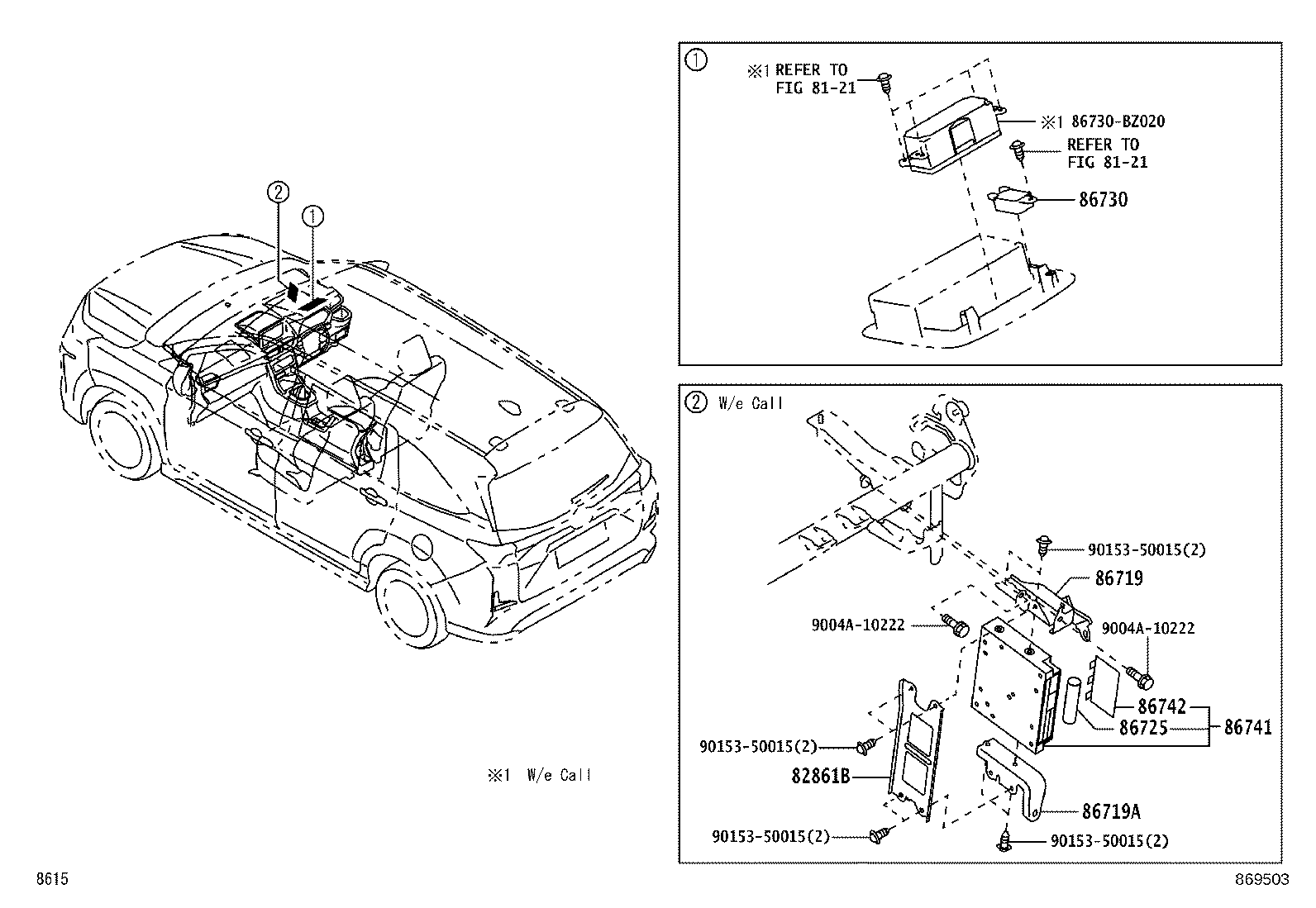

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82861B | Bracket, Computer Integration |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86725 | Battery, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86741 | Transceiver, Telephone |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
