Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

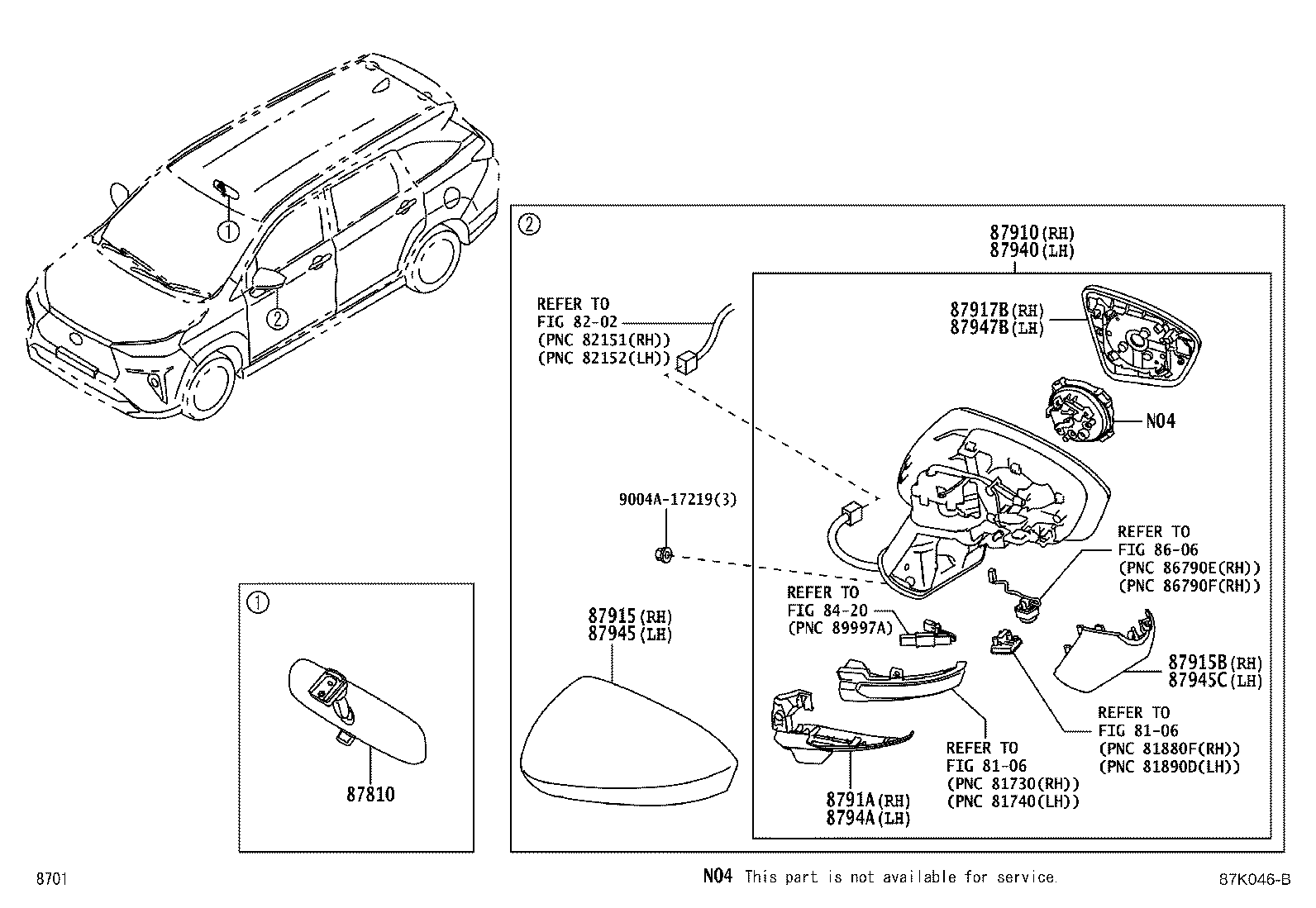

Mirror
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87908 | Actuator Assy, Outer Mirror, RH |
| 87909 | Actuator Assy, Outer Mirror, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87917B | Mirror, Outer Rear View, RH |
| 8791A | Cover, Outer Mirror, RH NO.2 |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87947B | Mirror, Outer Rear View, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
