Toyota Avanza/Veloz
2021-11 → present · chassis W100,W101 · catalogue 613230 · United States
Supported model
Data version 2022-11

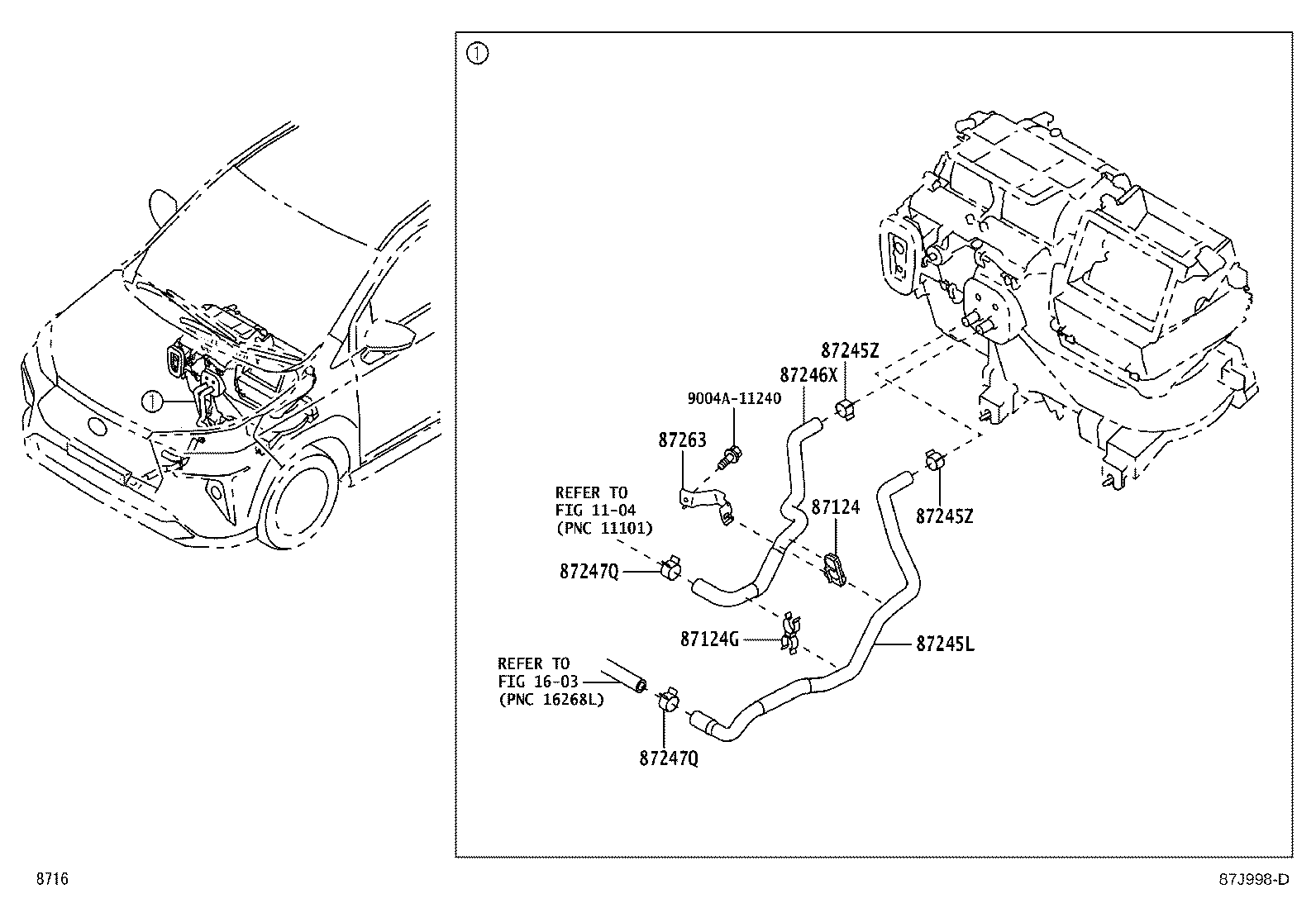

Heating & Air Conditioning - Water Piping
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16264L | Hose, Water By-pass, NO.2 |
| 16283E | Hose, Water By-pass, NO.6 |
| 87124 | Clamp, Heater |
| 87124G | Clamp, Heater Hose, NO.2 |
| 87245L | Hose, Heater Water, L |
| 87245X | Hose, Heater Water |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246X | Hose, Heater Water |
| 87246Y | Hose, Heater Water |
| 87247M | Clip, Hose |
| 87247N | Clip, Hose |
| 87247P | Clip, Hose |
| 87247Q | Clip, Hose |
| 87251E | Joint, Water, NO.2 |
| 87263 | Bracket, Heater Water Pipe, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
