Toyota Sienna
1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States
Discontinued model
Data version 2003-07

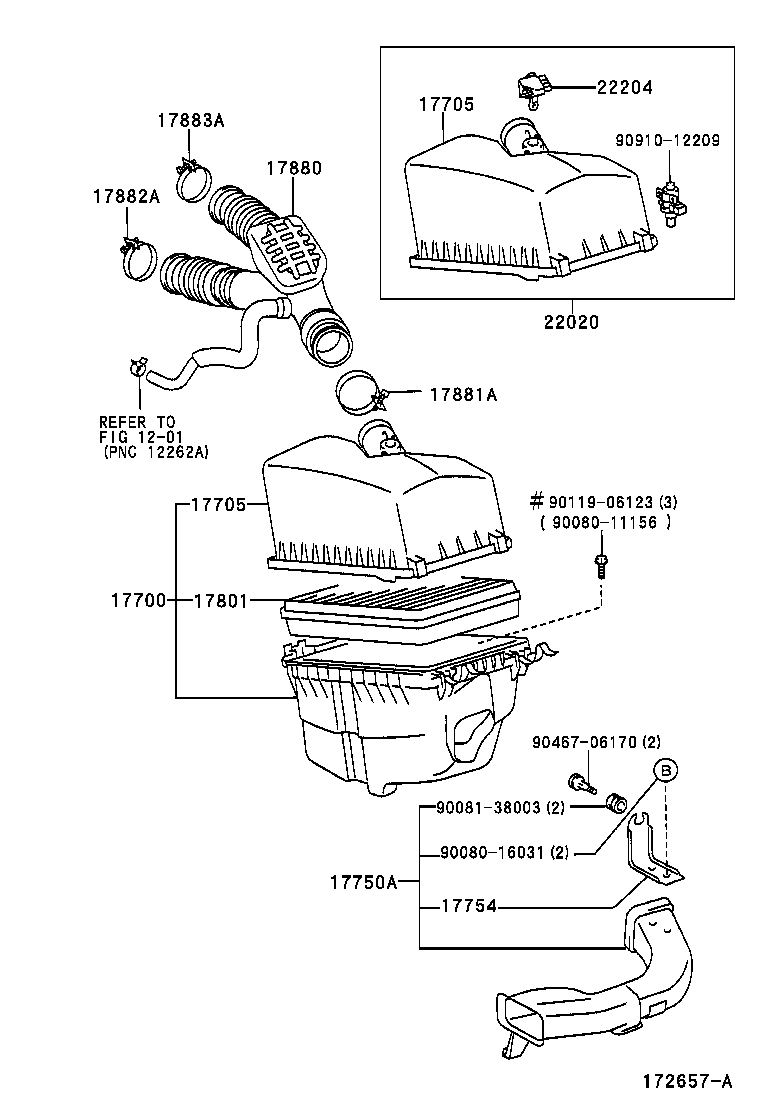

Air Cleaner
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17750A | Inlet Assy, Air Cleaner |
| 17754 | Stay, Air Cleaner Inlet |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 17893 | Resonator, Intake Air |
| 17893A | Clamp, Hose |
| 22020 | Meter Assy, Air Flow W/Air Cleaner |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
