Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

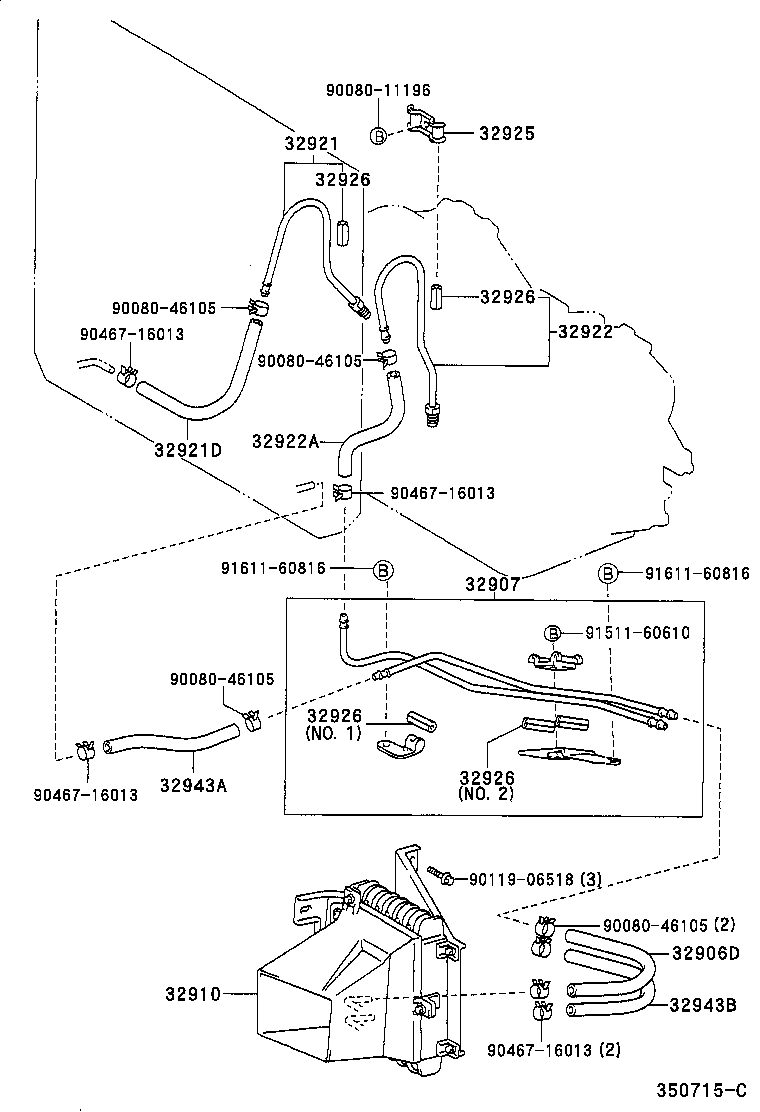

Figure 350714B 350714B 1997-08 → 2000-08 Figure 350715C 350715C 1997-08 → 2000-08 Figure 352779A 352779A 2000-08 → —

Part groups

PNCDescription
32906D Tube Sub-assy, Oil Cooler, NO.2
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32925 Clamp, Oil Cooler Tube, NO.3
32926 Cushion, Oil Cooler Tube(ATM)
32943A Hose, Transmission Oil Cooler, NO.2
32943B Hose, Transmission Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
