Toyota Sienna
1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States
Discontinued model
Data version 2003-07

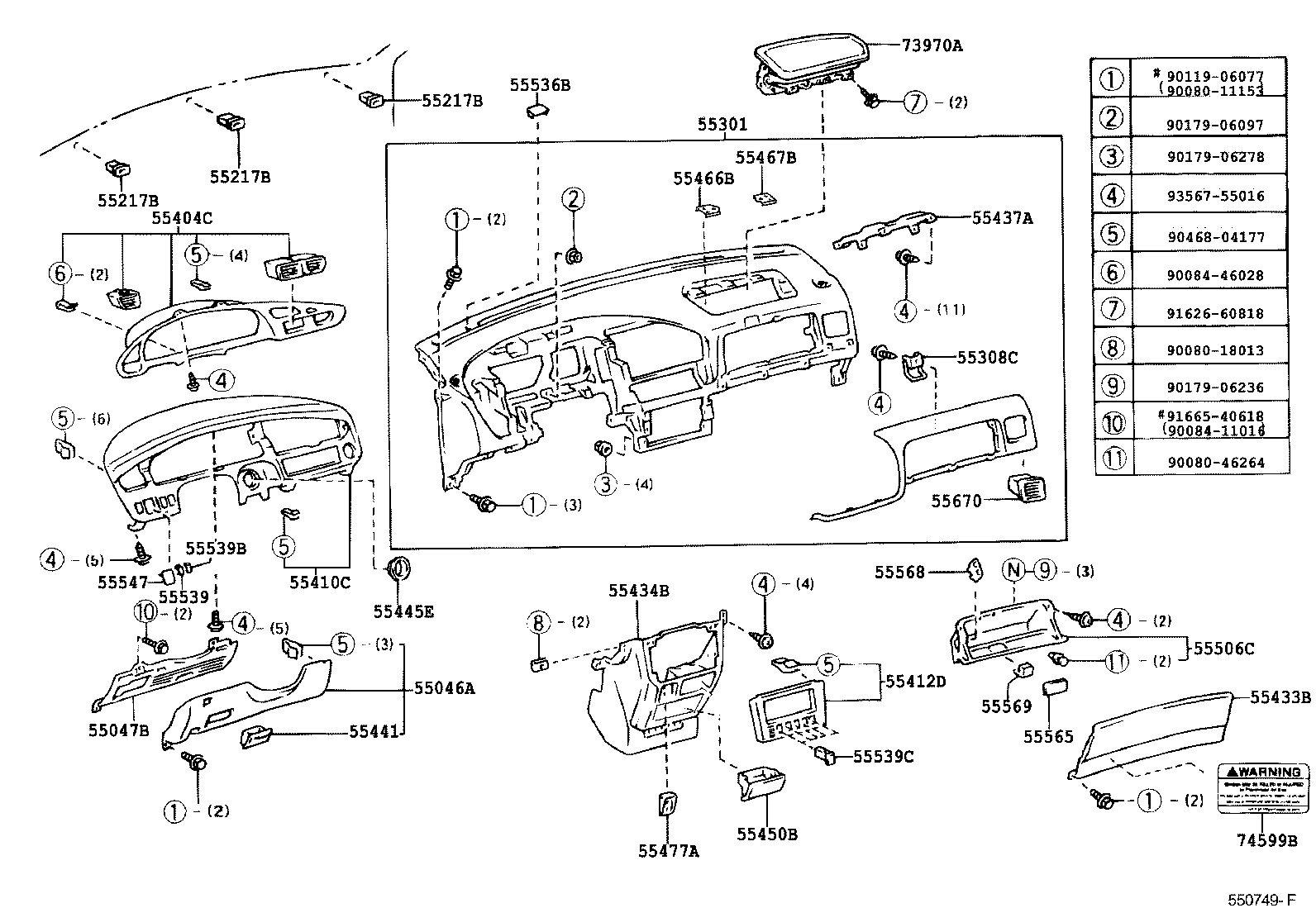

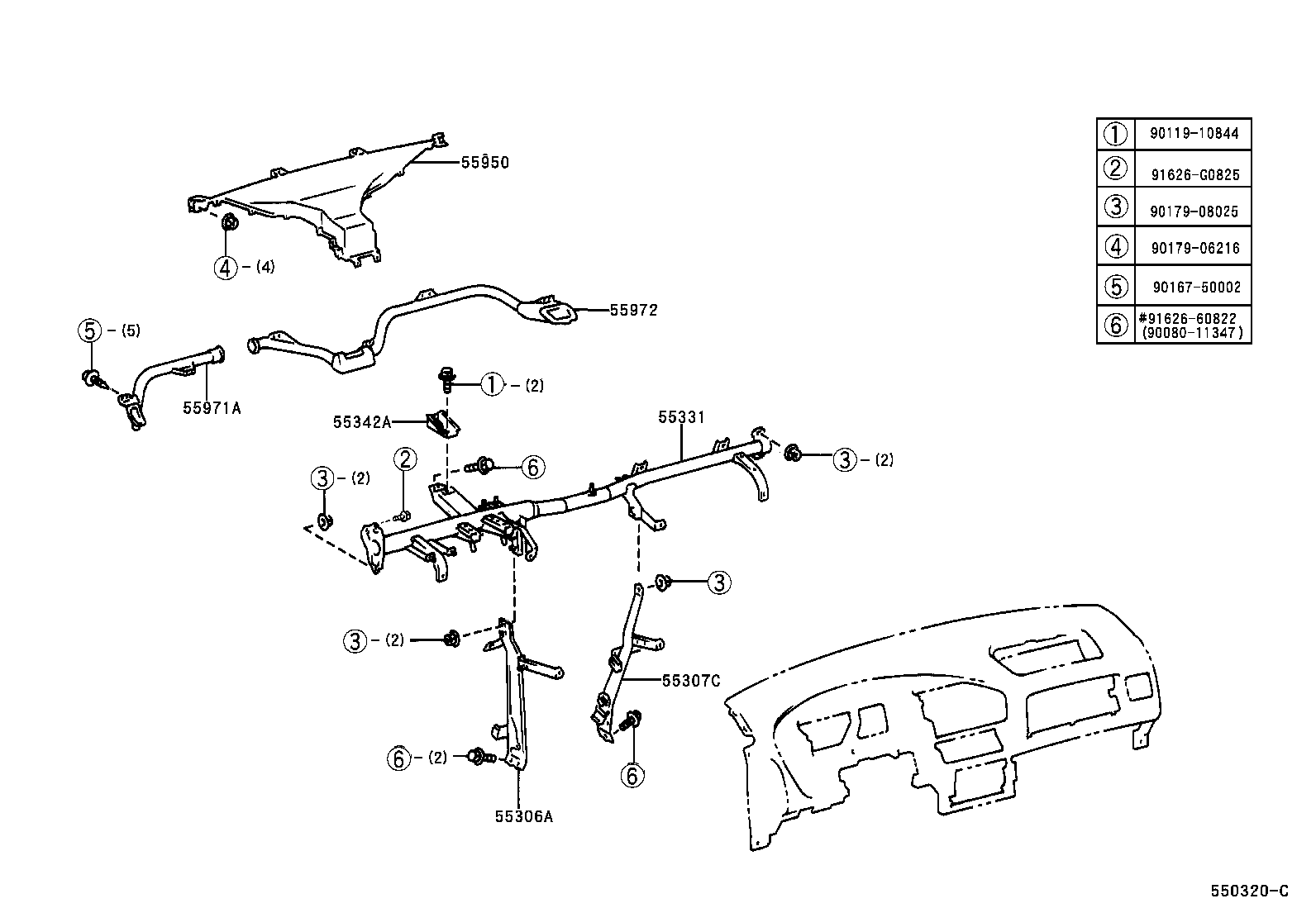

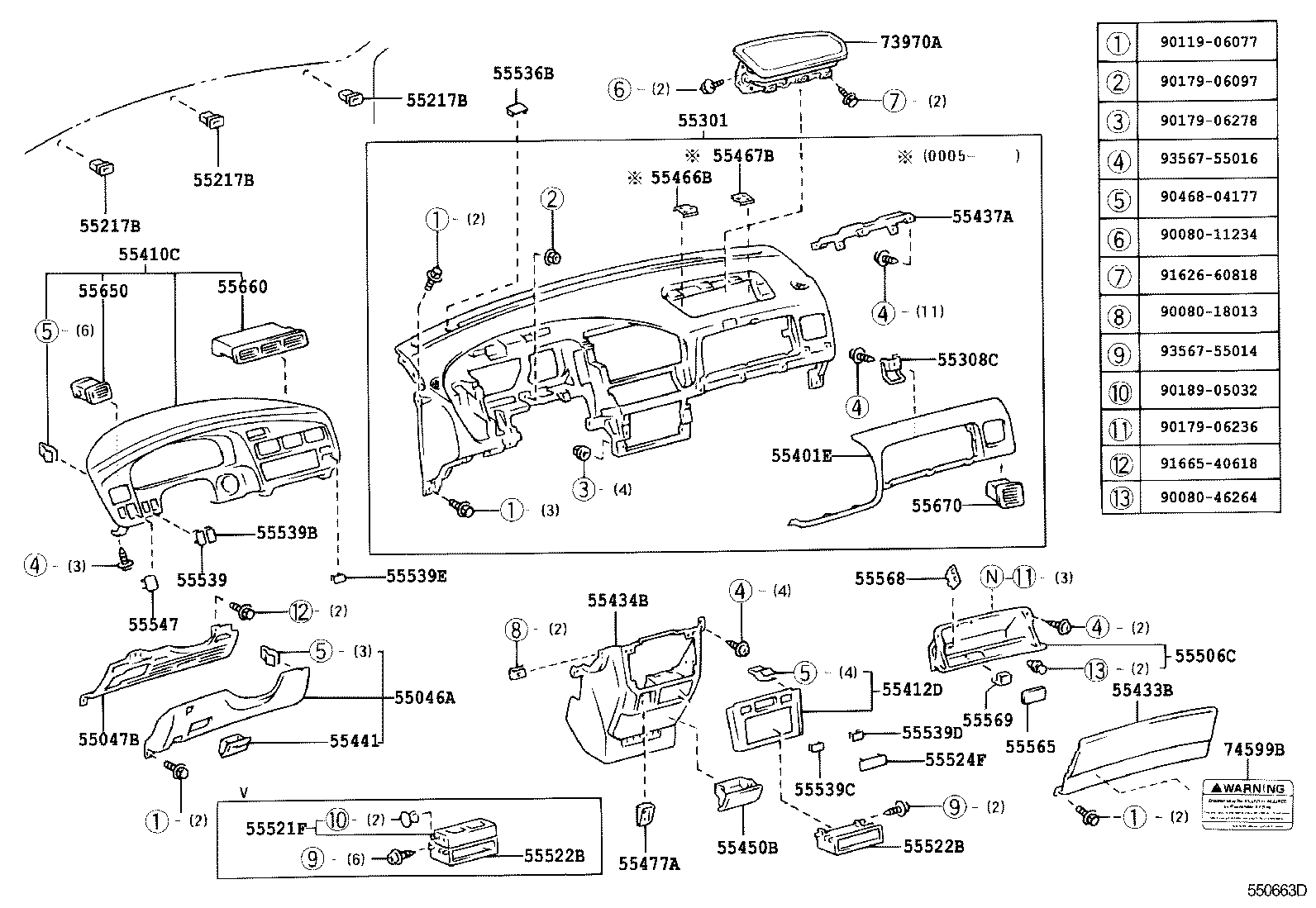

Instrument Panel & Glove Compartment
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 50540 | DO0R Assy, Airbag Passenger |
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55047B | Insert Sub-assy, Instrument Panel Safety Pad, NO.1 |
| 55217B | Retainer, Dash Panel Silencer |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55441 | Box, Instrument Panel |
| 55445E | Plate, Instrument Panel Finish |
| 55450B | Box Assy, Coin |
| 55466B | Retainer, Instrument Panel Safety Pad, NO.1 |
| 55467B | Retainer, Instrument Panel Safety Pad, NO.2 |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55506C | Compartment Sub-assy, Glove |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55522B | Cover, Radio Tuner Opening |
| 55524F | Cover, Switch Base Hole, NO.7 |
| 55536B | Cover, Light Control Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539C | Cover, Spare Switch Hole |
| 55539D | Cover, Spare Switch Hole |
| 55539E | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568 | Plate, Glove Compartment Door Pad |
| 55569 | Cover, Glove Compartment Door Lock |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950 | Nozzle Assy, Defroster |
| 55971A | Duct, Side Defroster Nozzle, NO.1 |
| 55972 | Duct, Side Defroster Nozzle, NO.2 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74599B | Label, Driver & Passenger Airbag Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
