Toyota Sienna
1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States
Discontinued model
Data version 2003-07

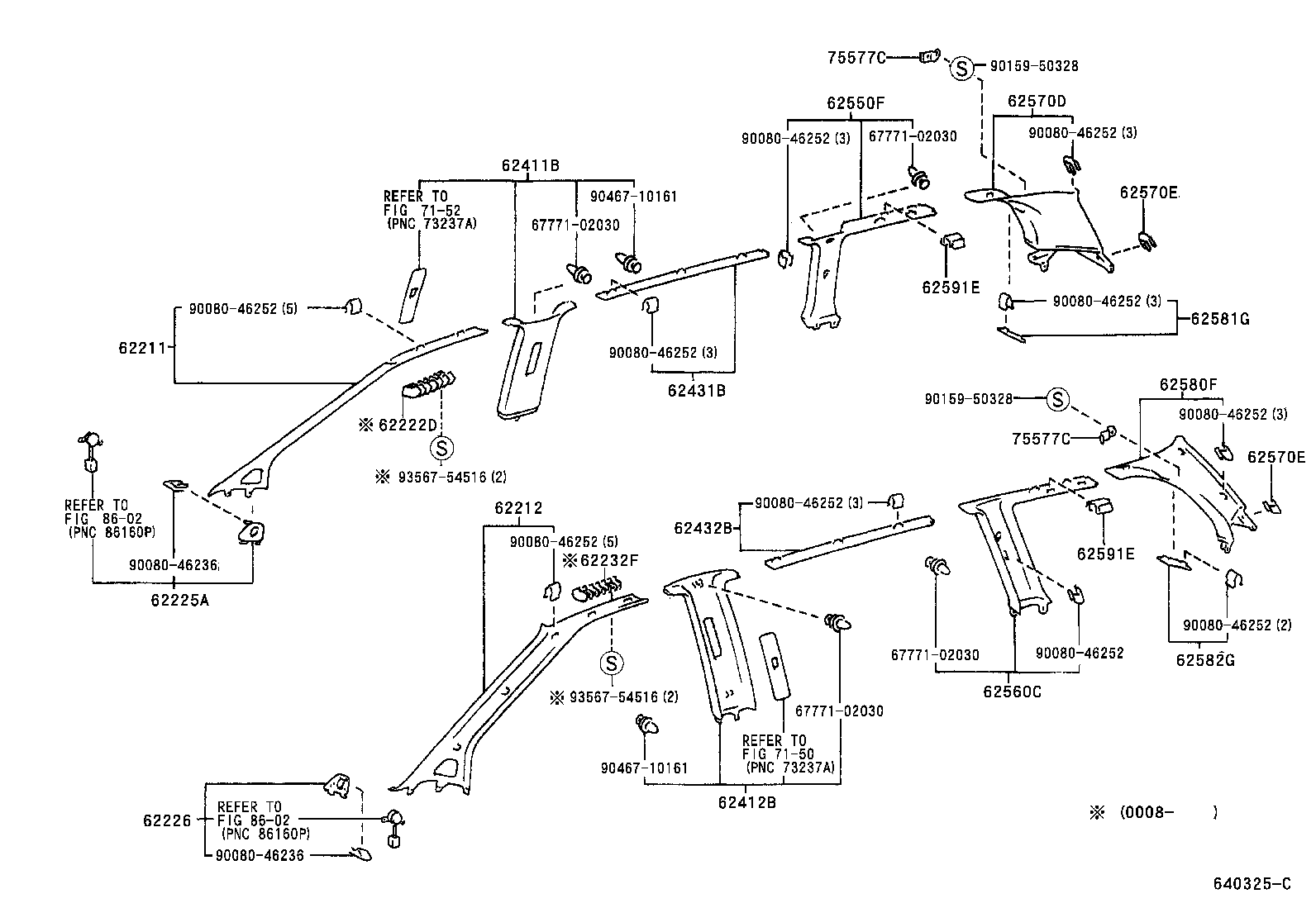

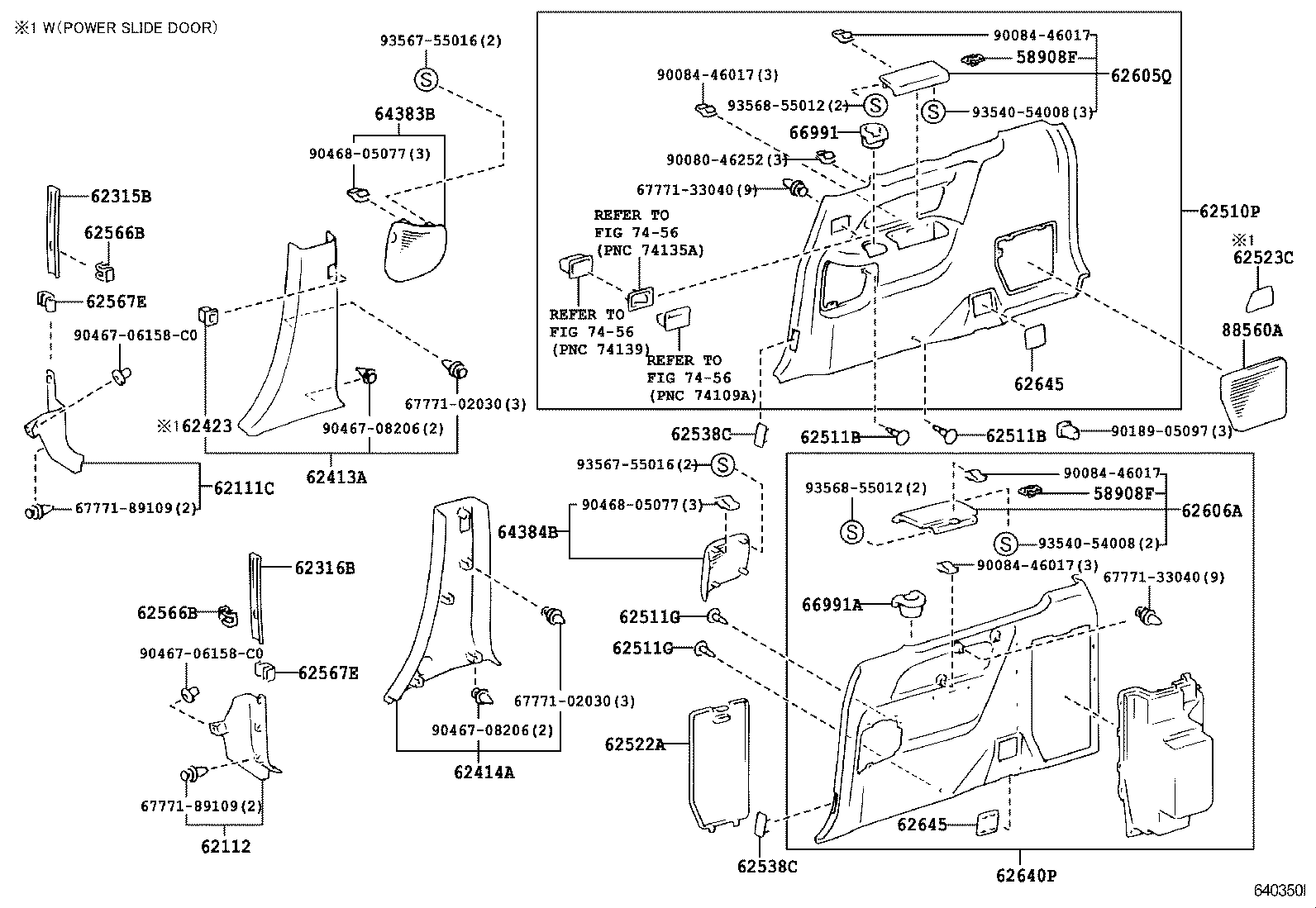

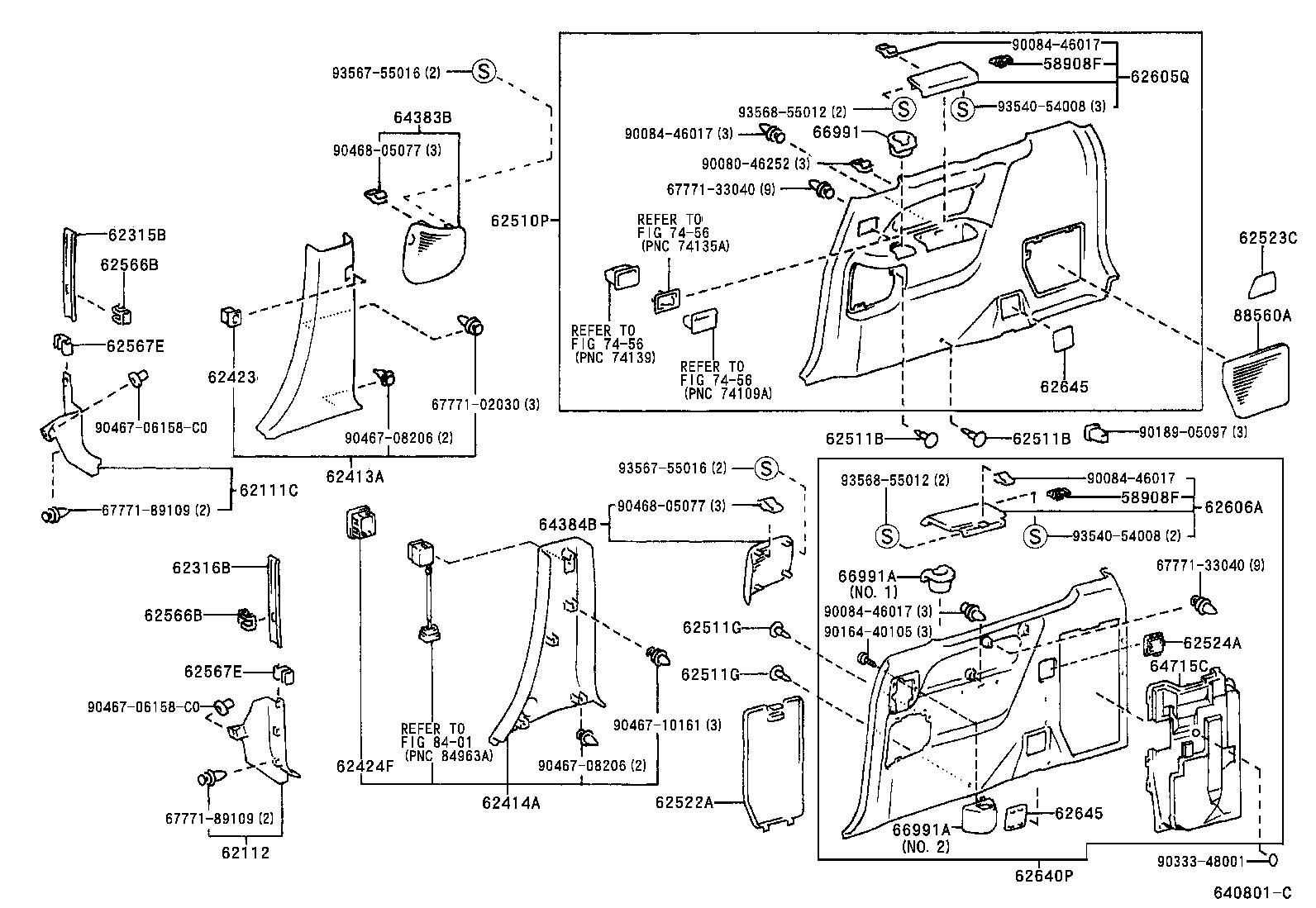

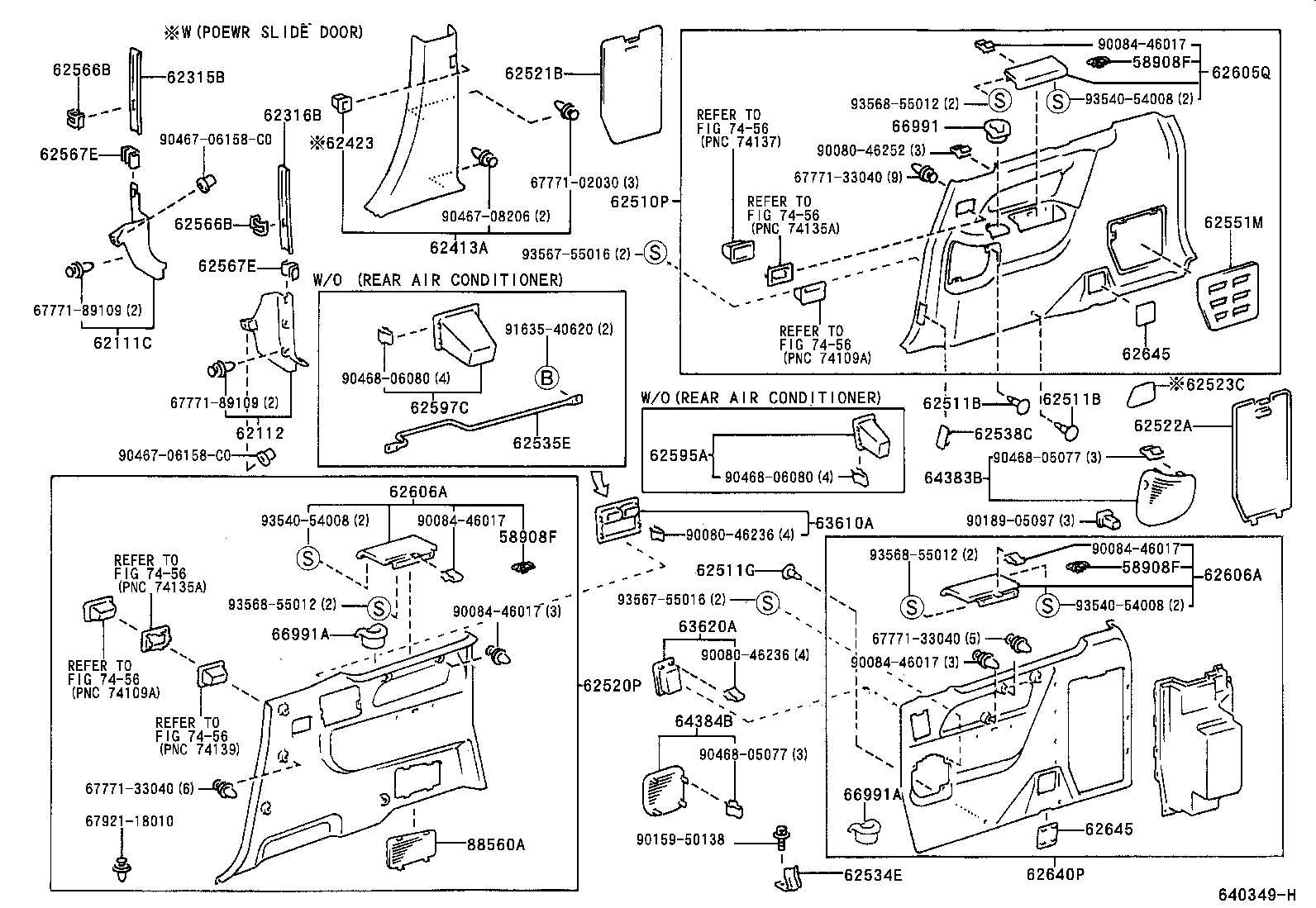

Inside Trim Board
58 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58908F | Lock Sub-assy, Quarter Trim Lid |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62222D | Spacer, Front Pillar, NO.2 RH |
| 62225A | Garnish, Front Pillar, Lower RH |
| 62226 | Garnish, Front Pillar, Lower LH |
| 62232F | Spacer, Front Pillar, NO.2 LH |
| 62315B | Cover, Front Door Opening Trim, RH |
| 62316B | Cover, Front Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62423 | Cover, Center Pillar Garnish, Lower RH |
| 62424F | Cover, Center Pillar Garnish, Lower LH |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511G | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521B | Cover, Quarter Trim, RH |
| 62522A | Cover, Quarter Trim, LH |
| 62523C | Cover, Quarter Trim, Center RH |
| 62524A | Cover, Quarter Trim, Lower LH |
| 62534E | Bracket, Side Trim, NO.2 |
| 62535E | Bracket, Side Trim, NO.3 |
| 62538C | Cover, Quarter Trim, Hole |
| 62550F | Garnish Assy, Rear Window Side, RH |
| 62551M | Cover, Quarter Trim Pocket |
| 62560C | Garnish Assy, Rear Window Side, LH |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 62567E | Clamp, Rocker Panel Inner Protector, NO.2 |
| 62570D | Garnish Assy, Rear Window Side, NO.2 RH |
| 62570E | Clip, Rear Window Side Garnish |
| 62580F | Garnish Assy, Rear Window Side, NO.2 LH |
| 62581G | Cover, Quarter Pillar, RH |
| 62582G | Cover, Quarter Pillar, LH |
| 62591D | Plate, Side Trim Base, NO.1 |
| 62591E | Plate, Side Trim Base, NO.2 |
| 62595A | Pocket, Quarter Trim, NO.2 |
| 62597C | Pocket, Quarter Trim, NO.3 |
| 62605Q | Lid Sub-assy, Quarter Trim, RH |
| 62606A | Lid Sub-assy, Quarter Trim, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62645 | Cover, Shock Absorber Head |
| 63610A | Register Assy, Air Outlet, RH |
| 63620A | Register Assy, Air Outlet, LH |
| 64383B | Grille, Rear Speaker, RH |
| 64384B | Grille, Rear Speaker, LH |
| 64715C | Cover, Deck Side Trim, LH |
| 66991 | Holder, Quarter Trim Cup, RH |
| 66991A | Holder, Quarter Trim Cup, LH |
| 75577C | Bracket, Roof Side Garnish |
| 88560A | Grille Assy, Air Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
