Toyota Sienna
1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States
Discontinued model
Data version 2003-07

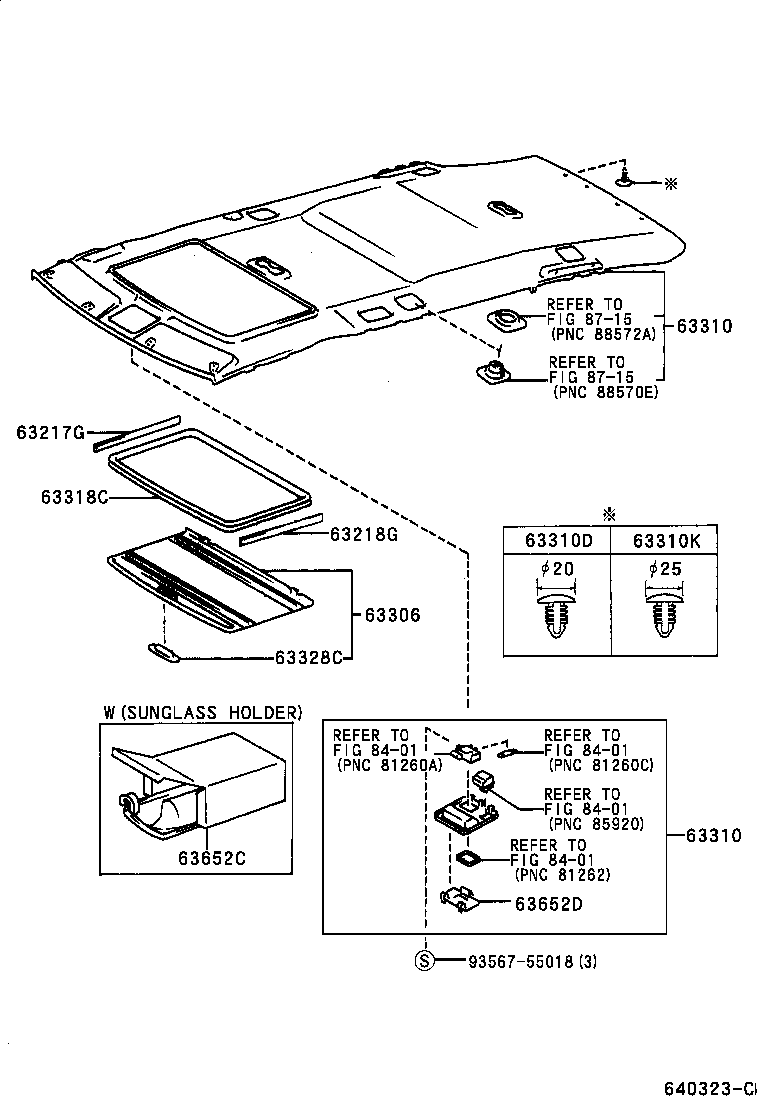

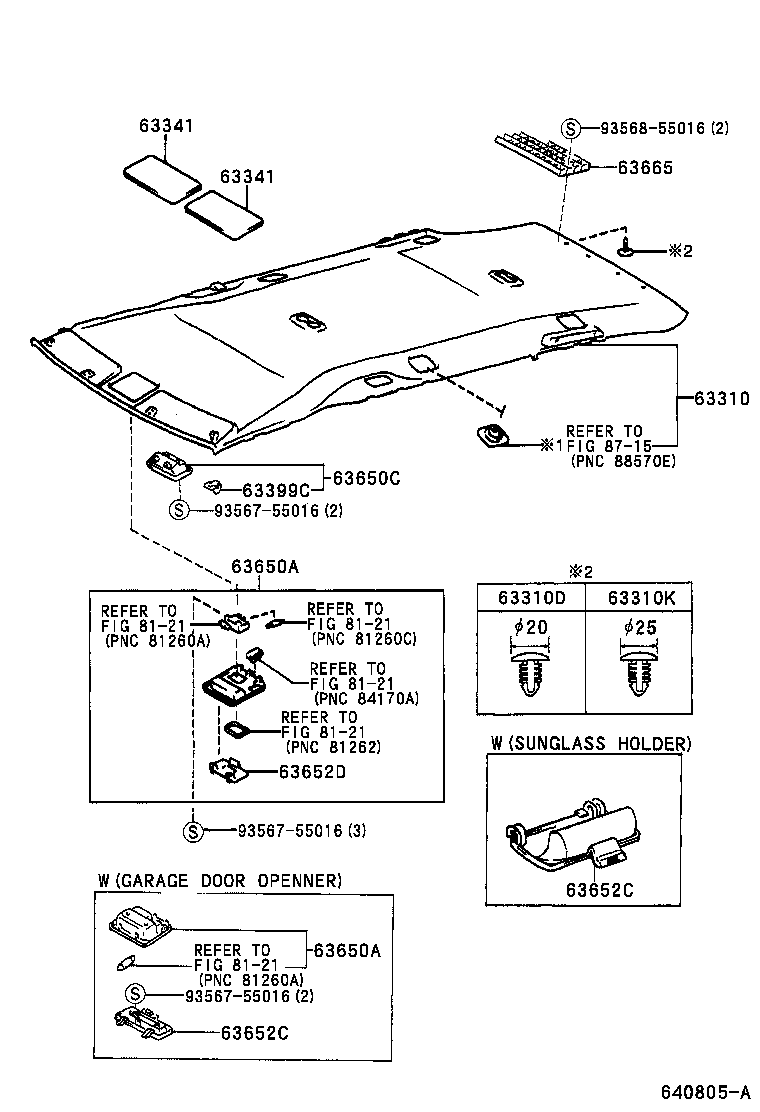

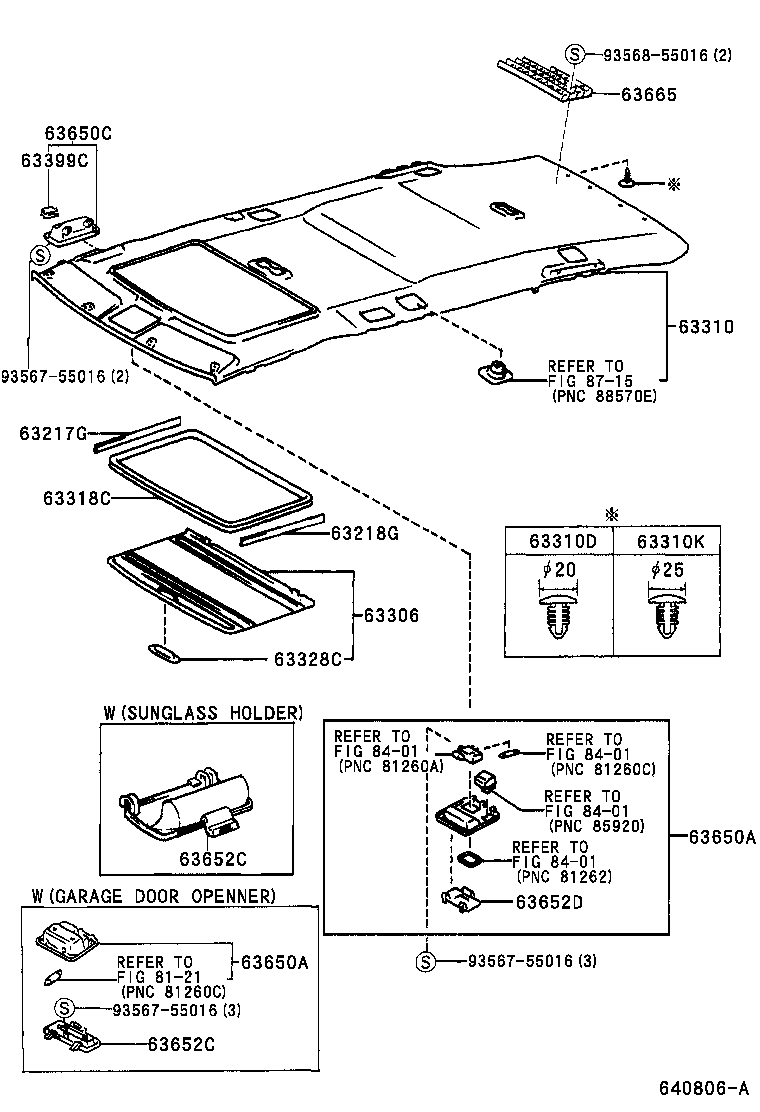

Roof Headlining & Silencer Pad
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310K | Clip |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63328C | Knob, Sunshade Trim |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63399C | Clip, Roof Headlining |
| 63650A | Box Assy, Roof Console |
| 63650C | Box Assy, Roof Console |
| 63652C | Cover, Roof Console Box |
| 63652D | Cover, Roof Console Box |
| 63665 | Spacer, Roof Headlining |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
