Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

20 part groups · 2 illustrations

Illustrations

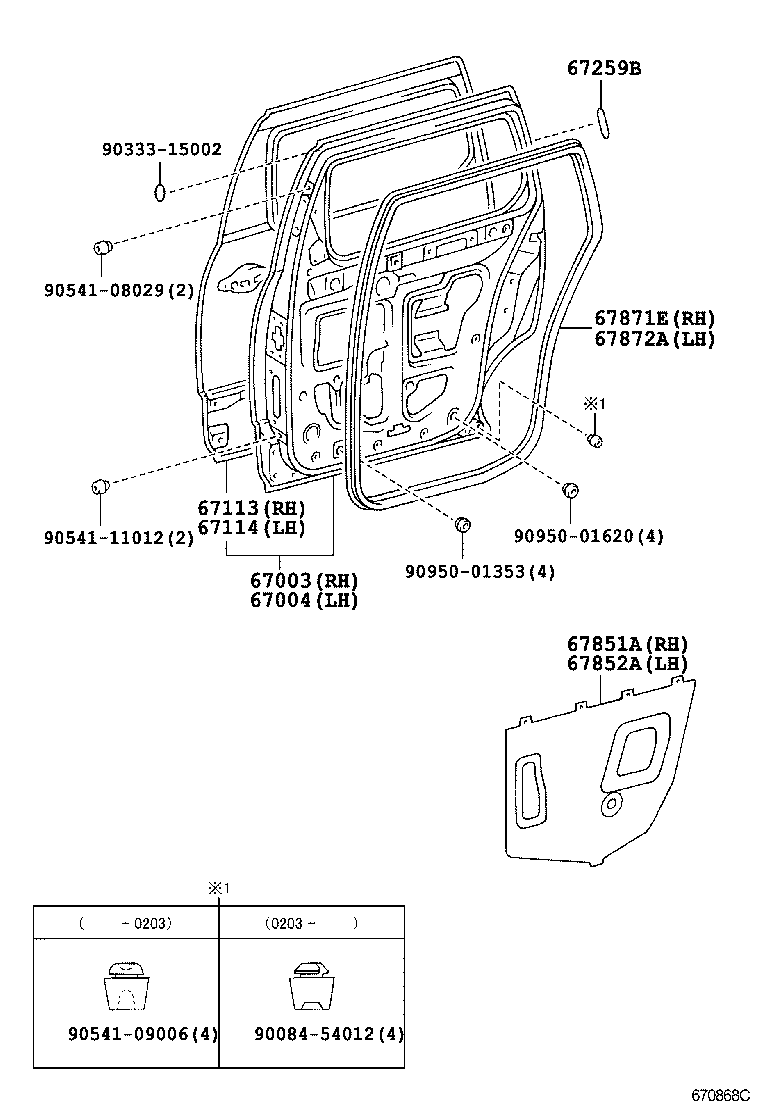

Figure 670871B 670871B 1997-08 → — Figure 670868C 670868C 1997-08 → —

Part groups

PNCDescription
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67259B Reflector, Slide Door
67603 Board Sub-assy, Rear Door Trim, RH
67603A Retainer(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67667A Garnish, Slide Door Window, RH
67668A Garnish, Slide Door Window, LH
67675A Pocket, Slide Door Trim, RH
67676A Pocket, Slide Door Trim, LH
67692A Cover, Slide Door Trim, Upper NO.1
67693 Cover, Slide Door Trim Board
67695 Cover, Slide Door Trim, Upper NO.2
67851A Cover, Slide Door Service Hole, NO.1
67852A Cover, Slide Door Service Hole, NO.2
67871E Weatherstrip, Slide Door, NO.1 RH
67872A Weatherstrip, Slide Door, NO.1 LH
74541J Label, Bottle Holder Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
