Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 3 illustrations

Illustrations

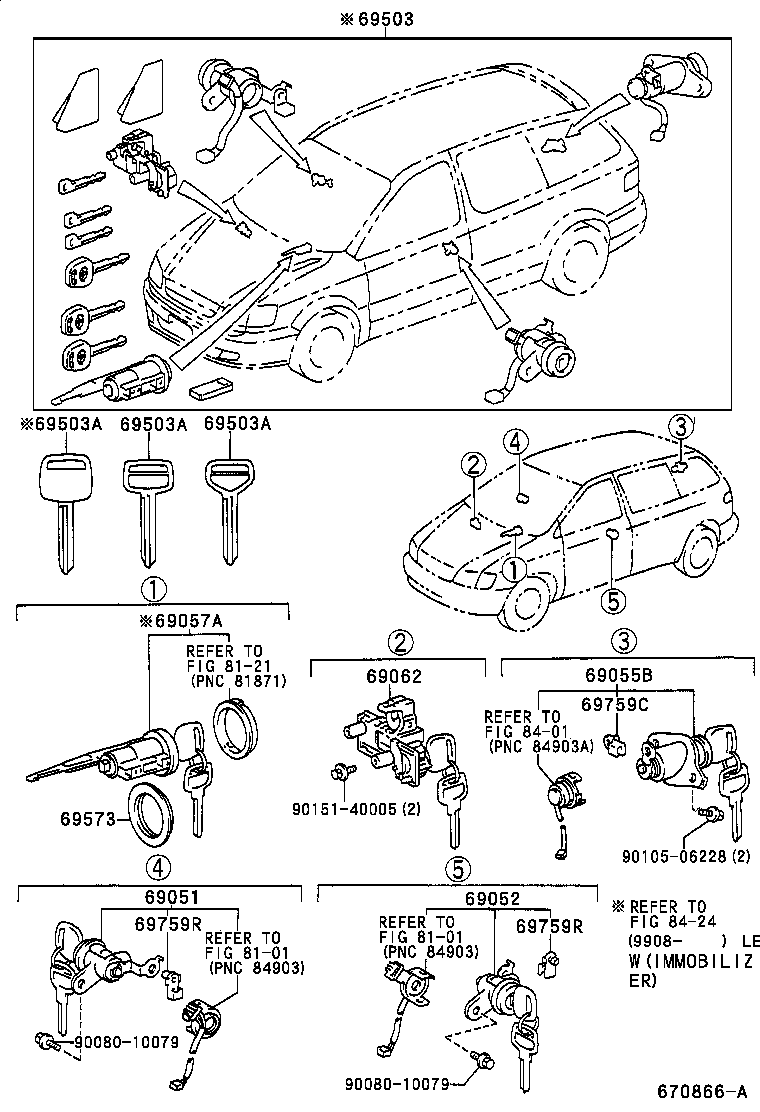

Figure 670865 670865 1997-08 → — Figure 670866B 670866B 1997-08 → 2000-08 Figure 670866B 670866B 1997-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053B Cylinder & Key Set, Slide Door Lock, RH
69054B Cylinder & Key Set, Slide Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69573 Pad, Ignition Switch Lock Cylinder
69759B Snap, Rear Door Lock Cylinder
69759C Snap, Back Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
