Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

159 part groups · 13 illustrations

Illustrations

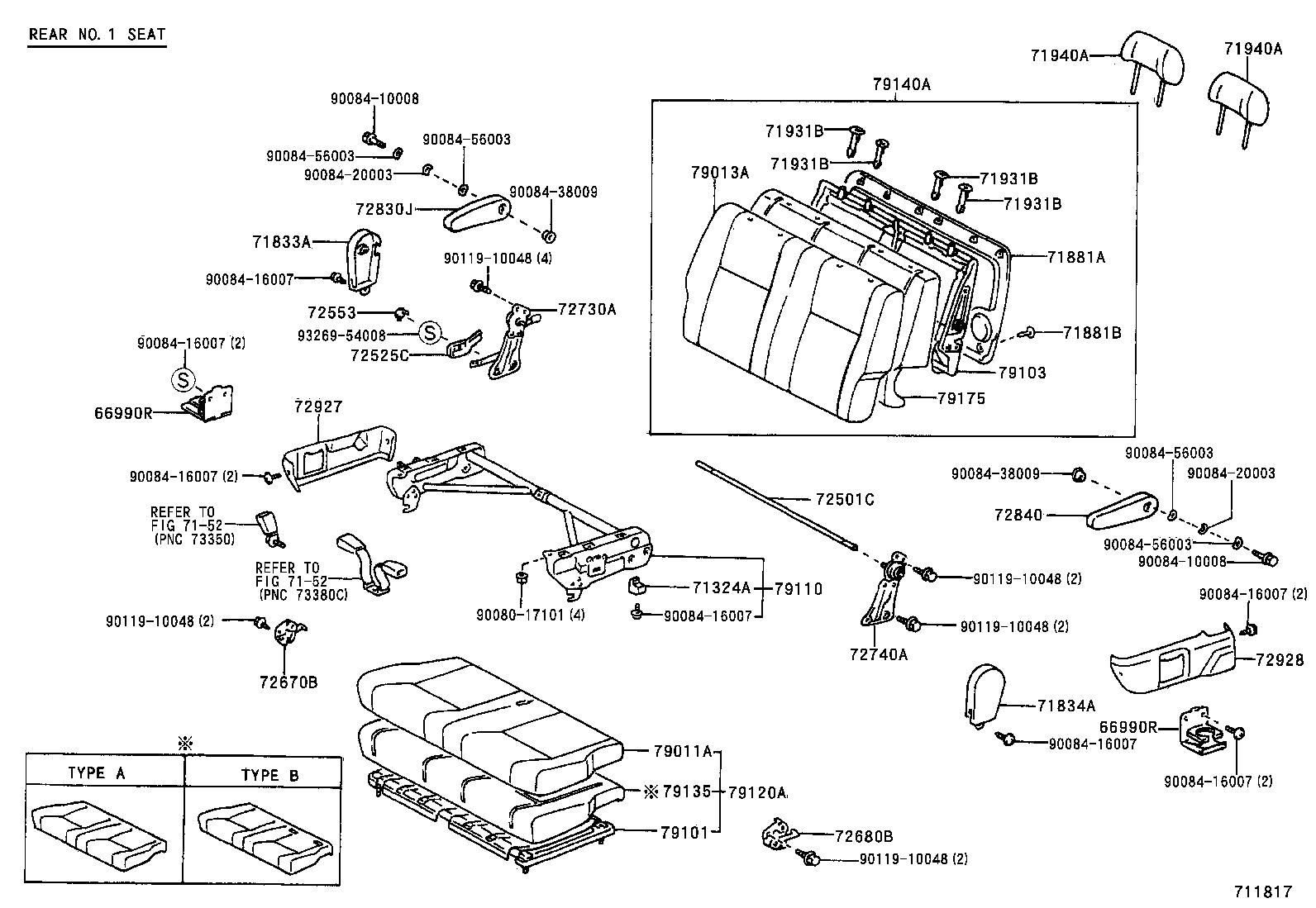

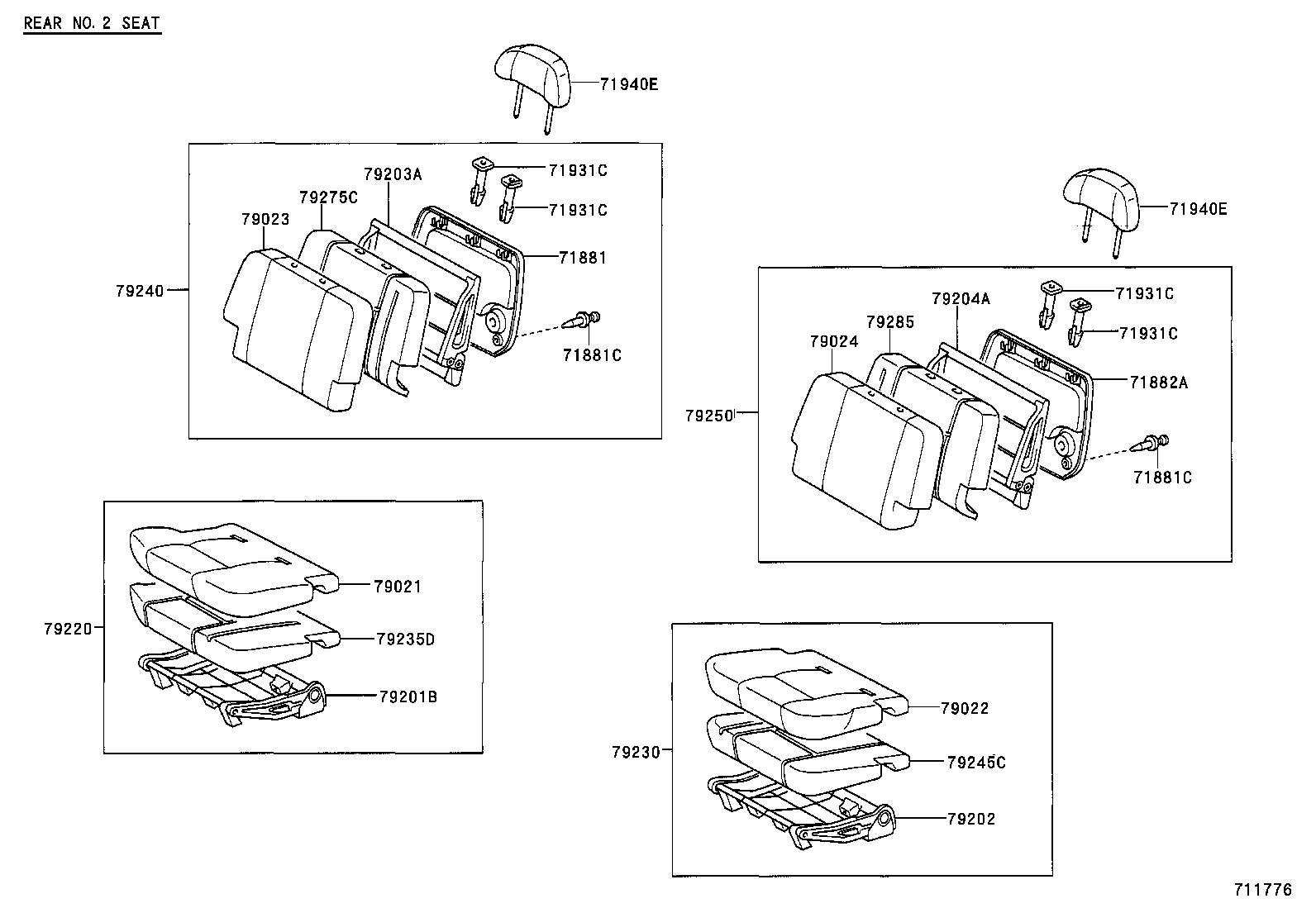

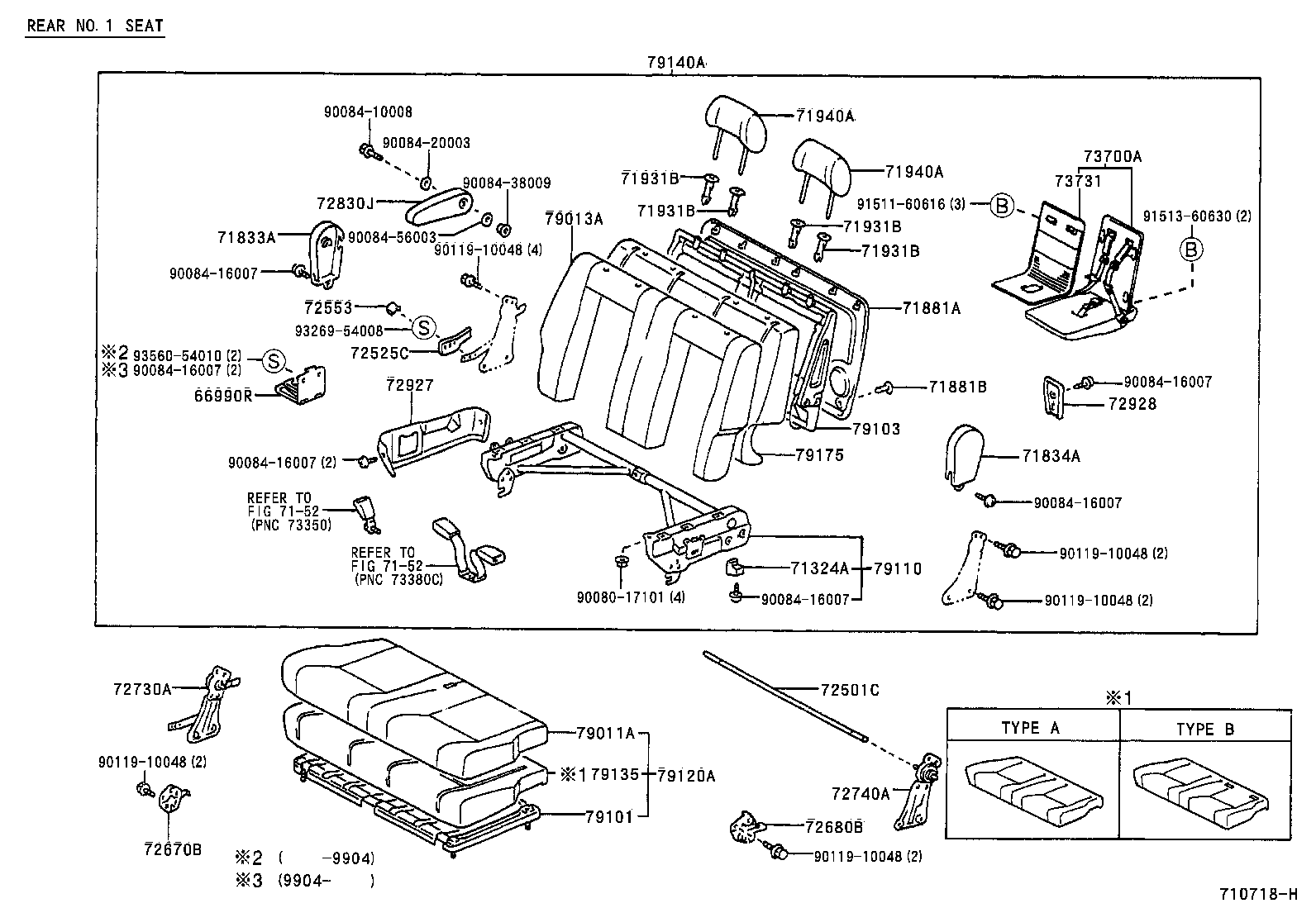

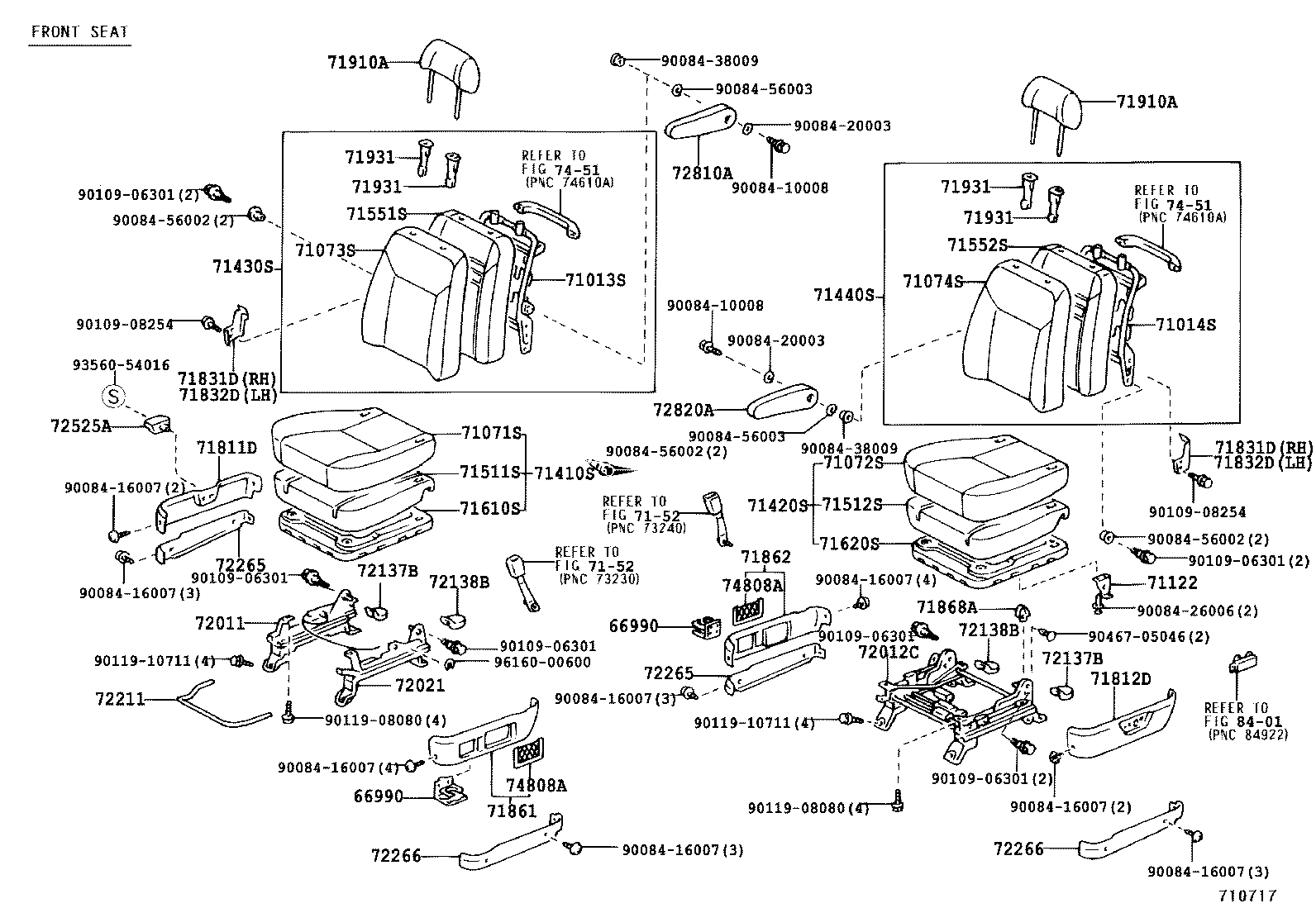

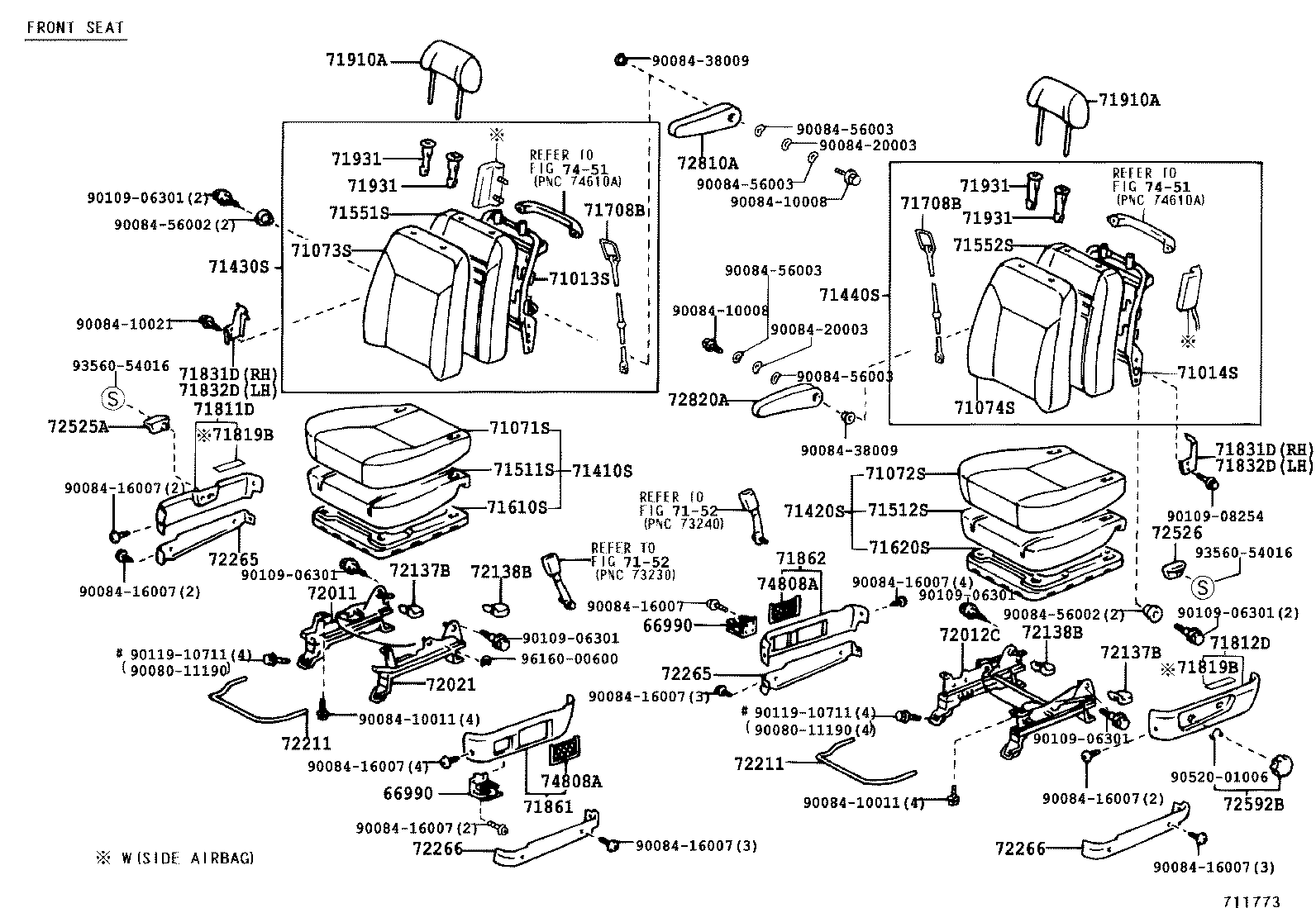

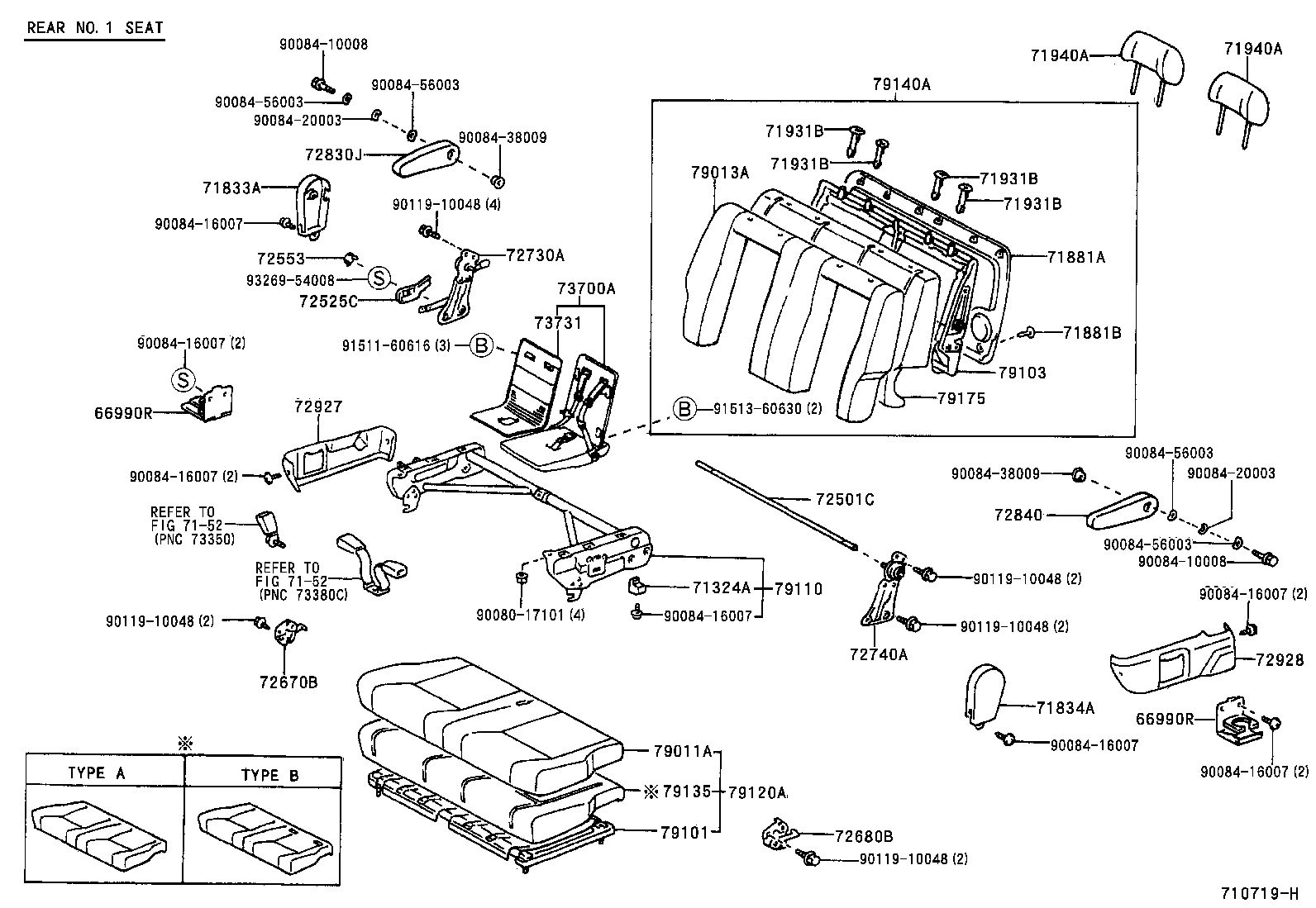

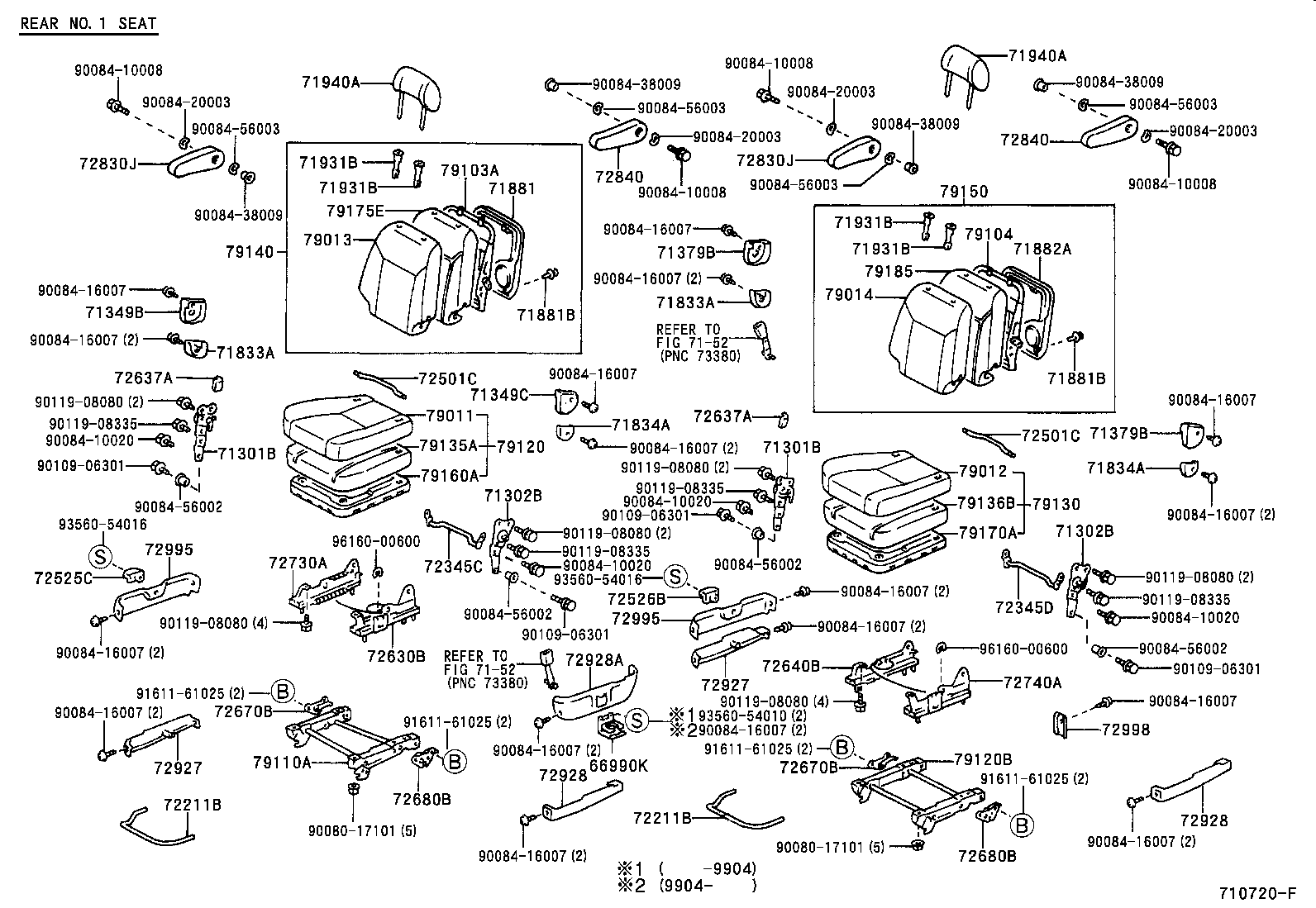

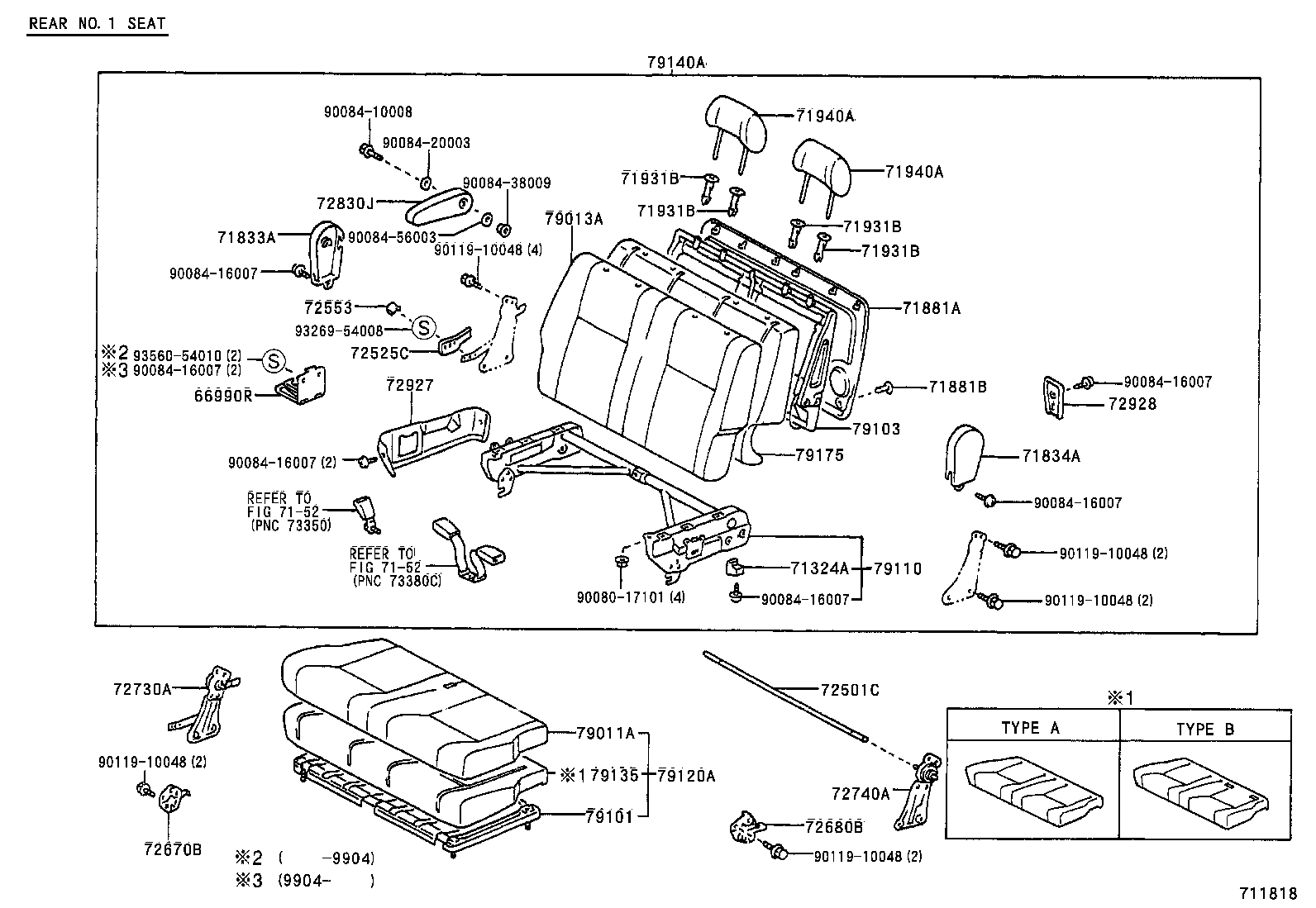

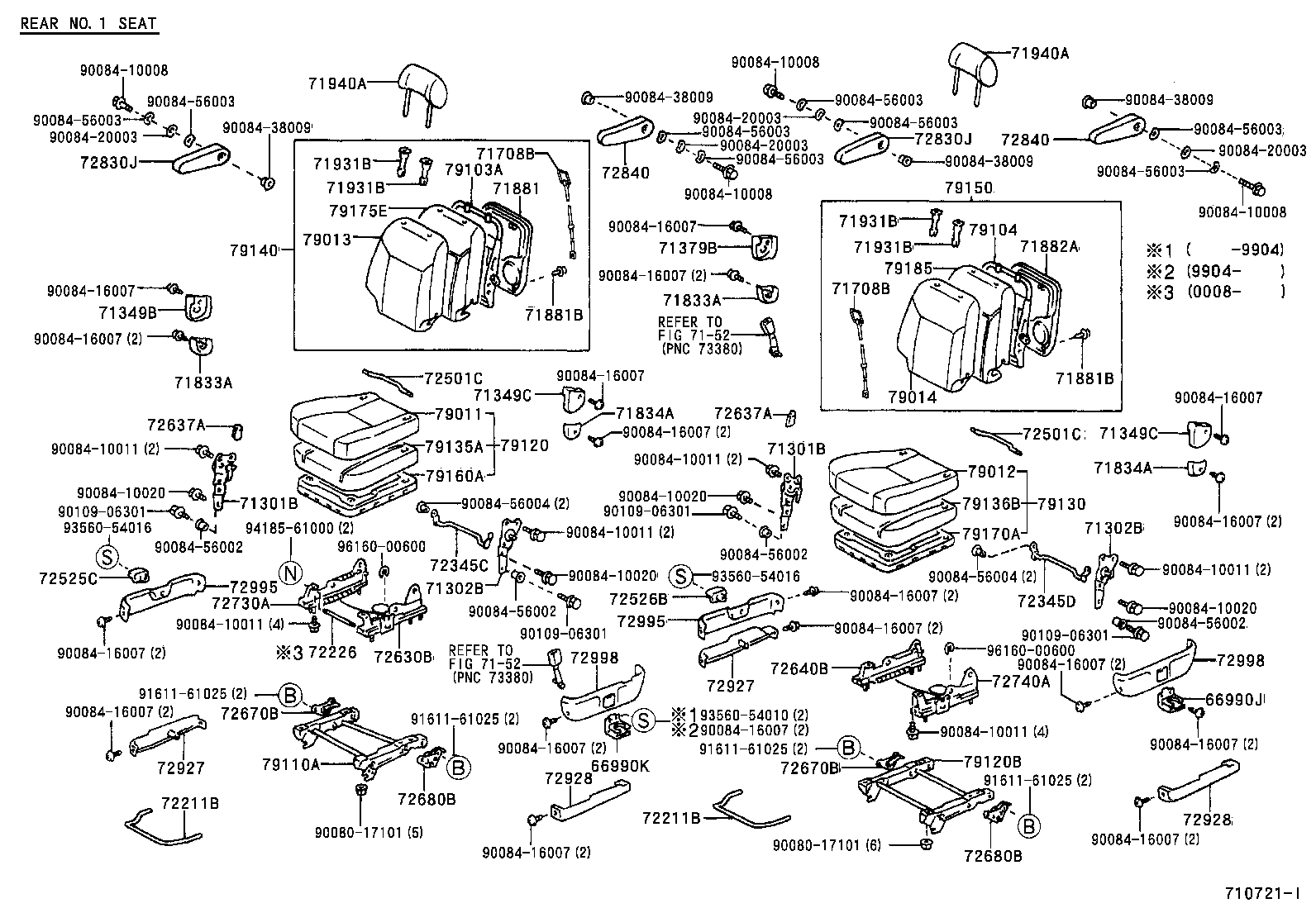

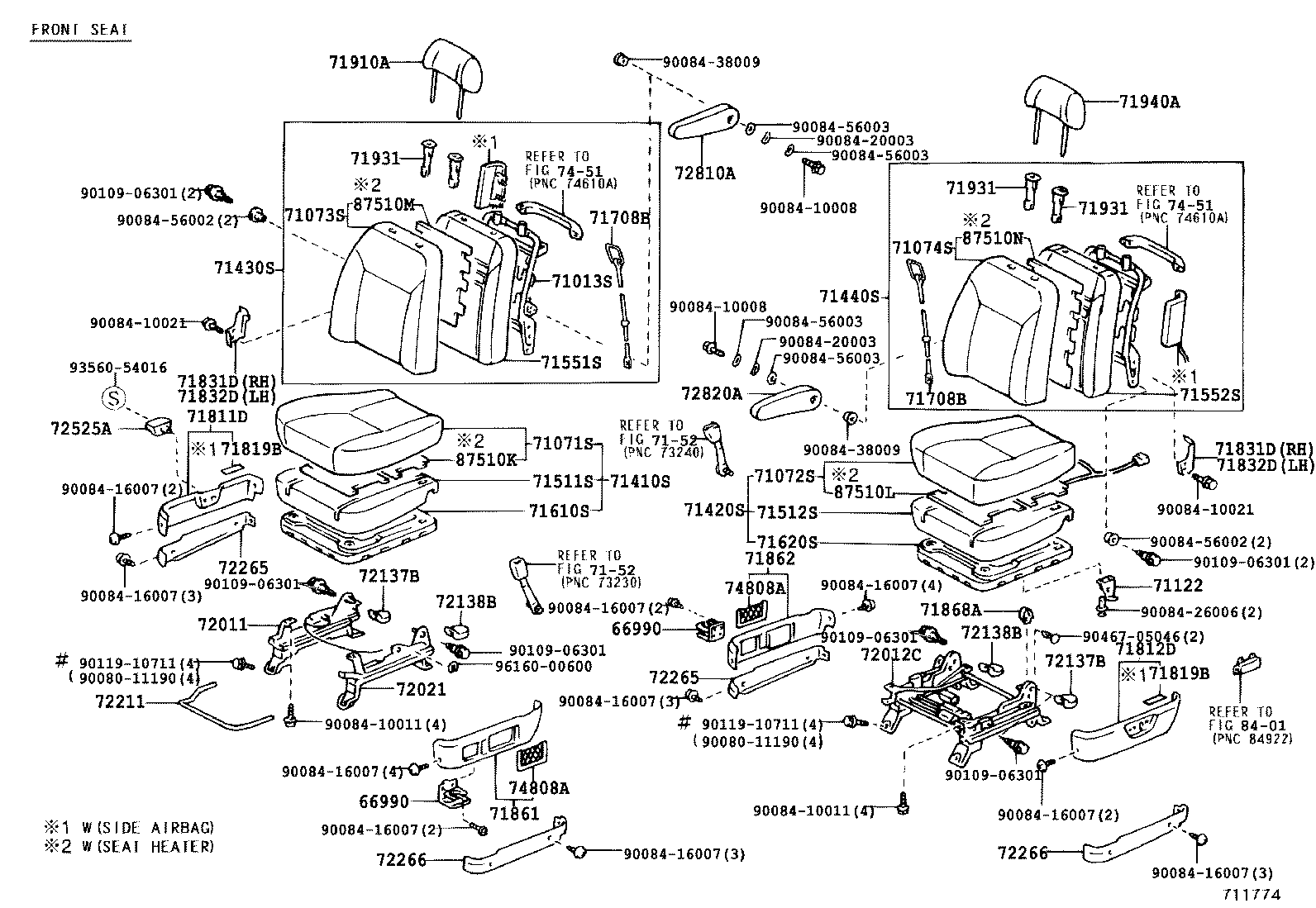

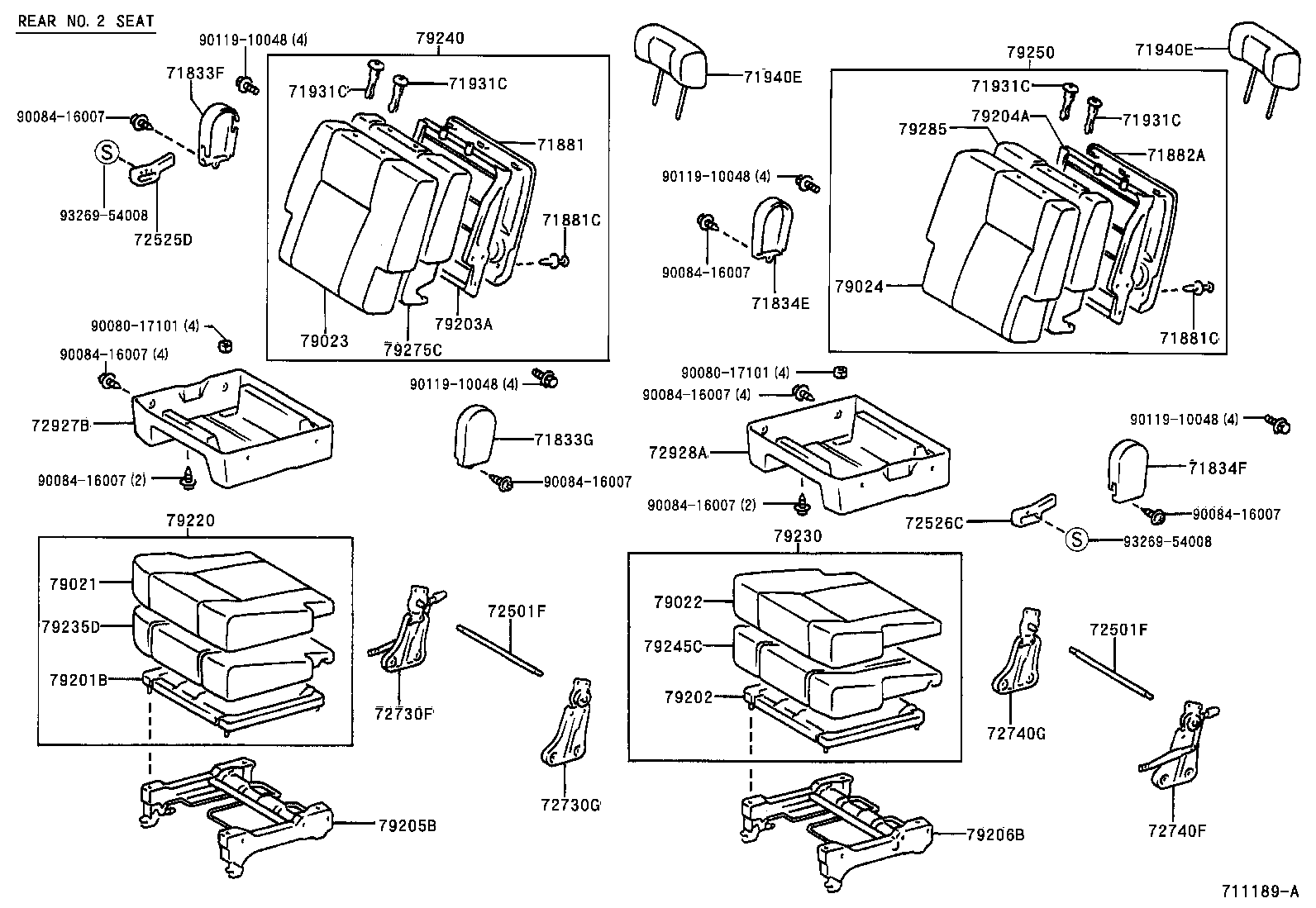

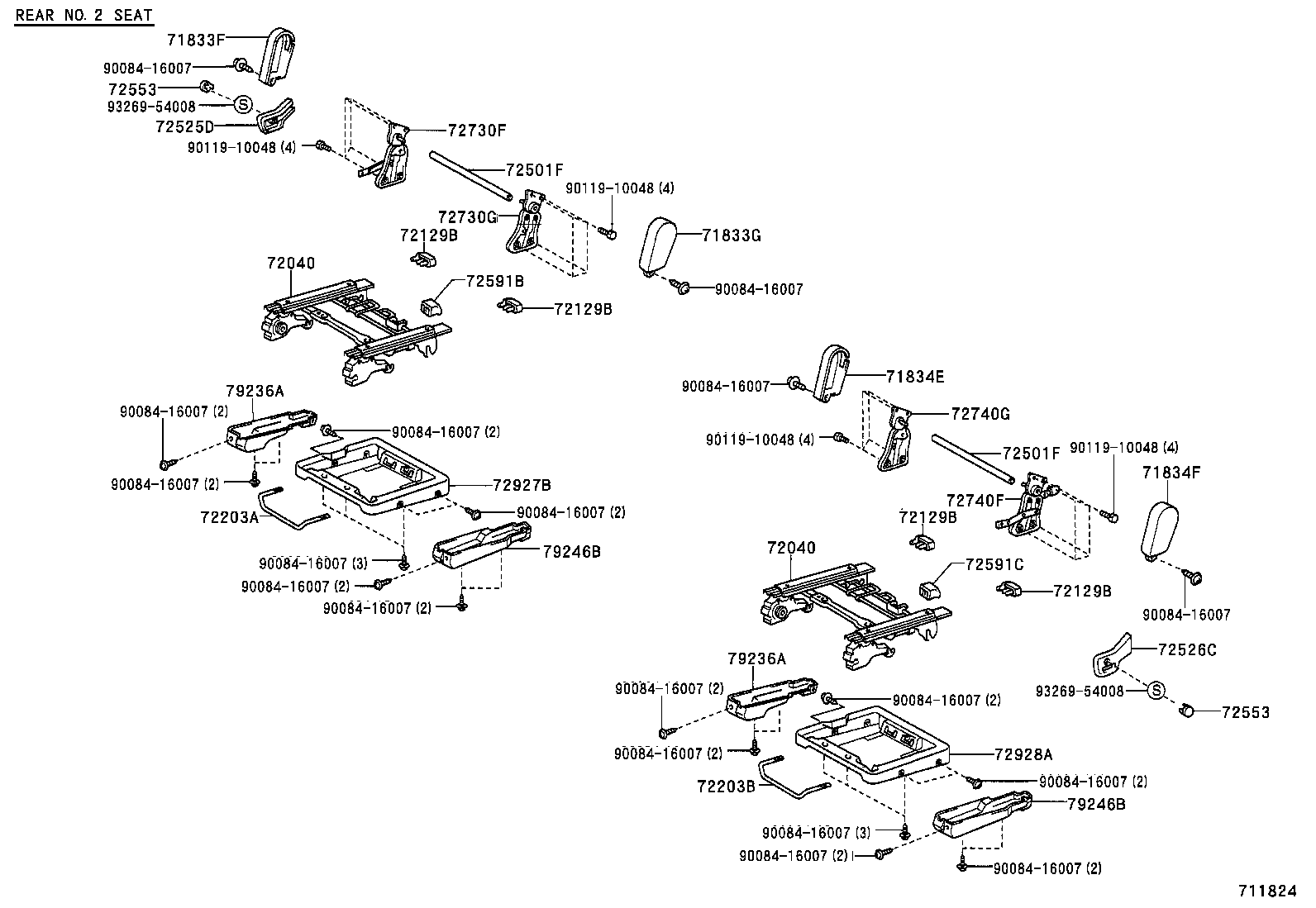

Figure 710716C 710716C 1997-08 → 2000-08 Figure 711773C 711773C 2000-08 → — Figure 710717C 710717C 1997-08 → 2000-08 Figure 711774C 711774C 2000-08 → — Figure 711818 711818 1997-08 → 2000-08 Figure 710718H 710718H 1997-08 → 2000-08 Figure 711817 711817 1997-08 → — Figure 710719H 710719H 1997-08 → — Figure 710720F 710720F 1997-08 → — Figure 710721I 710721I 1997-08 → — Figure 711189A 711189A 1997-08 → 2000-08 Figure 711776 711776 2000-08 → — Figure 711824 711824 2000-08 → —

Part groups

PNCDescription
55560D Lock Assy, Seat Under Tray
66990 Holder Assy, Cup
66990J Holder Assy, Cup, NO.1 LH
66990K Holder Assy, Cup, NO.1 RH
66990R Holder Assy, Cup, NO.1
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71122 Bracket, Front Seat Cushion, LH
71301B Hinge Sub-assy, Rear NO.1 Seat, RH
71302B Hinge Sub-assy, Rear NO.1 Seat, LH
71324A Cushion, Rear Seat
71349B Cover, Rear Seatback Stay, RH
71349C Cover, Rear Seatback Hinge
71379B Cover, Rear Seatback Hinge, LH
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71708B Strap Sub-assy, Seat Cover
71753 Tray, Front Seat Under
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71819B Label, Side Airbag Name
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71833F Cover, Rear NO.2 Seat Reclining, Outer RH
71833G Cover, Rear NO.2 Seat Reclining, Inner RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834E Cover, Rear NO.2 Seat Reclining, Inner LH
71834F Cover, Rear NO.2 Seat Reclining, Outer LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71881 Board, Rear Seatback, RH
71881A Board, Rear Seatback
71881B Clip, Rear Seatback Board
71881C Clip, Rear NO.2 Seatback Board
71882A Board, Rear Seatback, LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71931C Support Assy, Rear NO.2 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
72011 Adjuster Sub-assy, Front Seat, Outer RH
72012C Adjuster Sub-assy, Front Seat, LH
72021 Adjuster Sub-assy, Front Seat, Inner RH
72040 Adjuster Assy, Rear NO.2 Seat
72129B Protector, Seat Track Lower Rail
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72203A Handle Sub-assy, Rear Seat Track, RH
72203B Handle Sub-assy, Rear Seat Track, LH
72211 Handle, Seat Track Adjusting
72211B Handle, Seat Track Adjusting
72226 Bracket, Seat Track, NO.1
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72345C Pipe,Reclining Connecting, RH
72345D Pipe, Reclining Connecting, LH
72501C Pipe Sub-assy, Reclining Connecting
72501F Pipe Sub-assy, Reclining Connecting
72525A Handle, Reclining Adjuster Release, RH
72525C Handle, Reclining Adjuster Release, NO.1 RH
72525D Handle, Reclining Adjuster Release, NO.2 RH
72526 Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526C Handle, Reclining Adjuster Release, NO.2 LH
72553 Cover, Reclining Pedal
72591B Lever, Reclining Remote Control, RH
72591C Lever, Reclining Remote Control, LH
72592B Knob,Reclining Adjuster, LH
72630B Adjuster Assy, Rear NO.1 Seat, Inner RH
72637A Handle, Rear Seat Lock
72640B Adjuster Assy, Rear NO.1 Seat, Inner LH
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72730A Adjuster Assy, Rear Seat Reclining, RH
72730F Adjuster Assy, NO.2 Seat Reclining, Outer RH
72730G Adjuster Assy, NO.2 Seat Reclining, Inner RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72740F Adjuster Assy, NO.2 Seat Reclining, Outer LH
72740G Adjuster Assy, NO.2 Seat Reclining, Inner LH
72810A Armrest Assy, Seat, RH
72820A Armrest Assy, Seat, LH
72830J Armrest Assy, Rear NO.1 Seat, RH
72840 Armrest Assy, Rear NO.1 Seat, LH
72927 Cover, Rear Seat Cushion Under, RH
72927B Cover, Rear Seat Cushion Under
72928 Cover, Rear Seat Cushion Under, LH
72928A Cover, Rear Seat Cushion Under, NO.2
72995 Cover, Rear Seat Cushion, RH
72998 Cover, Rear Seat Cushion, LH
73515 Rail, Front Seat Under Tray, NO.1
73700A Seat Assy, Child Restraint
73731 Cover, Child Restraint Seat
74808A Box Sub-assy, Seat Trash
79011 Cover Sub-assy, NO.1 Seat Cushion, RH
79011A Cover Sub-assy, NO.1 Seat Cushion
79012 Cover Sub-assy, NO.1 Seat Cushion, LH
79013 Cover Sub-assy, NO.1 Seatback, RH
79013A Cover Sub-assy, NO.1 Seatback
79014 Cover Sub-assy, NO.1 Seatback, LH
79021 Cover Sub-assy, NO.2 Seat Cushion, RH
79022 Cover Sub-assy, NO.2 Seat Cushion, LH
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79101 Frame Sub-assy, NO.1 Seat Cushion
79103 Frame Sub-assy, NO.1 Seatback
79103A Frame Sub-assy, NO.1 Seatback, RH
79104 Frame Sub-assy, NO.1 Seatback, LH
79110 Leg Assy, NO.1 Seat
79110A Leg Assy, NO.1 Seat, RH
79120 Cushion Assy, NO.1 Seat, RH
79120A Cushion Assy, NO.1 Seat
79120B Leg Assy, NO.1 Seat, LH
79130 Cushion Assy, NO.1 Seat, LH
79135 Pad, NO.1 Seat Cushion
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79140 Back Assy, NO.1 Seat, RH
79140A Back Assy, NO.1 Seat
79150 Back Assy, NO.1 Seat, LH
79160A Spring Assy, NO.1 Seat Cushion, RH
79170A Spring Assy, NO.1 Seat Cusuion, LH
79175 Pad, NO.1 Seatback
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79201B Frame Sub-assy, NO.2 Seat Cushion, RH
79202 Frame Sub-assy, NO.2 Seat Cushion, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79205B Leg Sub-assy, NO.2 Seat, RH
79206B Leg Sub-assy, NO.2 Seat, LH
79220 Cushion Assy, NO.2 Seat, RH
79230 Cushion Assy, NO.2 Seat, LH
79235D Pad, NO.2 Seat Cushion, RH
79236A Cover, NO.2 Seat Leg
79240 Back Assy, NO.2 Seat, RH
79245C Pad, NO.2 Seat Cushion, LH
79246B Cover, NO.2 Seat Leg, B
79250 Back Assy, NO.2 Seat, LH
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
