Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

23 part groups · 3 illustrations

Illustrations

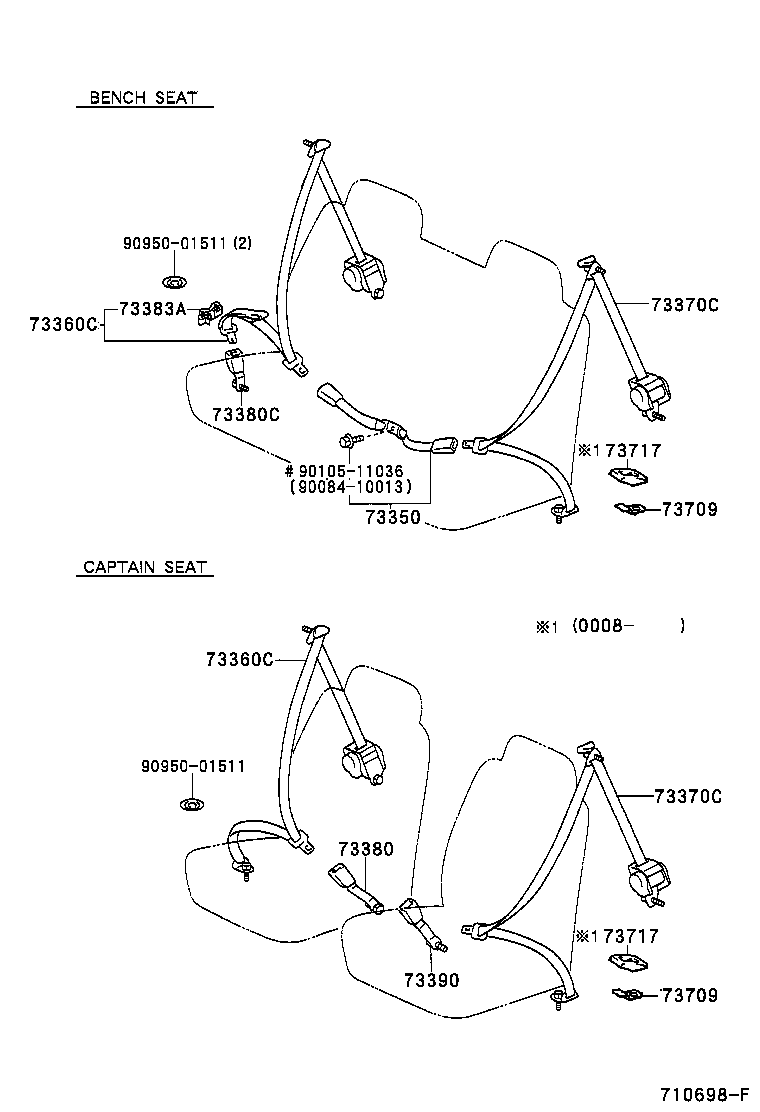

Figure 710697 710697 1997-08 → — Figure 710698F 710698F 1997-08 → — Figure 710699A 710699A 1997-08 → —

Part groups

PNCDescription
73178A Cap, Seat Belt Anchor Cover
73187 Guide, Front Seat Shoulder Belt
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73383A Hook, RR Seat Belt
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
