Toyota Sienna
1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States
Discontinued model
Data version 2003-07
Fuel Tank & Tube

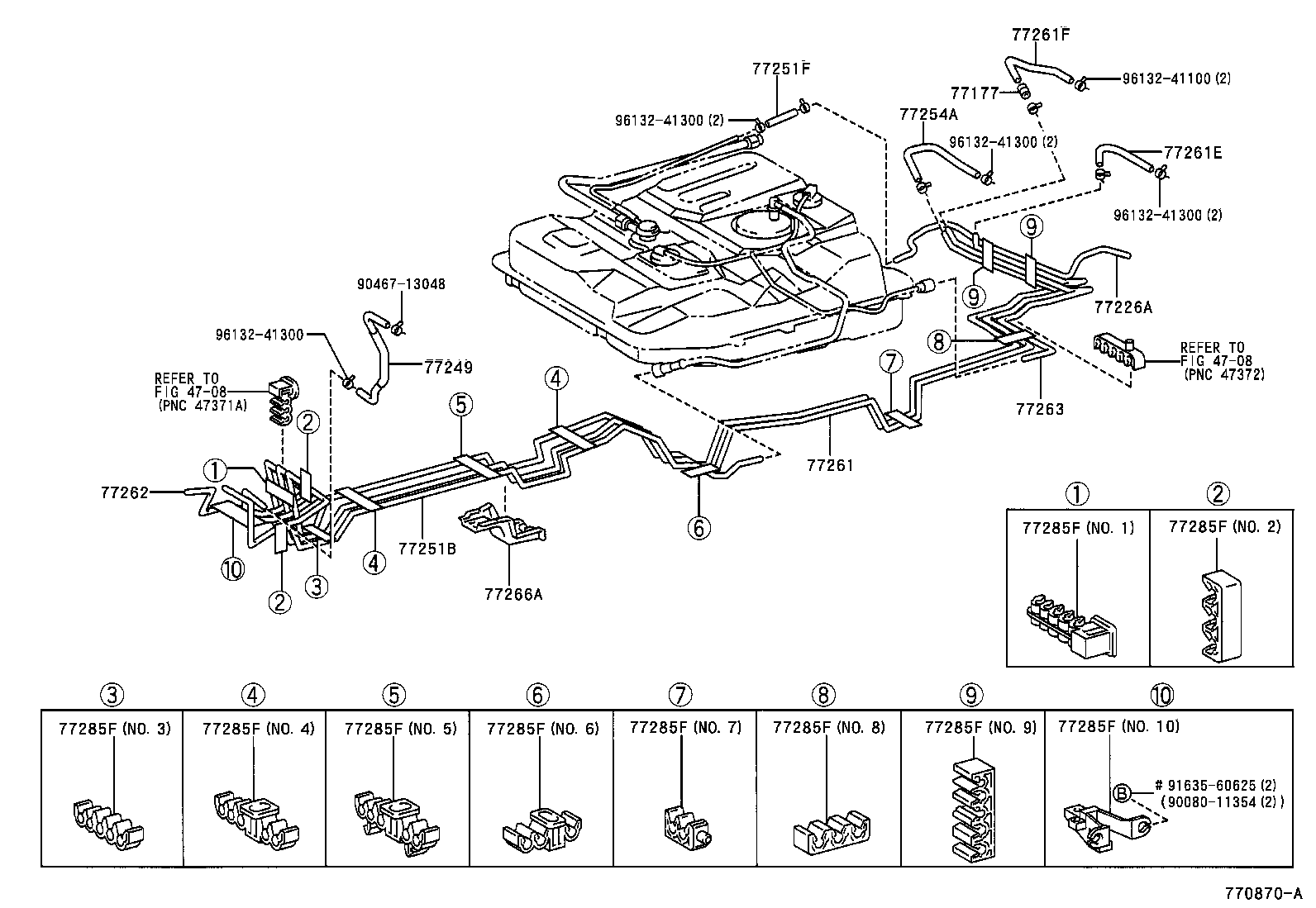

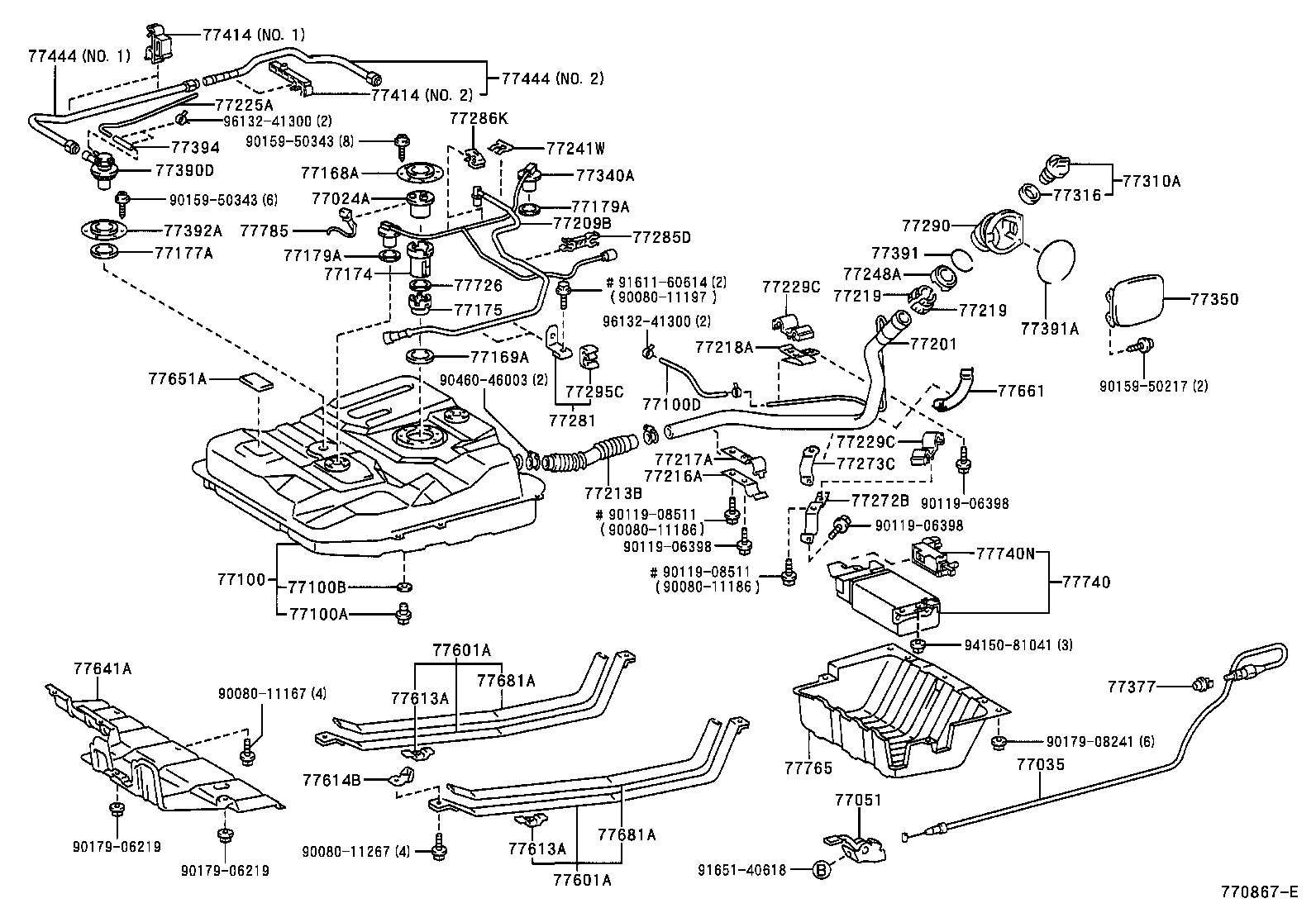

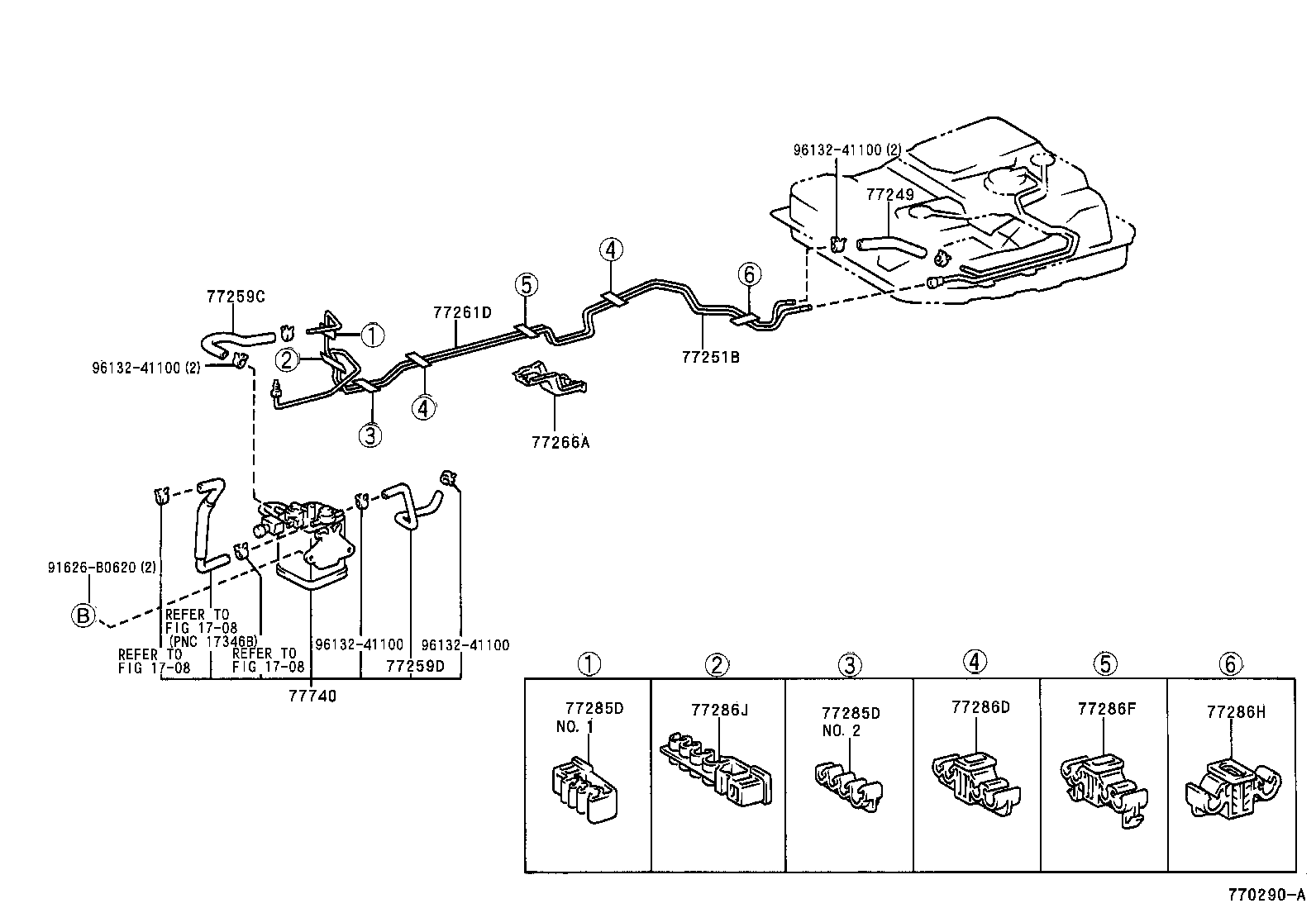

79 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77051 | Lever Sub-assy, Fuel Lid Open |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77177 | Gasket, Check Valve |
| 77177A | Gasket, Check Valve |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77209B | Tube Sub-assy, Fuel Pump |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77216B | Support, Fuel Tank Filler Pipe, NO.2 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77218A | Support, Fuel Tank Filler Pipe, NO.3 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77225A | Tube, Fuel Tank Breather, NO.5 |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77251F | Hose, Fuel |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77259C | Hose, Fuel |
| 77259D | Hose, Fuel, NO.1 |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77269A | Hose, Fuel Tank Breather |
| 77272B | Support, Breather Tube, NO.1 |
| 77273C | Support, Breather Tube, NO.2 |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77286H | Clamp, Fuel Tube, NO.3 |
| 77286J | Clamp, Fuel Tube, NO.4 |
| 77286K | Clamp, Fuel Tube, NO.2 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77295C | Grommet, Fuel Tube |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77390D | Valve Assy, Fuel Tank Over Fill Check |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77392A | Support, Check Valve |
| 77394 | Hose, Valve TO Fuel Filler Pipe |
| 77414 | Support, Fuel Tube Grommet, NO.4 |
| 77444 | Hose, Fuel Tank Vent |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77613A | Bracket, Fuel Tank Band, NO.1 |
| 77614B | Bracket, Fuel Tank Band, NO.2 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77661 | Cover, Fuel Inlet Pipe |
| 77681A | Seat, Fuel Tank Band |
| 77726 | Cushion, Fuel Filter, NO.2 |
| 77740 | Canister Assy, Charcoal |
| 77740N | Valve, Vacuum Switching(FOR CHARCOAL CANISTER) |
| 77765 | Protector, Charcoal Canister |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
