Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

32 part groups · 11 illustrations

Illustrations

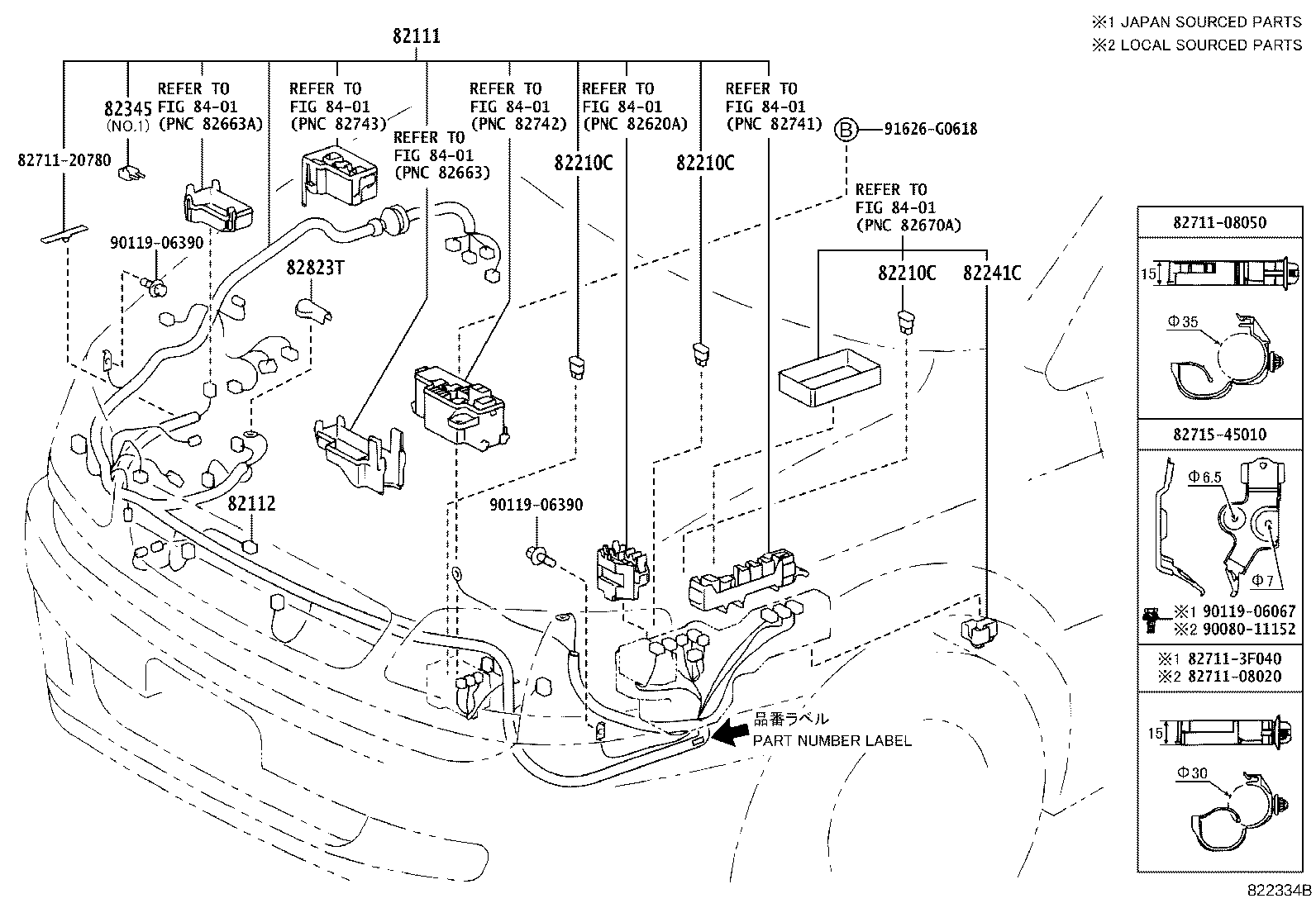

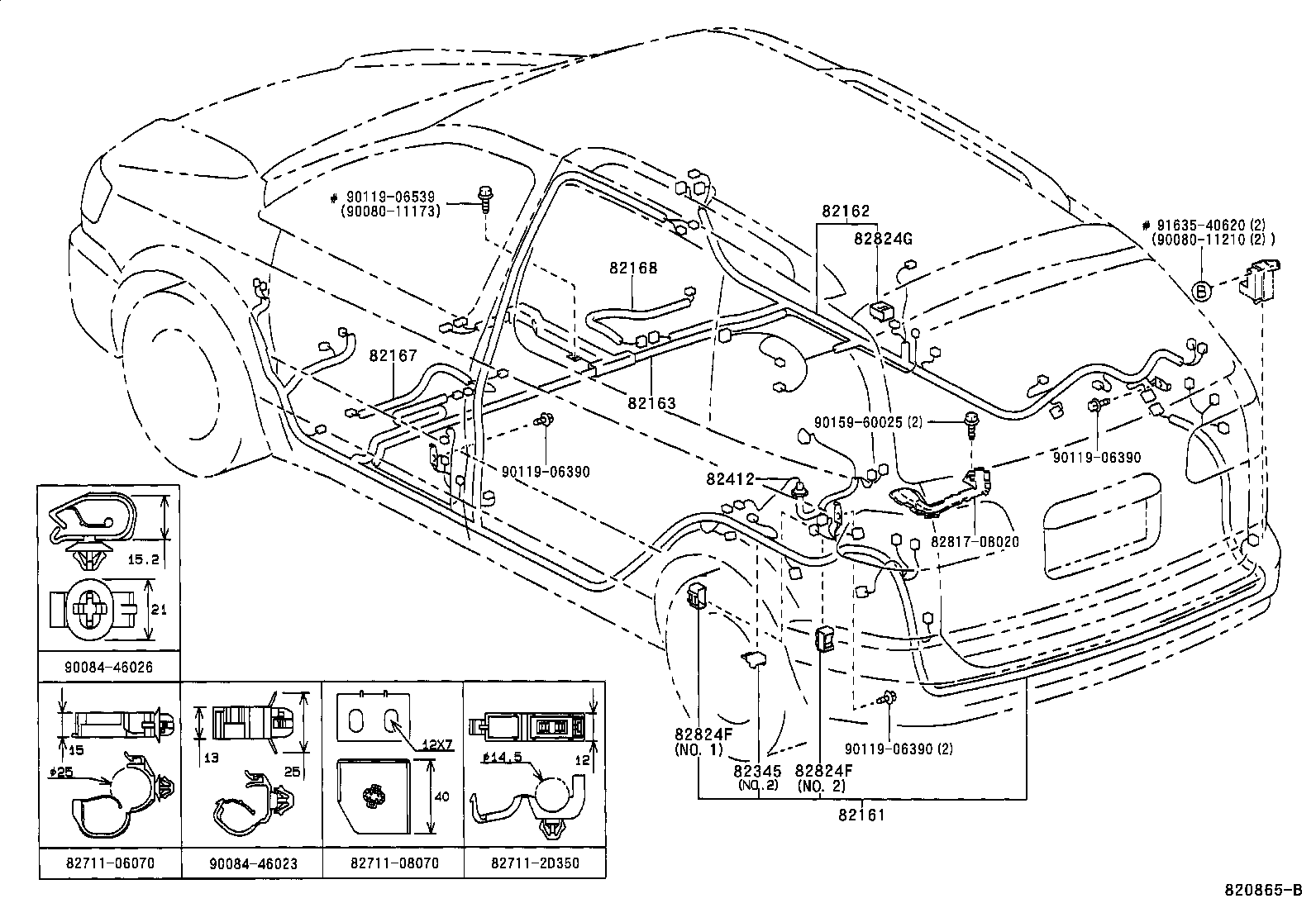

Figure 820860E 820860E 1997-08 → 2000-08 Figure 822334B 822334B 2000-08 → — Figure 820861G 820861G 1997-08 → — Figure 820862F 820862F 1997-08 → 2000-08 Figure 822335C 822335C 2000-08 → — Figure 820863C 820863C 1997-08 → — Figure 820864B 820864B 1997-08 → — Figure 820865B 820865B 1997-08 → — Figure 820866A 820866A 1997-08 → — Figure 820867C 820867C 1997-08 → — Figure 823047 823047 1997-08 → —

Part groups

PNCDescription

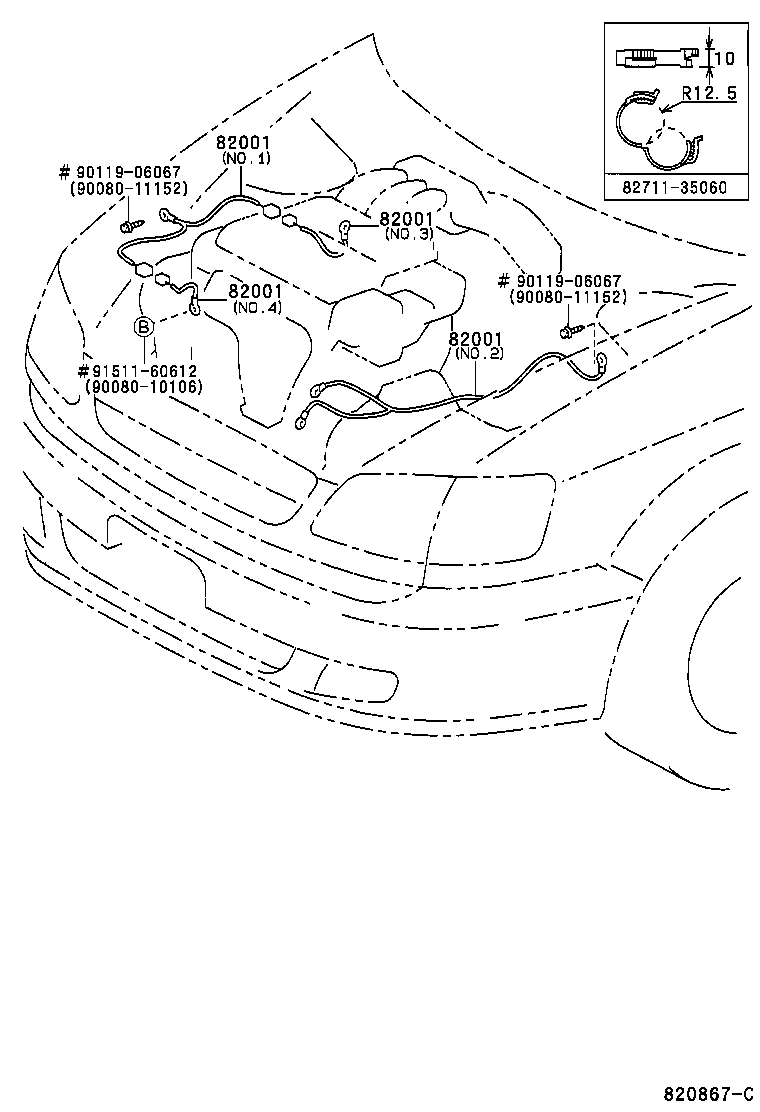

82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

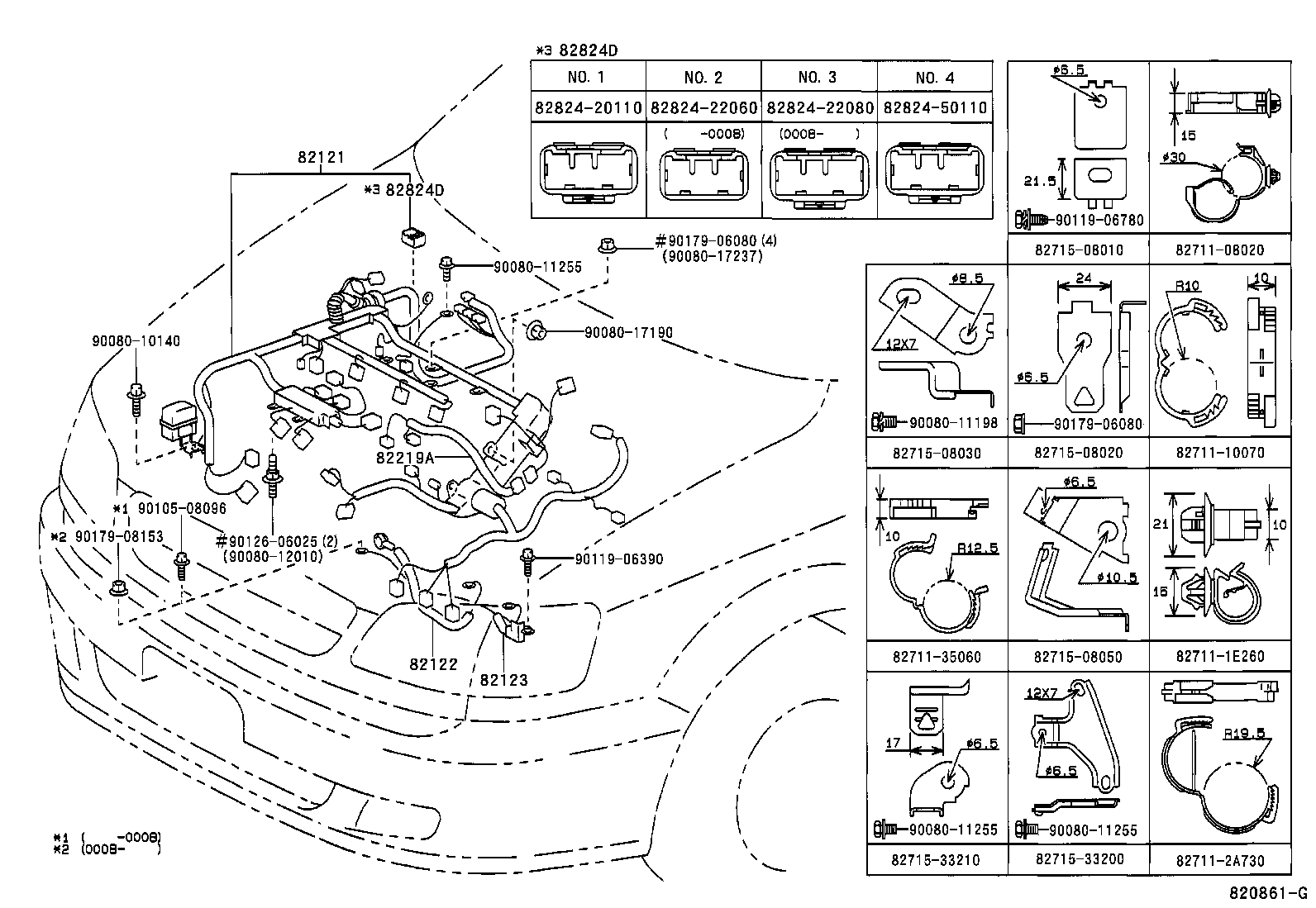

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82132 Wire, Cowl, NO.2

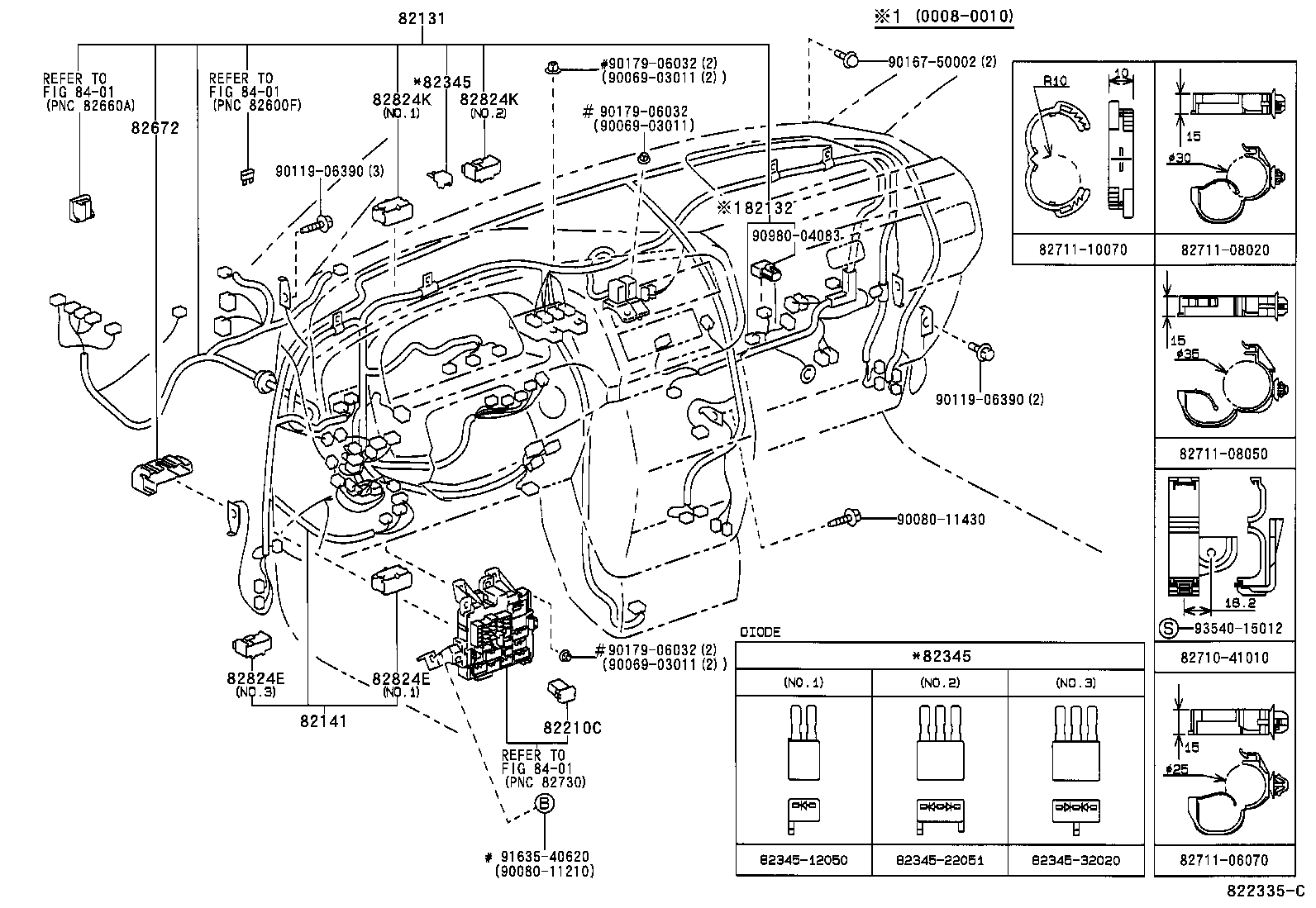

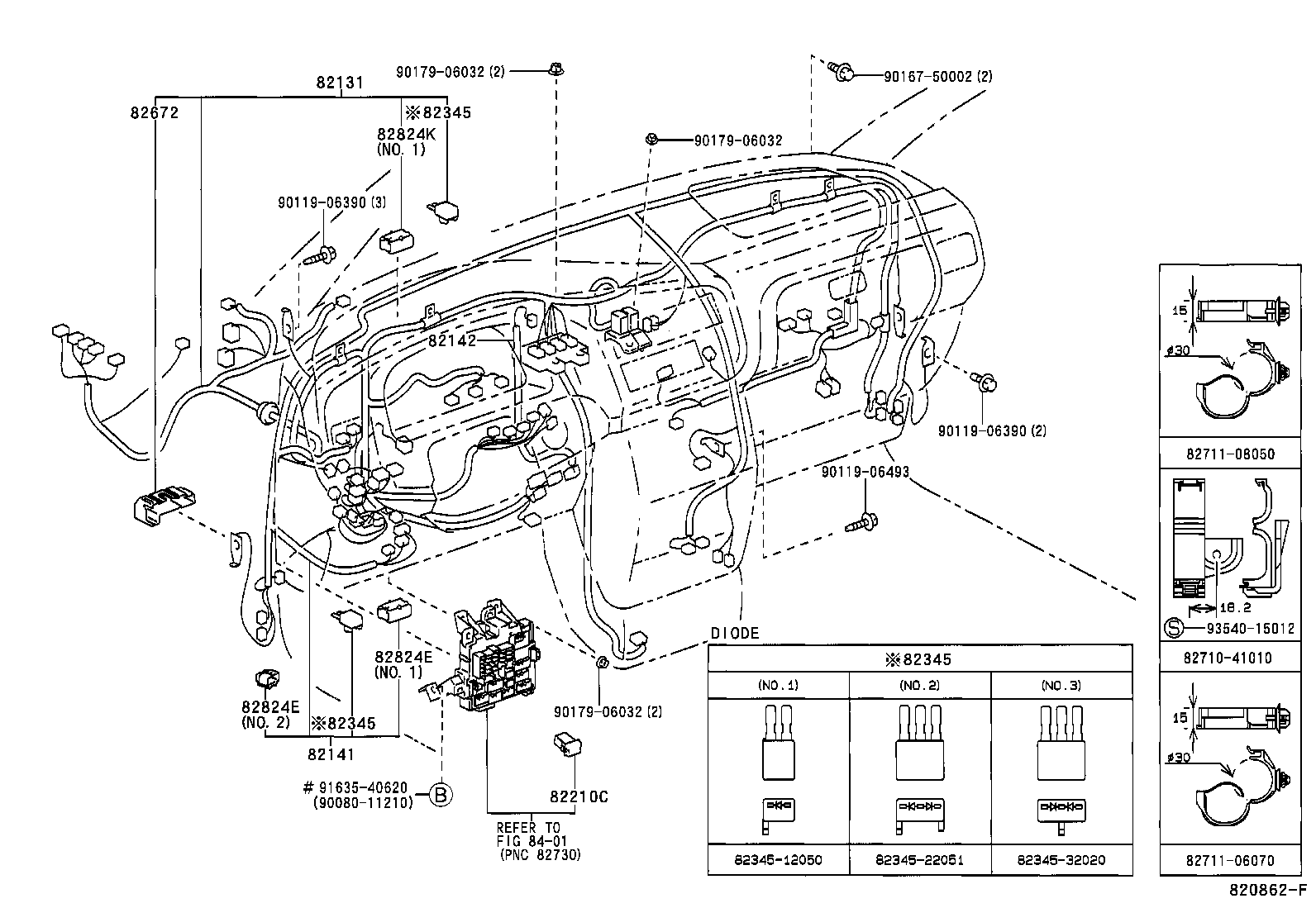

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

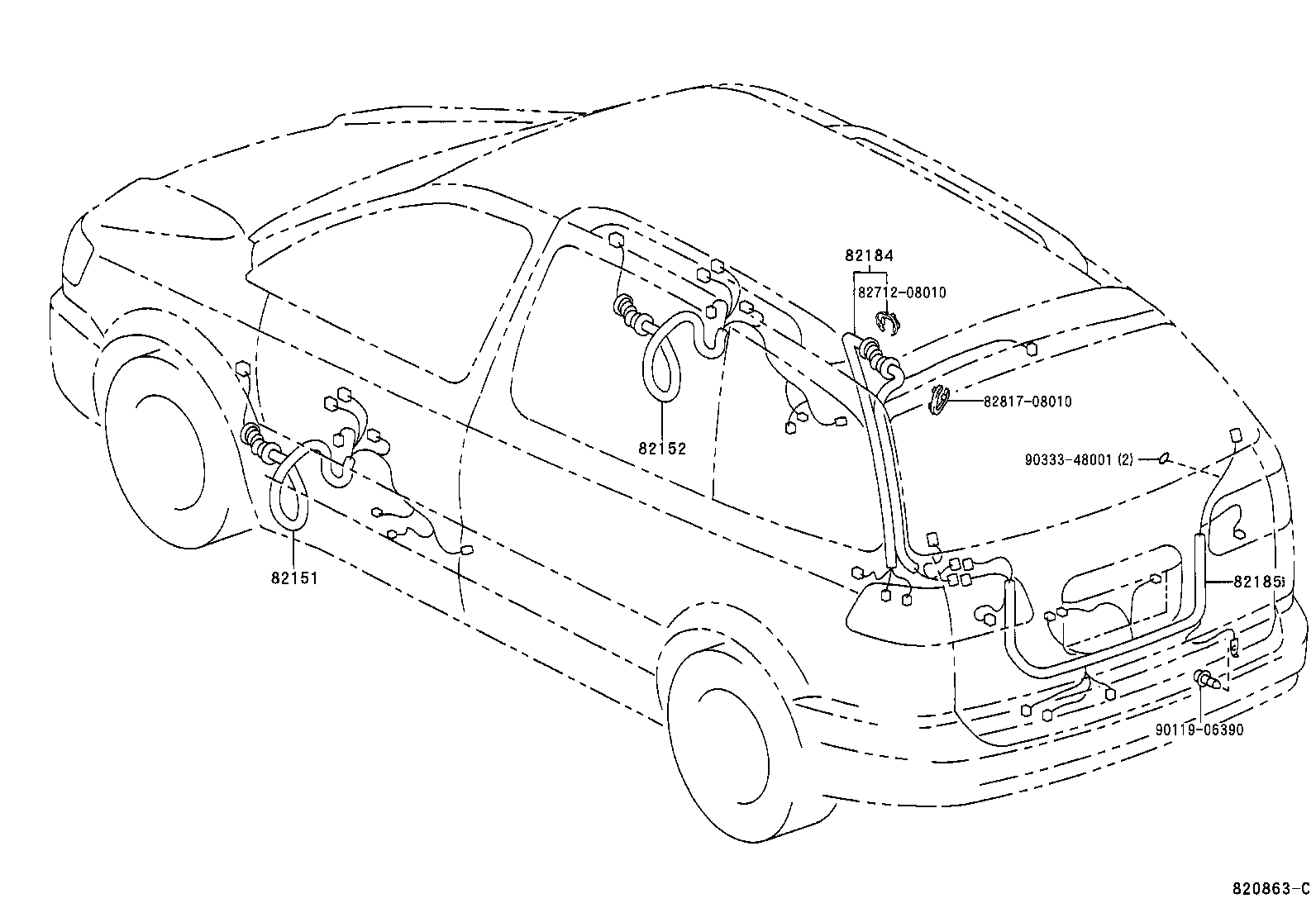

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

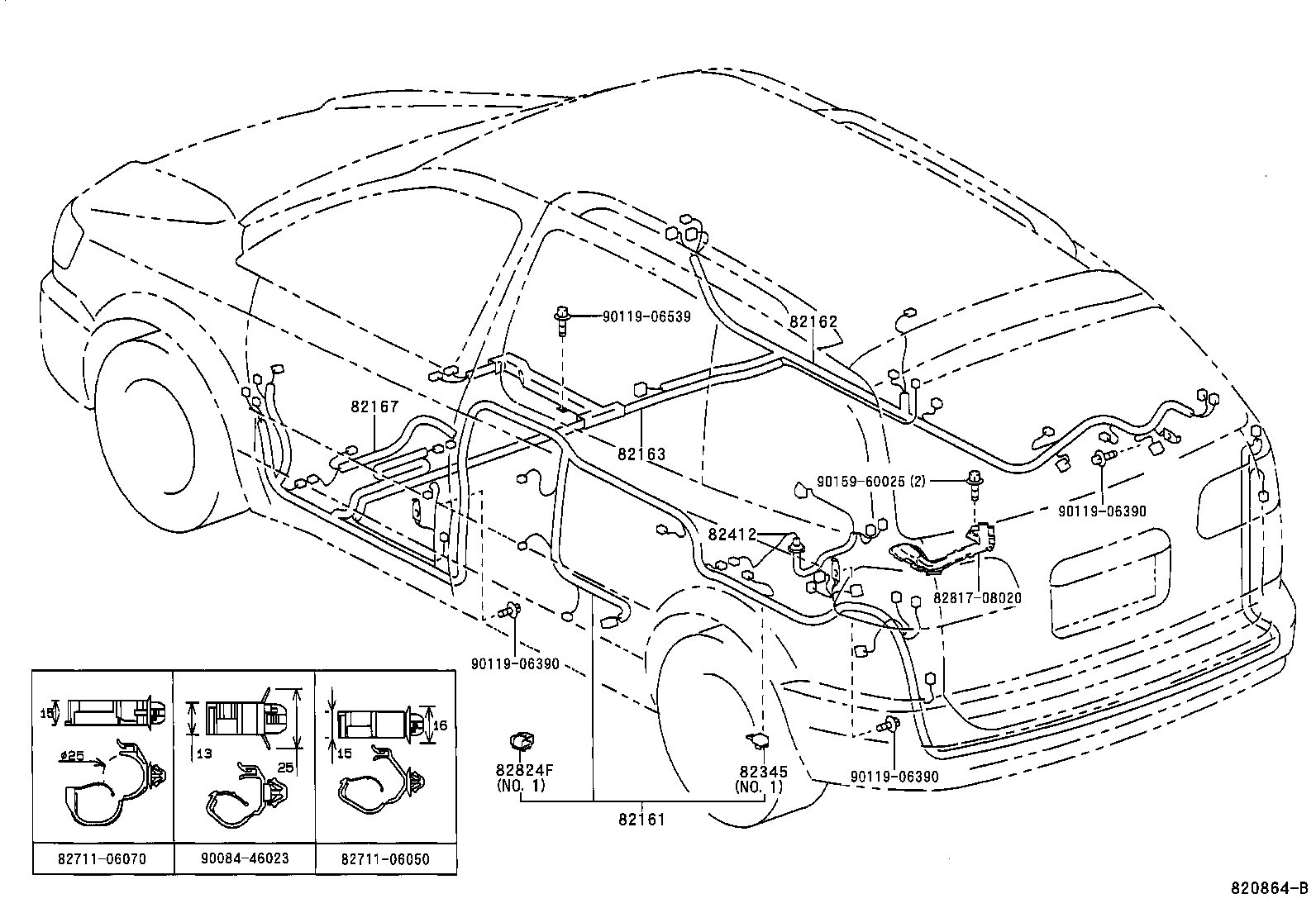

82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2

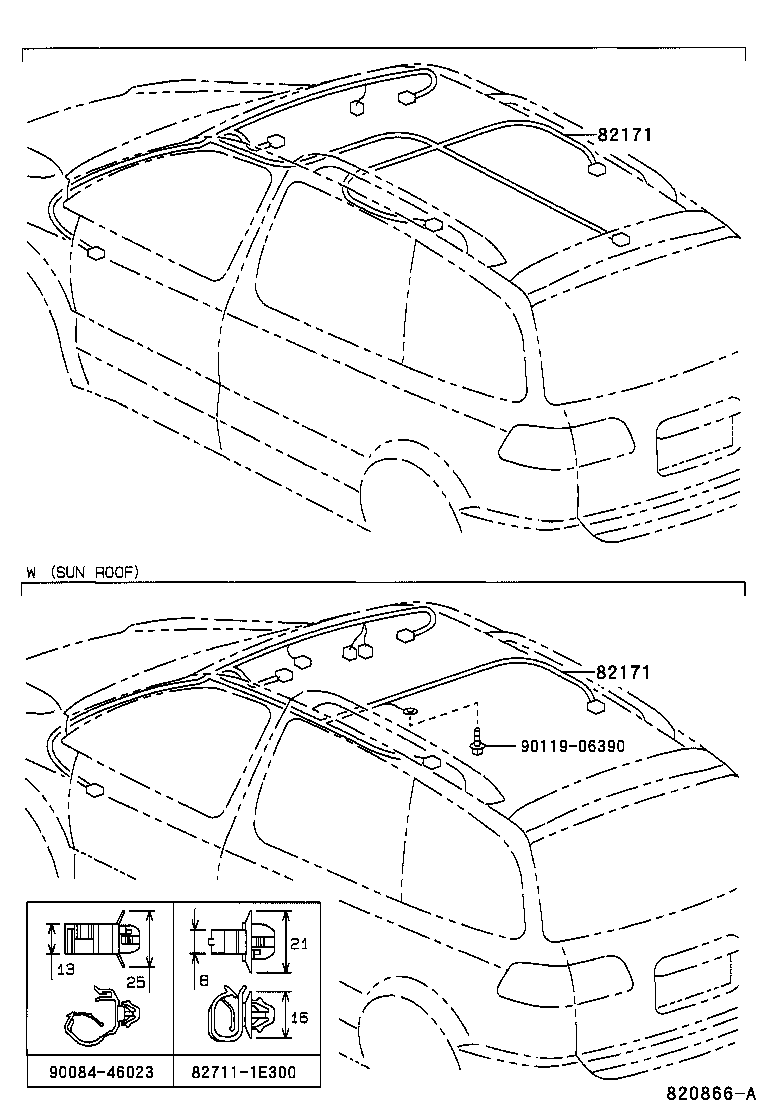

82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82219A Wire, Sensor
82241C Wire, Relay
82345 Diode
82412 Wire, Fuel Gage
82672 Cover, Junktion Block
82823T Cap, Alternator Terminal

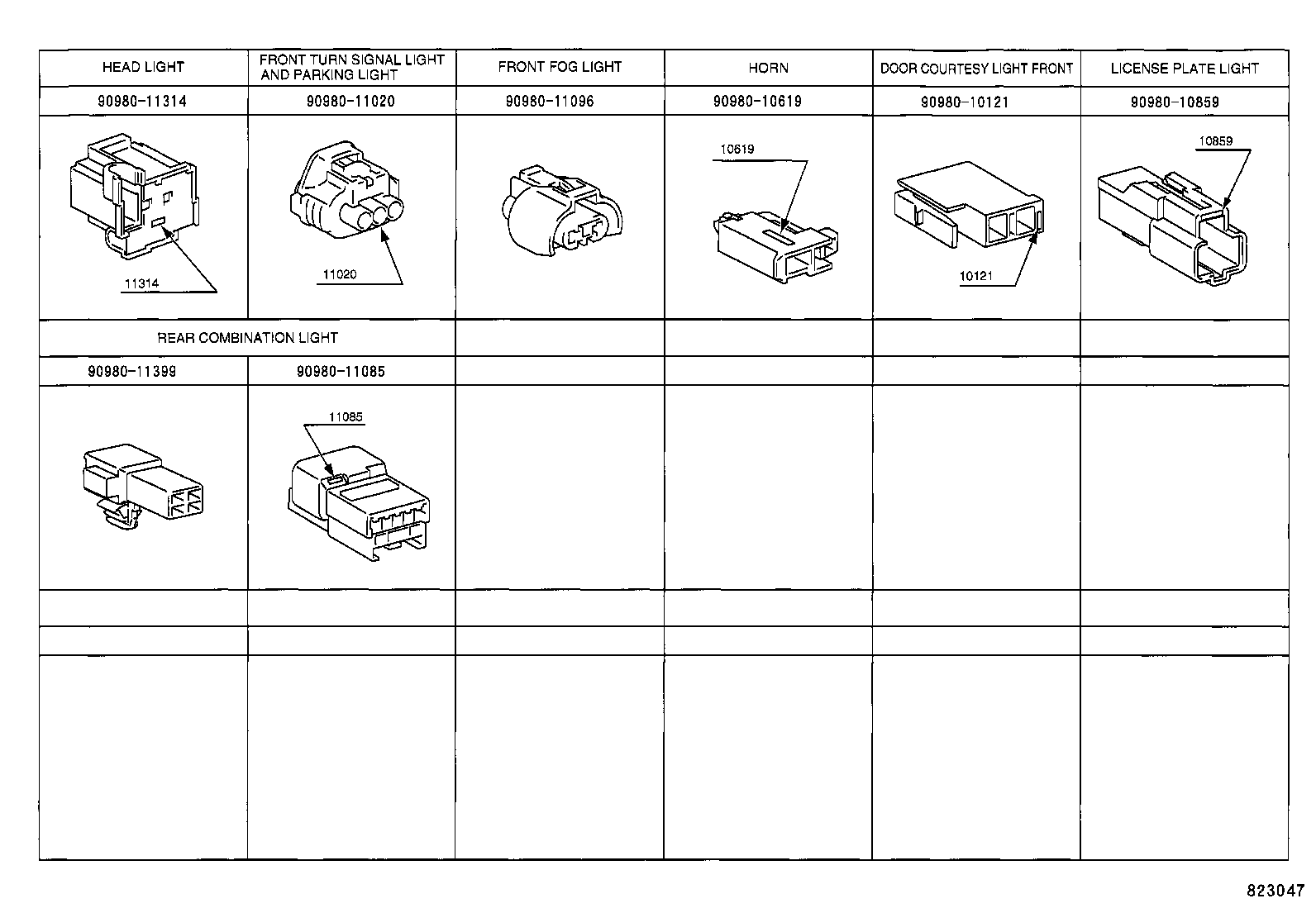

82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
