Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 2 illustrations

Illustrations

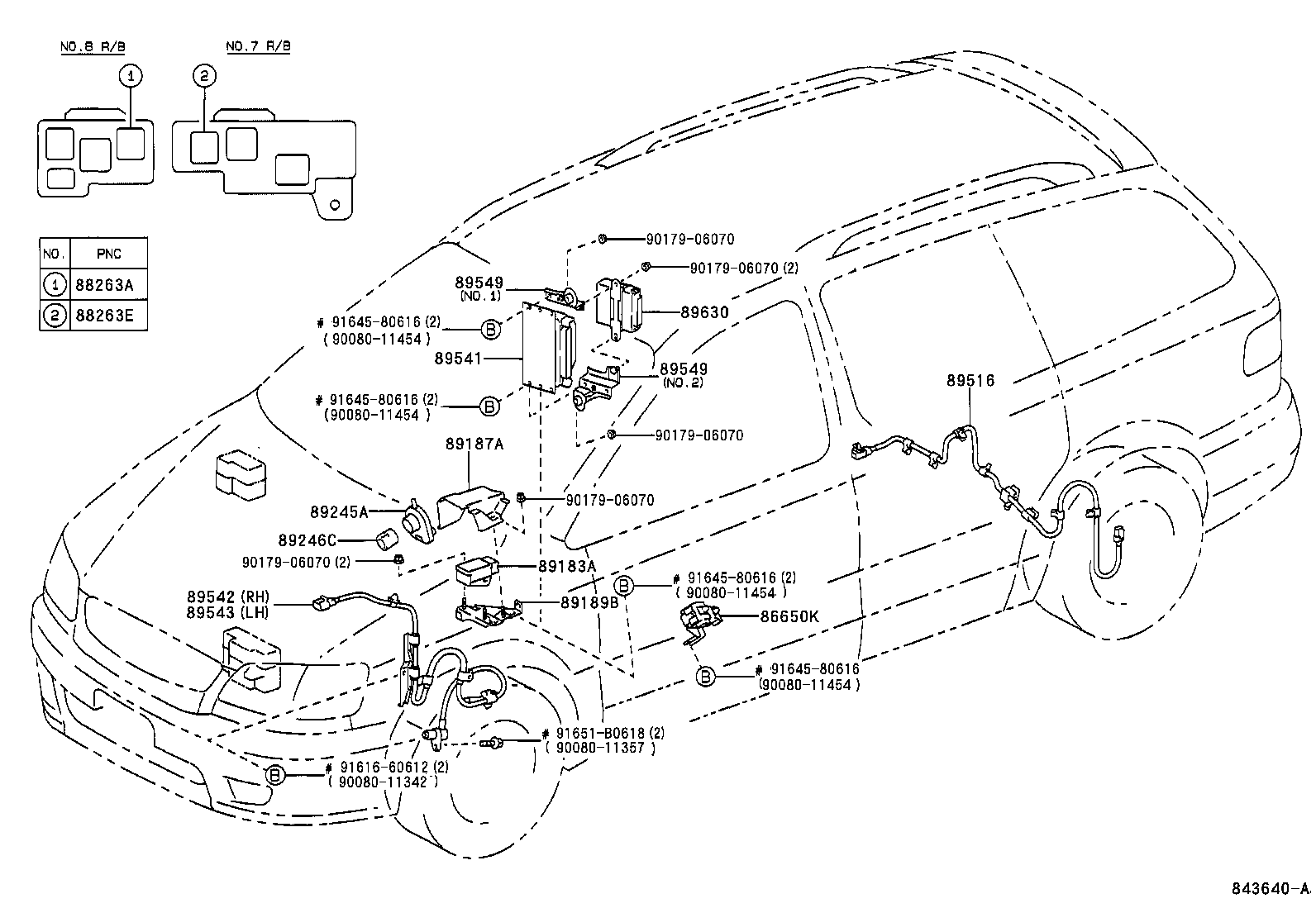

Figure 841082C 841082C 1997-08 → — Figure 843640A 843640A 2000-08 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89183A Sensor, Yawrate
89187A Protector, Yawrate Sensor
89189B Bracket, Yawrate Sensor
89245A Sensor, Steering
89246C Adapter, Steering Sensor
89516 Wire, Skid Control Sensor
89541 Computer, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89549 Bracket, Skid Control Computer
89630 Computer Assy, Translate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
