Factory parts data · Europe

Toyota Sienna

1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States

Discontinued model Data version 2003-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

3 part groups · 4 illustrations

Illustrations

Figure 841117D

841117D 1997-08 → —

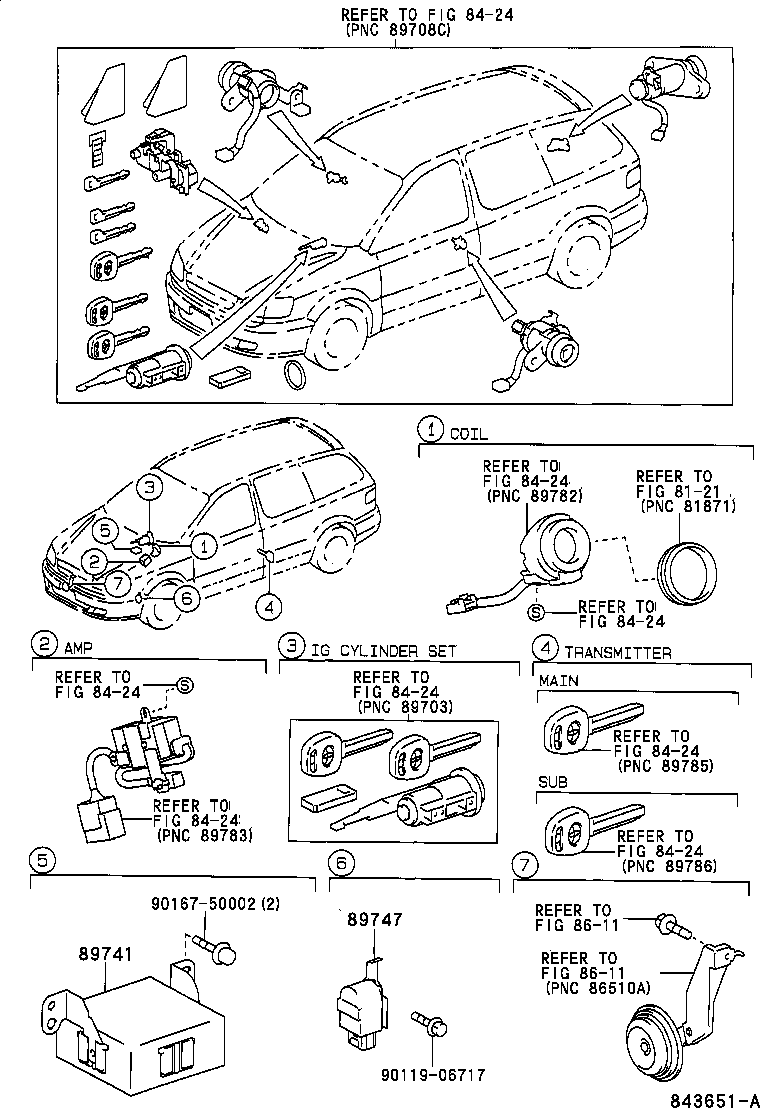

Figure 843651A

843651A 1997-08 → —

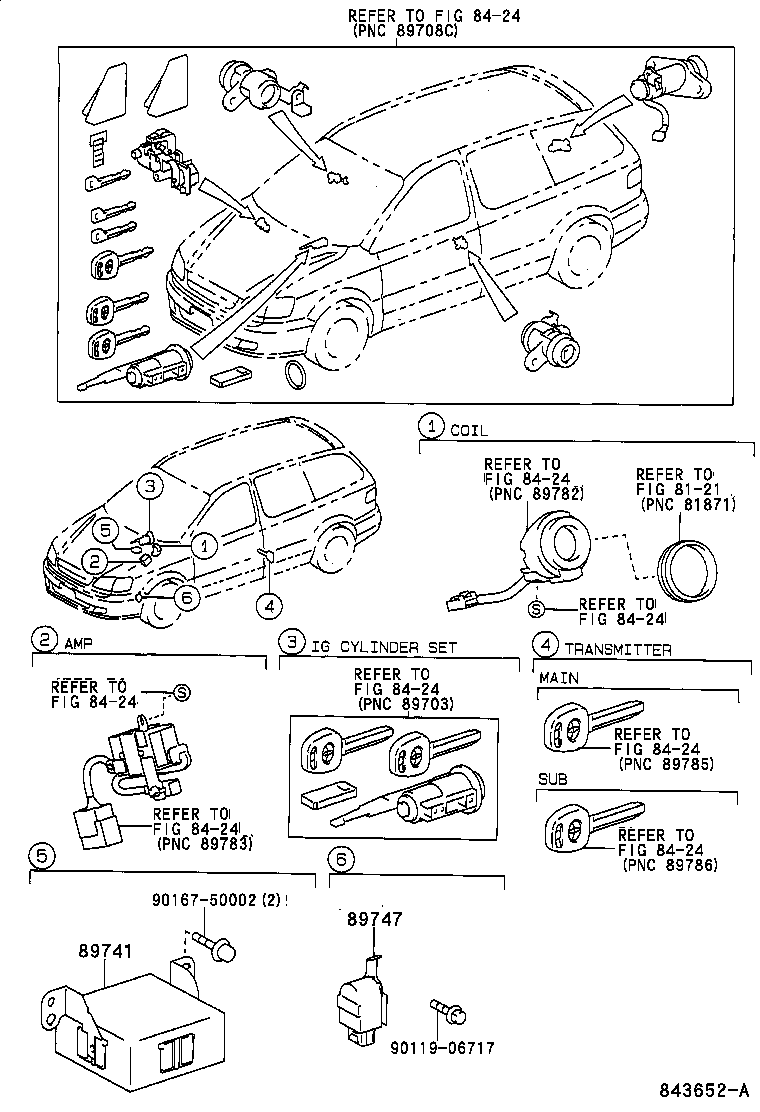

Figure 843652A

843652A 2000-08 → —

843653 1997-08 → —

Part groups

PNC	Description
89741	Receiver, Door Control
89742	Transmitter, Door Control
89747	Buzzer, Wireless Door Lock

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
