Toyota Sienna
1997-08 → 2003-01 · chassis MCL10 · catalogue 622410 · United States
Discontinued model
Data version 2003-07
Radio Receiver & Amplifier & Condenser
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |

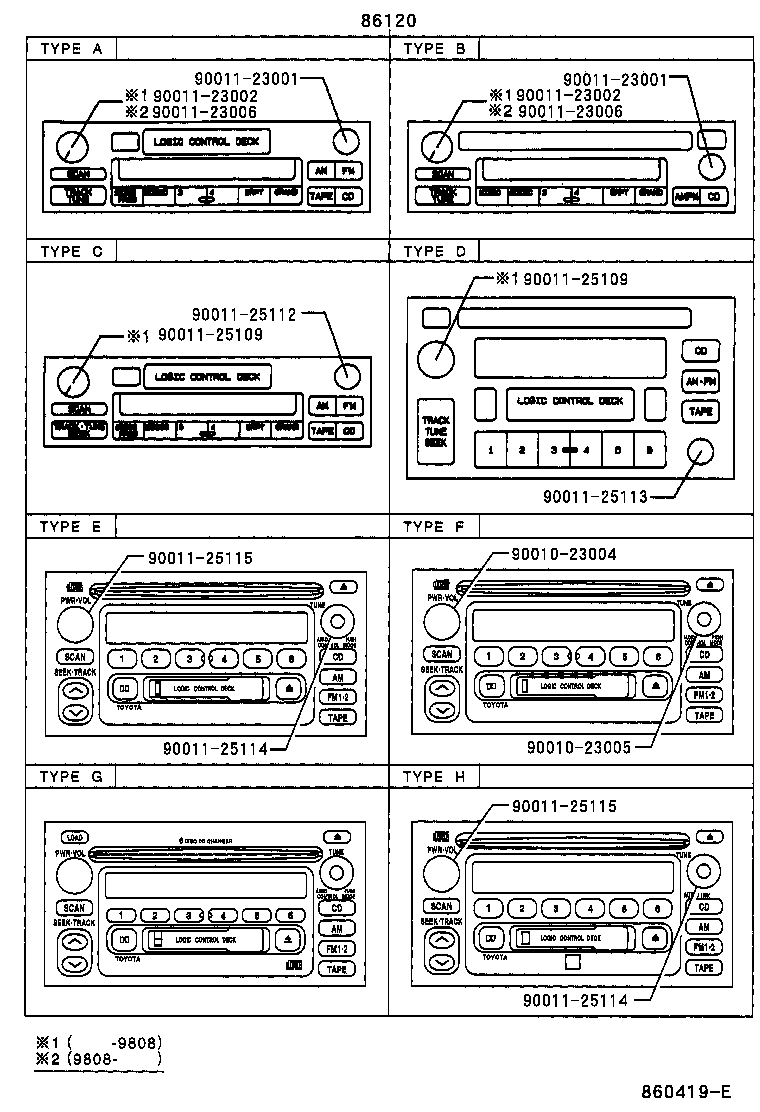

| 86120 | Receiver Assy, Radio |
| 86174 | Case, Switch & Volume |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |

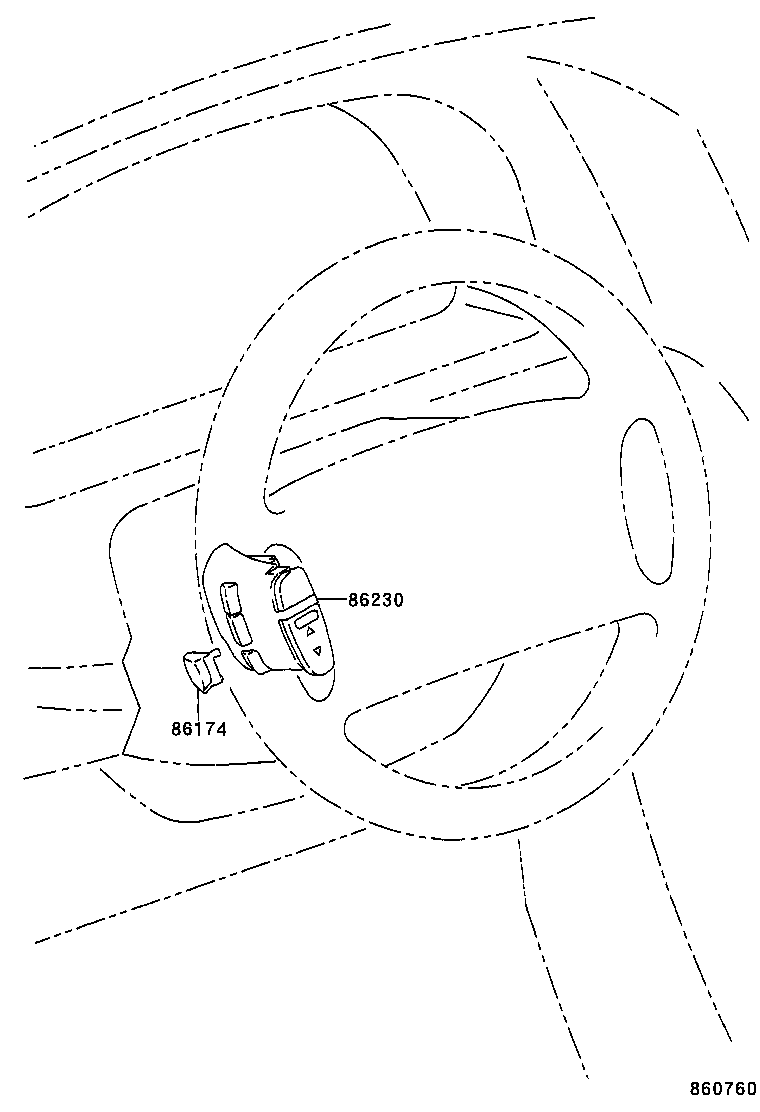

| 86230 | Controller Assy, Stereo Component |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
