Heating & Air Conditioning - Control & Air Duct

46 part groups · 9 illustrations

Illustrations

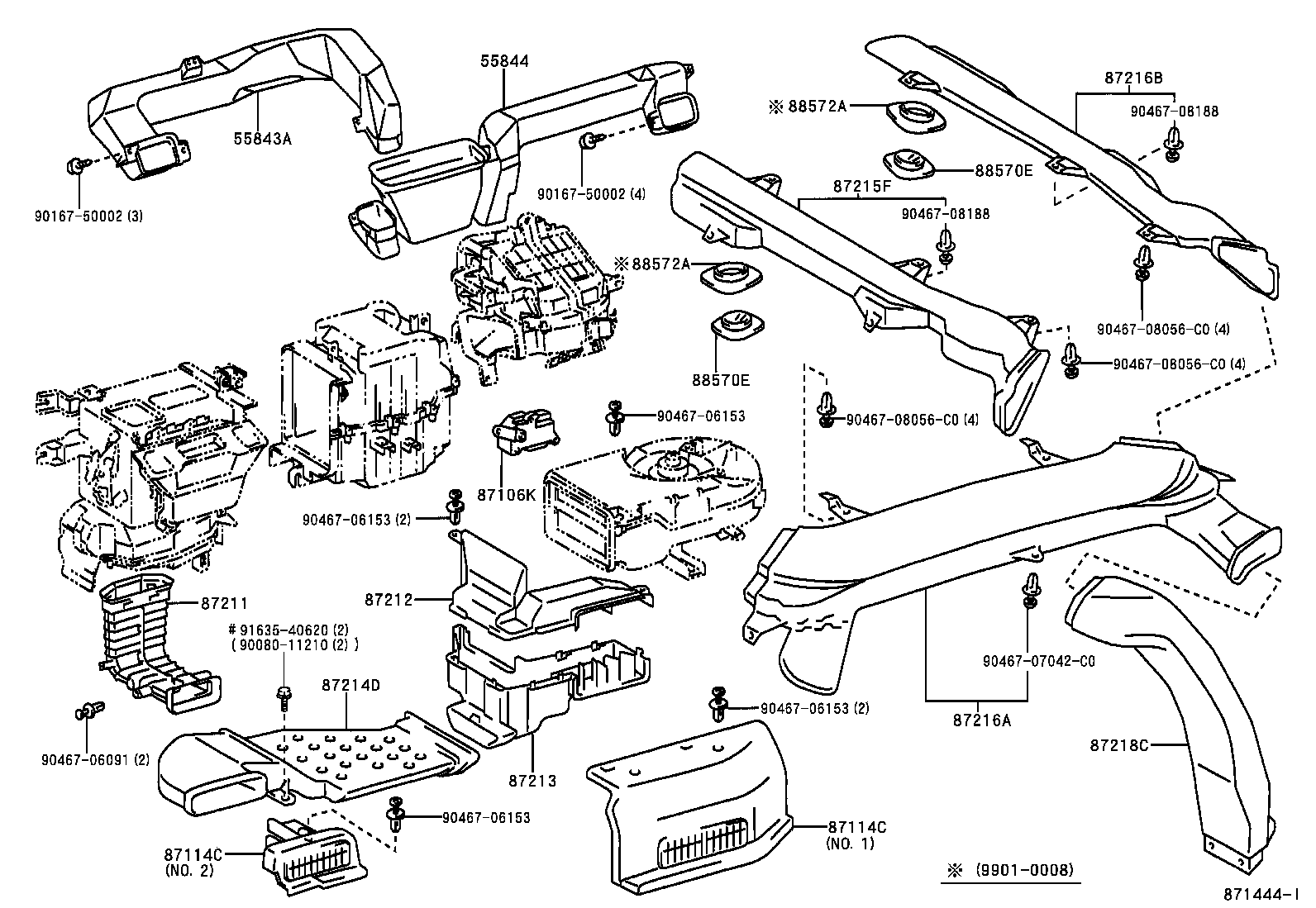

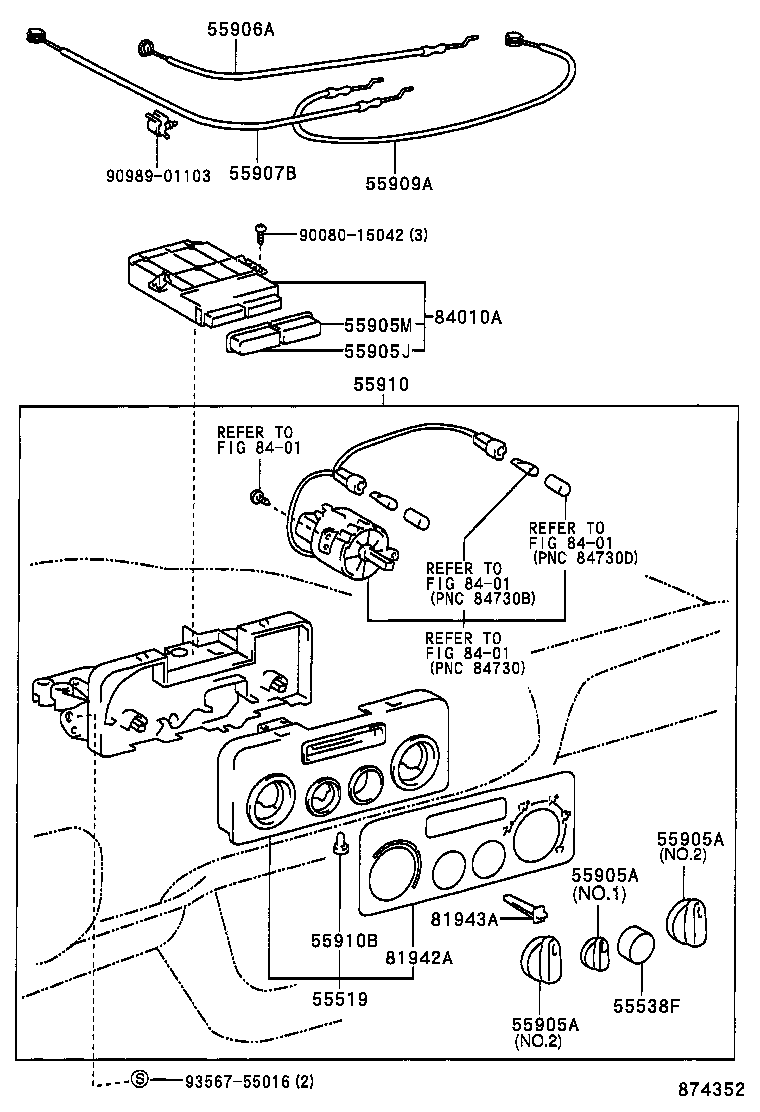

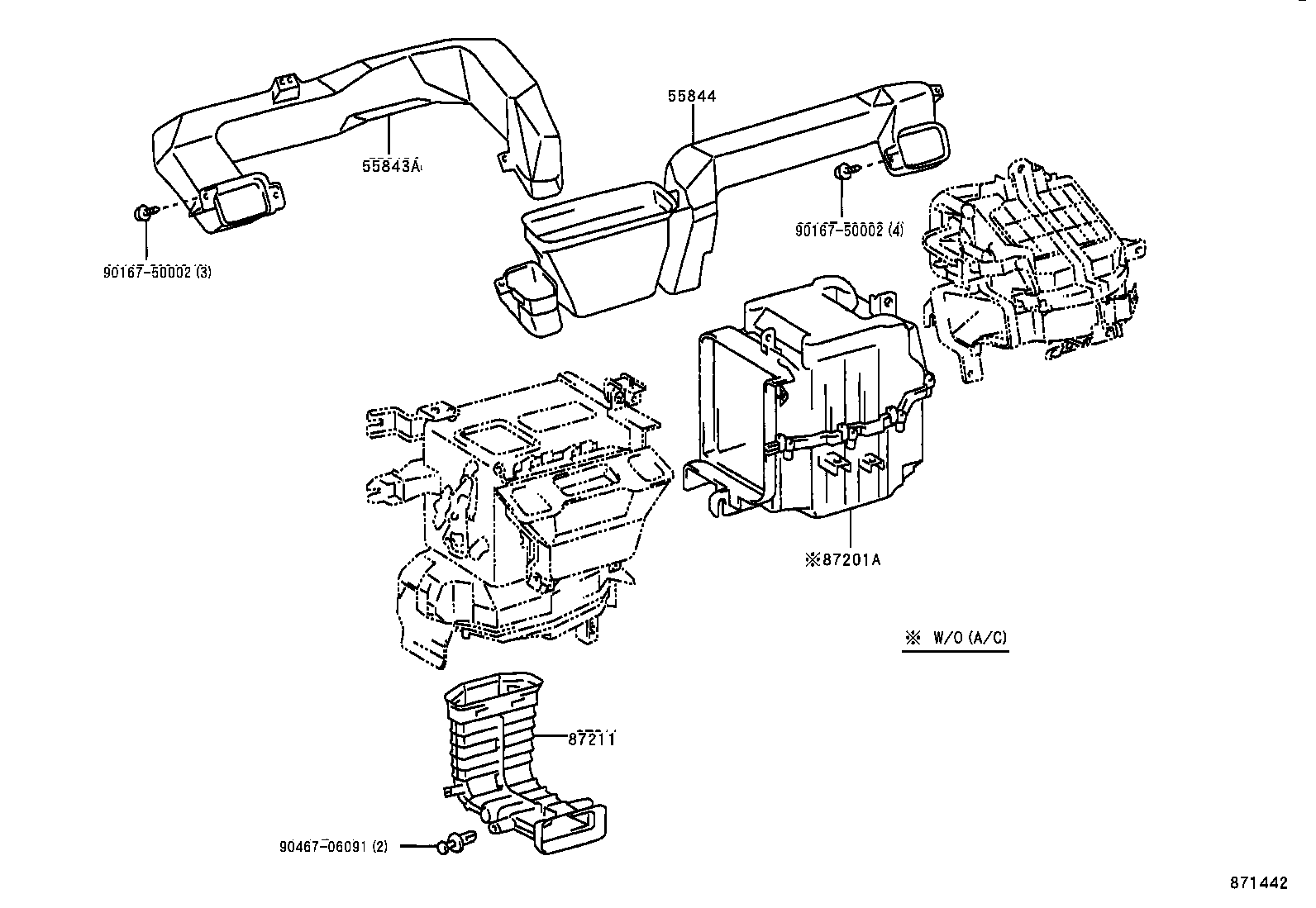

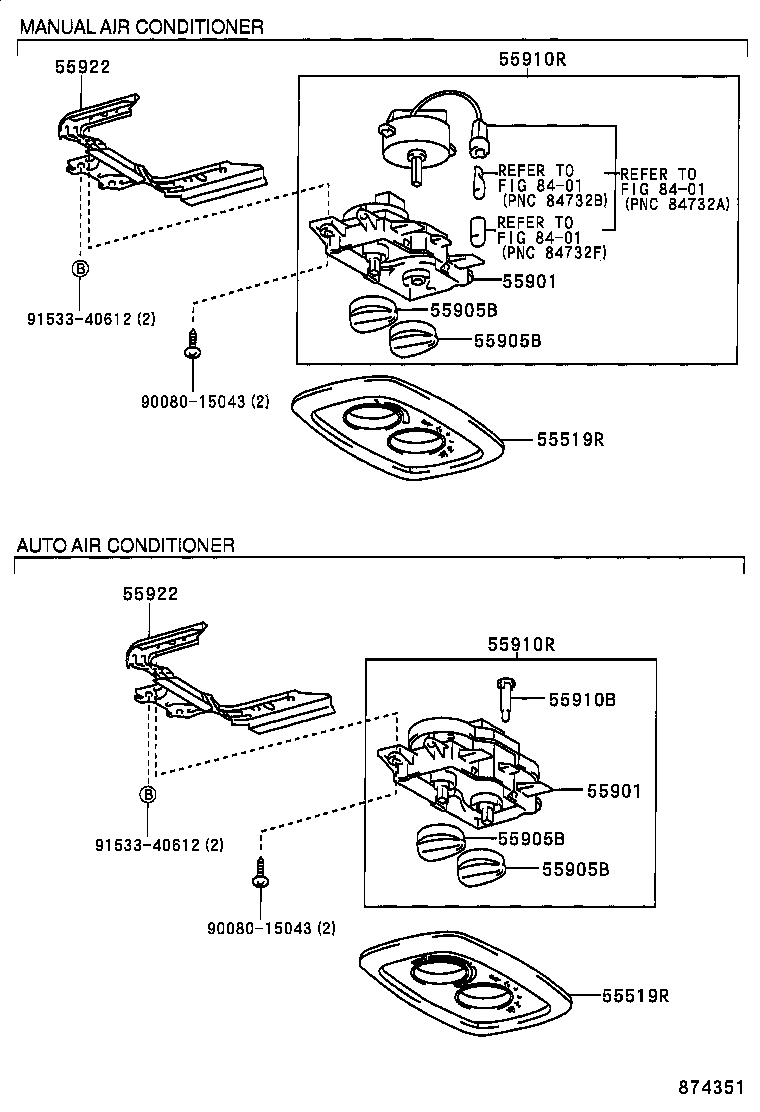

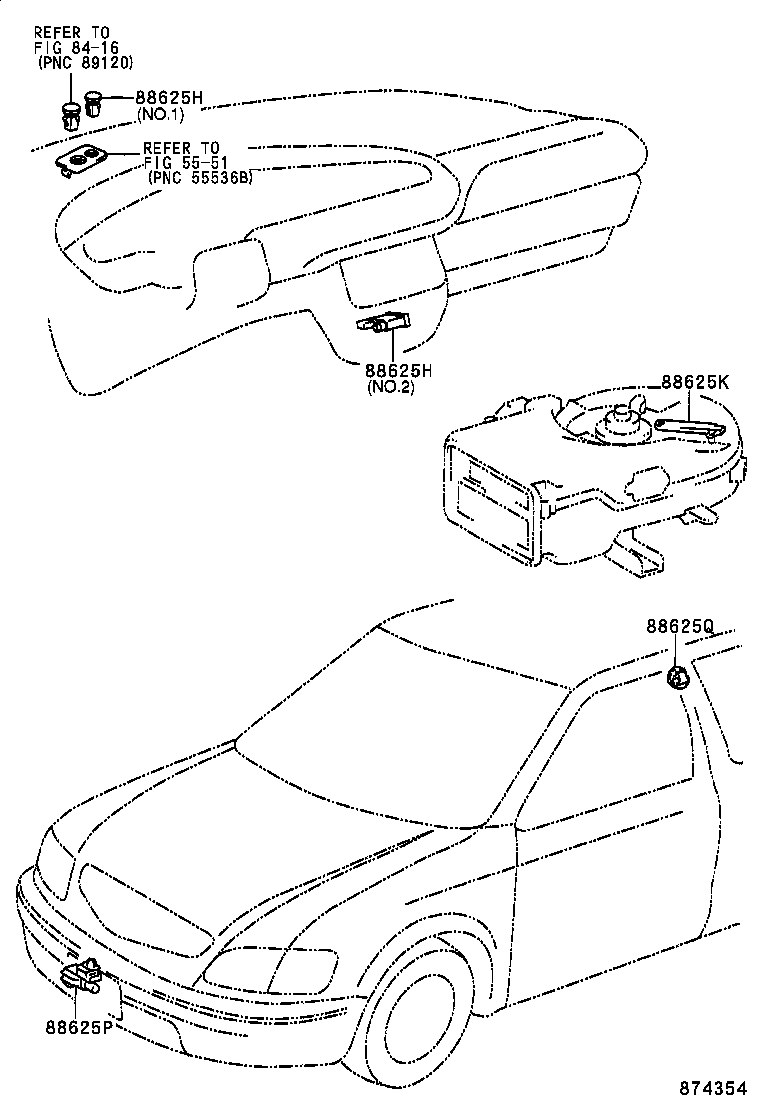

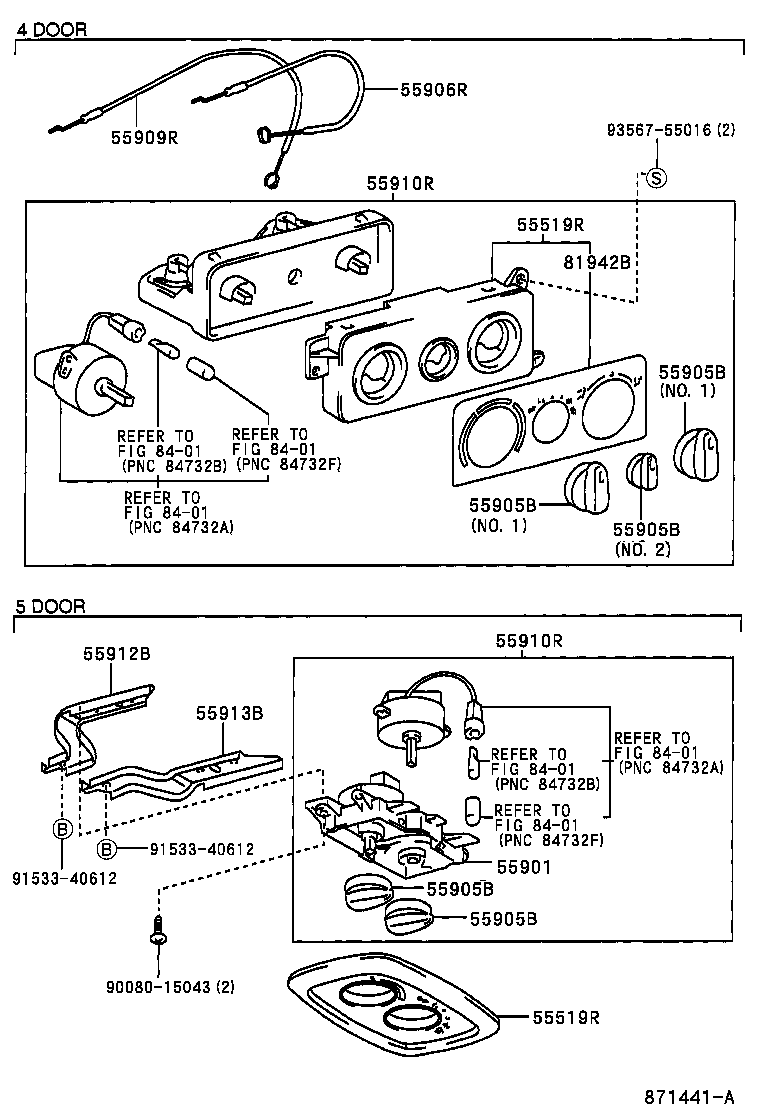

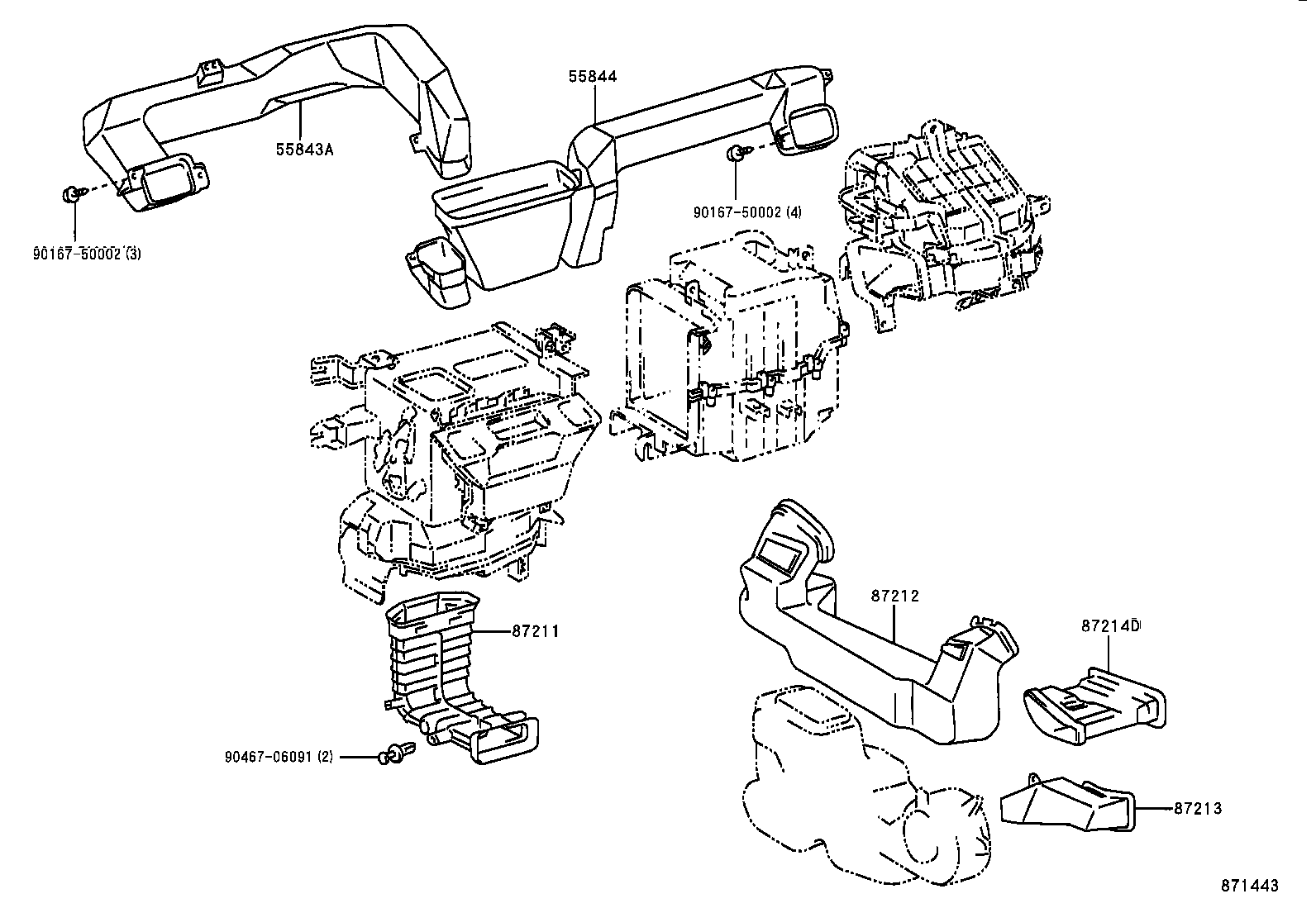

Figure 871440 871440 1997-08 → 2000-08 Figure 874352 874352 2000-08 → — Figure 874353 874353 2000-08 → — Figure 871441A 871441A 1997-08 → 2000-08 Figure 874351 874351 2000-08 → — Figure 871442 871442 1997-08 → 2000-08 Figure 871443 871443 1997-08 → 2000-08 Figure 871444I 871444I 1997-08 → — Figure 874354 874354 2000-08 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55538F Cover, Cooler Switch Hole
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55901 Base Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905J Knob Sub-assy, Control
55905M Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55906R Cable Sub-assy, Heater Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55909R Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910B Bulb, Heater Control
55910C Grommet(FOR HEATER CONTROL CABLE)
55910R Control Assy, Heater
55912B Bracket, Heater Control Base, RH
55913B Bracket, Heater Control Base, LH
55918A Lever, Air Inlet Damper Control
55922 Bracket, Heater Control Base
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81943A Lens, Heater Control Indicator Lamp
84010A Control & Panel Assy, Integration
87106K Servo Sub-assy, Damper(FOR AIRMIX)
87114C Cover, Heater
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87215F Duct, Air, Rear NO.3
87216A Duct, Air, Rear NO.5
87216B Duct, Air, Rear NO.4
87218C Duct, Air, Rear NO.6
88570E Grille Assy, Air Outlet
88572A Holder, Grille
88625H Thermistor, Cooler (SOLAR SENSOR)
88625K Thermistor, Cooler
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
