Toyota Sienna
2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States
Supported model
Data version 2010-07

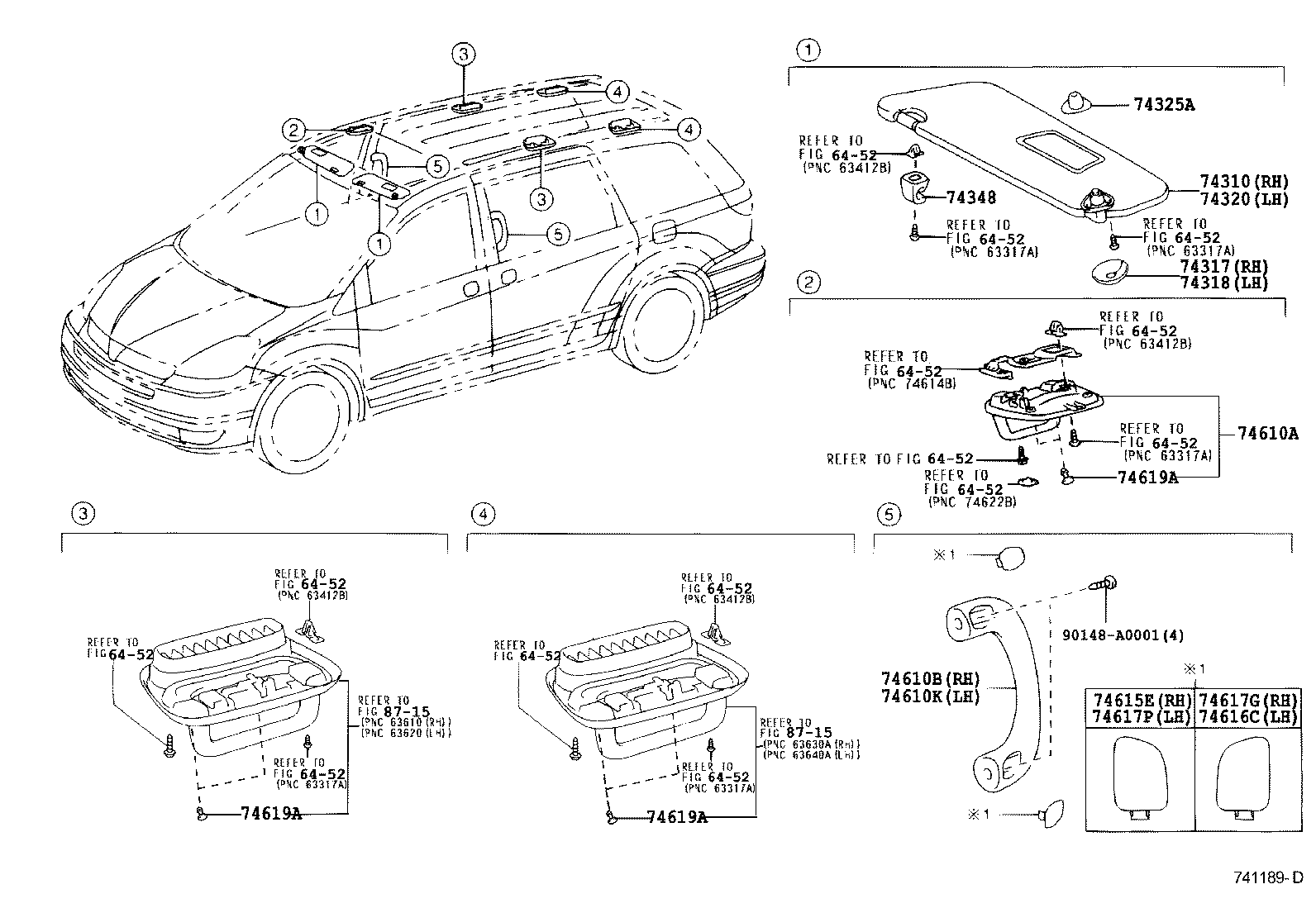

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-08090-A0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20 CE | — | |
| 74310-08090-A0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20,25 LE,XLE | — | |
| 74310-08090-B0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20 CE | — | |
| 74310-08090-B0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20,25 LE,XLE | — | |
| 74310-08091-A0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL20,25 LE,XLE | — | |
| 74310-08091-A0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL20,25 CE | — | |
| 74310-08091-B0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL20,25 LE,XLE | — | |
| 74310-08091-B0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL20,25 CE | — | |
| 74310-08100-A0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20,23 CE | — | |
| 74310-08100-A0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20 LE USA | — | |
| 74310-08100-B0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20,23 CE | — | |
| 74310-08100-B0 note |
Visor Assy, RH
2003-01 → 2004-01
ended
|
MCL20 LE USA | — | |
| 74310-08101-A0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL2# CE | — | |
| 74310-08101-A0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL20 LE USA | — | |
| 74310-08101-B0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL2# CE | — | |
| 74310-08101-B0 note |
Visor Assy, RH
2004-01 → 2005-09
ended
|
MCL20 LE USA | — | |
| 74310-08091-A0 note |
Visor Assy, RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74310-08091-B0 note |
Visor Assy, RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74310-08091-A0 note |
Visor Assy, RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74310-08091-B0 note |
Visor Assy, RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74317 — Cover, Visor Bracket, RH | ||||
| 74317-08050-A0 note |
Cover, Visor Bracket, RH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74317-08050-A0 note |
Cover, Visor Bracket, RH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74317-08050-A0 note |
Cover, Visor Bracket, RH
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74317-08050-B0 note |
Cover, Visor Bracket, RH
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74317-08050-B0 note |
Cover, Visor Bracket, RH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74317-08050-B0 note |
Cover, Visor Bracket, RH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74317-08050-A0 note |
Cover, Visor Bracket, RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74317-08050-B0 note |
Cover, Visor Bracket, RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74317-08050-A0 note |
Cover, Visor Bracket, RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74317-08050-B0 note |
Cover, Visor Bracket, RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74318 — Cover, Visor Bracket, LH | ||||
| 74318-08040-A0 note |
Cover, Visor Bracket, LH
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74318-08040-A0 note |
Cover, Visor Bracket, LH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74318-08040-A0 note |
Cover, Visor Bracket, LH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74318-08040-B0 note |
Cover, Visor Bracket, LH
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74318-08040-B0 note |
Cover, Visor Bracket, LH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74318-08040-B0 note |
Cover, Visor Bracket, LH
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74318-08040-A0 note |
Cover, Visor Bracket, LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74318-08040-B0 note |
Cover, Visor Bracket, LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74318-08040-A0 note |
Cover, Visor Bracket, LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74318-08040-B0 note |
Cover, Visor Bracket, LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-08090-A0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20,25 LE,XLE | — | |
| 74320-08090-A0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20 CE | — | |
| 74320-08090-B0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20,25 LE,XLE | — | |
| 74320-08090-B0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20 CE | — | |
| 74320-08091-A0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL20,25 LE,XLE | — | |
| 74320-08091-A0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL20,25 CE | — | |
| 74320-08091-B0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL20,25 LE,XLE | — | |
| 74320-08091-B0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL20,25 CE | — | |
| 74320-08100-A0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20,23 CE | — | |
| 74320-08100-A0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20 LE USA | — | |
| 74320-08100-B0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20,23 CE | — | |
| 74320-08100-B0 note |
Visor Assy, LH
2003-01 → 2004-01
ended
|
MCL20 LE USA | — | |
| 74320-08101-A0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL2# CE | — | |
| 74320-08101-A0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL20 LE USA | — | |
| 74320-08101-B0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL20 LE USA | — | |
| 74320-08101-B0 note |
Visor Assy, LH
2004-01 → 2005-09
ended
|
MCL2# CE | — | |
| 74320-08091-A0 note |
Visor Assy, LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74320-08091-B0 note |
Visor Assy, LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74320-08091-A0 note |
Visor Assy, LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74320-08091-B0 note |
Visor Assy, LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74325A — Support, Front Visor, NO.1 | ||||
| 63679-08040 |
Support, Front Visor, NO.1
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 63679-08040 |
Support, Front Visor, NO.1
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE CND | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE CND | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 |
Support, Front Visor, NO.1
2006-12 → —
|
GSL2# | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE CND | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE CND | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE USA | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 63679-08040 note |
Support, Front Visor, NO.1
2007-08 → —
|
GSL20,25 LE | — | |
| 74348 — Holder, Visor | ||||
| 74348-08050-A0 note |
Holder, Visor
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74348-08050-A0 note |
Holder, Visor
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74348-08050-A0 note |
Holder, Visor
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74348-08050-B0 note |
Holder, Visor
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74348-08050-B0 note |
Holder, Visor
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74348-08050-B0 note |
Holder, Visor
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74348-08050-A0 note |
Holder, Visor
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74348-08050-B0 note |
Holder, Visor
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74348-08050-A0 note |
Holder, Visor
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74348-08050-B0 note |
Holder, Visor
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74610-08040-A0 note |
Grip Sub-assy, Assist
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74610-08040-A0 note |
Grip Sub-assy, Assist
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74610-08040-A0 note |
Grip Sub-assy, Assist
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74610-08040-B0 note |
Grip Sub-assy, Assist
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74610-08040-B0 note |
Grip Sub-assy, Assist
2003-01 → 2005-09
ended
|
MCL20,23;MCL25 LE,XLE | — | |
| 74610-08040-B0 note |
Grip Sub-assy, Assist
2004-09 → 2005-09
ended
|
MCL25 CE | — | |
| 74610-08040-A0 note |
Grip Sub-assy, Assist
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74610-08040-B0 note |
Grip Sub-assy, Assist
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74610-08040-A0 note |
Grip Sub-assy, Assist
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74610-08040-B0 note |
Grip Sub-assy, Assist
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74610B — Grip Assy, Assist, NO.2 RH | ||||
| 74620-08010-B0 note |
Grip Assy, Assist, NO.2 RH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74620-08010-E0 note |
Grip Assy, Assist, NO.2 RH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74620-08010-B0 note |
Grip Assy, Assist, NO.2 RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74620-08010-E0 note |
Grip Assy, Assist, NO.2 RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74620-08010-B0 note |
Grip Assy, Assist, NO.2 RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74620-08010-E0 note |
Grip Assy, Assist, NO.2 RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74610K — Grip Assy, Assist, NO.2 LH | ||||
| 74620-08010-B0 note |
Grip Assy, Assist, NO.2 LH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74620-08010-E0 note |
Grip Assy, Assist, NO.2 LH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74620-08010-B0 note |
Grip Assy, Assist, NO.2 LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74620-08010-E0 note |
Grip Assy, Assist, NO.2 LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74620-08010-B0 note |
Grip Assy, Assist, NO.2 LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74620-08010-E0 note |
Grip Assy, Assist, NO.2 LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74615E — Plug, Front Assist Grip, NO.1 RH | ||||
| 74617-08010-B0 note |
Plug, Front Assist Grip, NO.1 RH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08010-E0 note |
Plug, Front Assist Grip, NO.1 RH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08010-B0 note |
Plug, Front Assist Grip, NO.1 RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08010-E0 note |
Plug, Front Assist Grip, NO.1 RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08010-B0 note |
Plug, Front Assist Grip, NO.1 RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74617-08010-E0 note |
Plug, Front Assist Grip, NO.1 RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74616C — Plug, Front Assist Grip, NO.1 LH | ||||
| 74617-08020-B0 note |
Plug, Front Assist Grip, NO.1 LH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08020-E0 note |
Plug, Front Assist Grip, NO.1 LH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08020-B0 note |
Plug, Front Assist Grip, NO.1 LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08020-E0 note |
Plug, Front Assist Grip, NO.1 LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08020-B0 note |
Plug, Front Assist Grip, NO.1 LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74617-08020-E0 note |
Plug, Front Assist Grip, NO.1 LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74617G — Plug, Assist Grip, NO.3 RH | ||||
| 74617-08020-B0 note |
Plug, Assist Grip, NO.3 RH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08020-E0 note |
Plug, Assist Grip, NO.3 RH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08020-B0 note |
Plug, Assist Grip, NO.3 RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08020-E0 note |
Plug, Assist Grip, NO.3 RH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08020-B0 note |
Plug, Assist Grip, NO.3 RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74617-08020-E0 note |
Plug, Assist Grip, NO.3 RH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74617P — Plug, Assist Grip, NO.3 LH | ||||
| 74617-08010-B0 note |
Plug, Assist Grip, NO.3 LH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08010-E0 note |
Plug, Assist Grip, NO.3 LH
2003-01 → 2005-09
ended
|
MCL2# | — | |
| 74617-08010-B0 note |
Plug, Assist Grip, NO.3 LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08010-E0 note |
Plug, Assist Grip, NO.3 LH
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74617-08010-B0 note |
Plug, Assist Grip, NO.3 LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74617-08010-E0 note |
Plug, Assist Grip, NO.3 LH
2006-12 → 2009-12
ended
|
GSL2# | — | |
| 74619A — Cushion, Assist Grip | ||||
| 74619-08010 |
Cushion, Assist Grip
2005-09 → 2006-12
ended
|
MCL2# | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE CND | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE CND | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE USA | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE CND | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE | — | |
| 74619-08010 note |
Cushion, Assist Grip
2007-08 → —
|
GSL20,25 LE CND | — | |
| 74619-08010 |
Cushion, Assist Grip
2006-12 → —
|
GSL2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
