Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

21 part groups · 5 illustrations

Illustrations

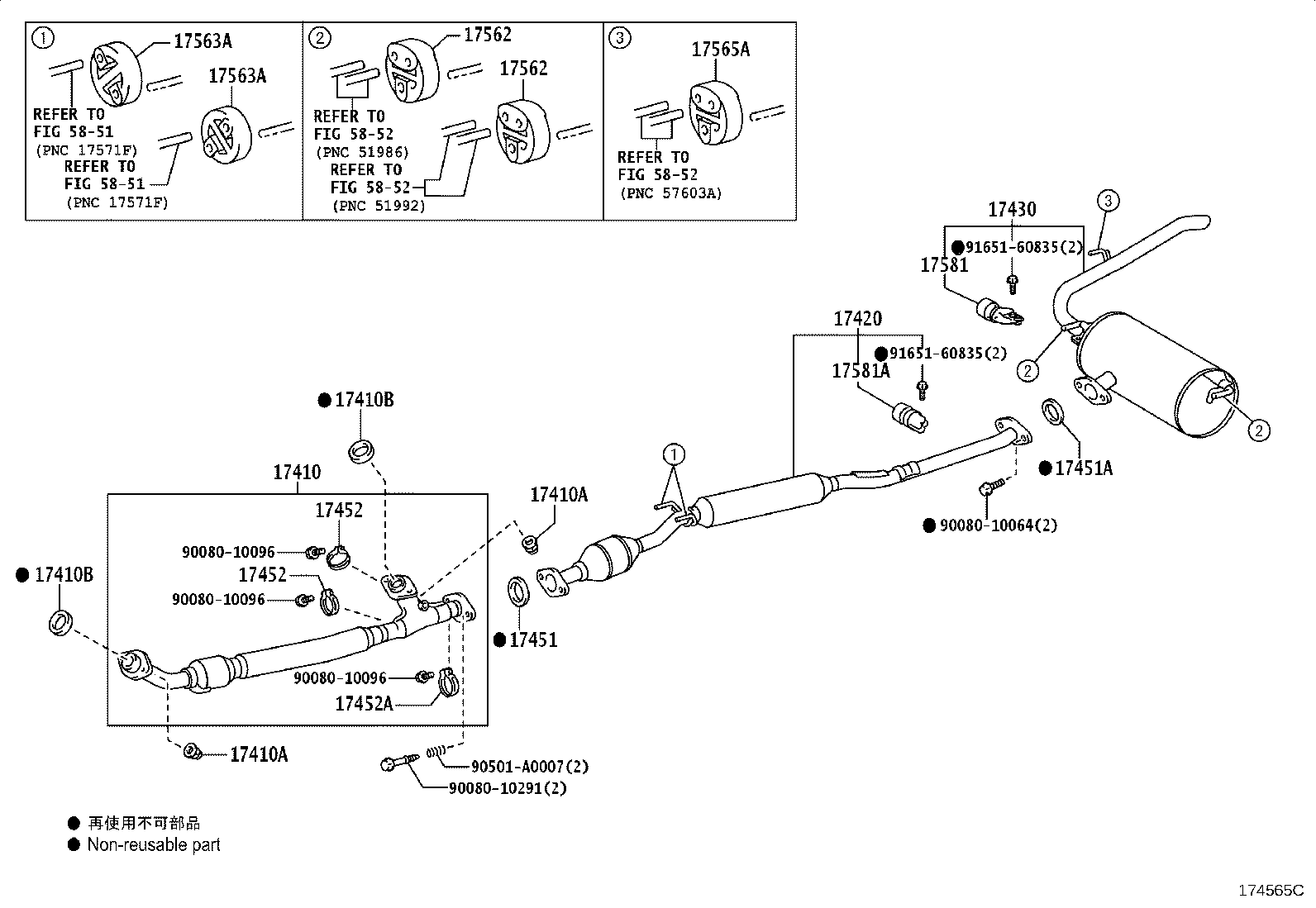

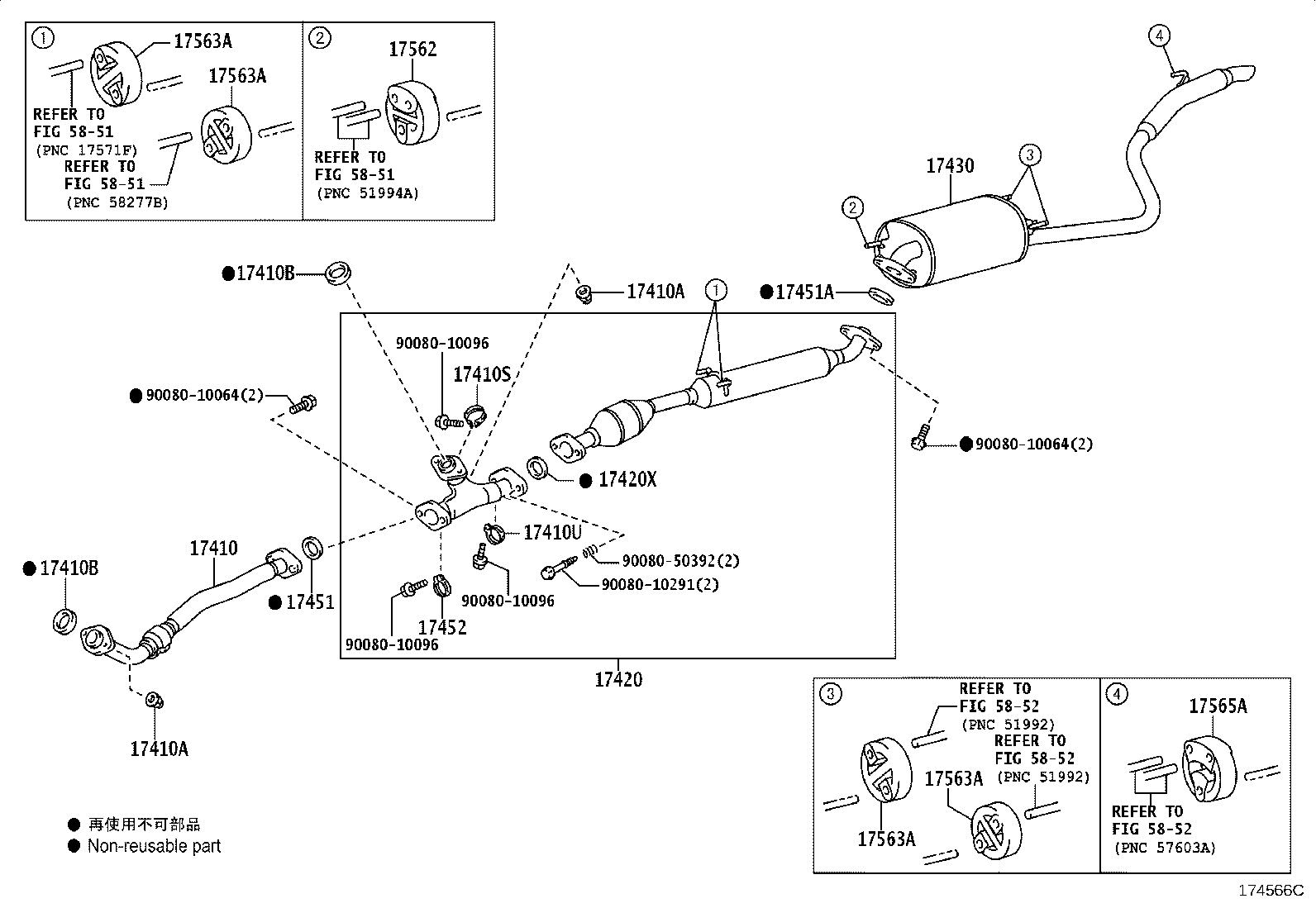

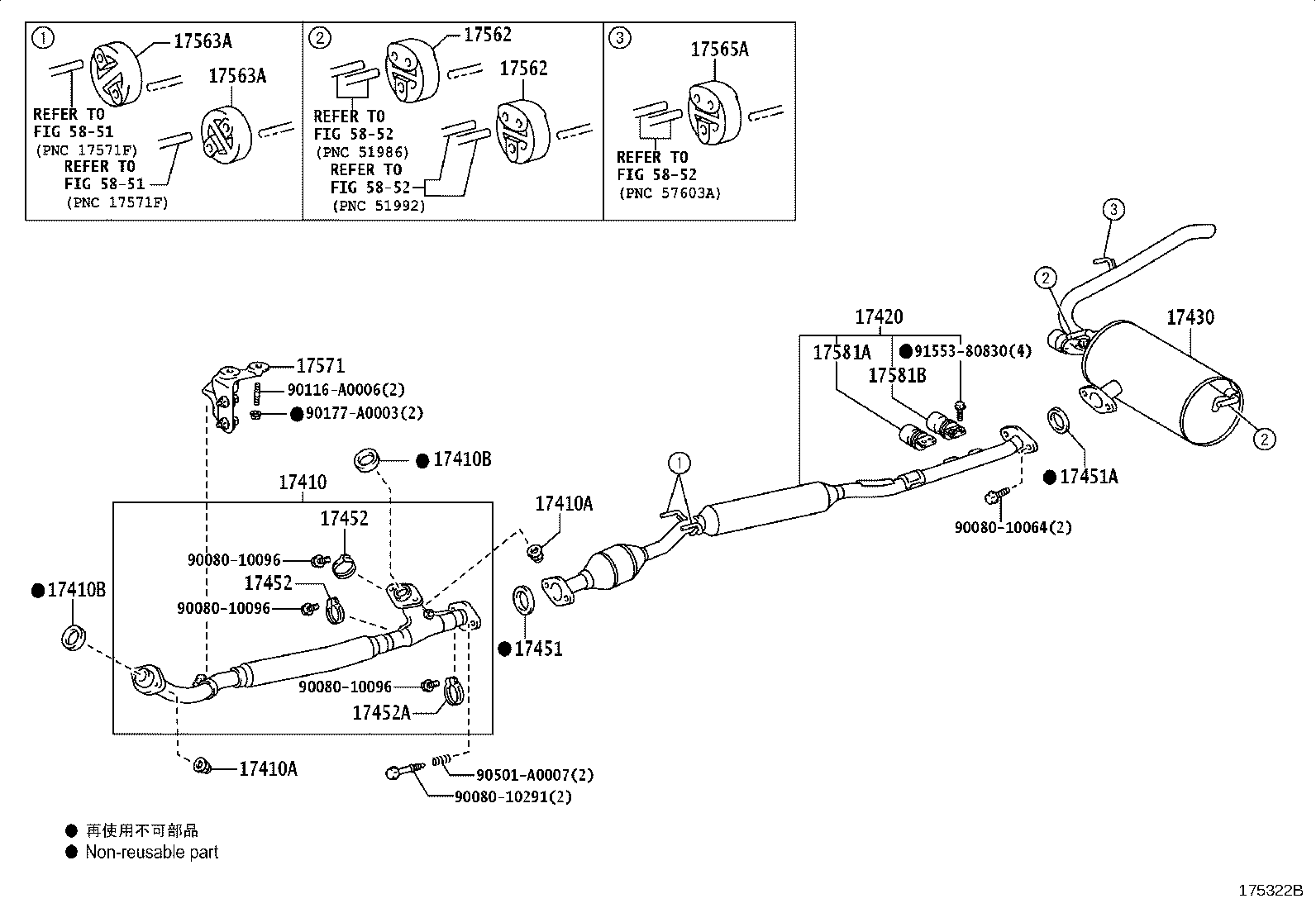

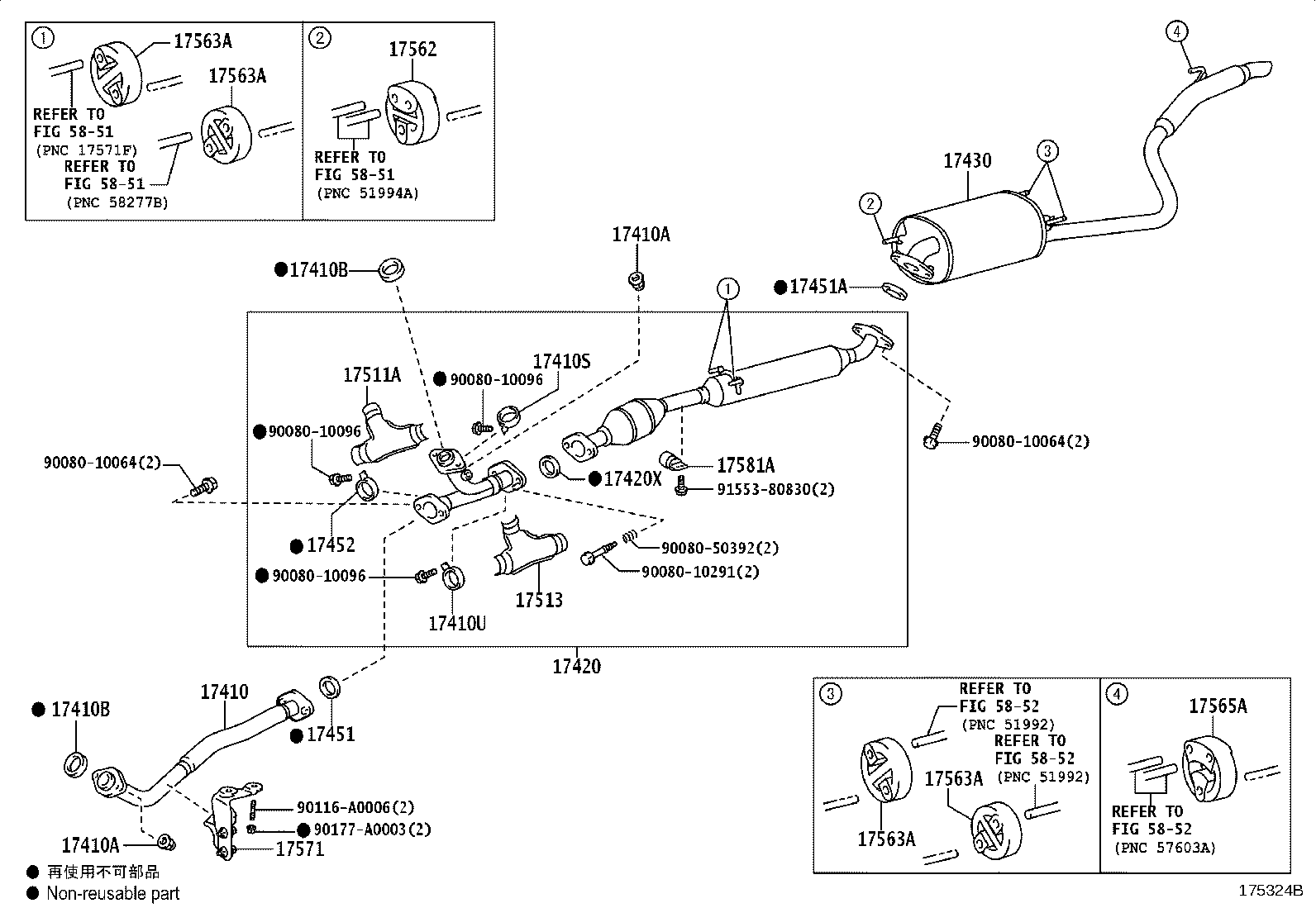

Figure 173586K 173586K 2003-01 → 2005-09 Figure 174565C 174565C 2005-09 → 2006-12 Figure 174566C 174566C 2003-01 → 2006-12 Figure 175322B 175322B 2006-12 → — Figure 175324B 175324B 2006-12 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410S Clamp NO.1, Exhaust Pipe Front (FOR CENTER)
17410U Clamp NO.2, Exhaust Pipe Front (FOR CENTER)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17452 Clamp, Exhaust Pipe
17452A Clamp, Exhaust Pipe
17511A Insulator, Exhaust Pipe, Upper NO.1
17513 Insulator, Exhaust Pipe, Lower NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17581 Bracket, Exhaust Pipe NO.1 Insulator Support
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
