Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

27 part groups · 3 illustrations

Illustrations

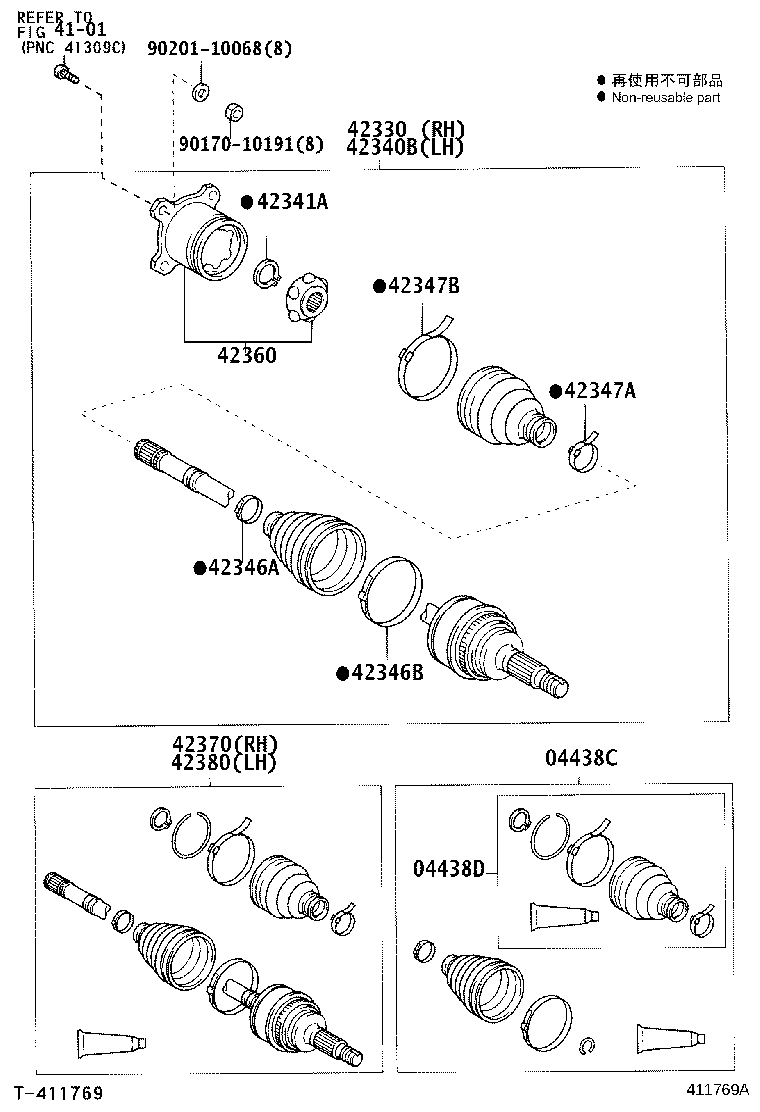

Figure 411777B 411777B 2003-01 → — Figure 411769A 411769A 2003-01 → — Figure 411776B 411776B 2003-01 → —

Part groups

PNCDescription
04438C Boot Kit, Rear Drive Shaft
04438D Boot Kit, Rear Drive Shaft Inboard Joint
42311N Nut(FOR REAR AXLE SHAFT RH)
42311U Bolt, Hub(FOR REAR AXLE RH)
42312B Nut(FOR REAR AXLE SHAFT LH)
42312E Bolt, Hub(FOR REAR AXLE LH)
42330 Shaft Assy, Rear Drive, RH
42340B Shaft Assy, Rear Drive, LH
42341A Ring, Snap (FOR REAR DRIVE SHAFT)
42346A Clamp (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346B Clamp, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347A Clamp (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347B Clamp, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42360 Joint Assy, Rear Drive Shaft Inboard
42370 Shaft Assy, Rear Drive Outboard Joint
42380 Shaft Assy, Rear Drive Outboard Joint, LH
42403 Drum Sub-assy, Rear Brake
42410 Hub & Bearing Assy, Rear Axle, RH
42423A Retainer, Rear Axle Bearing, Inner RH
42423B Retainer, Rear Axle Bearing, Inner LH
42424 Retainer, Rear Axle Bearing, Outer, RH
42431 Disc, Rear
42440 Hub & Bearing Assy, Rear Axle, LH
42450A Hub & Bearing Assy, Rear Axle, RH
42450B Hub & Bearing Assy, Rear Axle, LH
42454 Retainer, Rear Axle Bearing, Outer, LH
42491 Plug, Shoe Adjusting Hole (FOR PARKING BRAKE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
