Toyota Sienna

2003-01 → 2009-12 · chassis GSL2#,MCL2# · catalogue 622420 · United States

Supported model Data version 2010-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 8 illustrations

Illustrations

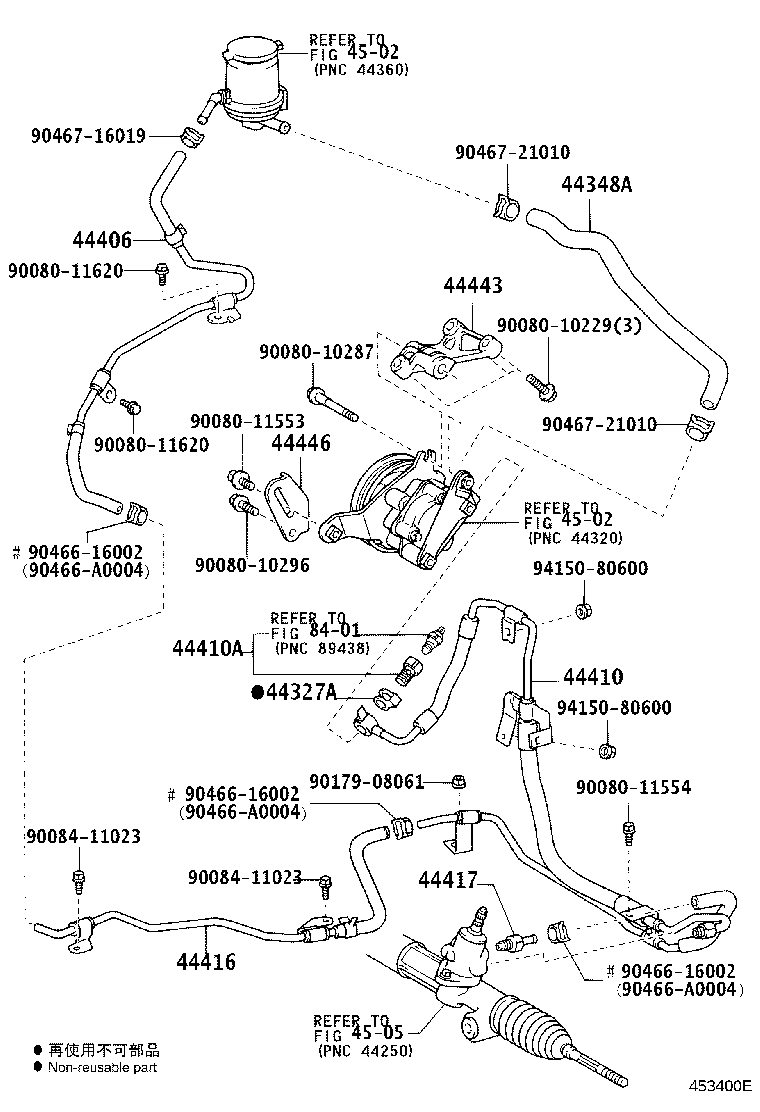

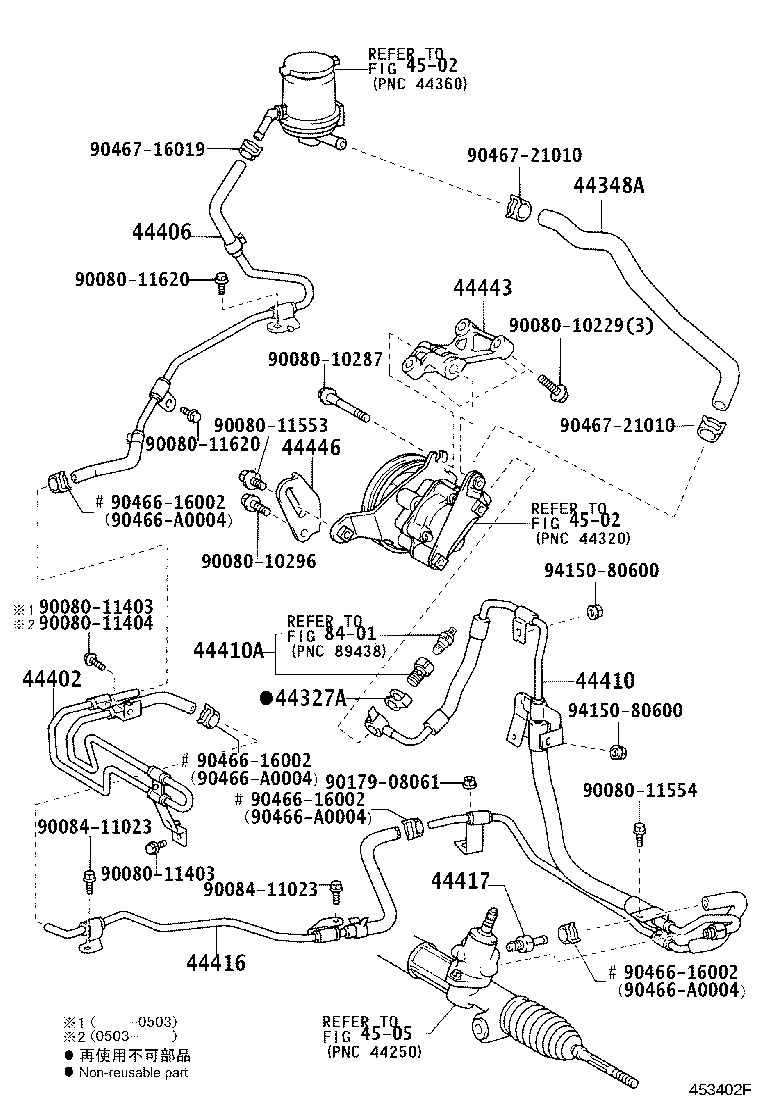

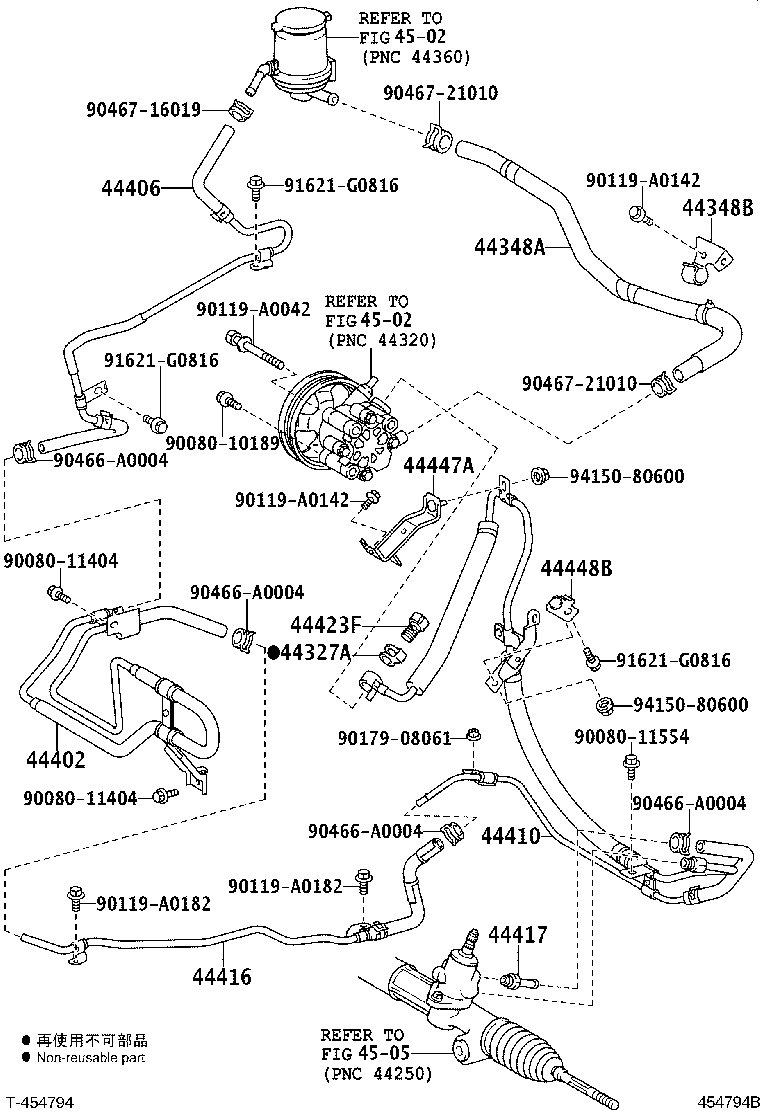

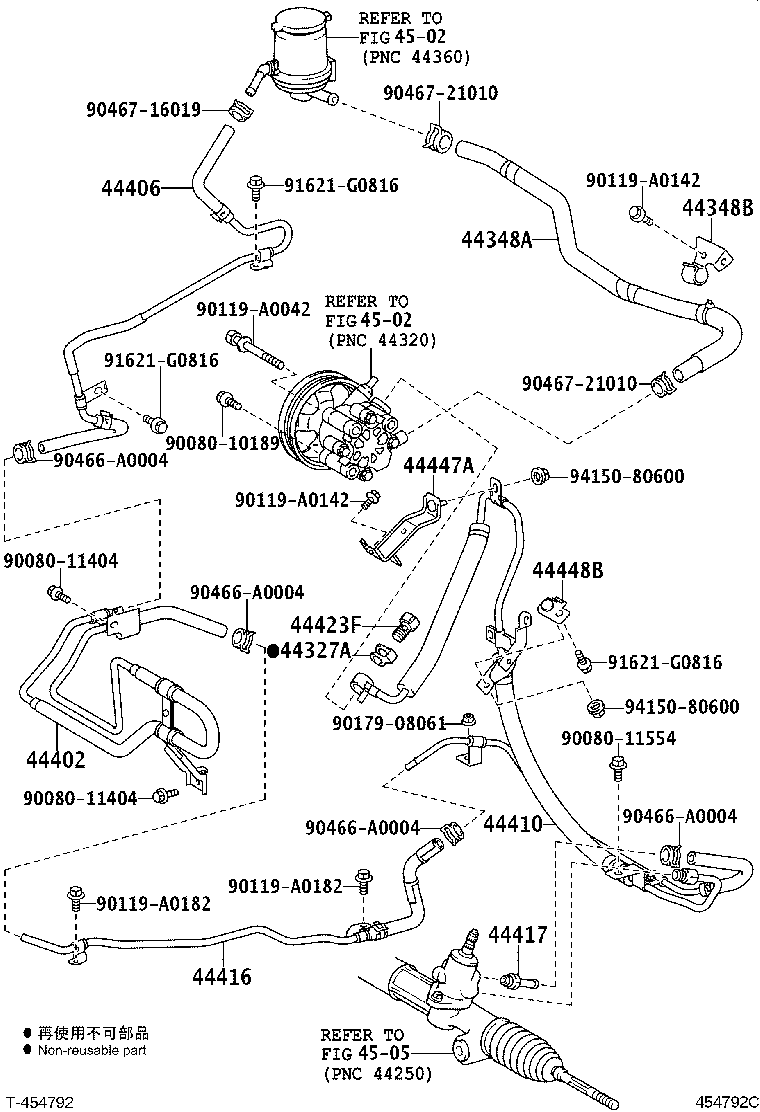

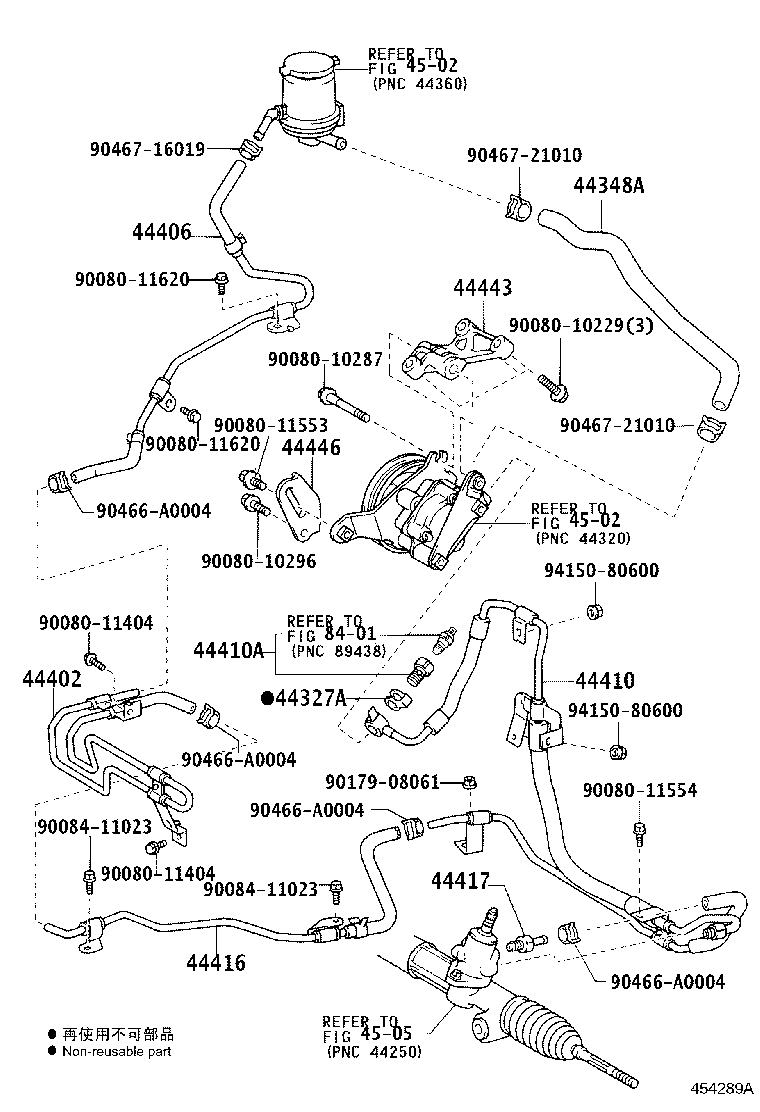

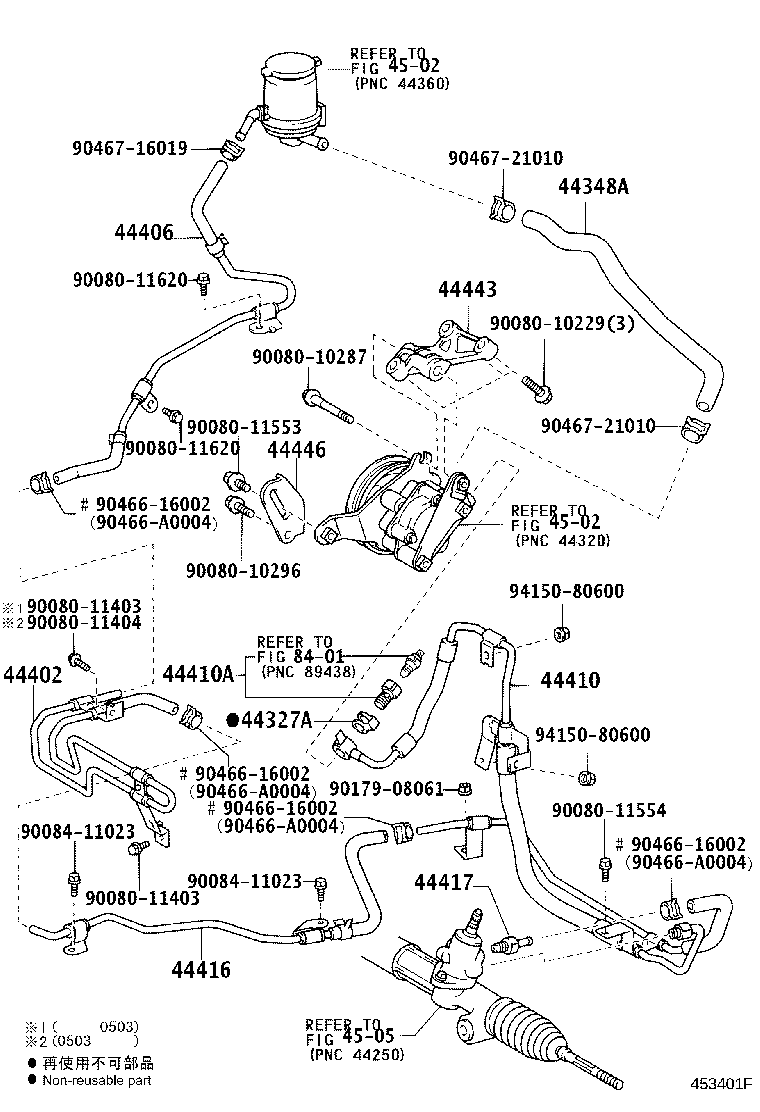

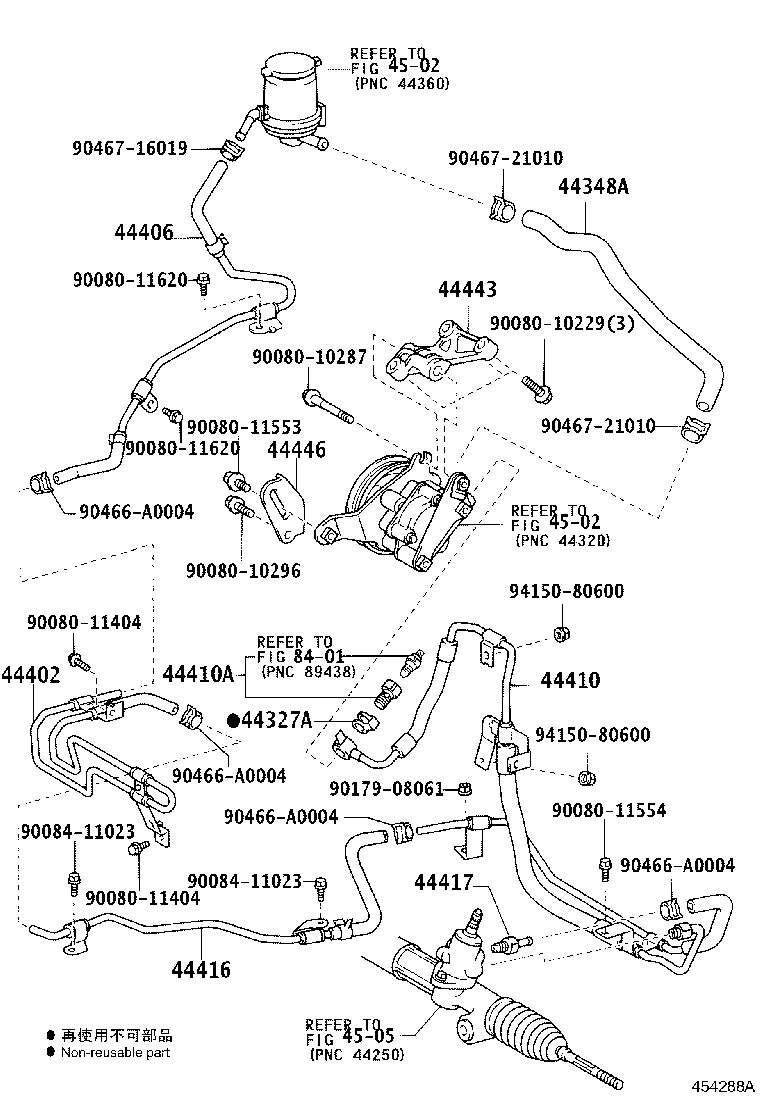

Figure 453399E 453399E 2003-01 → 2005-09 Figure 453400E 453400E 2003-01 → 2005-09 Figure 453401F 453401F 2003-01 → 2005-09 Figure 453402F 453402F 2003-01 → 2005-09 Figure 454288A 454288A 2005-09 → 2006-12 Figure 454289A 454289A 2005-08 → 2006-12 Figure 454792C 454792C 2006-12 → — Figure 454794B 454794B 2006-12 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44417 Tube, Return, NO.2
44423F Bolt, Union
44443 Bracket, Pump
44446 Strut, Adjusting
44447A Bracket, Hose Support, NO.1
44448B Bracket, Hose Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
